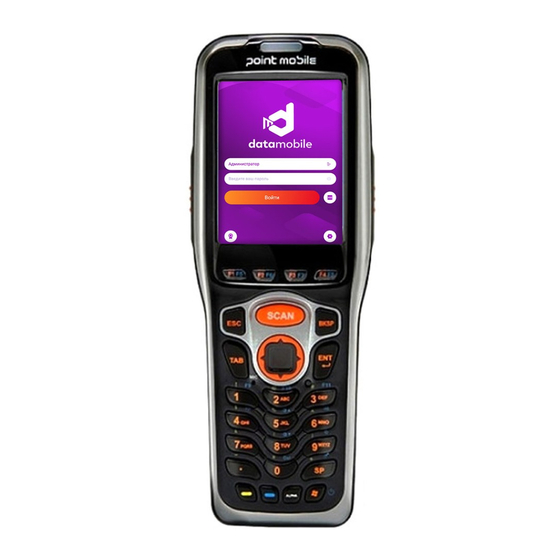

Point Mobile PM260 Quick Reference Manual

Point Mobile PM260 Quick Reference Manual

Handy terminal
Hide thumbs Also See for PM260:

Advertisement

Quick Links

PM260 Terminal
Stylus pen
AC/DC power adapter
AC plugs
Battery pack
Hand strap
Quick reference manual
Belt clip
LCD screen protector
USB ActiveSync cable
Regulatory sleeve
EULA sleeve
HANDY TERMINAL
Quick Reference Manual
PM260
Front
Side scan key
Front scan key
Getting Started
1. Open the cover
S
lide the lockers upwards and remove
the cover by pulling on it with your finger.
Back
Belt clip bracket
Battery cover locker
Stylus pen
Hand strap
Getting Started
2. MicroSD card
Micro SD Card is sold separately.
Please contact your dealer.
Micro SD Card is supported up to 32GB.
Red key
Blue key
es
(Press Blue key first)
Getting Started
3. Insert the battery
First, insert the battery into the battery well
with the labels facing upward.
Close the cover from the bottom and push
down the cover until it locks properly.
4. Attach the plug
5. Charge the battery
Using AC/DC Power Adapter

Advertisement

loading
Need help?

Need help?

Do you have a question about the PM260 and is the answer not in the manual?

Questions and answers

Summary of Contents for Point Mobile PM260

  • Page 1 Front Back Belt clip bracket PM260 Terminal Stylus pen AC/DC power adapter Side scan key AC plugs Battery cover locker Battery pack Hand strap Quick reference manual Front scan key Belt clip LCD screen protector USB ActiveSync cable Stylus pen...
  • Page 2 Getting Started How to scan How to scan Date and Time Suspend and restart Scanner beam position Software Demos Scan Demo Suspend mode works like the device is turned off. Touch the scan start button Press Blue key + windows key on the screen or press and to suspend and press windows hold one of the scan keys...
