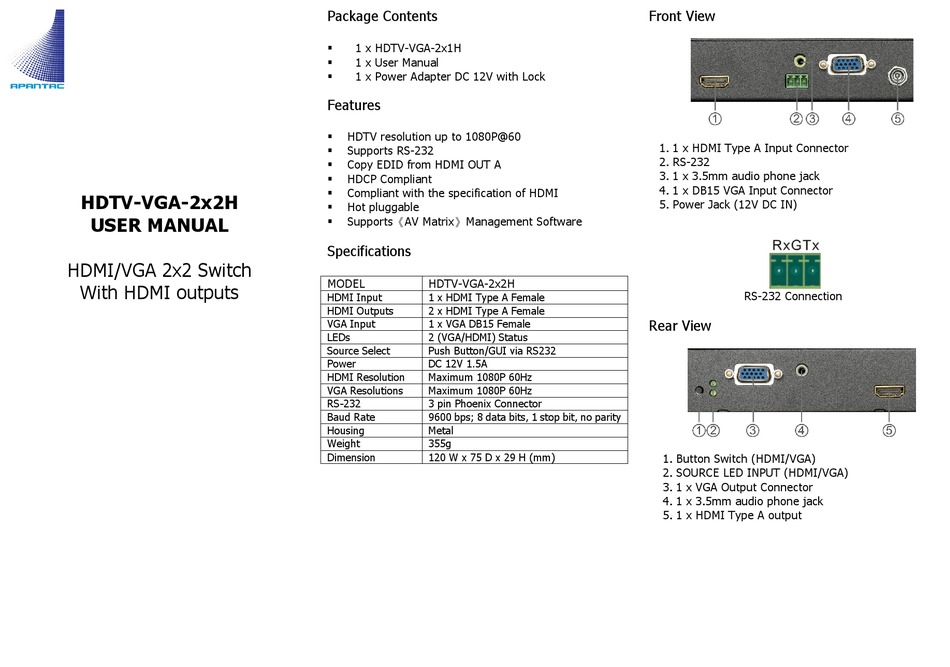

HDTV-VGA-2x2H

USER MANUAL

HDMI/VGA 2x2 Switch
With HDMI outputs
Package Contents
1 x HDTV-VGA-2x1H
§
1 x User Manual
§
1 x Power Adapter DC 12V with Lock
§
Features
HDTV resolution up to 1080P@60
§
Supports RS-232
§
Copy EDID from HDMI OUT A
§
HDCP Compliant
§
Compliant with the specification of HDMI
§
Hot pluggable
§
Supports《AV Matrix》Management Software
§
Specifications
MODEL HDTV-VGA-2x2H
HDMI Input 1 x HDMI Type A Female
HDMI Outputs 2 x HDMI Type A Female
VGA Input 1 x VGA DB15 Female
LEDs 2 (VGA/HDMI) Status
Source Select Push Button/GUI via RS232
Power DC 12V 1.5A
HDMI Resolution Maximum 1080P 60Hz
VGA Resolutions Maximum 1080P 60Hz
RS-232 3 pin Phoenix Connector
Baud Rate 9600 bps; 8 data bits, 1 stop bit, no parity
Housing Metal
Weight 355g
Dimension 120 W x 75 D x 29 H (mm)
Front View
1. 1 x HDMI Type A Input Connector
2. RS-232
3. 1 x 3.5mm audio phone jack
4. 1 x DB15 VGA Input Connector
5. Power Jack (12V DC IN)
RS-232 Connection
Rear View
1. Button Switch (HDMI/VGA)
2. SOURCE LED INPUT (HDMI/VGA)
3. 1 x VGA Output Connector
4. 1 x 3.5mm audio phone jack
5. 1 x HDMI Type A output
