Endress+Hauser Levelflex M FMP40 Series Technical Information page 8

8

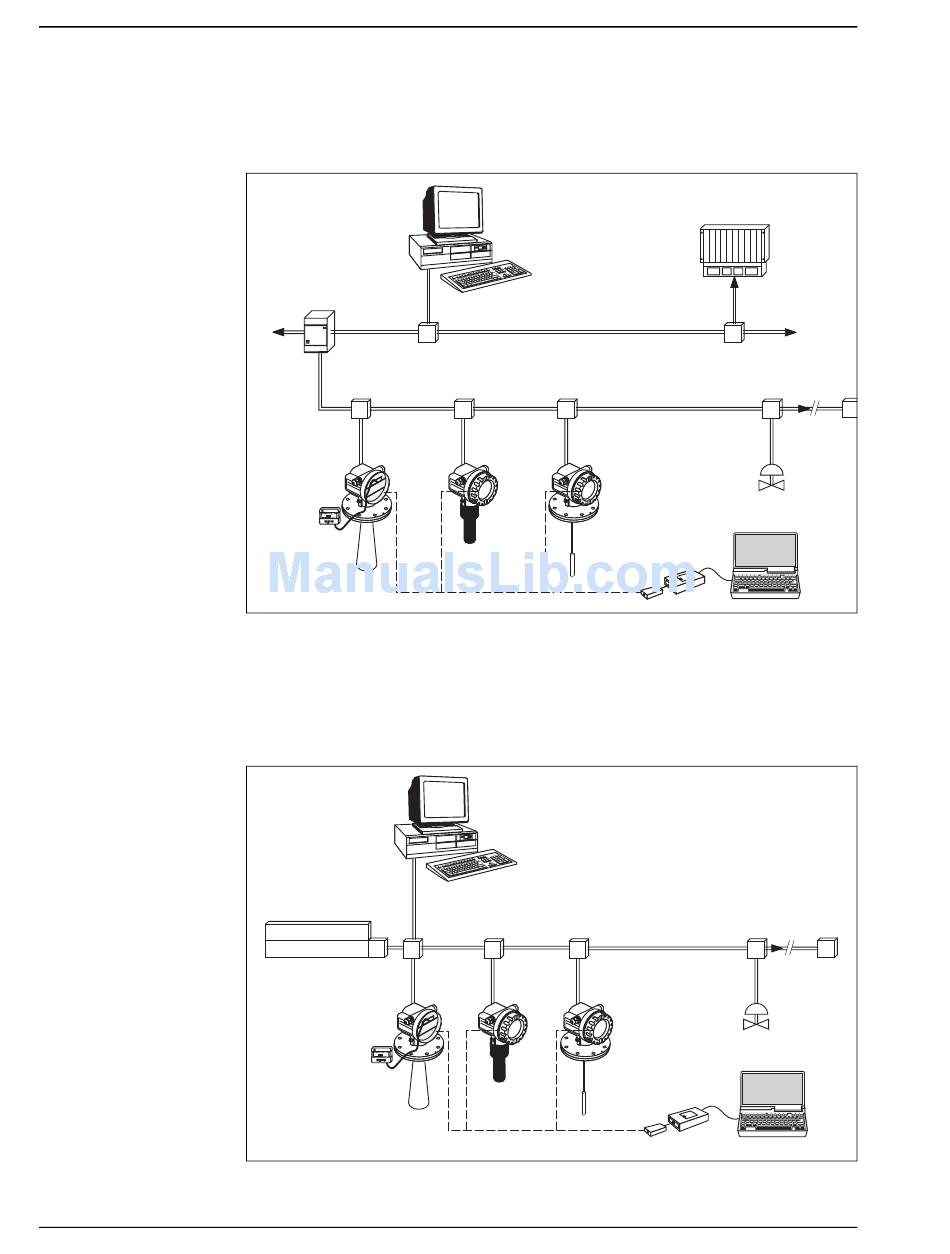

System integration via PROFIBUS PA
Maximum 32 transmitters (depending on the segment coupler, 10 in the intrinsically safe / Ex ia IIC hazardous
area according to the FISCO Model) can be connected to the bus. The Bus voltage is supplied by the segment
coupler. Both local as well as remote operation are possible.
Segment coupler
ENDRESS + HAUSER
PROFIBUS PA
Operating and
display module
VU331
ENDRESS + HAUSER
%
– + E
Micropilot M
System integration via FOUNDATION Fieldbus
Max. 32 transmitters (standard, encapsulated / Ex em or explosion proof / Ex d) can be connected to the bus.
In intrinsically safe / EEx ia IIC explosion protection: the max. number of transmitters is based on the
applicable regulations and standards for interconnecting intrinsically safe circuits (EN 60079-14), proof of
intrinsic safety. Both local as well as remote operation are possible. The complete measuring system consists of:
Power supply
Power conditioner T
Operating and
display module
VU331
ENDRESS + HAUSER
%
– + E
Micropilot M
Personal computer e.g. with
ToF Tool - FieldTool
Package and
Profibard resp. Proficard
PROFIBUS DP
Prosonic M
Levelflex M
Personal computer
e.g. with
NI-FBUS configurator
FF link
Prosonic M
Levelflex M
Levelflex M FMP40
PLC
More
Functions
(valves etc)
FXA193
ToF Tool - FieldTool Package
L00-FMxxxxxx-14-00-06-en-001
Additional
functions
(valves etc.)
FXA193
ToF Tool - FieldTool Package
L00-FMxxxxxx-14-00-06-en-003
Endress+Hauser
T
T
