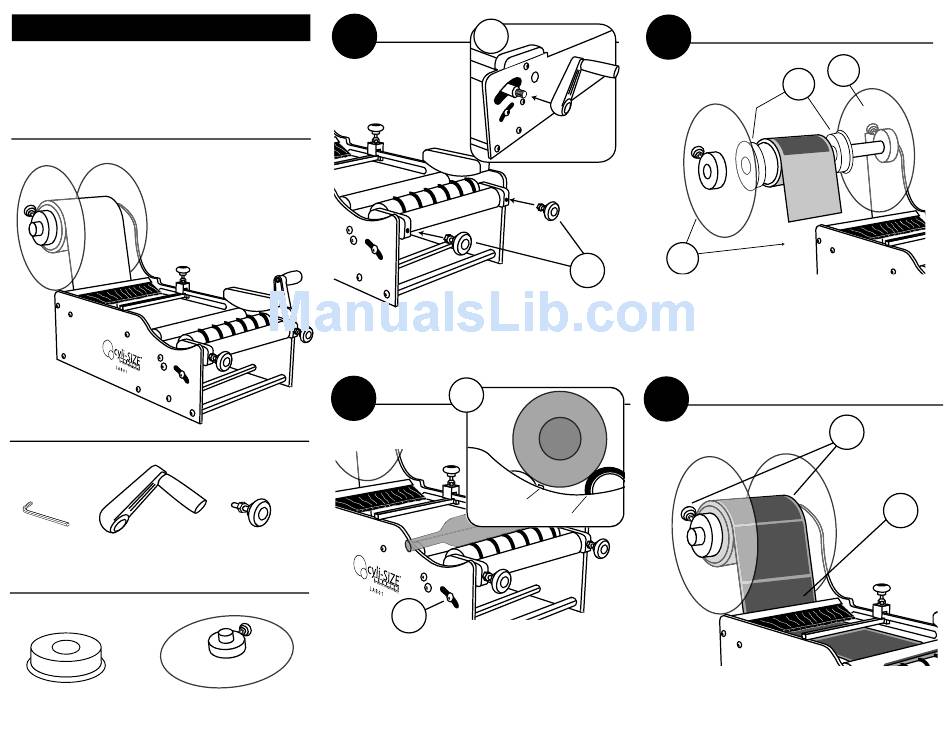

LAB01
Manual Label Applicator
ITEMS INCLUDED
Dispenser
Hex Wrench
Handle
Core Holder (2)
Reel Guide (2)
1 1
Set Up Dispenser
A: Install handle onto feed roller
B. Install and tighten the thumb screws
2
Adjust Height
Thumbscrew (2)
A: Place bottle onto rollers and adjust screws
with hex wrench to position rollers until
bottle rests 1 - 2mm above strip plate
B: Tighten screws on both sides and remove
your bottle
A
B
A
SIDE VIEW
bottle
strip plate
advancement roller
B
3
Load Label Roll
B
C
A: Slide reel guide onto the hanger bar
B: Insert core holders into your label roll
and slide loaded roll onto reel hanger bar
C: Slide other reel guide onto the hanger bar
4
Position Labels
A: Position label roll for desired placement
and tighten thumb screws
B: Feed label liner under guide bar and brush
A
A
B
