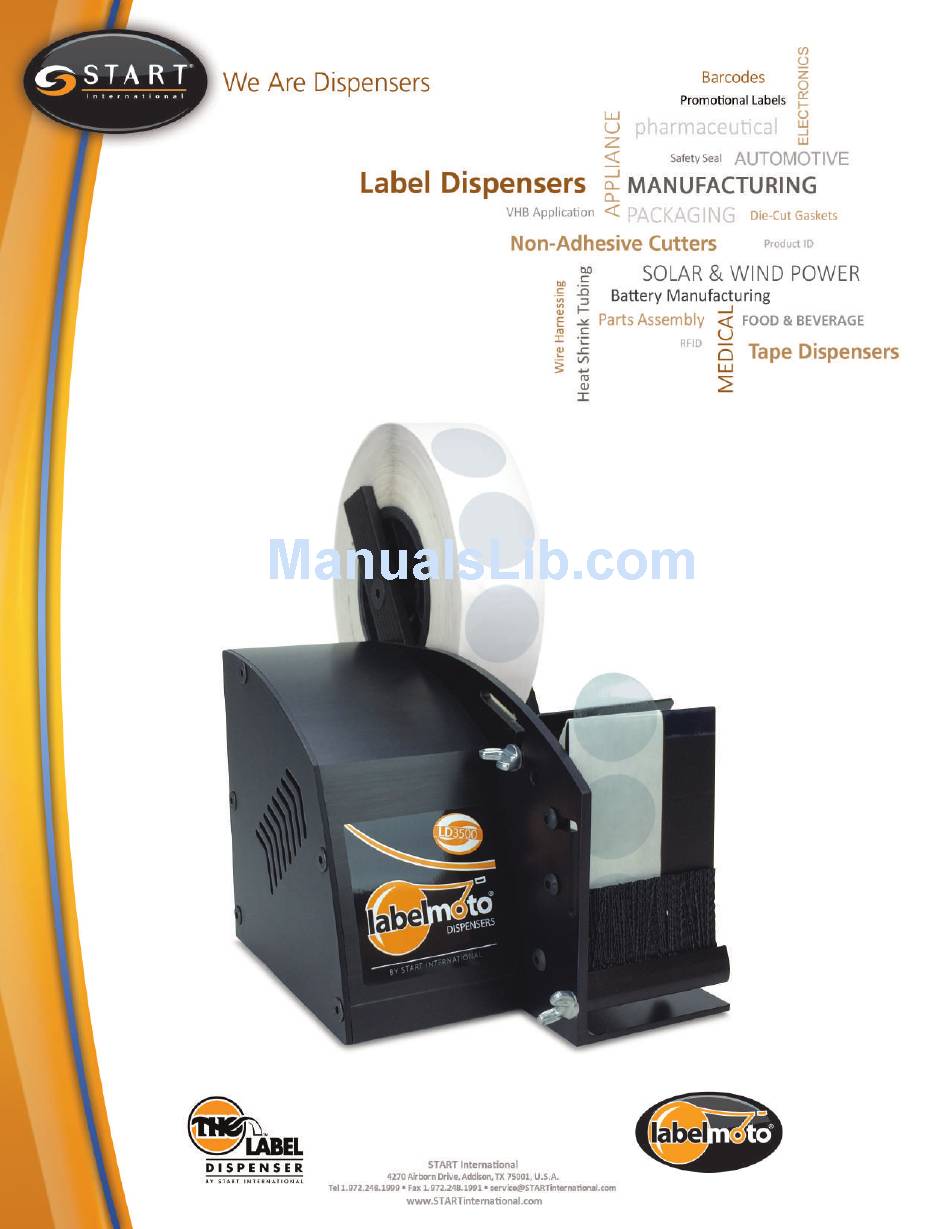

- Page 1 LD3500 Series...
-
Page 2: Table Of Contents
Operation/Adjustments WARRANTY POLICY FOR LD SERIES LABEL DISPENSERS Start lnternational warrants all parts on LD3500 series label dispensers against defects in design, materials and workmanship for a period of 720 days. Labor to replace defective parts will be performed at no charge for the first 180 days after date of purchase. Warranty does not cover transportation costs. -
Page 3: Exploded View
EXPLODED VIEW... -
Page 4: Features
• Do not drop the dispenser or subject it to heavy shock. • Turn off machine when not in use. REPAIR POLICY Contact START INTERNATIONAL to determine nature of problem. Furnish START with the following information: 1. Who the unit was purchased from. -
Page 5: Set-Up
SET-UP INSTRUCTIONS Place the label roll onto the reel hanger bar. The roll should be against a metal lock clip so that it is held straight. Place second metal lock clip onto reel hanger bar to keep the labels snug. Thread the web under the guide rod, between the hold down and the strip plate and back under the strip plate. -
Page 6: Quick Start Guide
QUICK START GUIDE... -
Page 7: Quick Start Guide
QUICK START GUIDE... -
Page 8: Operation/Adjustments
ADJUSTMENTS Hold Down: Using the upper thumbscrew on the side of the machine, adjust the hold down for tensioning. For best results, labels should be pressed firmly against the strip plate. However, if the labels are held too tightly, they will cause excessive drag on the motor. Photosensor: The photosensor can be adjusted in any direction by using the lower thumbscrew on the side of the machine and the thumbscrew underneath the photosensor bracket.
