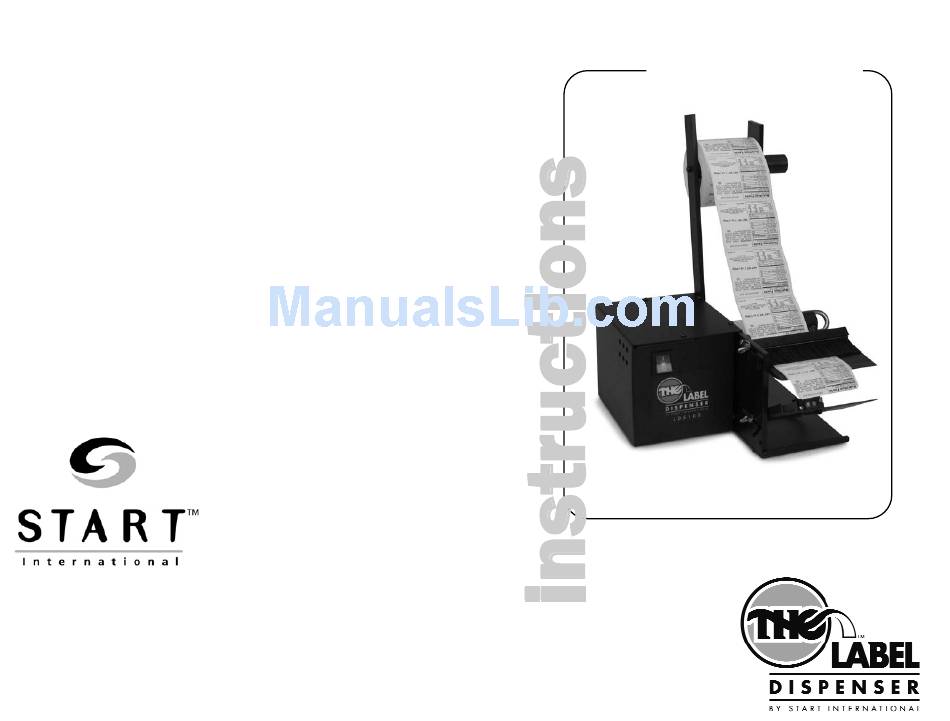

- Page 1 5000/5100/7000 4270 Airborn Drive Addison, TX 75001, USA Toll Free 800.259.1986 Tel 972.248.1999 Fax 972.248.1991 info@startinternational.com 10/07 www.startinternational.com...
- Page 2 Exploded View ..........7 WARRANTY POLICY FOR LD SERIES LABEL DISPENSERS START International warrants all parts on LD series label dispensers against defects in design, materials and workmanship for a period of 360 days. Labor to replace defective parts will be performed at no charge for the first 120 days after date of purchase.
- Page 3 SET-UP INSTRUCTIONS ADJUSTMENTS Using 5/32" (4mm) hex wrench, adjust reel holder arm to vertical. Hold Down Pad: Place the label roll on the 1" (25mm) reel hanger bar. Using the upper thumbscrew on the side of the machine, adjust the hold down pad for tensioning.
- Page 4 START will issue an RGA (Return Goods Authorization) for repair. LD50018-2 LD50018-2 LD50018-2 Return machine to START by UPS, insured and prepaid. LD70013B LD50013D LD50013D START will notify the customer if there is a repair charge. LD50012D LD70012C LD50012D LD50012-1 LD50012-1 LD50012-1 LD50014-4...
