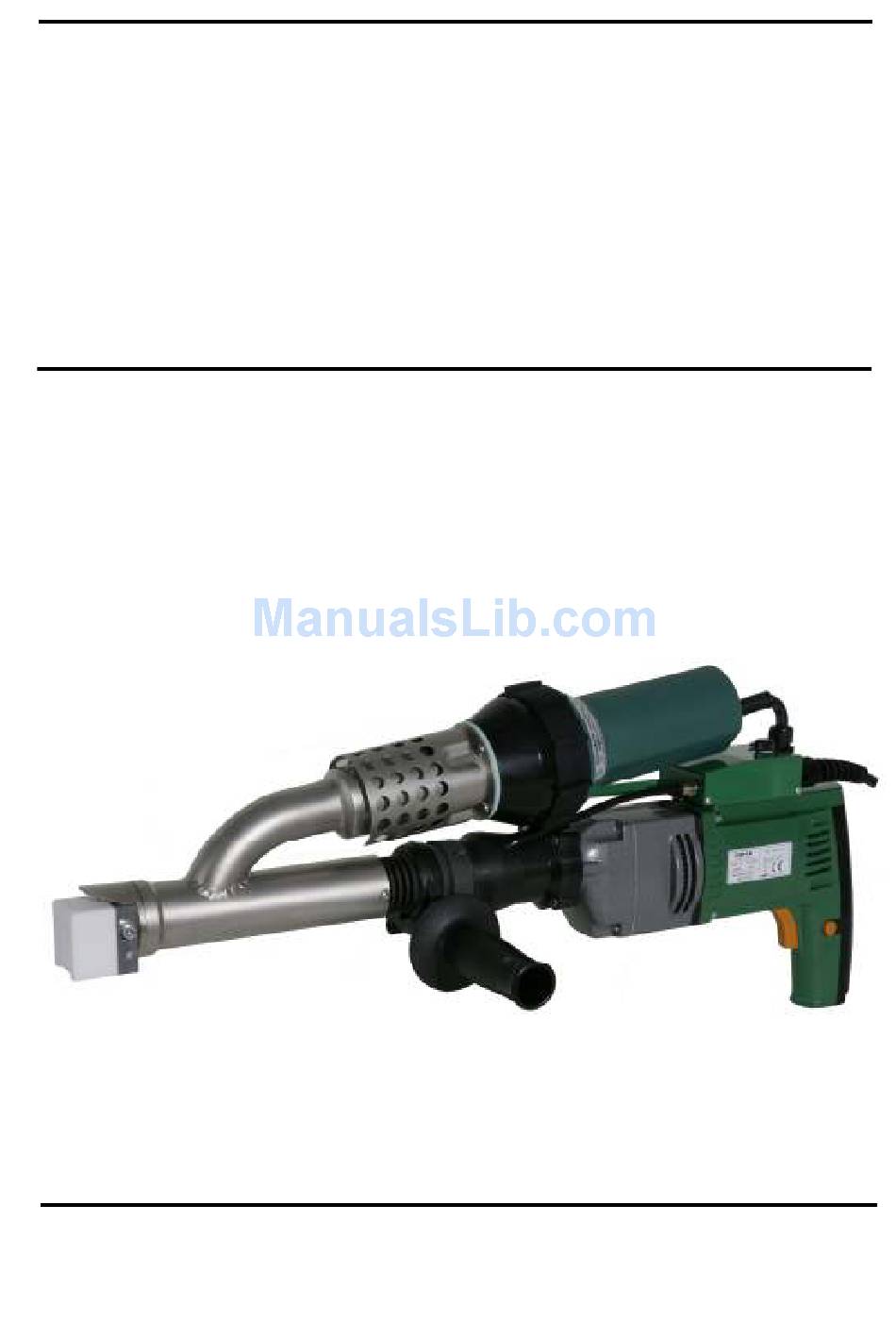

Page 1: Operating Instructions
Bedienungsanleitung Operating Instructions ExOn3A, DX306 ExOn3A-5, DX314 Extrusionstechnik GmbH Dohle Eitorfer Strasse 1 D – 53809 Ruppichteroth www.dohle-extruder.de... - Page 2 Operating Instructions DOHLE Hand Welding Extruder ExOn3A We retain all copyrights of all descriptions, drawings and schedules contained in these operating instructions which may not be reproduced nor be made accessible by third parties or by competitors, neither in whole nor in part, unless we have expressly consented thereto.
- Page 3 Operating Instructions DOHLE Hand Welding Extruder ExOn3A 1. Type Article-no. / Type of machine : DX306 ExOn3A / DX314 ExOn3A-5 ..Machine no. Required voltage 230 V / 50 – 60 Hz Heating unit 3500W/15A Processing of PE, PP 2. Safety...
- Page 4 Operating Instructions DOHLE Hand Welding Extruder ExOn3A Operation: Never use hand-held welding and extruding machines without air supply. In case of external air supply ensure that the feed line is of sufficient size. The pressurised air that is supplied must be free of oil and water.
- Page 5 Operating Instructions DOHLE Hand Welding Extruder ExOn3A 3. Start-up General: Observe the notes on safety contained in these operating instructions. In addition, the regulations on the prevention of accidents and the national regulations shall apply. Assembling the hand-held welding and extruding machine Our hand extruders are largely fully assembled ready for accommodated.
- Page 6 Operating Instructions DOHLE Hand Welding Extruder ExOn3A Change of the welding shoe In order to be sure that no more old welding rod is in the hand welding extrusion, heat up the machine on operating temperature, remove the welding shoe and change the nozzle (note: left hand thread!).
- Page 7 Operating Instructions DOHLE Hand Welding Extruder ExOn3A 4. Drawings, Informations DX306 ExOn3A, DX314 ExOn3A-5 DOHLE Extrusionstechnik GmbH...
- Page 8 Operating Instructions DOHLE Hand Welding Extruder ExOn3A a rtic le -n o d e s c rip tio n q ty D - 0 01 2 fe ath e r ke y D - 0 04 2 air d ie m u lti fix 3 2 m m...
- Page 9 Operating Instructions DOHLE Hand Welding Extruder ExOn3A D-1320 Eron 230V/2300W DOHLE Extrusionstechnik GmbH...
- Page 10 Operating Instructions DOHLE Hand Welding Extruder ExOn3A article-No description 5101270 gasket 70x48x4 5113268 heating element 230V/2200W 6100263 potentiometer knob red 6100268 strain relief 6100284 countersunk screw M4x12 TX 6100287 hexagon nut M5 6100444 cord guard 9,6x75 6101242 connecting shackle 6101760...
- Page 11 Operating Instructions DOHLE Hand Welding Extruder ExOn3A Spare Parts Drive Unit DB044 DOHLE Extrusionstechnik GmbH...
- Page 12 Operating Instructions DOHLE Hand Welding Extruder ExOn3A Art.No Description DB047 Gear BSM 275 DB049 Idler 8Z DB050 Gearwheel 26 Z DB006 Flat Gasket DB007 Cylinder Pin 4m6, 6x16 DIN7 DB043 Engine Flap DB051 Ball Bearing 6201 2RS DB052 Armature Winding BSM 275...
- Page 13 Operating Instructions DOHLE Hand Welding Extruder ExOn3A DOHLE Extrusionstechnik GmbH...
- Page 14 Operating Instructions DOHLE Hand Welding Extruder ExOn3A Welding Shoes s = thickness of material fillet weld corner weld a = s x 0,7 thickness of material order - no. D-0195 10-12 D-0196 thickness of material order - no. D-0197 D-0174...
Need help?
Do you have a question about the ExOn3A and is the answer not in the manual?
Questions and answers
the material does not feed threw exon3a
The material may not be feeding through the Dohle ExOn3A due to several possible reasons:
1. The heating element (230V/2200W) may not be functioning, preventing proper melting of material.
2. The motor (230V SL) or carbon brushes may be worn or faulty, affecting drive function.
3. The potentiometer or electronic circuit board may be malfunctioning, causing incorrect temperature or speed settings.
4. The bi-metal cold start protection may be active if the device is not warm enough.
5. The weld shoe may be improperly machined or installed, blocking material flow.
6. The deep groove thrust bearing or barrel extruder may need cleaning or greasing.
Each of these should be checked and serviced as necessary.
