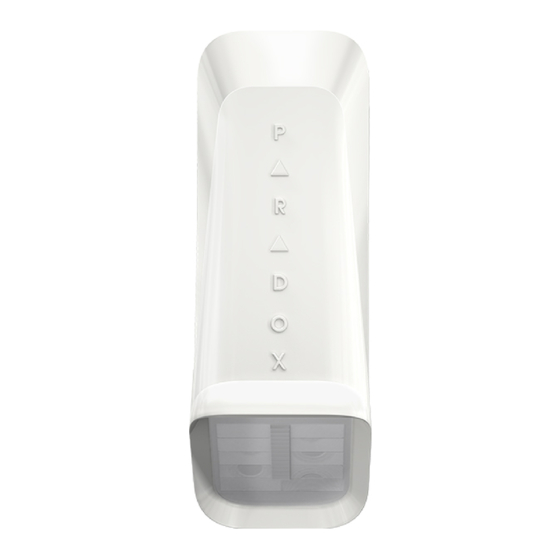

Paradox NV35M Installation Manual

NV35M
Installation Manual v1.0
Outdoor/Indoor
Window and Sliding Door
Dual Detector with
Anti-Masking and
Pet Immunity
NV35M-EI01

General Description

Thank you for choosing the NV35M for your professional protection needs.
The NV35M wired version will provide you the most advanced window and
sliding door protection either in Pet Immune or Sharp mode. If you have
any comments please write to us at Paradox.Com/products/feedback.
This guide describes how to install and program the NV35M.

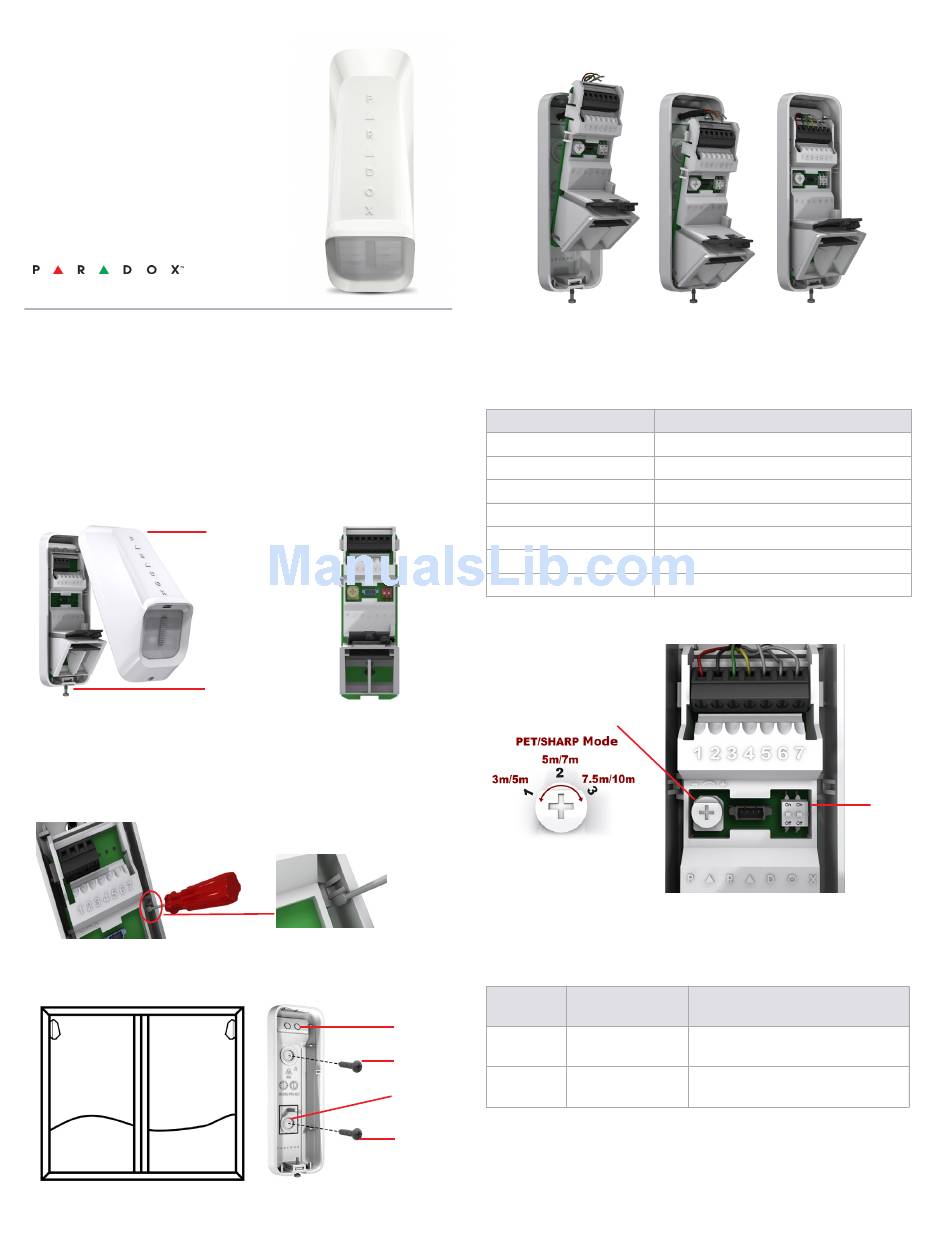

Installing the NV35M
1. Remove the NV35M front cover - open the Captive screw.
Captive screw
Figure 1 – Removing the
Front Cover
2. Remove the Main Unit: open the two snap-lock mechanisms on each
side of the back cover attaching the Main Unit to the back cover as
displayed below. Then remove the Main Unit.
Figure 3 – Removing the Main Unit
3. Pull the wires from the control panel through the knockout holes and
mount the back cover onto the window frame or wall using screws.
Figure 4 – Mounting the Back Cover
Front cover
Figure 2 – Main Unit
4. Attach the Main Unit to the back cover - ensure the locks snap closed.
5. Connect the wires to the terminal blocks according to the following
wiring assignment.
Terminal Connector
1
2
3
4
5
6
7
6. Set the following Detector settings according to requirements.
Sensitivity Trimmer
LED flashes green 1-3 times
according to the selected
level
The following table displays the Dip Switch settings.
Dip Switch
Knockout
Number
holes
Mounting
1
screw 1
2
Tamper
knockout
hole
7. Replace the front cover and close the Captive screw.
Mounting
Tamper Warning: Do not obscure the detector's field of view.
screw 2
2
1
Figure 5 – Attaching the Main Unit
Table 1: Wiring Assignment
Recommended Wiring Assignment
12V+
Minus (-)
Fault indication
Tamper indication
Common (Fault & Tamper)
Alarm indication
Common (Alarm)
Figure 6 – Detector Settings
Table 2: Dip Switch Settings
Function Mode Description
: LED on (default)
ON
LED
: LED off
OFF
PET Immunity/ : PET Immunity mode (default)
ON
SHARP Mode : SHARP mode
OFF
3
Dip Switch
PARADOX.COM
