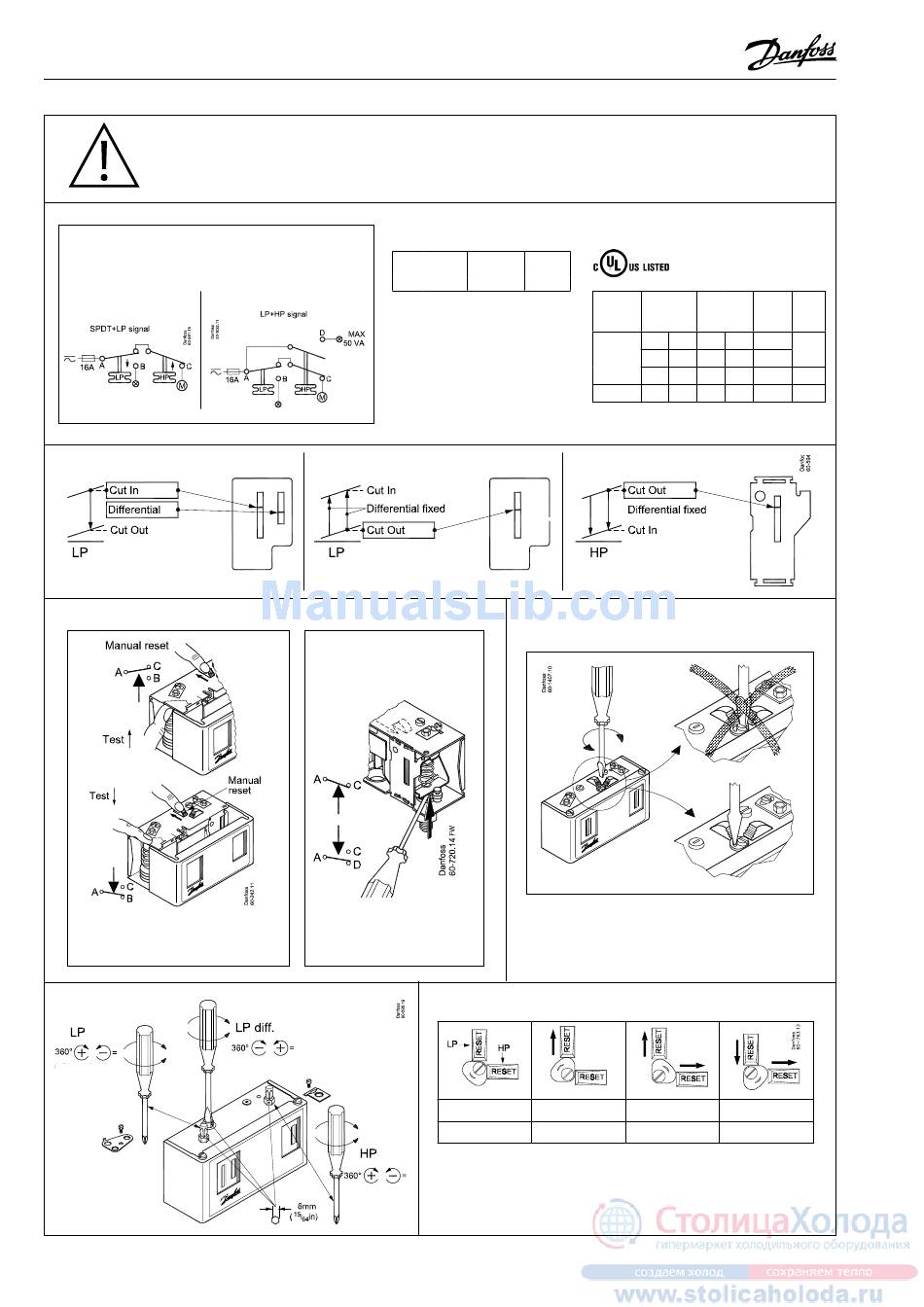

Danfoss KP 15 Installation Manual page 2

CAUTION:
Disconnect power supply before wiring connections are made or service to avoid possible electrical shock
or damage to equipment. Do never touch live parts with your fingers or with any tool.
LP side: A-C opens on pressure drop
HP side: A-C opens on pressure rise
LP = Low Pressure
-1 bar (Pe)(30 in.Hg)
LP, aut. reset
Manual trip function
TRIP:
use FINGERS ONLY!
(Do NOT use screwdriver)
Adjustment
0.7 bar (10 psi)/rev.
2
Electrical rating – General
AC 1
AC 3
AC 15 10 A
Short circuit protection:
Fuse 16 Amp
LP = Low Pressure
-1 bar (Pe)(30 in.Hg)
LP, man. reset
0.15 bar (2 psi)/rev.
2.3 bar
(33.5 psi)/rev.
DKRCC.PI.CD0.A4.02 / 520H6074
When used acc. to UL regulations
16 A
DC 13
16 A 400 V a.c. 12 W
220 V
Contacts
Use copper wire only
Tightening torque 20 lb. in.
HP = High Pressure
HP
Convertible reset
KP15: LP/HP convertible, KP17WB: HP convertible
Insert a screwdriver into the slot on the lock disc
and turn it to desired reset configuration.
Do not turn the screw on the lock disc as it may
damage the convertible reset mechanism.
Reset options
LP man. LP auto.
HP man HP man
Note: Do not select automatic reset if safety
of the system requires manual reset.
Note: Selected reset configuration may be protected
against unauthorized actions applying a seal.
Listed refrigeration
controller 61B5
Voltage FL LR
Resist.
load
AC DC A A
240 — 8 48 8 A
A-B
120 — 16 96 16 A
A-C
— 240 — — —
A-D 240 — — — —
LP auto. LP man.
HP auto. HP auto.
© Danfoss A/S (AC-MCI / jmn), 2012-11
Pilot
duty
3A
12 W
50 VA
