INSTRUCTION MANUAL
Wi-Fi MODULE SK-600075
Thank you for purchasing SkyRC Wi-Fi Module (SK-600075). SkyRC Wi-Fi Module is a device connected
to the speed controller or charger so that you can modify setting of your speed controller or operate your
charger via smart phone. This Wi-Fi Module support both iSO and Android device.

COMPATIBLE LIST

ESC: SC120(SK-300052), TS150(SK-300045), 1S 120A(SK-300048), TS160(SK-300064), TS120(SK-
300044), TS50(SK-300060), Beast 200A (SK-300047),
Charger: B6 mini(SK-100084), B6AC V2(SK-100008), B6AC+ V2(SK-100009), Ultimate 1000W(SK-
100069).
Please refer our website for updated list.

SPECIFICATION

Input Voltage: 5-17V
Input Current: 200mA
Working Temp: 0-50℃ / 32-122℉
Storage Temp: -10 – 80℃ / 14-176℉

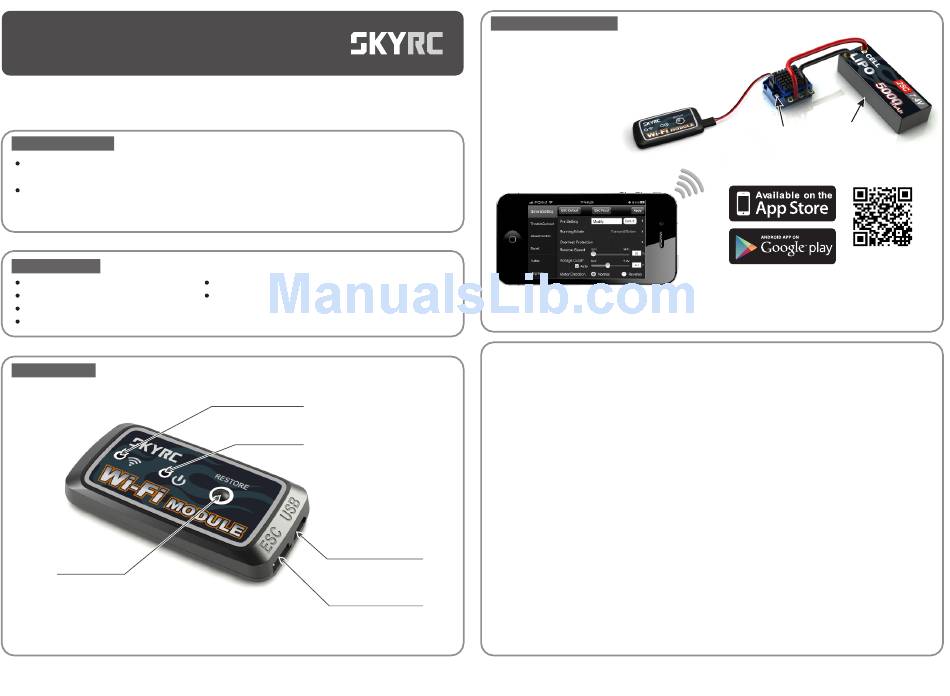

ILLUSTRATION

Restore Button
Dimension: 60.4x30x11mm
Weight: 12g
Wi-Fi Status Indicator
Power Indicator
Micro USB Connector
for Charger
3 Pins Connector
for ESC
1 / 4

APPLICATION FOR ESC

1. Download SKYRC "ESC LINK" App from Apple store or
Google Play and install the APP to your device.
2. Connect the ESC and Wi-Fi Module as following,
SmartPhone
3. Turn on the ESC first. The LED of Wi-Fi indicator will be blinking after 10 seconds. Please wait
another 30 seconds. The LED of Wi-Fi indicator will remain on.
Connecting Wi-Fi Module With Your Ios Device
1. On your Smartphone, perform a search for available Wi-Fi networks. To do so, select Settings >
Wi-Fi. The list of available Wi-Fi networks is displayed.
2. Select "SKYRCXXXX"and default password is "12341234"
3. Wait for your Smartphone to establish a connection with the Wi-Fi Module. It takes 10 seconds
usually.
4. Launch "ESC Link" Application. You are connected and ready for programing your ESC.
Connecting Wi-Fi Module With Your Android Device
1. On your Smartphone, perform a search for available Wi-Fi networks. To do so, select Settings >
Wireless & Networking > Wi-Fi. The list of available Wi-Fi networks is displayed.
Select "SKYRCXXXX"and default password is "12341234"
2.
3. Wait for your Smartphone to establish a connection with the Wi-Fi Module. It takes 10 seconds
usually.
4. Launch "ESC Link" Application. You are connected and ready for programing your ESC.
Change Ssid And Password
1. You can change SSID of Wi-Fi Module in the "ESC LINK" App. To do so, select Upgrade > AP >
SSID/Name > To change SSID.
2. You can change password of Wi-Fi Module in the "ESC LINK" App. To do so, select Upgrade > AP
> Password > To change password.
Battery
Power
Pack
Switch
Scan with
your Smartphone
to download.
