Skyrc SK-600135 Instruction Manual

INSTRUCTION
MANUAL

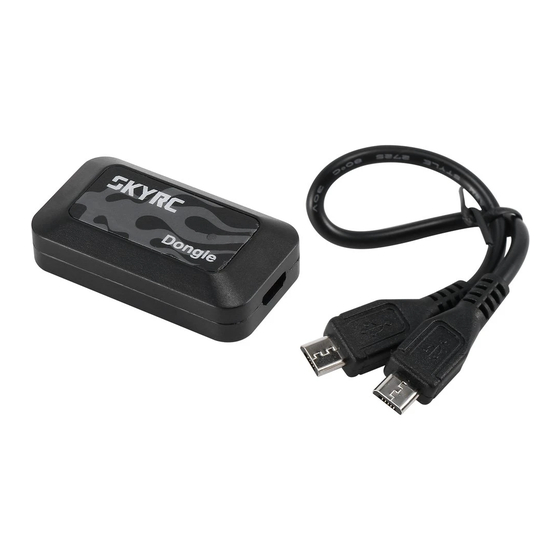

BLUETOOTH DONGLE
Thank you for purchasing SkyRC Bluetooth Dongle (SK-600135). Bluetooth Dongle lets you establish a
connection between the SkyRC gadget and your smartphone to control and monitor the device via the app.
Remark: We use the charger as an example in this manual!

FEATURES

Bluetooth 5.0, High Speed and Long Range.
Customized for devices by SkyRC.

SPECIFICATION

Input Voltage: 4.5V-5.5V
Input Current: ≤20mA
Range: 15M
Interface: Micro USB
Bluetooth Status:
LED flashes blue: ready for connection
LED remains solid blue: connected

APPLICATION

(We take charger for example!)
1. Download the SkyCharger App from App Store or Google Play to install;
2. Connect the dongle to the charger as illustrated below;
Turn on the charger, the LED on the Bluetooth dongle will blink blue;
3.
4. Enable Bluetooth on your smartphone;
5. Open the SkyCharger to search for Bluetooth;
6. When the device named [B-Dongle-XXXX] appears, tap to connect;
7. When the connecting process finishes, the LED on the Bluetooth dongle will stay steady blue;
8. Control and monitor the charger as you like.
*For other Apps' instruction, please check the corresponding device's manual.
SK-600135
Connect and ready instantly.
Working Power: 110mW Max.
Bluetooth Version: 5.0
Working Temp: -10 to 55 C / 14 to 131 F
Storage Temp: -20 to 70 C / -4 to 158 F
Dimension: 45x25x13mm
Weight: 9g
