Skyrc SK-600075 - Wi-Fi Module Manual

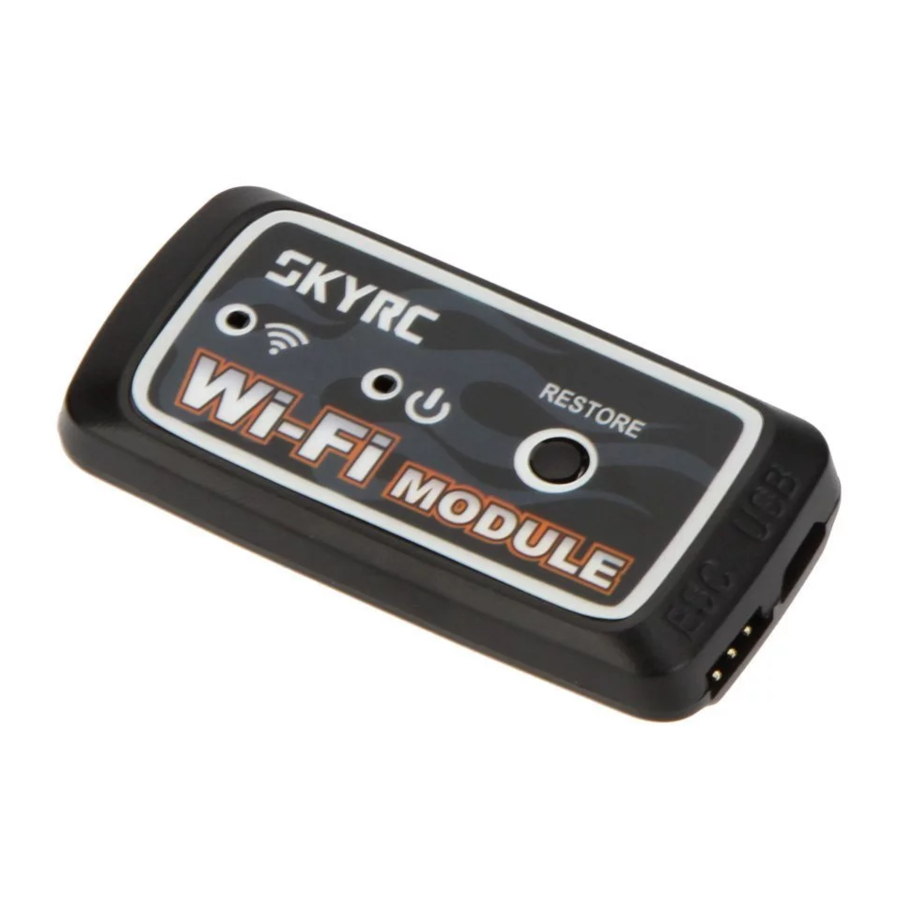

Thank you for purchasing SkyRC Wi-Fi Module (SK-600075). SkyRC Wi-Fi Module is a device connected to the speed controller or charger so that you can modify setting of your speed controller or operate your charger via smart phone. This Wi-Fi Module support both iSO and Android device.

COMPATIBLE LIST

• ESC: SC120(SK-300052), TS150(SK-300045), 1S 120A(SK-300048), TS160(SK-300064), TS120(SK300044), TS50(SK-300060), Beast 200A (SK-300047),
• Charger: B6 mini(SK-100084), B6AC V2(SK-100008), B6AC+ V2(SK-100009), Ultimate 1000W(SK100069).

SPECIFICATION

• Input Voltage: 5-17V
• Input Current: 200mA
• Working Temp: 0-50℃ / 32-122℉
• Storage Temp: -10 – 80℃ / 14-176℉
• Dimension: 60.4x30x11mm
• Weight: 12g

Please refer our website for updated list.

ILLUSTRATION

APPLICATION FOR ESC

1. Download SKYRC "ESC LINK" App from Apple store or Google Play and install the APP to your device.
2. Connect the ESC and Wi-Fi Module as following,

3. Turn on the ESC first. The LED of Wi-Fi indicator will be blinking after 10 seconds. Please wait another 30 seconds. The LED of Wi-Fi indicator will remain on.

SmartPhone

Scan with your Smartphone to download.

Connecting Wi-Fi Module with your iOS device

1. On your Smartphone, perform a search for available Wi-Fi networks. To do so, select Settings > Wi-Fi. The list of available Wi-Fi networks is displayed.
2. Select "SKYRCXXXX"and default password is "12341234"
3. Wait for your Smartphone to establish a connection with the Wi-Fi Module. It takes 10 seconds usually.
4. Launch "ESC Link" Application. You are connected and ready for programing your ESC.

Connecting Wi-Fi Module with your Android device

1. On your Smartphone, perform a search for available Wi-Fi networks. To do so, select Settings > Wireless & Networking > Wi-Fi. The list of available Wi-Fi networks is displayed.
2. Select "SKYRCXXXX"and default password is "12341234"
3. Wait for your Smartphone to establish a connection with the Wi-Fi Module. It takes 10 seconds usually.
4. Launch "ESC Link" Application. You are connected and ready for programing your ESC.

Change SSID and Password

1. You can change SSID of Wi-Fi Module in the "ESC LINK" App. To do so, select Upgrade > AP > SSID/Name > To change SSID.
2. You can change password of Wi-Fi Module in the "ESC LINK" App. To do so, select Upgrade > AP > Password > To change password.

APPLICATION FOR CHARGER

1. Download SKYRC "ChargerLink" App from Apple store or Google Play and install the APP to your device.
2. Connect the Charger and Wi-Fi Module as following,
3. Power on the Charger first. The LED of Wi-Fi indicator will be blinking after 10 seconds. Please wait another 30 seconds. The LED of Wi-Fi indicator will remain on.






   Scan with your Smartphone to download.

Connecting Wi-Fi Module with your iOS device

1. On your Smartphone, perform a search for available Wi-Fi networks. To do so, select Settings > Wi-Fi. The list of available Wi-Fi networks is displayed.
2. Select "SKYRCXXXX"and default password is "12341234"
3. Wait for your Smartphone to establish a connection with the Wi-Fi Module. It takes 10 seconds usually.
4. Launch "ChargerLink" Application. You are connected and ready for programing your Charger.

Connecting Wi-Fi Module with your Android device

1. On your Smartphone, perform a search for available Wi-Fi networks. To do so, select Settings > Wireless & Networking > Wi-Fi. The list of available Wi-Fi networks is displayed.
2. Select "SKYRCXXXX"and default password is "12341234"
3. Wait for your Smartphone to establish a connection with the Wi-Fi Module. It takes 10 seconds usually.
4. Launch "ChargerLink" Application. You are connected and ready for programing your Charger.

Change SSID and Password

1. You can change SSID of Wi-Fi Module in the "ChargerLink" App. To do so, select Upgrade > AP > SSID/Name > To change SSID.
2. You can change password of Wi-Fi Module in the "ChargerLink" App. To do so, select Upgrade > AP > Password > To change password.

RESTORE DEVICE

To restore the Wi-Fi Module to factory setting, press and hold the restore button for more than 5 seconds.
