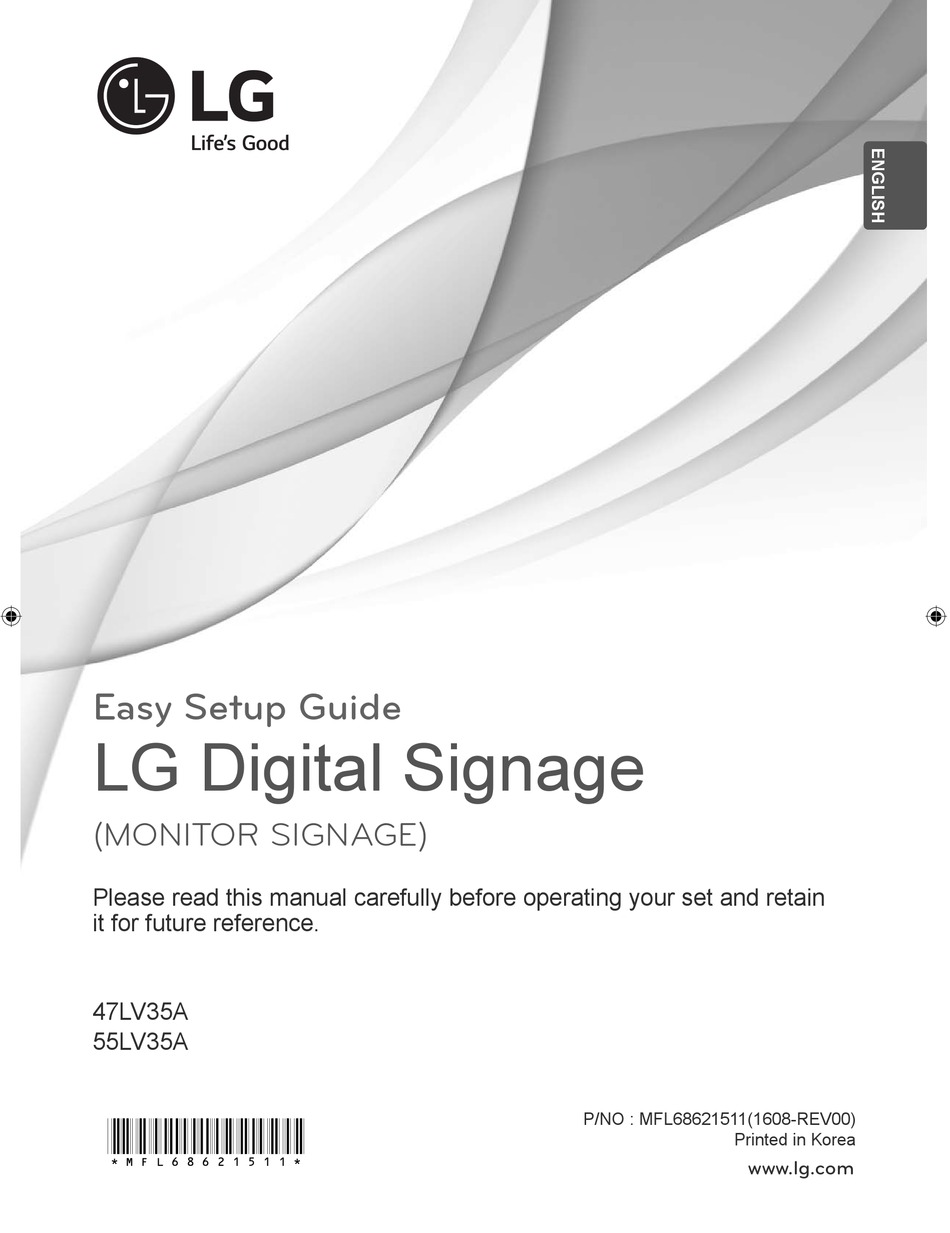

Easy Setup Guide
LG Digital Signage
(MONITOR SIGNAGE)
Please read this manual carefully before operating your set and retain
it for future reference.
47LV35A
55LV35A
P/NO : MFL68621511(1608-REV00)
*MFL68621511*
Printed in Korea
www.lg.com

Advertisement

Table of Contents
loading

Related Manuals for LG 47LV35A

Summary of Contents for LG 47LV35A

  • Page 1 Easy Setup Guide LG Digital Signage (MONITOR SIGNAGE) Please read this manual carefully before operating your set and retain it for future reference. 47LV35A 55LV35A P/NO : MFL68621511(1608-REV00) *MFL68621511* Printed in Korea www.lg.com...

  • Page 2: Assembling And Preparing

    SuperSign software and manual. - Downloading from the LG Electronics website. - Visit the LG Electronics website ( http://www.lgecommercial.com/supersign ) and download the latest software for your model. WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
  • Page 3 ASSEMBLING AND PREPARING Dimensions (Width x Height x Depth) / Weight 47LV35A 1044.9 mm x 590.0 mm x 89.9 mm / 16.5 Kg 55LV35A 1213.4 mm x 684.2 mm x 88.5 mm / 23 Kg To View the Owner’s Manual Insert CD-ROM in Computer.

  • Page 4: Safety Precautions

    SAFETY PRECAUTIONS PRECAUTION IN MOVEMENT Adhere to the warning signs printed on the Box. Don’t tumble the Set box sideward down. Do not Clamp Do not drop from clamping. 2 Persons needed for transport Load with care. Do not drop from stacking. Don't lie on or lean on the Set box.

  • Page 5: Precaution In Handling

    SAFETY PRECAUTIONS PRECAUTION IN HANDLING Precaution Move the Set as a team of 2 persons. When you move Be careful not to collide the sets with the floor or with the bare Set, please use one hand on grabbing the each other.
  • Page 6 SAFETY PRECAUTIONS Causes & Phenomena of the COF (CHIP ON FILM) DEFECT Line Defect The line defect would occur on your Set if you strike on Shock on Module Top Side Top COF Crack the edge of the Set. Vertical Line Defect Source PCB COF Cable Shock on Module Left Side...

  • Page 7: Installing The Product

    INSTALLING THE PRODUCT Installing the Product Cut Packing Strap of the Box. Cut Tape on the Box. Open the Box and remove the top packing. Remove the Upper Box. Open the Poly Bag. Undress the Poly Bag.
  • Page 8 INSTALLING THE PRODUCT Lift up the Set using the SIDE/BACK Handle. Remove Bottom packing when lifting up the Set. With one hand under the set and the other hand grabbing the set, move the set. Lay the back of the Set down on the table.
  • Page 9 INSTALLING THE PRODUCT Use the cushion or Pad when you lay the face of the Set downward. Connect IR receiver to use remocon. And then, connect power cord .

  • Page 10: Tiling Displays

    TILING DISPLAYS Tiling Displays How to Mount the Set Example of 2 x 2 tiling 55LV35A 47LV35A Screws for Screws for attaching the attaching the VESA wall VESA wall mount mount <Rear view of the set with the wall mount plate>...
  • Page 11 TILING DISPLAYS How to Join Sets 47LV35A 55LV35A Join other sets using screws for fixing the Join other sets using screws for fixing the VESA wall mount in the same way as above. VESA wall mount in the same way as above.

  • Page 12: Remote Control

    REMOTE CONTROL REMOTE CONTROL The descriptions in this manual are based on the buttons of the remote control. Please read this manual carefully and use the Monitor set correctly. To replace batteries, open the battery cover, replace batteries (1.5 V AAA) matching ends to the label inside the compartment, and close the battery cover.
  • Page 13 REMOTE CONTROL ⓘ AUTO INFO Automatically adjusts picture Displays information about position and minimizes image the program or screen that is instability (available for RGB currently used. input only). SETTINGS W.BAL Accesses the main menus Enters the White Balance or saves your input and exit menu.

  • Page 14: Making Connections

    MAKING CONNECTIONS < Connecting to a PC> RGB/ AV IR IN DVI IN DVI OUT /COMPONENT IN 15-pin D-Sub Signal Cable (Max 3 m) DVI OUT RGB OUT CAUTION Connect the signal input cable and tighten it by turning the screws clockwise.
  • Page 15 MAKING CONNECTIONS < External Device Connection> Camcorder/Camera/ HD Receiver/DVD Direct Connection/Using the Router/Using the Internet DVI OUT Network RGB/ AV IR IN DVI IN DVI OUT /COMPONENT IN 15-pin D-Sub Signal Cable (Max 3 m) HDMI HD Receiver/DVD/ Gaming Device/ Camcorder/Camera HD Receiver/DVD/VCR Gaming Device/...

  • Page 16: Connecting The Power Code

    MAKING CONNECTIONS Connecting the Power code 55LV35A 47LV35A Power Button Power Button NOTE INPUT Select an input signal. AV ➙ Component ➙ RGB ➙ HDMI ➙ DVI-D ➙ USB...

  • Page 17: Daisy Chain Monitors

    MAKING CONNECTIONS Daisy Chain Monitors DVI Cable DVI IN DVI OUT DVI IN DVI OUT DVI IN DVI OUT DVI IN DVI Cable (Max 3m) Monitor Set 1 Monitor Set 2 Monitor Set 3 Monitor Set 4 NOTE For DVI, in general, up to 12 monitors can be connected via the DVI Out port (at the recommended resolution) if the signal is stable and there is no cable loss.If you want to connect more than this number of monitors, we recommended that you use a distributor.

  • Page 18: Installation

    RS-232C Cable Monitor Set 1 Monitor Set 2 Monitor Set 3 Monitor Set 4 Installation Menu setup. Installation Menu (V 3.0) LG Digital Signage Setup USB Cloning Password Change Set ID Setup Configuration Setup Lock Mode Fail Over SuperSign Server Setup S/W : xx.xx.xx.xx Micom : x.xx.x...

  • Page 19: White Balance Adjust Menu

    INSTALLATION White Balance Adjust Menu Press the W.BAL button on the remote control. • R-Gain ◄ ► • G-Gain • B-Gain • Backlight • Reset To Set Close R-Gain Adjusts the level of red. The higher the number, the redder the set. Decrease the number if the screen looks too red.
  • Page 20 INSTALLATION Setting the Tile Mode In Tile Mode you can view an image in a larger 1 x 2 scale by connecting multiple monitors. When using 2 monitors ID 2 ID 2 ID 1 ID 1 Tile Mode Off: An input image is not enlarged, and the same image is shown on all connected monitors.
  • Page 21 INSTALLATION Setting the Picture ID The Picture ID menu allows you to control all sets using the IR Receiver connected to Set 1. The IR signal of the remote control is Press the red ON button Von the remote control transmitted through the RS232C cables to assign the Picture ID.
