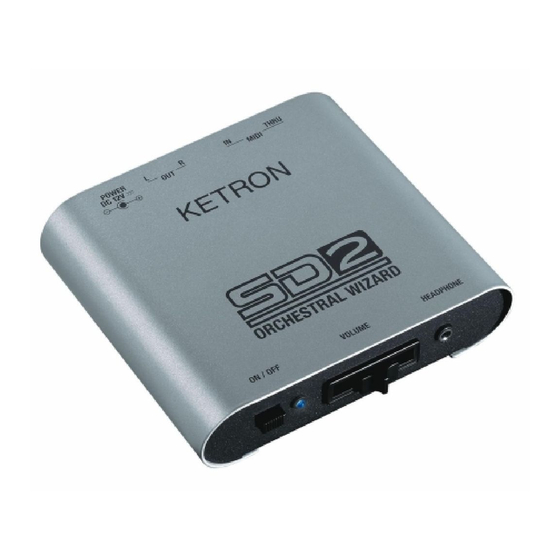

KETRON SD 2 Orchestral Wizard Owner's Manual
Hide thumbs Also See for SD 2 Orchestral Wizard:

Advertisement

Owner's Manual

SAFETY INSTRUCTIONS

INSTRUCTIONS ABOUT RISK OF FIRE, ELECTRIC SHOCK OR INJURY TO PERSONS
Warning: to reduce the risk of fire or electric shock, do not expose this instrument to rain or
moisture.
- Earthing instructions -
This product must be connected to an earthed outlet. In case of malfunctioning, the earthing
will reduce the risk of electric shock. The instrument comes with an earthed power cable and
plug to be used with an earthed outlet.
DANGER - Improper earthing connections may cause electric shocks. In case of doubts, have
your electric installation checked by a qualified electrician. Do not modify the power cable
coming with the instrument.
IMPORTANT SAFETY AND INSTALLATION INSTRUCTIONS
WARNING - When using electrical products, some basic precautions must be followed, including the following:
Before using this instrument, carefully read the User's Manual.
When the instrument is used by children, the presence of an adult is required.
Do not use the instrument near water, for example near a wash-basin, a swimming-
pool, a wet surface, etc.
The instrument must be used only on supports recommended by the manufacturer.
Do not use the instrument where there is any risk of it getting splashed with water or of water
dripping on it, such as near wash basins, swimming pools or on wet surfaces etc. Do not put
containers with water on top of the instrument.
The instrument is to be used in a position where adequate ventilation is provided.
Use the instrument far away from heat sources such as radiators, heaters, etc.
Use only the supplied power cable for connecting the instrument to the mains.
The identification and power supply data are reported on the bottom of the instrument.
Disconnect the power cable if the instrument is not used for longer periods of time.
If you need to disconnect the instrument from the power supply, use the ON/OFF switch at the back
of the instrument.
The instrument must be positioned so that the ON/OFF switch is easily accessible.
Bring the instrument to an service centre in the following cases:
a. Damages on the power cable or plug.
b. Objects or liquids fallen into its inside.
c. The instrument has been exposed to rain.
d. Abnormal running or an evident decrease of the instrument's performance.
e. The instrument has fallen down or the enclosure has been damaged.
Never try to repair the instrument yourself. All operations must be performed by specialised
engineers.
KEEP THESE INSTRUMENTS IN A SAFE PLACE
GB
13

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SD 2 Orchestral Wizard and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for KETRON SD 2 Orchestral Wizard

  • Page 1: Safety Instructions

    Owner’s Manual SAFETY INSTRUCTIONS INSTRUCTIONS ABOUT RISK OF FIRE, ELECTRIC SHOCK OR INJURY TO PERSONS Warning: to reduce the risk of fire or electric shock, do not expose this instrument to rain or moisture. - Earthing instructions - This product must be connected to an earthed outlet. In case of malfunctioning, the earthing will reduce the risk of electric shock.
  • Page 2: Other Precautions

    The instrument should never be subject to strong vibrations. AC POWER ADAPTORS To connect these instruments to the wall socket you will need the supplied KETRON AC Power adaptors. Use of other AC adaptors could result in damage to the instrument’s power circuit. So be sure to ask for the right kind.
  • Page 3: Contents Of The Package

    SD 2 stand out from all other similar models on the market. The applications of SD 2 are best exploited in combination with a MIDI player (such as KETRON MIDJAY for example) or with sequencers on computer ( Logic®, Cubase®, Cakewalk® and others), but it can also be connected to Master keyboards or multi-purpose keyboards (Arranger, Synth, Digital pianos etc.).
  • Page 4: Jingle

    Midi interface) or via the Midi to Usb cable supplied as an optional accessory by KETRON. Using musical sequencer programs such as Cubase®, Logic®, Cakewalk® or similar you will be able to successfully integrate SD 2 in your musical elaborations (Midi files, Jingles, Audio Mix etc.) exploiting its amazing sound versatility in the best way possible.
  • Page 5: Operating Notes

    For those who are still learning, we have prepared a set of files on our Internet site www. ketron.it (that you can download free of charge) with the configuration of the Map of sounds that can be used to work with the most commonly used sequencer programs and musical notes, such as Cubase®, Logic®, Cakewalk®.
  • Page 6: Other Features

    Internet site www.ketron.it) you can play all the digital Drawbars, thanks to the virtual sliders reproduced in this environment. Here’s how the editor created on Logic® appears: If, on the other hand, you do not use this...
  • Page 7: Tinkles

    Technical Tables VOICE BANK A (Control Change 00, Value = 0) P. Ch. Name Grand Piano Fantasy Tremolos Rock Piano Warmpad Pizzicato Score Upright Harp Honky Space Timpani Rodes Softpad Strings1 DxPiano Metal SlowStrings Harpsichrd Halo Synstrgs1 Clavinet Sweep Synstrgs2 Celesta Ice Rain Choir1...
  • Page 8 VOICE BANK B (Control Change 00, Value = 1) P. Ch. Name Strato DarkStrings Jingle Texas Electric Tremolo Vocalize House Unplug Scat Elopiano Stops Vintage Wha guitar Funky Pno Hawaian Corale Fm Piano 1 Mandolin Golden Tpt Fm Piano 2 Django Cornet ToyBox...
  • Page 9 VOICE BANK C (Control Change 00, Value = 10) P. Ch. Name Ambience Digistrings Grand mono Digipad Wiener Rock mono Movie 101Strings Piano L Newage Tuuh Piano R Voxing Mark Synfony Vocals1 StagePno Cuatro Vocals2 Rodeslow Hackbrett Trumpet2 Rodeshi Tres Trombone2 Celestial Cajun...
  • Page 10: Francaise

    PRESETS BANK (Control Change 00, Value = 2) Group Pr.Ch. Name Altosoft PIANO Grand Piano EL.GUITAR 45 Strato Jazz Tenor Rock Piano Jazz Contralto Honky Clean Rock Tenor Clavinet Liscio Sax Overdrive Blowed EL.PIANO 5 Vintage Texas Rock Sax Rodes Muted NightSax Stagepno...
  • Page 11: Folk

    DRUM SETS LIVE DRUMS (Drums 2) (Control Change 00, Value = 4) P. Ch. Name P.Ch. Name Eurolatin Standard1 Bachata Popdown Standard2 Bolero 1 ------------ Folk Chacha 1 Dance 2 Acoustic Cumbia 1 Dance 3 Jazz Dry Guajra 1 Tradition1 Vintage Mambo Bolero 2...
  • Page 12: Midi Implementation

    MIDI IMPLEMENTATION NOTE ON 9nH kk vv n(0-0FH) midi channel, kk(01H-7FH)=NOTE ON vv=velocity(01H-7FH) (vv=0 means NOTE OFF) NOTE OFF 8nH kk vv n(0-0FH) midi channel, kk(01H-7FH)=NOTE OFF 9nH kk 00H vv=don’t care if command 8nH PITCH BEND EnH bl bh Pitch Bend as specified by bl(low) bh(high), bl=(00H-7FH),bh=(00H-7FH) 14 bit resolution.
  • Page 13 CONTROL 79H BnH 79H 00H Reset all controllers CONTROL 7BH BnH 7BH 00H All Notes Off CONTROL 7EH BnH 7EH 00H Mono on CONTROL 7FH BnH 7FH 00H Poly On (default) RPN 0000H BnH 65H 00H 64H 00H 06H vv Pitch Bend sensivity in semitones (default vv=02H) RPN 0001H BnH 65H 00H 64H 01H 06H vv...
  • Page 14 SYSTEM EXCLUSIVE KETRON BASS BOOST F0H 26H 7BH 7DH 00H Boost_gain Freq F7H Boost_gain = 0-6 Freq = 0-7 PARAMETERS GENERAL FORM F0H 26H 7BH Code Data_1..Data_n F7H REVERB1 TYPE F0H 26H 7BH 00H 00H Rev_type F7H Rev_type = 00H Reverb_1...
  • Page 15 SCALE TUNING (ARABIC) F0H 26H 7BH 0AH Chan Data1...Data12 F7H Data: 00H-7FH; 40h = no detune Chan: 00H-1FH 7FH all channels ( not drum sections) MASTER TUNE F0H 26H 7BH 0CH 00h Data1,Data2 F7H Data1 00H-0CH high nibble Es. Data1=06h Es. Data1=00h Es. Data1=0Ch Data2 00H-0FH low nibble Data2=04h (nominal) Data2=00h (-100%) ata2=08h +100%) GLOBAL GM RESET...
