Iomega Jaz Installation Manual

Getting the Most out of Your Jaz Drive
The ultimate drive for today's power user ...
Your Jaz drive is a high capacity, high performance removable media
drive which meets the latest Fast SCSI-2 specifications. With your Jaz
drive you can:
• Upgrade your existing hard disk.
• Expand the capacity of your hard drive without limits –
one gigabyte at a time!
• Edit, run, and store full motion video and digital audio.

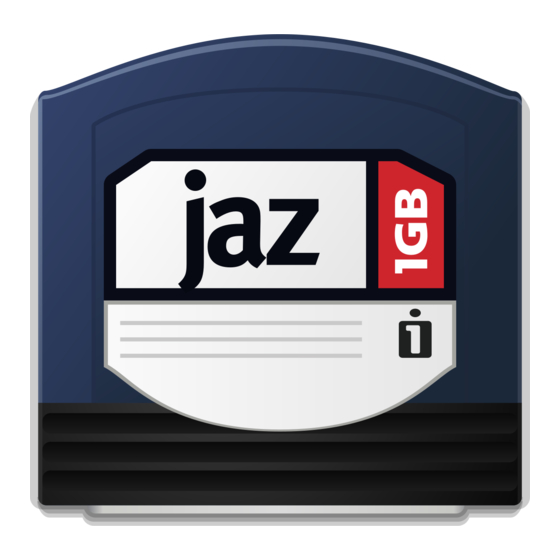

• Back up an entire hard drive on a single 3.5 inch disk.
• Consolidate all your existing removable media.
• Run your computer from a Jaz disk.
• Store and run applications from a Jaz disk.
Jaz Drive Specifications
The performance of your Jaz drive may differ dramatically depending on
the computer, SCSI connection, and operating system with which it is
used. For maximum performance on a PC, connect your Jaz drive to an
adapter that has Fast SCSI-2 connectors (such as a PCI SCSI adapter) and
use a 32-bit operating system (such as Windows NT or OS/2 Warp). For
maximum performance on a Macintosh, use a PCI or Nubus SCSI
accelerator card.
Performance Specifications
Disk Capacity
Average Seek Time
Average Access Time
Sustained Transfer Rate
Rotational Speed
Reliability
MTBF
Environmental Specifications
Temperature
Operating
Non-operating
Relative humidity (non-condensing)
Operating
Non-operating
Maximum wet bulb temperature
Altitude
Operating
External Drive Power Requirements
Voltage
Power dissipation
1GB
10 msec (Read)
12 msec (Write)
15.7 msec
6.6 MB/sec max
5.4 MB/sec avg
3.4 MB/sec min
5,394 RPM
250,000 hours
10°C to 32°C (50°F to 89°F)
-40°C to 60°C (-40°F to 140°F)
10% to 80%
10% to 90%
26.6°C (80°F)
10,000 feet max.
100-240 vac
50/60 Hz
20 watts input power
