Summary of Contents for Furious FPV TRUE-D DIVERSITY V3.7

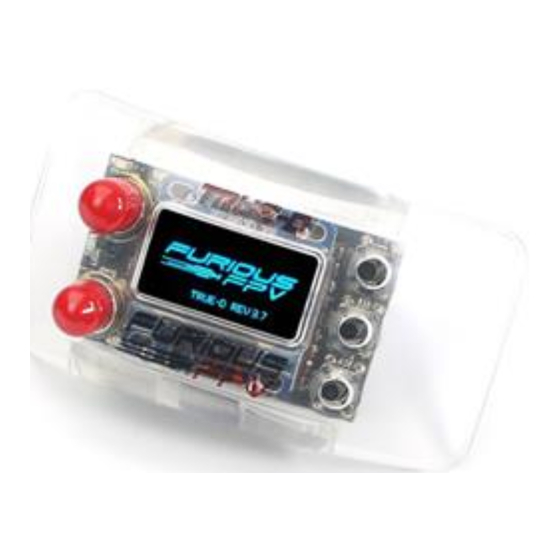

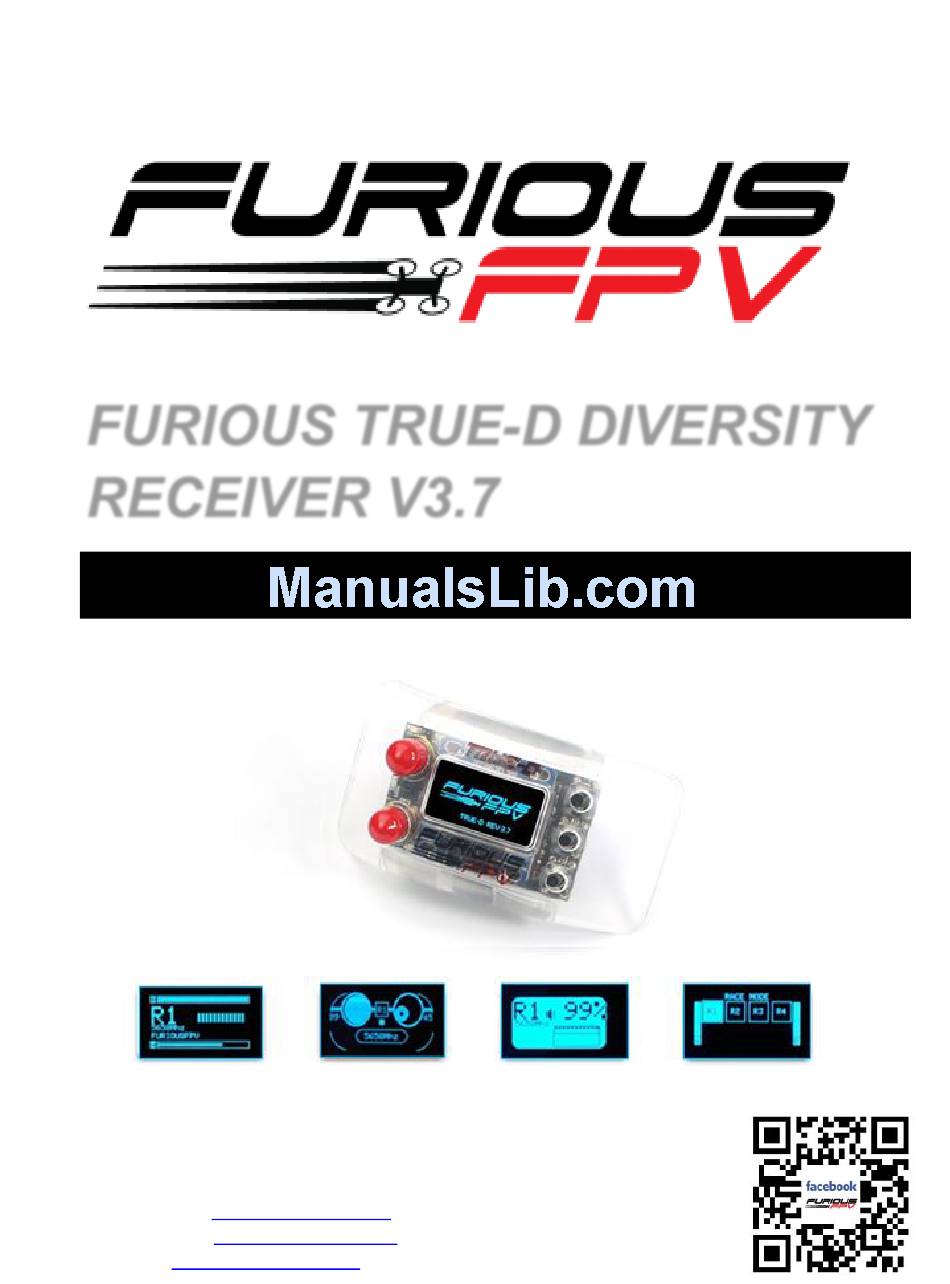

- Page 1 FURIOUS TRUE-D DIVERSITY RECEIVER V3.7 USER MANUAL Please contact us if you need further assistance: Tech support: tech@furiousfpv.com Sales support: sales@furiousfpv.com Website: http://furiousfpv.com/...
-
Page 2: Table Of Contents
Contents What‘s new Firmware True-D 3.7 ..................3 Introduction ........................4 Features .......................... 4 Specifications ......................... 5 Product Layout ....................... 5 Usage ..........................6 Logo Screen ......................7 Screen Saver ......................7 Find Mode ......................8 Saved Channels ...................... 8 ... -
Page 3: What's New Firmware True-D 3.7
What‘s new Firmware True-D 3.7 New Screen Saver Race Mode Find Mode New Friendly UI Auto sort Smart Search Channels (Best Worst) Guideline: Video update Firmware for Window: Guideline update Firmware for Mac: https://goo.gl/frmdgL https://goo.gl/Gg527W... -
Page 4: Introduction
Incorporating a new firmware that is easier to use and more powerful than ever, the Furious FPV TRUE-D V3.7 utilizes an all new USB port for easy firmware updates, making new firmware installations painless, simple and to the point. It also adds additional modules to help dissipate heat. -
Page 5: Specifications
Specifications SMA Style: SMA Jack Connector/Female Working Frequency: 5.8GHz Input Power: 5V Number of Channels: 48 Channels Compatibility: FatShark Dominator V1, V2 & V3 goggles FatShark HD V1, V2 & V3 goggles FatShark Attitude V3, V4 – Designed cover for Attitude V3 + V4 goggles Product Layout ... -
Page 6: Usage
Usage The Furious True-D V3.7’s diagram: MAIN MENU Saved Channels All Channels Smart Search Band Scanner Settings Race Mode *Note: While in setting if no button is pressed within 15s, True-D will auto exit to "Screen Saver" interface In settings, Hold Select button to exit to Screen Saver... -
Page 7: Logo Screen
Logo Screen When powering on the goggles, the OLED screen will display the Logo and the current firmware version installed. You can proudly display your personalized call sign/pilot handle, custom Logo or team’s Logo. Screen Saver There are four Screen Savers that you can choose to display Find Mode ... -
Page 8: Find Mode
Find Mode In case your drone gets lost while flying. The Graphic interface will point in the right direction and guide you to the place where it fell down with a buzzer warning (Beeper) and RSSI level (RSSI Graph) ... -
Page 9: Smart Search
Smart Search The module will automatically find and show all the detected channels (the closest frequency with your VTX transmission frequency and prioritize channels which you saved) with corresponding strength signal and auto sort smart search channel Hold Select button for about 2s, the pop-up will display: ... -
Page 10: Auto Lock
Auto Lock: Auto locks Screen Saver after 5s and doesn’t allow channel changes The options are as follows: ON/OFF One other way, at the “Screen Saver” interface, hold Select button for about 3s to Lock/Unlock Filter: ... -
Page 11: Race Mode
Race Mode Quickly tune to race frequencies, optimal for racing events The options are as follows: 2CH, 4CH, 6CH, 8CH Hold Select button for about 2s, the pop-up will display: Change: select channel for your race mode ... -
Page 12: Support
The reseller you purchased your product from handles the first line of support. If you encounter any problems with your Furious FPV products, please contact them first on issues involving equipment from other brands and general support for Furious FPV products.
