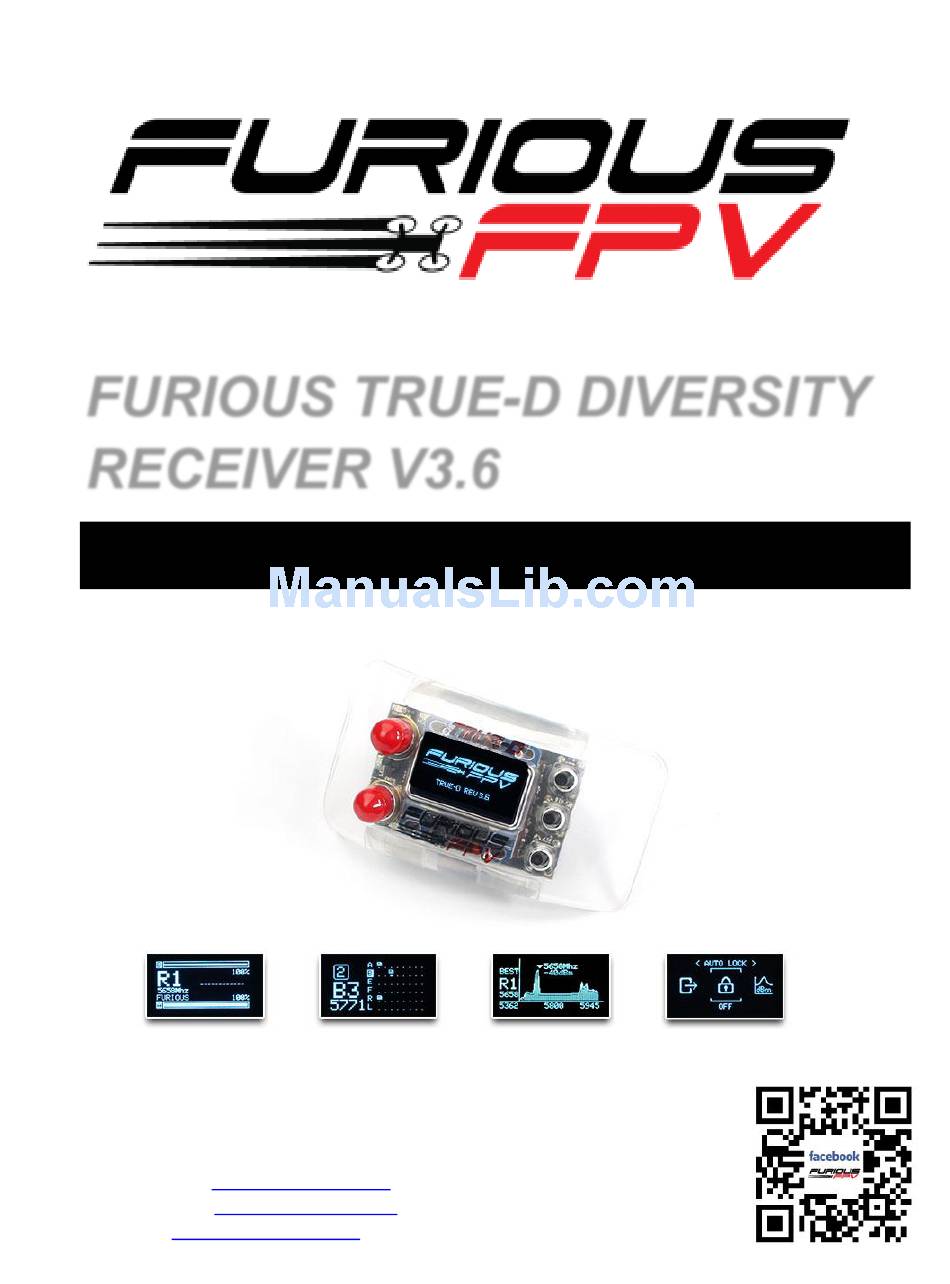

- Page 1 FURIOUS TRUE-D DIVERSITY RECEIVER V3.6 USER MANUAL Please contact us if you need further assistance: Tech support: tech@furiousfpv.com Sales support: sales@furiousfpv.com Website: http://furiousfpv.com/...
-
Page 2: Change Log
Change Log V3.6: New menu layout with icons for a better user interface Better icon rearrangement to facilitate operation New algorithm allows smoother and more accurate RSSI reading for better antenna switching Improve Fatshark DVR video quality better ... - Page 3 Introduction The Furious TRUE-D V3.6 is an evolution of the most popular diversity system on the market today. With the V3.6, we've refined the TRUE-D, offering an unrivaled system that is designed to optimize your FatShark experience like no other receiver system available today.
-
Page 4: Specifications
Additional Timeout feature C-Band is changed to R-Band to be in sync with standard league frequencies tables Separate modules to decrease thermal loading New micro USB type B Port for easy firmware updates Better protection mechanic to protect the OLED screen in transportation ... -
Page 5: Main Screen
Usage The Furious True-D V3.6’s diagram: ①① MAIN SCREEN Logo Screen: When powering on the Fatshark goggles, the OLED screen will display the Logo and the current firmware revision installed. You can proudly display your personalized call sign/pilot handle, logo, or team’s logo. -
Page 6: Main Menu
MAIN MENU Saved Channel: To save channel that you want to choose to start up for the next time and delete undesired channel. When pressing the Select button about 3s, you can save/delete/exit. You can save up to 8 channels. The default Saved Channels are R1 to R8. - Page 7 MAIN MENU Band Scanner: Utilize to determine current broadcast band, channels and frequencies with a powered video transmitter. Identify a potential channel, band, and frequency with low noise for optimal use. Quickly find a pilot/VTX for spectating, troubleshooting, and even locating your lost drone by observing strength signal.
- Page 8 SETTINGS Auto Lock: To install ON/OFF in the setting menu. If you choose “ON” mode and exit to Active Channel, the main screen will auto lock after 10 seconds and cannot move by button. If you choose “OFF” mode, the screen will display continuously.
- Page 9 SETTINGS Calibrate: Utilize this menu to calibrate the True-D modules for first time usage. It is highly recommended you re-calibrate when using a different video transmitter. Calibration Why do we need to calibrate the True-D? A Diversity receiver system is two receivers built into a single package, allowing the pilot to choose two different antenna systems for maximum levels of video range &...
- Page 10 The reseller you purchased your product from handles the first line of support. If you encounter any problems with your Furious FPV products, please contact them first on issues involving equipment from other brands and general support for Furious FPV products.
