- Page 1 FURIOUS TRUE-D DIVERSITY RECEIVER V3.5 USER MANUAL Please contact us if you need further assistance: Tech support: tech@furiousfpv.com Sales support: sales@furiousfpv.com Website: http://furiousfpv.com/...

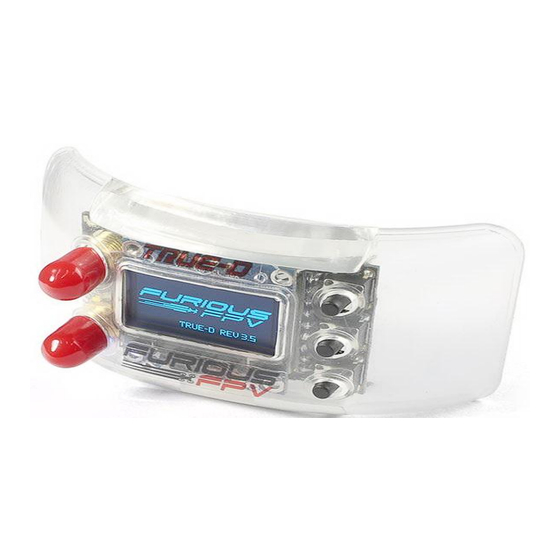

- Page 2 Introduction The Furious TRUE-D V3.5 is an evolution of the most popular diversity system on the market today. With the V3.5, we've refined the TRUE-D, offering an unrivaled system that is designed to optimize your FatShark experience like no other receiver system available today.
-
Page 3: Specifications
Better protection mechanic to protect the OLED screen in transportation New locking system between True-D boards and cover to prevent short Specifications SMA Style: SMA Jack Connector / Female Working Frequency: 5.8GHz Input power: 5V ... - Page 4 Usage The Furious True-D V3.5’s diagram: Logo screen: When powering on the Fatshark goggles, the OLED screen will display the Logo and the current firmware revision installed. You can proudly display your personalized call sign/pilot handle, logo, or team’s logo.
- Page 5 Saved Channels: To save channel that you want to choose to start up for the next time and delete undesired channel. When pressing the Select button about 3s, you can save/delete/exit. You can save up to 8 channels. The default Saved Channels are C1 to C8.
- Page 6 Smart Search: The True-D module will automatically find and show all the detected channels with corresponding signal strength. Note: When utilizing the SMART SEARCH feature the True-D module will detect channels that have the closest frequency with your VTX transmission frequency and preference for channels which you saved.
- Page 7 Settings: The setting menu is utilized to configure the True-D module functions. Alarm: Buzzer will warn you at configured low signal level. The options are as follows: None, 25%, 35% and 50%. If a low signal is detected on antenna A the buzzer will single beep and if a low signal is detected on antenna B the buzzer will dual beep.
- Page 8 Auto lock: To install ON/OFF in the setting menu. If you choose “ON” mode, Screen will auto lock after 10 seconds. If you choose “OFF” mode, Screen will display continuously. Units: show wave index in % or dBm.
- Page 9 Docking: To install ON/OFF in the setting menu. If you choose “ON” mode, True-D will setup with Docking of Furious FPV. If you choose “OFF” mode, True-D will setup with the goggles and you can adjust by buttons in the goggles.
- Page 10 Filter: Configure sensitivity and switching speed for the diversity algorithm. Three choices are available for use: Low: Fast switching speed, which is optimal for short range. Normal: Is a Balanced mode, and the default recommend stock setting. High: Slow switching speed, which is optimal for long range.
- Page 11 How to do I calibrate the True-D diversity module? Step 1: Plug True-D into the Fatshark goggles. Note: Make sure all pins on True-D are correct when you plug in the Fatshark goggles. Step 2: Plug Battery and make sure to turned on RX in the Fatshark goggles. ...
- Page 12 Step 7: Press the Select button to save & exit or exit. You will return to the Channel working space. Note: RSSI Value Standard when calibrating True-D: - Min: 190 ± 30 - Max: 400 ± 40 ...
