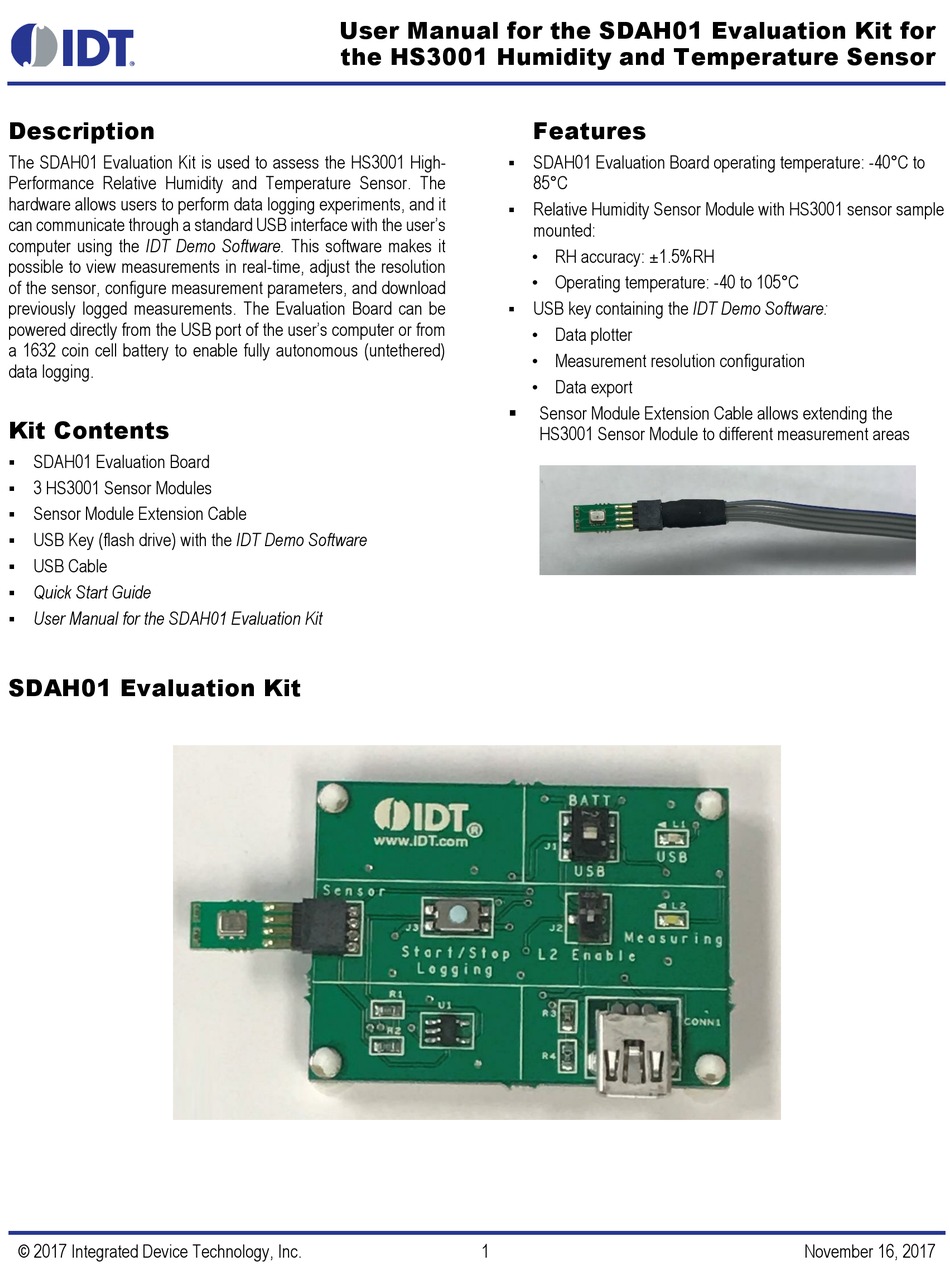

IDT SDAH01 User Manual

Description
The SDAH01 Evaluation Kit is used to assess the HS3001 High-
Performance Relative Humidity and Temperature Sensor. The
hardware allows users to perform data logging experiments, and it
can communicate through a standard USB interface with the user's
computer using the IDT Demo Software. This software makes it
possible to view measurements in real-time, adjust the resolution
of the sensor, configure measurement parameters, and download
previously logged measurements. The Evaluation Board can be
powered directly from the USB port of the user's computer or from
a 1632 coin cell battery to enable fully autonomous (untethered)
data logging.
Kit Contents
SDAH01 Evaluation Board

3 HS3001 Sensor Modules

Sensor Module Extension Cable

USB Key (flash drive) with the IDT Demo Software

USB Cable

Quick Start Guide

User Manual for the SDAH01 Evaluation Kit

SDAH01 Evaluation Kit
© 2017 Integrated Device Technology, Inc.
User Manual for the SDAH01 Evaluation Kit for
the HS3001 Humidity and Temperature Sensor




1
Features
SDAH01 Evaluation Board operating temperature: -40°C to
85°C
Relative Humidity Sensor Module with HS3001 sensor sample
mounted:
• RH accuracy: ±1.5%RH
• Operating temperature: -40 to 105°C
USB key containing the IDT Demo Software:
• Data plotter
• Measurement resolution configuration
• Data export
Sensor Module Extension Cable allows extending the
HS3001 Sensor Module to different measurement areas
November 16, 2017
