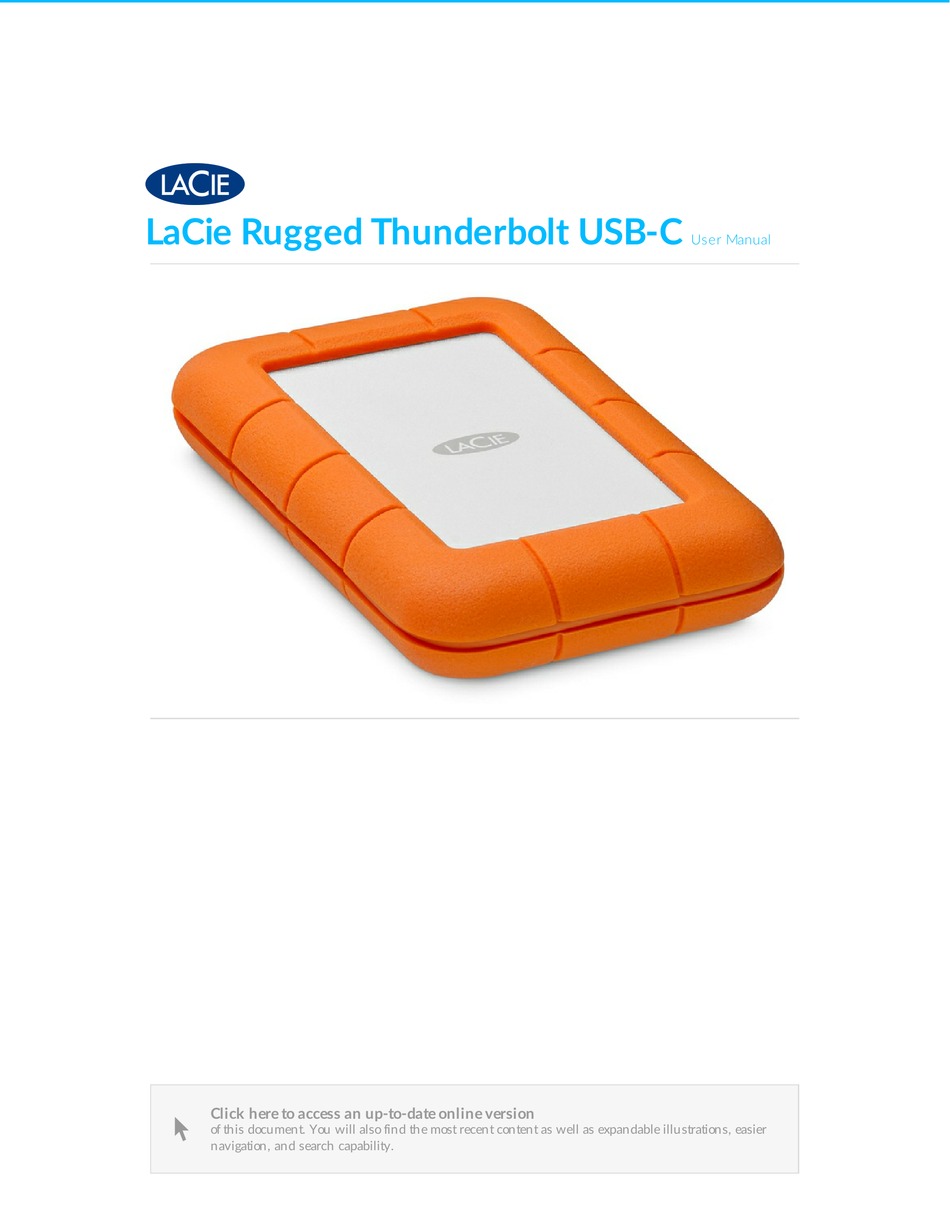

- Page 1 LaCie Rugged Thunderbolt USB-C User Manual Model: Click here to access an up-to-date online version of this document. You will also find the most recent content as well as expandable illustrations, easier navigation, and search capability.
-
Page 2: Table Of Contents
........................Launch LaCie Setup Assistant - Windo ws . - Page 3 ......................... . LaCie Lim ited Warranty Policy .
-
Page 4: Box Content
Additionally, LaCie Rugged Thunderbolt USB-C's casing is lightweight for easy travel and it withstands bumps and drops of up to 2 meters. Professionals and enthusiasts can appreciate LaCie Rugged Thunderbolt USB- C's durability while enjoying high-end performance when connected to a computer with Thunderbolt or USB 3.1 ports. -
Page 5: Operating System
5: Protection against dust from entering the device’s internal mechanism. 4: Protection against splashing water from any angle. LaCie Rugged Thunderbolt USB-C is also protected when it is dropped from heights up to 2 meters / 6.6 feet (in non-operating mode). -
Page 6: Cables And Connectors
Cables and Connectors You can connect LaCie Rugged Thunderbolt USB-C to your computer using Thunderbolt or USB. Review the connection types below. Thunderbolt LaCie Rugged Thunderbolt USB-C features an integrated Thunderbolt cable that connects directly to your computer. Thunderbolt technology supports two 10Gb/s bi-directional channels from a single port. At 10Gb/s, a full-length HD movie can be transferred in less than 30 seconds. -
Page 7: Usb-C Cables
Use the USB-C cable to ensure maximum data transfer rates with compatible ports. Connecting your product is easy since the USB-C cable is identical on both ends. Further, the USB-C ports on your LaCie hard drive and computer are conveniently rounded to accept the cable end no matter how it is connected. -
Page 8: Usb 3.1 (Usb-C)-To-Usb 3.0/2.0 (Type A) Cable
Use the USB 3.1 (USB-C)–to–USB 3.0/2.0 (Type A) cable for compatibility with computers that do not have a USB-C port. The USB-C end is connected to the LaCie hard drive and the Type A end is connected to the computer’s USB 3.0 or USB 2.0 Type A port. -
Page 9: Getting Connected
Ge ng Connected Follow the setup steps in the order they are given to ensure that your LaCie hard drive's volume mounts correctly on your computer. Step 1 - Remove the port cover Remove the cover by placing your index finger on its right edge and gently prying it open. -
Page 10: Usb-C To Usb 3.0/2.0 Co Nnectio N
Connect the cable to the USB-C port on LaCie Rugged Thunderbolt USB-C and a USB-C port on your computer. USB-C to USB 3.0/2.0 connec on Connect the cable to the USB-C port on LaCie Rugged Thunderbolt USB-C and a USB 3.0/2.0 Type A port on your computer. Step 3 - LaCie Setup Assistant LaCie Setup Assistant must be launched before using your drive. -
Page 11: Launch Lacie Setup Assistant - Mac
Using the Finder, locate and ope the LACIE SETUP volume, and then double click LaCie Setup. Launch LaCie Setup Assistant - Windows AutoPlay: Windows AutoPlay may detect your LaCie hard drive as soon as it is connected to your computer. If the AutoPlay window appears, choose Open folder to view files and double-click LaCie Setup. -
Page 12: Lacie Setup Assistant Steps
Manual access: Open the LACIE SETUP volume in Computer/This PC and double-click LaCie Setup. LaCie Setup Assistant steps The LaCie Setup Assistant guides you through formatting and registering your hard drive as well as installing LaCie software utilities. Follow the onscreen prompts to complete the setup. - Page 13 Alternatively, you can use your computer's native disk utility program to format or partition your LaCie drive. Optional Formatting and Partitioning for details. Important info for Mac users: You may be prompted to enter your computer password to continue with LaCie Setup Assistant.
-
Page 14: Install Drivers (Windows Only)
2. Unzip the downloaded file. 3. Double-click Setup.exe. 4. Follow the steps to complete the wizard. 5. When prompted, restart your computer. 6. Connect LaCie Rugged Thunderbolt USB-C to your PC using the Thunderbolt cable (see Getting Connected). LaCie Rugged Thunderbo lt USB-C... -
Page 15: Optional Formatting And Partitioning
Op onal Forma ng and Par oning You can use LaCie Setup Assistant to format your LaCie hard drive when it is first connected to a computer (Mac or Windows). LaCie Setup Assistant helps you to quickly format the storage device according to your needs. -
Page 16: O X Version 10.11 Or Later
1. Make sure the storage device is connected to and mounted on the computer. 2. Go to Search and then type diskmgmt.msc. In the search results, double click Disk Management. 3. From the list of storage devices in the middle of the Disk Management window, locate your LaCie device. - Page 17 LaCie Rugged Thunderbo lt USB-C 8/8/17...
-
Page 18: Mac
1. Open a Finder window. 2. On the sidebar, go to Devices to locate LaCie and click the eject symbol to the right of the drive name. 3. Once the hard drive disappears from the sidebar or, the Finder window closes, you can disconnect the hard drive's cable from your Mac. - Page 19 3. In the list of devices, choose the device you want to remove. Windows displays a notification when it is safe to remove the device. 4. Disconnect the hard drive from the computer. LaCie Rugged Thunderbo lt USB-C 8/8/17...
-
Page 20: Frequently Asked Questions
Q: Is the hard drive connected to a Thunderbolt 2 port on your computer or hub? A: While Thunderbolt 2 has the potential to reach transfers rates up to 20Gb/s, the port on LaCie Rugged Thunderbolt USB-C is Thunderbolt, which can reach up to 10Gb/s. -
Page 21: Pro Blem: I'm Receiving File Transfer Erro R Messages
Q: Can I use my hard drive with a longer cable? A: Yes, provided it is certified according to USB standards. However, LaCie recommends using the cable shipped with your hard drive for the best results. If you use a longer cable and experience problems with detection, transfer rates or disconnection, use the original cable included with your hard drive. -
Page 22: Mac
A: Ignore this message since the drive remounts on the desktop despite the pop-up. LaCie drives conserve power by spinning down when you set your computer to sleep mode. When the computer awakes from sleep mode, the drive may not have enough time to spin up, causing the pop-up to appear. - Page 23 LaCie Rugged Thunderbo lt USB-C 8/8/17...
-
Page 24: Warranty Information
If you discover a defect covered by the warranty set forth above, your sole and exclusive remedy will be for LaCie, in its sole discretion to (i) repair or replace the product at no charge to you; or, if a repaired unit or replacement product is not available, (ii) to refund the current market value of your product. -
Page 25: Exclusions And Limitations
This Limited Warranty applies only to hardware products manufactured by or for LaCie that can be identified by the “LaCie” trademark, trade name, or logo affixed to them. The Limited Warranty does not apply to any non-LaCie hardware products or any software, even if packaged or sold with LaCie hardware. Manufacturers, suppliers, or publishers, other than LaCie, may provide their own warranties to the end user purchaser, but LaCie, in so far as permitted by law, provides their products “as is”. -
Page 26: Doa
Customer Warning Please be sure to back up your data before returning your drive to LaCie for repair. LaCie cannot under any circumstances guarantee the integrity of data remaining on a returned drive. We make no provisions for data recovery and cannot be held liable for any data loss on drives or media returned to LaCie.
