Page 1: Installation Guide

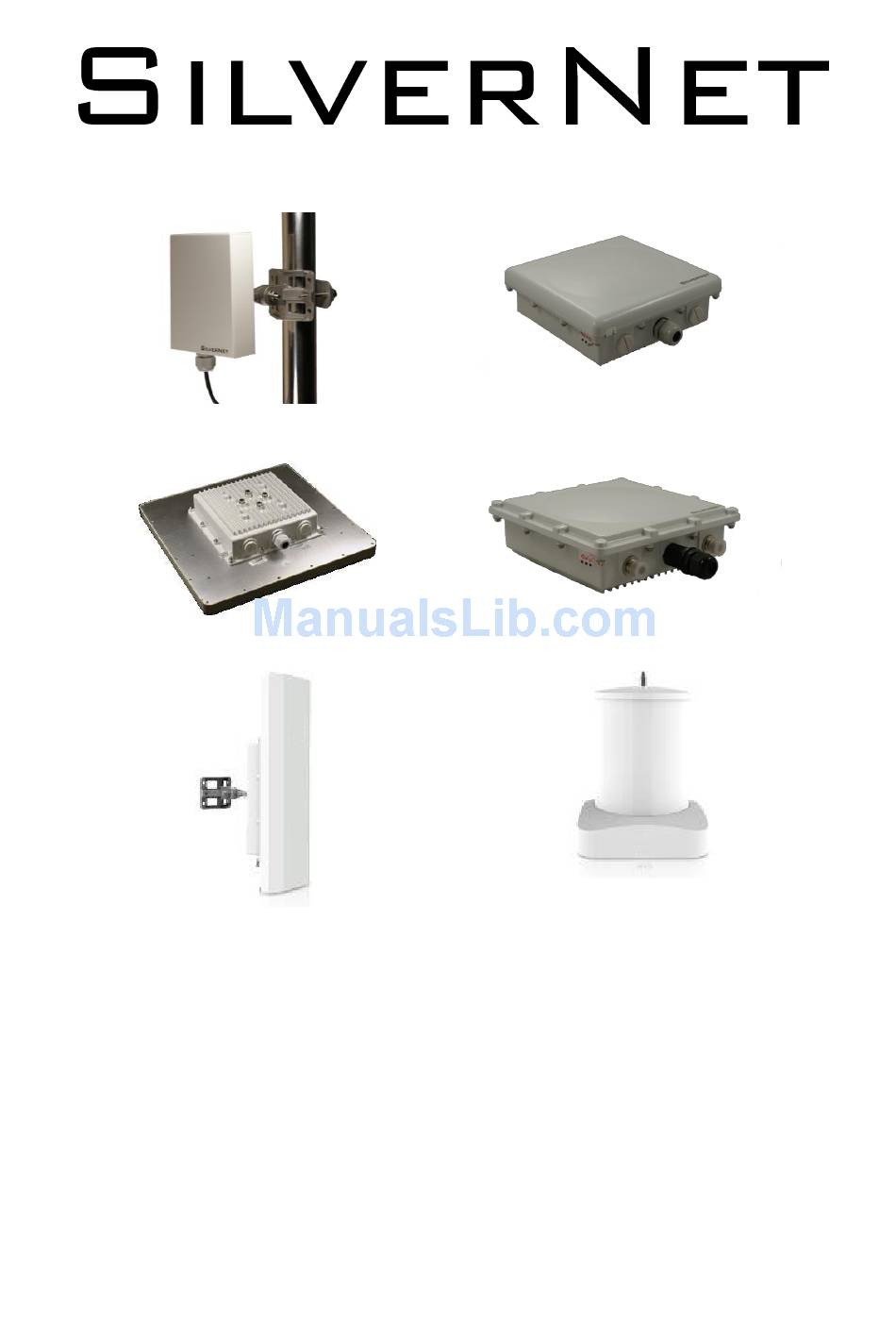

MICRO 95/240 LITE 95/240/500 MAX 95/240/500/1000 BASE 500/ACCESS 1200 BASE 500 90/AP 1200 90 BASE 500 360/AP 1200 360 Pro Range Installation Guide Version 1 (31/05/2017) -
Page 2: Radio Frequency Interference Requirements
Connect the equipment into an outlet on a circuit different from that to which the radio/TV receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Modifications made to the product, unless expressly approved by SilverNet Limited, could void the user’s authority to operate the equipment. -
Page 3: Rf Exposure Requirements
R&TTE directive. In particular the client must ensure that appropriate antennas and transmit power levels are selected to ensure that all power limits are met. Hereby, SilverNet Limited declares that this device is in compliance with the essential requirements and other relevant provisions of the R&TTE Directive 1999/5/EC. -
Page 4: Table Of Contents
Contents Radio frequency Interference Requirements ........2 FCC Warning ......................... 2 RF Exposure Requirements ..................... 3 CE Statement ........................3 Copyright Information ...................... 3 Declaration of Conformity ................5 Introduction ......................6 Features and Benefits ....................... 7 Installation ......................8 Package list ........................... -
Page 5: Declaration Of Conformity
Declaration of Conformity SilverNet Limited declares the following: Product Name: PRO RANGE Model No: MICRO 95/LITE 95/MAX 95/MICRO 240/LITE 240/MAX 240/LITE 500/MAX 500/BASE 500/MAX 1000/AP 1200 conforms to the following Product Standards: This device complies with the Electromagnetic Compatibility Directive (89/336/EEC) issued by the Commission of the European Community. -
Page 6: Introduction
Introduction The high-performance PRO RANGE (AP) is designed for enterprise and public access applications. Embedded with the Atheros chipset, it boasts network robustness, stability and wider network coverage. Based on 802.11n/802.11ac specification, the PRO RANGE supports high-speed data transmission of up to 1167Mbps. -
Page 7: Features And Benefits
Features and Benefits Data rate 802.11ac up to 866Mbps ➢ Data rate 802.11n/a/b/g up to 300Mbps ➢ IEEE 802.11ac & IEEE 802.11n/a compatible ➢ MAC address control ➢ Easy to install and friendly to use, just plug and play ➢ Provides Web-based configuration utility ➢... -
Page 8: Installation
Installation Package list PRO RANGE Radio POE Power Adapter Mains Power Cable Mounting Kit If any of the above items are not included or damaged, please contact your supplier immediately for support. -
Page 9: Prepare The Radio Unit To Mount To A Pole
Prepare the radio unit to mount to a pole Unpack the mounting brackets from the box. Assemble the main part of the bracket using the 2 shortest bolts. Put the bracket round the pole, put the last part of the bracket round the pole and tighten the 2 longer bolts with a spanner to secure the bracket to the pole. - Page 10 Connect the power adapter in the PoE kit to the main electrical supply and the power plug into the socket of the injector. Now, turn on your power supply. The Ethernet LED will light up. This indicates that the access point is receiving power through the PoE Injector and that connection between the access point and your network has been established.
-
Page 11: Device Panel Views And Descriptions
Device Panel Views and Descriptions MICRO 95 *Note: This is also relevant for all the Pro Range equipment Features Status and Indications Ethernet Link LED ON: A Network connection has been detected OFF: No Network connection has been detected 75% Signal RX LED... -
Page 12: Antenna Alignment
Antenna Alignment When aligning the antenna you should examine the physical environment where the equipment is being installed. Check for obstructions, available mounting locations, and other factors. Things such as trees, buildings, and hills, can obstruct the antenna, reducing the signal strength. -
Page 13: Installation Direction
Installation Direction The directional antenna radiates the signal towards the front of the unit. The unit should be installed in a position whereby the front of the unit faces the direction you wish to send the signal to. Therefore the direction you wish to send the signal has to be considered before going on to the next step of starting to set up the access point. - Page 14 For more guidance please visit our YouTube channel www.youtube.com/user/SilverNet...
