Summary of Contents for KEDDY SK1000

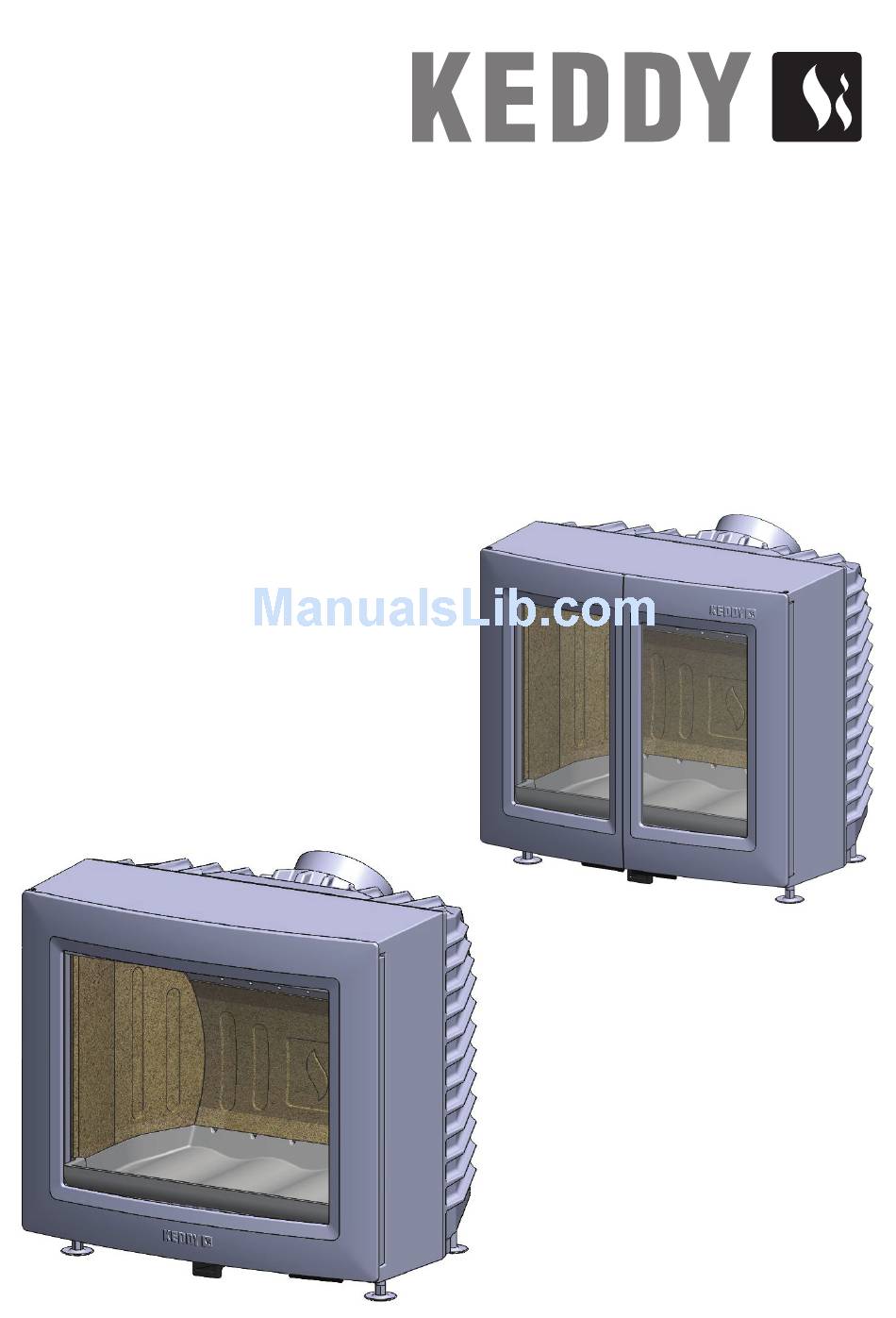

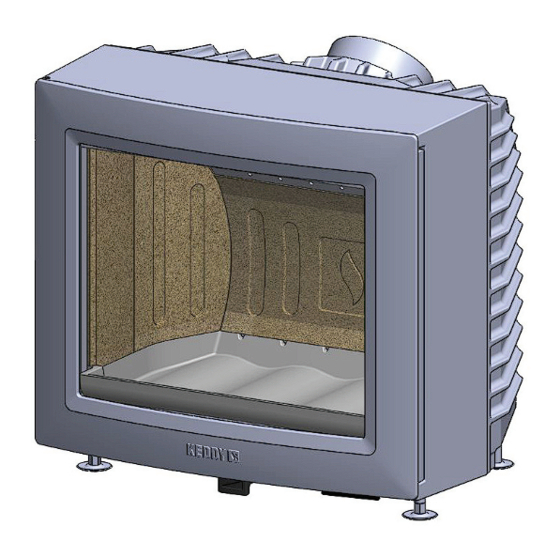

- Page 1 Fireplace inserts Model SK1000, SK2000 Installation instructions Care and firing instructions...
-
Page 2: Table Of Contents
CONTENTS CONTENTS..........................2 GENERAL INFORMATION.....................3 IMPORTANT POINTS......................3 PRECONDITIONS........................4 Building notice Flue Combustion air Standard delivery Exploded diagram PREPARATIONS........................5 INSTALLATION INSTRUCTIONS..................6-8 CARE & FIRING INSTRUCTIONS ...................9-10 TECHNICAL SPECIFICATION..................11 CERTIFICATE.......................12 - 2 -... -
Page 3: General Information
Important! Save these installation instructions and the associated firing instructions! Quality approval Keddy's fireplace inserts have been tested by a certified testing institute and have met the requirements of the Swedish Building Regulations and CE Marking. In addition to this, the fireplace inserts also meet the require- ments for the Nordic Ecolabel. -
Page 4: Preconditions
1 x Heat resistant sealant 1 x Glove FLUE 1 x log stopper Keddy's fireplace inserts may be connected to a flue approved for a minimum of 350°C. The fireplace ACCESSORIES inserts are also approved for connection to older Installation kit (Support leg, Pipe including top... -
Page 5: Preparations
Keddy's fireplace inserts are delivered as standard with a 45 degree angle connection sleeve. If you want to connect vertically or straight back, you need an angle sleeve (accessory). The installation guide begins on the next page. -
Page 6: Installation Instructions
INSTALLATION GUIDE ALT. 1 In order to follow installation guide 1 the assesorie ”installation kit” is needed. If you find that the insert is to heavy to transport to the installation site it is easy to disassemble the body from the front/ door section of the insert. - Page 7 This hole is accomplished with a powerdrill. The hole can be decorated by a Keddy hot air grill. (Accessory) If you want to cover the space between the insert and the original fireplace you can fit Keddys decorative frame for wall connection and guard.
- Page 8 INSTALLATION GUIDE ALT. 2 1. Make a hole in the existing lintel in such a way that you can insert the pipe and insulation. (approximately 300 x 300 mm) 2. Fix the smoke outlet pipe to the insert and adjust the insert to be level with the adjustable feet.
-
Page 9: Care & Firing Instructions
CARE & FIRING INSTRUCTIONS Keddy's fireplace inserts have been tested by an approved Testing and Research Institute. They have extremely good environmental values and a useful efficiency of 80%. For the fireplace insert to work optimally, it is of key importance that you follow the care and firing instructions below. -
Page 10: Care & Firing Instructions
Never use detergents containing abra- maximises the heat generation. sive materials. This will damage the glass. SK1000/2000 are equipped with an innovative When emptying the insert, the ash should be placed system for closing the door. When you put in in a sheet metal container. -
Page 11: Technical Specification
TECHNICAL SPECIFICATIONS SK1000 Height 470-475 mm Width 500 mm Depth 400 mm Weight 100 kg Flue pipe diameter 125 mm Efficency Output 4-9 kw SK2000 Height 535-540 mm Width 600 mm Depth 500 mm Weight 125 kg Flue pipe diameter 125 mm... -
Page 12: Certificate
Keddy AB Box 542 441 15 ALINGSÅS Tel. +46 (0) 322 781 80 Fax +46 (0) 322 781 89 E-mail: info@keddy.se Website: www.keddy.se...
