- Page 1 PRECISION ONBOARD CHARGERS MK106PC MK110PC MK212PC MK220PC MK230PC MK318PC MK330PC MK345PC MK440PC MK460PC USER MANUAL...
- Page 2 Countless hours of research and testing provide you the advantages of a Minn Kota product that can truly take you “Anywhere. Anytime. “ We don’t believe in shortcuts. We are Minn Kota. And we are never done helping you catch more fi sh.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Three-Year Limited Warranty Features Safety Precautions Installation 9-10 Locating the Charger Mounting the Charger Installing the MK-EC Battery Extension Cable Accessory (not included) Operating the Charger 11-14 Overview Selecting the Battery Type General Operation Indicator LEDs Multi-stage Charging 13-14 Troubleshooting Frequently Asked Questions... -
Page 4: Three-Year Limited Warranty
MINN KOTA LIMITED THREE-YEAR REPLACEMENT WARRANTY ON THE ENTIRE PRODUCT JOME warrants to the original retail purchaser only that the purchaser’s new Minn Kota battery charger and battery maintainer will be materially free from defects in materials and workmanship appearing within three (3) years after the date of purchase. JOME will (at its option) replace, free of charge, any charger found by JOME to be defective during the term of this warranty. -
Page 5: Features

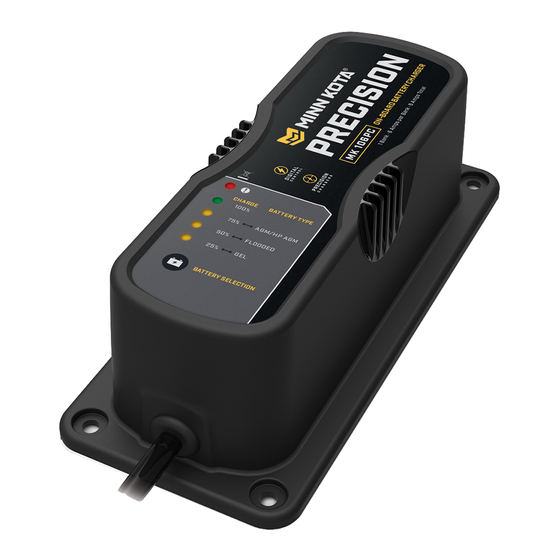

FEATURES Comprehensive LED Display AC Plug Holder Battery Selection by Bank Digital, Microprocessor-Based Design for: • Automatic Temperature Compensation • Low-Line Voltage Compensation Battery Equalization • Automatic, Multi-Stage Charging (Flooded Lead-Acid only) • True-Rated Output Waterproof, shock-resistant, vibration resistant construction Specifications subject to change without notice. -
Page 6: Safety Precautions
SAFETY PRECAUTIONS SAVE THESE INSTRUCTIONS! This manual contains important safety and operating instructions applicable to the safe and efficient use of your Minn Kota battery charger. WARNING: Risk of explosive gases - working in the vicinity of a lead acid battery is dangerous. Batteries contain sulfuric acid and produce explosive gases. -
Page 7: Personal Precautions
DC CONNECTION PRECAUTIONS a. The Minn Kota charger will only charge 12 volt 6 cell lead acid batteries including flooded lead/acid, AGM, and GEL batteries. Do not connect the output of the charger to any other voltage or type of battery. - Page 8 AC POWER CORD CONNECTION PRECAUTIONS The Minn Kota battery charger should be grounded to reduce risk of electric shock. The charger is equipped with an electric AC power cord. The plug must be plugged into an outlet that is properly installed in accordance with all local codes and ordinances.
-
Page 9: Installation
WARNING: Do not splice the AC power cord, as this voids the three year Limited Warranty. i. Even though the Minn Kota charger is capable of operating in a high ambient temperature environment, a minimum of six inches of unobstructed area should be allowed on all sides of the unit for proper air circulation and cooling. Proper cooling and circulation will allow the charger to operate at peak efficiency. -
Page 10: Installing The Mk-Ec Battery Extension Cable Accessory (Not Included)
INSTALLING THE MK-EC EXTENSION CABLE ACCESSORY The Minn Kota Battery Charger Output Extension Cables are ideal for extending charger output cables that do not reach bow, center or transom battery compartments. Featuring easy installation with waterproof adhesive heat shrink for use in saltwater environments. -
Page 11: Operating The Charger
Each output bank is independent and isolated from one another and the AC input. The Minn Kota charger can charge indepen- dent batteries or combinations of batteries hooked in series or parallel without disconnecting the batteries from any switches or wires / straps joining the batteries. -
Page 12: Selecting The Battery Type
Maintenance Mode. The charger will stay in Maintenance Mode for 12 hours. After 12 hours in the Maintenance Mode, the charger output will turn off and the 100% GREEN LED will switch to steady GREEN. Table 1 Input Power Model (120VAC, 60Hz) MK106PC 100W MK110PC 165W MK212PC 200W... -
Page 13: Indicator Leds
MULTI-STAGE CHARGING Minn Kota’s Multi-Stage Charging delivers a fast, precise charge profile by automatically controlling current and voltage without overcharging your batteries. Bulk Mode: During this stage, the charger delivers full current until the battery reaches ~75% charge. - Page 14 OPERATING THE CHARGER Table 2 CHARGING PROFILE @ 25° C Battery Type Absorption Equalize Float Flooded Lead-Acid 14.4V 15.5V 13.2V AGM/High Performance AGM 14.4V 13.4V (Absorbed Glass Mat) 13.9V 13.4V...
-
Page 15: Troubleshooting
Banks per Bank Output Size L x W x H Cable Cable (lbs) (120VAC, 60Hz) (amps) (amps) MK106PC 1831060 18AWG - 6’ 16AWG - 6’ 9-1/4” x 4” x 3-1/4” 1.5A MK110PC 1831100 18AWG - 6’ 16AWG - 6’ 9-1/4” x 4” x 3-1/4”... -
Page 16: Frequently Asked Questions
Q How warm do Minn Kota battery chargers get? A The Minn Kota battery chargers can reach 150° F. They may get warm in an enclosed area. The maximum recommended room temperature for charging batteries is 122° F. If the charger seems to get “hot,” try opening a hatch to help cool the charger. - Page 17 Q What Batteries can be charged by a Minn Kota charger? A Minn Kota Chargers can charge 12 volt 6 cell lead-acid batteries. Minn Kota D Series Chargers and Minn Kota Portable Chargers work well with Flooded Lead Acid and AGM battery types. Minn Kota PC series Chargers have optimized charging for Flooded Lead Acid, AGM and Gel battery types.
-
Page 18: Service & Maintenance
• When storing the battery charger, store in a clean dry area. • If power cord or plug becomes damaged, you may contact the Minn Kota Service Repair Department for service repair information. Otherwise, dispose of the battery charger in compliance with local law. Damaged cords and plugs can cause... -
Page 19: Compliance Statements
Minn Kota motors are not subject to the disposal regulations EAG-VO (electric devices directive) that implements the WEEE directive. Nevertheless never dispose of your Minn Kota charger in a garbage bin but at the proper place of collection of your local directive. -
Page 20: Parts Diagram & Parts Lists
PARTS DIAGRAM & LIST MK106PC / MK110PC This page provides Minn Kota® WEEE compliance instructions. Charger can not be disassembled, but the cords can be cut and removed. For more information about where you should dispose of your waste equipment for recycling and recovery and/or your European Union member state requirements, please contact your dealer or distributor from which your product was purchased. - Page 21 PARTS DIAGRAM & LIST MK212PC / MK220PC This page provides Minn Kota® WEEE compliance instructions. Charger can not be disassembled, but the cords can be cut and removed. For more information about where you should dispose of your waste equipment for recycling and recovery and/or your European Union member state requirements, please contact your dealer or distributor from which your product was purchased.
- Page 22 PARTS DIAGRAM & LIST MK318PC / MK330PC This page provides Minn Kota® WEEE compliance instructions. Charger can not be disassembled, but the cords can be cut and removed. For more information about where you should dispose of your waste equipment for recycling and recovery and/or your European Union member state requirements, please contact your dealer or distributor from which your product was purchased.
- Page 23 PARTS DIAGRAM & LIST MK440PC This page provides Minn Kota® WEEE compliance instructions. Charger can not be disassembled, but the cords can be cut and removed. For more information about where you should dispose of your waste equipment for recycling and recovery and/or your European Union member state requirements, please contact your dealer or distributor from which your product was purchased.
- Page 24 PARTS DIAGRAM & LIST MK230PC / MK345PC / MK460PC This page provides Minn Kota® WEEE compliance instructions. Charger can not be disassembled, but the cords can be cut and removed. For more information about where you should dispose of your waste equipment for recycling and recovery and/or your European Union member state requirements, please contact your dealer or distributor from which your product was purchased.
-
Page 25: Notes
Stop buying new batteries and start taking care of the ones you’ve got. Many chargers can actually damage your battery over time – creating shorter run times and shorter overall life. Digitally controlled Minn Kota chargers are designed to provide the...
