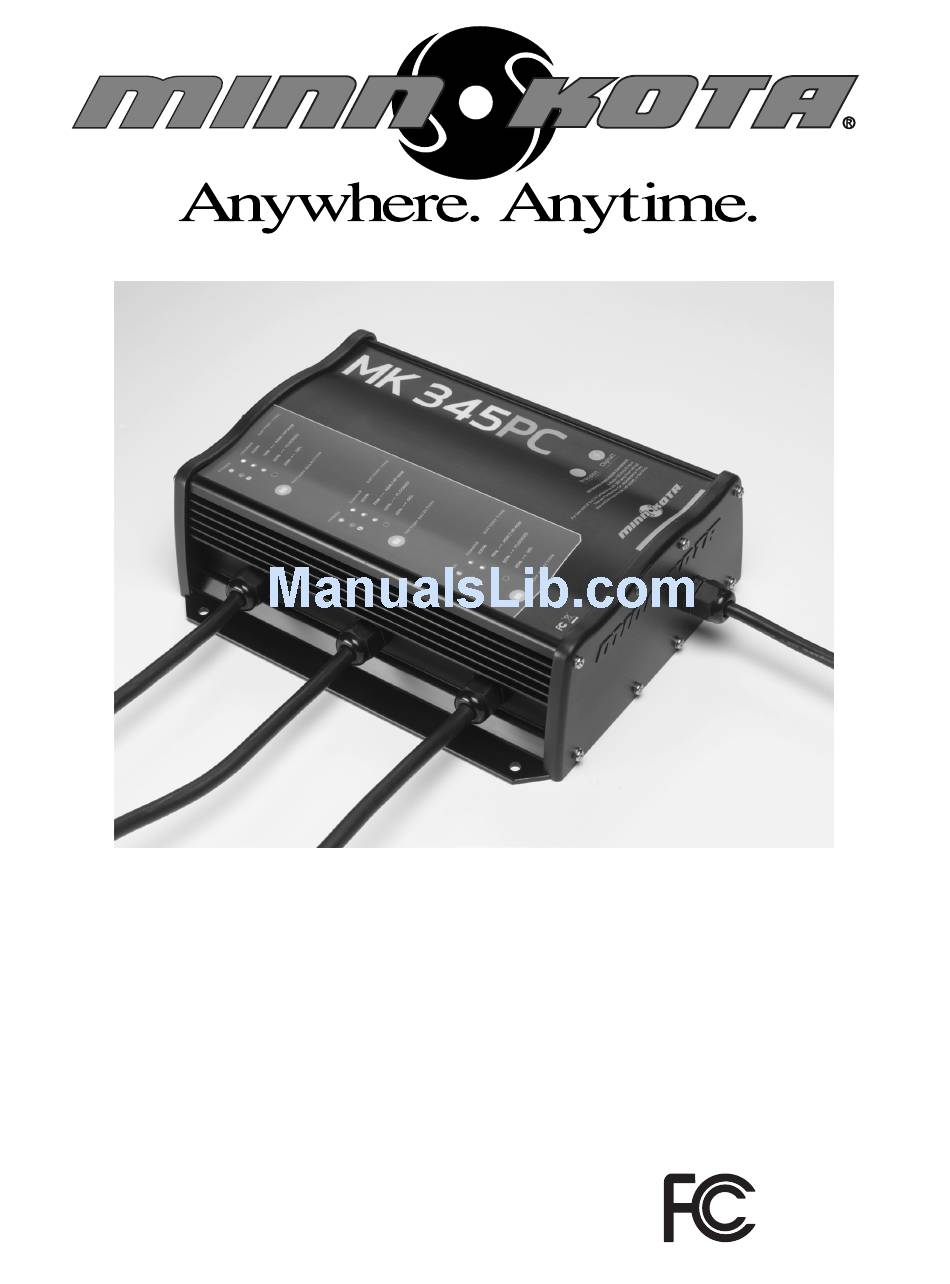

OWNER'S MANUAL FOR
MINN KOTA ONBOARD
BATTERY CHARGERS

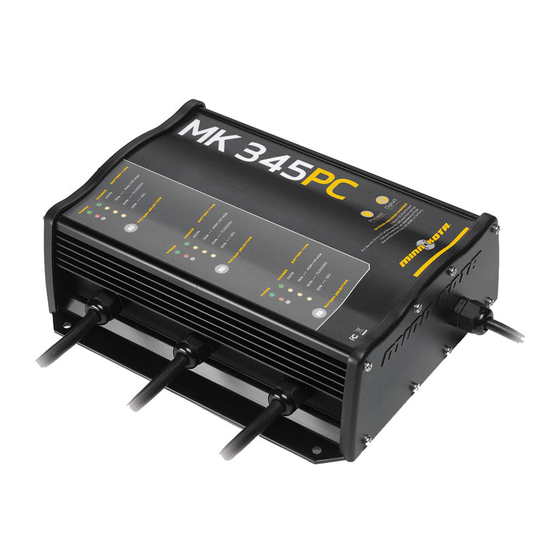

Models: MK115PC, MK230PC,
MK345PC, MK460PC
Service Information:
Please call our service department at
1.800.227.6433 if you have any problems
with your battery charger. A technical support
representative will be happy to assist you.
Designed and Constructed to
Marine UL1236 Standard.
Compliant with FCC
PART 15, Class A
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for MINN KOTA MK115PC
Summary of Contents for MINN KOTA MK115PC
- Page 1 OWNER’S MANUAL FOR MINN KOTA ONBOARD Designed and Constructed to Marine UL1236 Standard. BATTERY CHARGERS Models: MK115PC, MK230PC, MK345PC, MK460PC Service Information: Please call our service department at 1.800.227.6433 if you have any problems Compliant with FCC with your battery charger. A technical support PART 15, Class A representative will be happy to assist you.
-
Page 2: Important Safety Instructions
Minn Kota battery charger. b) The Minn Kota battery charger is a powerful electrical device. If incorrectly installed, configured or operated, the battery charger can damage batteries and / or electrical equipment. Please thoroughly read the instructions and safety information contained in this manual before operat- ing the battery charger. -
Page 3: Preparing To Charge
The fuse holder should always remain within 7” of the battery terminals. The maximum exten- sion length is 15 feet. You may contact the Minn Kota Service Department with any questions. Do not splice the AC power cord, as this... -
Page 4: Dc Connection Precautions
15 minutes. This allows any gasses that have accumulated in the compartment to escape. 5) DC CONNECTION PRECAUTIONS a) The Minn Kota charger will only charge 12 volt 6 cell lead acid batteries. Do not connect the output of the charger to any other voltage or type of battery. -
Page 5: Grounding And Ac Power Cord Connection Instructions
CAUTION - Due to the high charging current of the Minn Kota charger, it is recommended that each output be connected to only one battery. Connecting 2 output banks to one battery may cause excessive heating in the battery and could cause acid leakage or battery explosion. - Page 6 Table 1 Charging Profile Battery Type Absorption Equalize Float Flooded Lead-Acid 14.4V 15.5V 13.2V AGM / High Performance AGM (Absorbed Glass Mat) 14.4V 13.4V 13.9V 13.4V...
- Page 7 Severe damage to the motor or charging system may occur if lightning strikes nearby or if storm related high voltage conditions exist. CAUTION – Generators with a modified square wave output can damage this MINN KOTA charger. Generators with a sine wave output can be used to power this charger.
- Page 8 When the charger is not in use, coil the power cord to prevent damage. If power cord or plug becomes damaged, you may contact the Minn Kota Service Repair Department for service repair information. Otherwise, dispose of the battery charger in compliance with local law. Damaged cords and plugs can cause electric shock or electrocution.
-
Page 9: Troubleshooting
-Check connections to battery and fuses in output cord. -Check voltage at battery. The bank will not charge a battery below 4 volts or above 16 volts. -If still not working, call the Minn Kota Service Department at 1-800-227-6433. PROBLEM: RED LED is flashing with steady 25% YELLOW LED. - Page 10 SINGLE BANK BATTERY CHARGER 120V AC INPUT BLACK- RED+ 12v battery TWO BANK NOTE: If batteries are connected in BATTERY CHARGER series for 12/24 - 24V, the series 120V AC connection wire can be left in place INPUT during charging. BLACK- RED+ BLACK-...
- Page 11 This page provides Minn Kota® WEEE compliance disassembly instructions. For more information about where you should dispose of your waste equipment for recycling and recovery and/or your European Union member state requirements, please contact your dealer or distributor from which your product was purchased.
-
Page 12: Environmental Compliance Statement
ENVIRONMENTAL COMPLIANCE STATEMENT: It is the intention of Johnson Outdoors Inc. to be a responsible corporate citizen, operating in compliance with known and applicable environmental regulations, and a good neighbor in the communities where we make or sell our products. WEEE Directive: EU Directive 2002/96/EC “Waste of Electrical and Electronic Equipment Directive (WEEE)”... -
Page 13: Limited Three Year Warranty
Chargers purchased outside of the U.S. must be returned prepaid with proof of purchase to Johnson Outdoors Canada, 4180 Harvester Road, Burlington, Ontario Canada L7L 6B6, Phone 1.905.634.0023. Note: Do not return your Minn Kota® charger or parts to your retailer. Your retailer is not authorized to repair or replace them.
