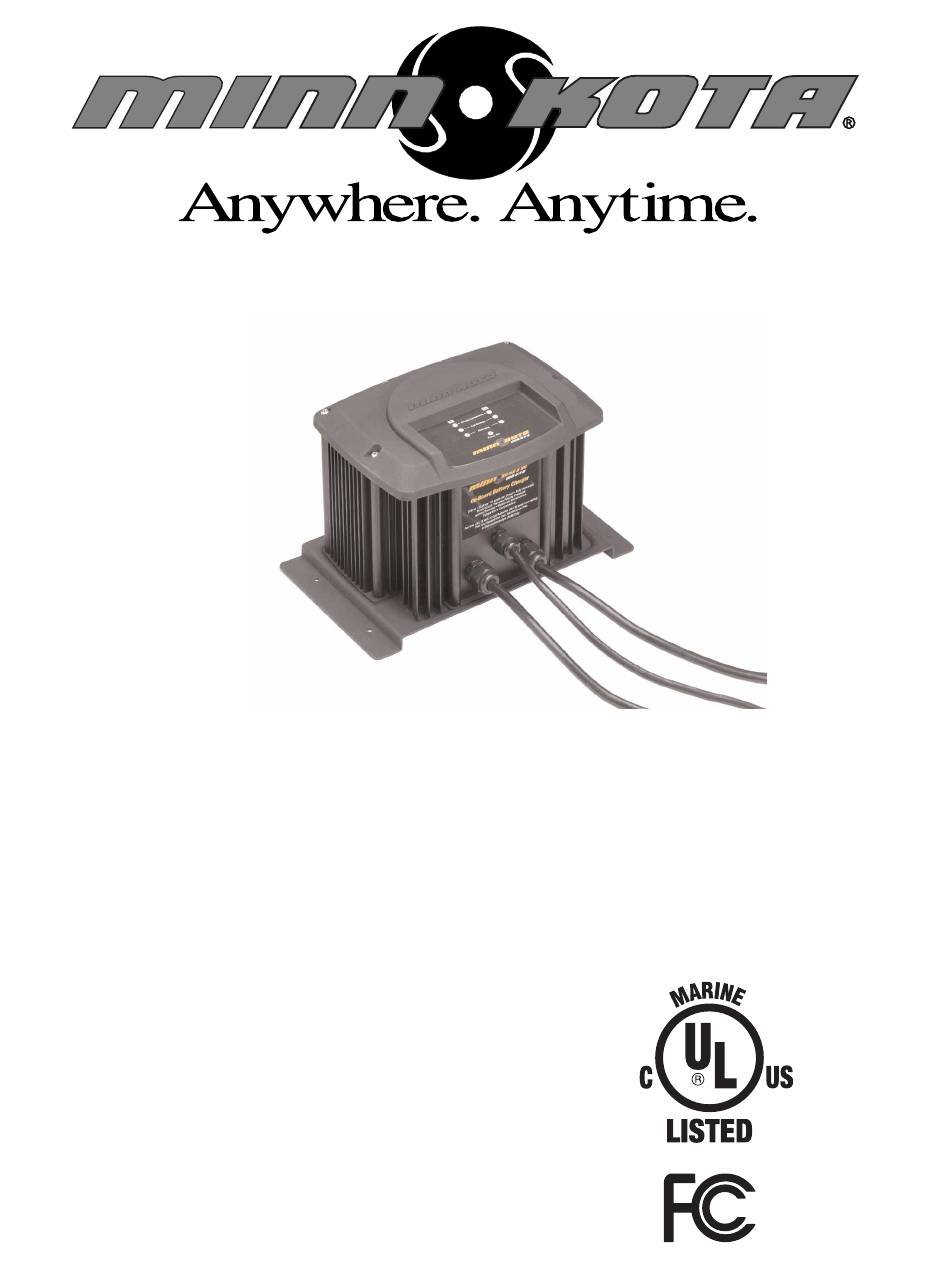

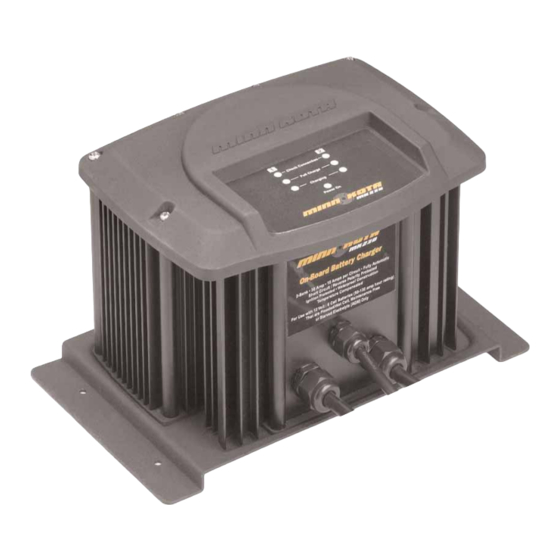

OWNER'S MANUAL FOR
MINN KOTA ONBOARD
BATTERY CHARGERS
Models: MK230, MK345,
MK440, MK460
Service Information:
Please call our service department at
1.800.227.6433 if you have any problems
with your battery charger. A technical support
representative will be happy to assist you.
Compliant with FCC
PART 15,Class B
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for MINN KOTA MK230
Summary of Contents for MINN KOTA MK230
- Page 1 OWNER’S MANUAL FOR MINN KOTA ONBOARD BATTERY CHARGERS Models: MK230, MK345, MK440, MK460 Service Information: Please call our service department at 1.800.227.6433 if you have any problems Compliant with FCC with your battery charger. A technical support PART 15,Class B...
-
Page 2: Safety Information
This manual contains important safety and operating instructions applicable to the safe and efficient use of your Minn Kota battery charger. The Minn Kota battery charger is a powerful electrical device. If incorrectly installed, configured or operated, the battery charger can damage bat- teries and / or electrical equipment. -
Page 3: Preparing To Charge
5) Study all battery manufacturers’ specific precautions while charging and recommended rates of charge. 4. DC CONNECTION PRECAUTIONS 1) The Minn Kota charger will only charge 12 volt 6 cell lead acid batteries. Do not connect the output of the charger to any other voltage or type of battery. -
Page 4: Installing The Battery Charger
The fuse holder should always remain within 7” of the battery terminals. The maximum extension length is 15 feet. You may contact the Minn Kota Service Department with any questions. Do not splice the AC power cord, as this voids the three year Limited Warranty. - Page 5 See diagram on page 7. CAUTION - Due to the high charging current of the Minn Kota charger, it is recommended that each output be connected to only one Group 27 or Group 31 battery. Connecting 2 banks to one Group 27 or Group 31 battery may cause excessive heating in the battery and could cause acid leakage or battery explosion.
-
Page 6: Specifications
When the charger is not in use, coil the power cord to prevent damage. If power cord or plug becomes damaged, you may contact the Minn Kota Service Repair Department for service repair information. Otherwise, dispose of the battery charger in compliance with local law. Damaged cords and plugs can cause electric shock or electrocution. - Page 7 TWO CHANNEL BATTERY CHARGER 120V AC INPUT NOTE: If batteries are connected in series for 12/24 - 24V, the series con- nection wire should be left in place BLACK- BLACK- RED+ RED+ during charging. 12v battery 12v battery THREE CHANNEL BATTERY CHARGER 120V AC INPUT...
- Page 8 This page provides MinnKota® WEEE compliance disassembly instructions. For more information about where you should dispose of your waste equipment for recycling and recovery and/or your European Union member state requirements, please contact your dealer or distributor from which your product was purchased. Tools required but not limited to: Flat Head screw driver, Phillips screw driver, Socket set, Pliers, wire Cutters..
- Page 9 This page provides MinnKota® WEEE compliance disassembly instructions. For more information about where you should dispose of your waste equipment for recycling and recovery and/or your European Union member state requirements, please contact your dealer or distributor from which your product was purchased. Tools required but not limited to: Flat Head screw driver, Phillips screw driver, Socket set, Pliers, wire Cutters..
- Page 10 ENVIRONMENTAL COMPLIANCE STATEMENT: It is the intention of Johnson Outdoors Inc. to be a responsible corporate citizen, operating in compliance with known and appli- cable environmental regulations, and a good neighbor in the communities where we make or sell our products. WEEE Directive: EU Directive 2002/96/EC “Waste of Electrical and Electronic Equipment Directive (WEEE)”...
-
Page 11: Limited Three Year Warranty
Chargers purchased outside of the U.S. must be returned prepaid with proof of purchase to Johnson Outdoors Canada, 4180 Harvester Road, Burlington, Ontario Canada L7L 6B6, Phone 1.905.634.0023. Note: Do not return your Minn Kota® charger or parts to your retailer. Your retailer is not authorized to repair or replace them.
