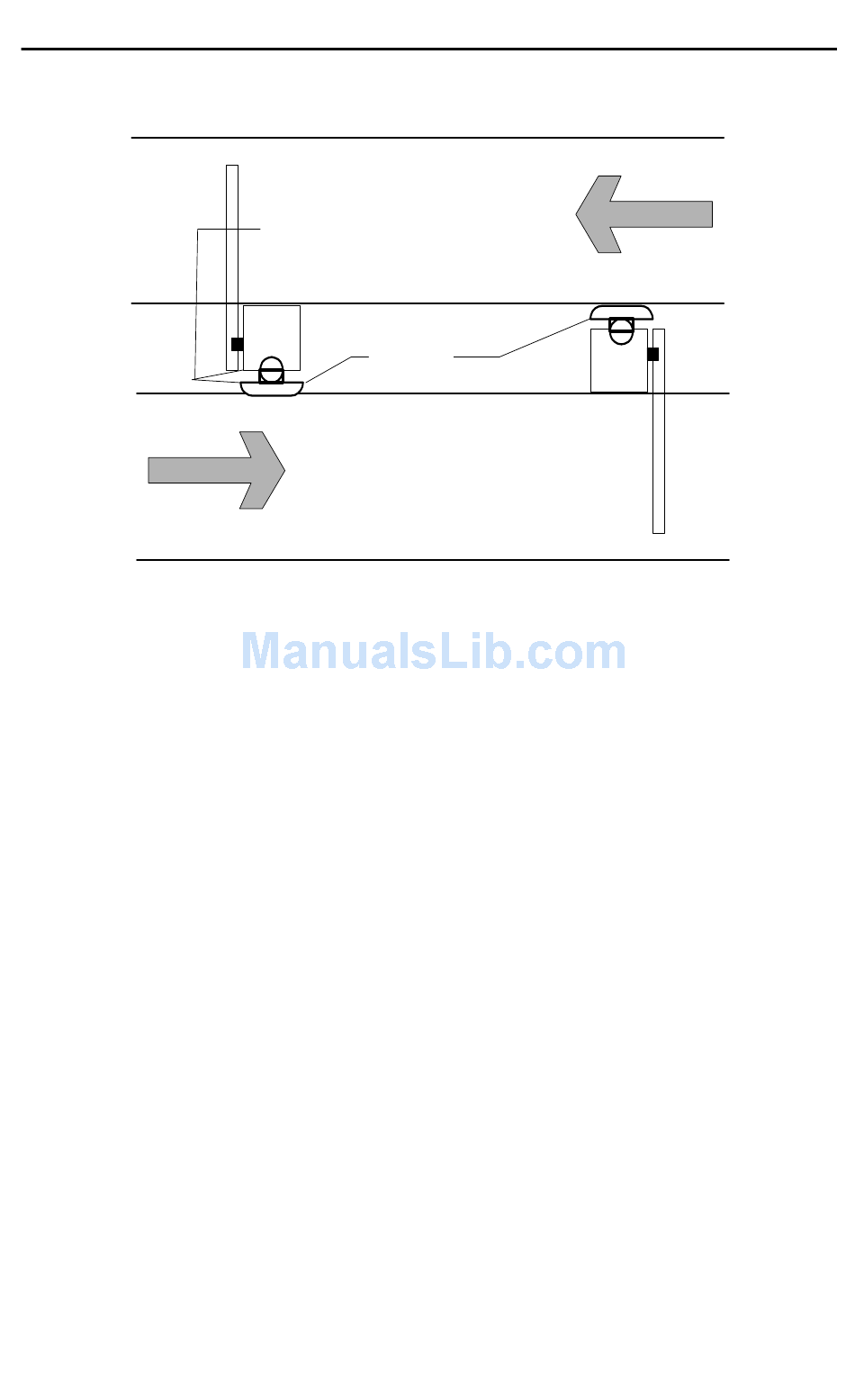

FIGURE 6: Parking Entrance/Exit Application B

In Application A, the back-to-back and (if used) vertical gap guidelines
above must be observed. Remember to mount all readers (and all other
structures) before tuning the reader.
In Application B, successful installation requires close attention to
electrical noise from the gate control mechanism (and its associated
wiring) that may cause reader-to-reader signal interference.
GE Contactless Medium Read-Range Reader Model 260
Reader-Control
Gap
Gate
Ctrl
IN
Readers
OUT
Gate
Ctrl
9
