maintain programmed settings. As a result, the
thermostat's battery may need to be replaced more often
— depending how often and how long the ESM is turned
on.
Refer to the specific panel Installation Instructions for wire
length limits.
Tools and Supplies
Screwdrivers (Phillips and slotted)
Screws and anchors (included)
Digital voltmeter
3/8"-drive drill and drill bits
Hammer
Wire cutters/strippers
Four-conductor, 22-gauge or larger diameter stranded
wire
Two-conductor, 22-gauge or larger diameter stranded wire
Installation
Installation requires you to mount the ESM and wire the
module to a panel and an existing HVAC thermostat.
Mounting the ESM
1.
Press down on module cover and pull away from base
(see Figure 2 below).

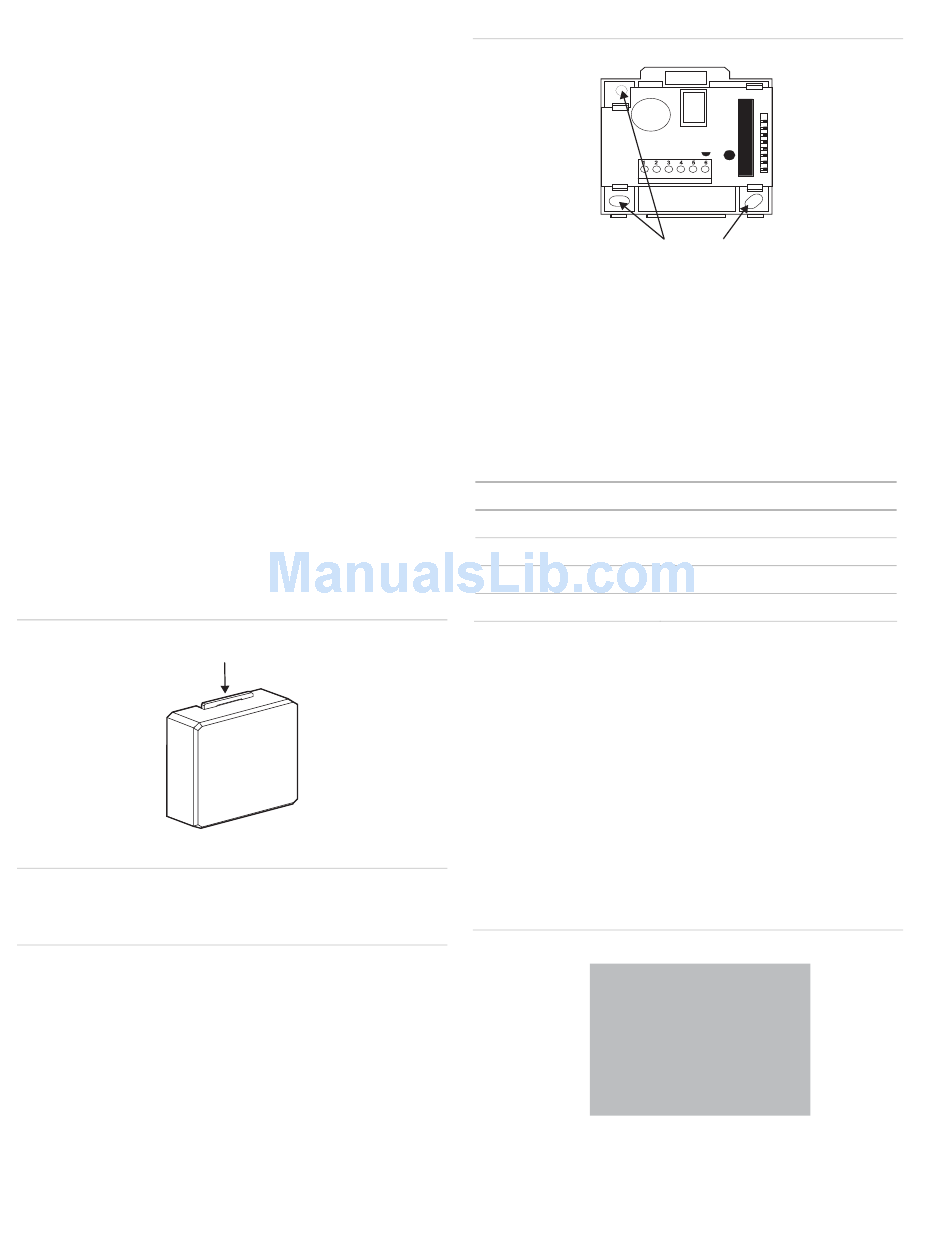

Figure 2: Removing the module cover
Press down here
and pull away from base
Caution:
You must be free of static electricity while handling
electronic components. Touch a grounded bare metal surface
before touching a circuit board.
2.
Place the ESM on the wall at the desired location and
mark the upper-left and lower mounting holes (see
Figure 3 below).
2
Figure 3: Module mounting hole locations
3.
Install anchors and secure the ESM to the wall.
Wiring
While some thermostats control heating and cooling, others
control only heating. A thermostat that controls both heating
and cooling uses four wires; a heat-only thermostat typically
has two.
Table 2: Four-wire thermostat color codes
Wire
Red
Green
Yellow
White
Note: If the thermostat wire colors differ from those described,
contact a qualified HVAC service person for specific thermostat
wiring information. Be sure to give the service person the
thermostat's manufacturer name and model number.
Wiring the ESM to a Concord Panel
1.
Remove panel AC power and disconnect the backup
battery.
2.
Turn off the thermostat and remove cover.
3.
Route a four-conductor, 22-gauge or larger diameter
stranded wire from the ESM to the panel.
4.
Connect terminals 3-6 to the panel (see Figure 4 below).
Figure 4: ESM wiring connections to thermostat and Concord
panel
ESM Terminals
To Furnace
Thermostat
Concord Panel
Terminals
5.
Route a two-conductor, 22-gauge or larger diameter
stranded wire from the ESM to the thermostat.
SuperBus 2000 Energy Saver Module Installation Instructions
Mounting Holes
Function
Power feed to thermostat
Fan control
Cooling
Heating
+12V
BUS
BUS
GND
DC
A
B
3
6
4
5
GND
+12V
BUS
BUS
A
B
DC
