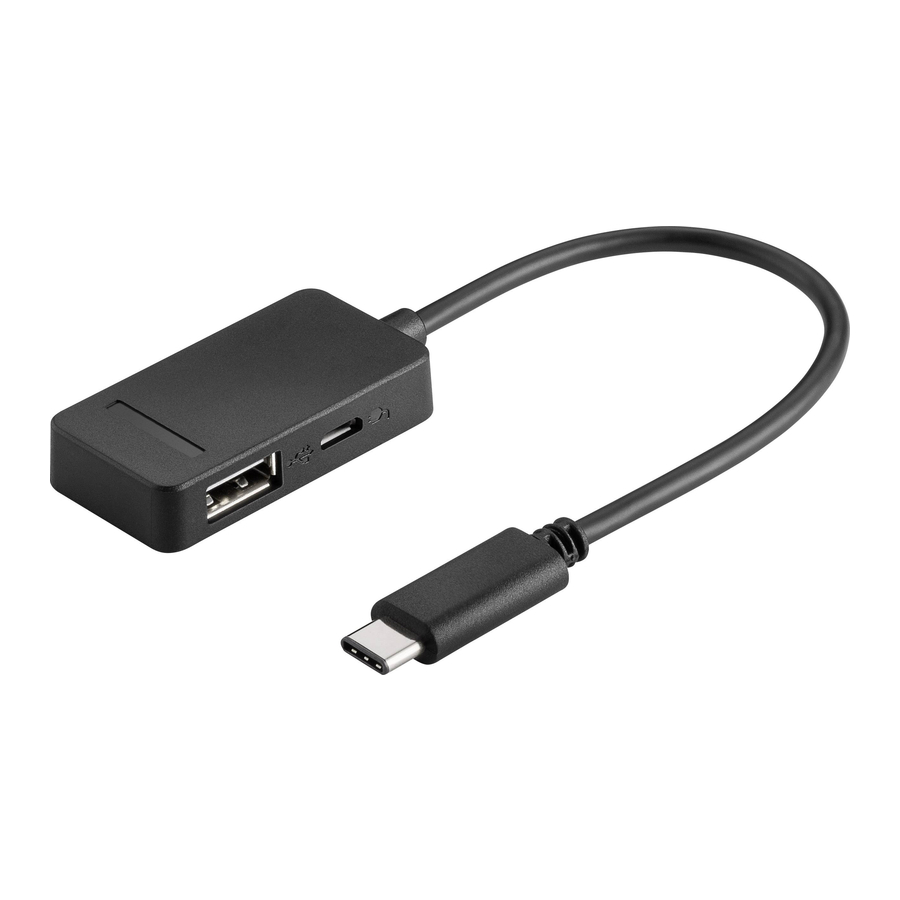

Goobay 66254 User Manual

EN
User Manual
USB 3.1 Adapters and HUBs
1 Safety Instructions
• Read the user manual completely and carefully before use.
It is part of the product and contains important information for correct use.
• Keep this user manual.
It must be available for uncertainties and passing the product.
• Do not open the housing.
• Only let a trained electrical engineer do installation, disassembling, main-
tenace and repairing work.
• Compare the specifications of all used devices to ensure compatibility.
• Do not repair defective products by yourself, but contact the dealer or
producer.
• Do not modify or disassemble product nor accessories.
• Avoid stresses such as heat and cold, moisture and direct sunlight, vibra-
tion and mechanical pressure.
• Only use in dry ambience.
2

Description and Function

2.1 USB 3.1 Adapter and Hubs
This product is made to expand the interfaces and for data transmission of USB-C
compatible devices. Charging of connected USB devices is also supported. The
USB 3.1 Adapters and Hubs adapt to one or several of the following interfaces:
Article number
66254
66255
66257
66259
66260
66262 USB-C
66265
66266
66269
66273
66274
Tab. 3: USB 3.1 Adapters and Hubs
2.2 Scope of delivery
USB 3.1 Adapter or Hub, User manual
2.3 Operating elements
None.
2.4 Specifications
Connections
Data transmission rate/
Video Resolution
max. charging current
REV2015-09-11
V1.0
We reserve the right of misprints and changes to
product, packaging or product documentation.
Interface
USB-A 3.1, USB 2.0 Micro-B
RJ45
DisplayPort
HDMI
VGA
USB-A 3.0
HDMI, USB-A 2.0+USB-C
DVI
RJ45, USB-A 3.0
VGA, USB-A 2.0, USB-C
USB-A 3.0 (4x)
read chapter 2.1
USB 3.1: 10 Gbit/s,
66254
USB 2.0: 480 Mbit/s
66255 RJ45: 10/100/1000 Mbit/s
66257 DisplayPort: 2.16 Gbit/s
66259 HDMI 1,4: 8.16 Gbit/s
66260 VGA: 1080P (60 Hz)
66262 USB 3.0: 5 Gbit/s
HDMI 1.4: 8.16 Gbit/s,
66265 USB 2.0: 480 Mbit/s
USB 3.1: 10 Gbit/s
66266 DVI: 1080P
RJ45: 10/100/1000 Mbit/s,
66269
USB 3.0: 5 Gbit/s
VGA: 1080P,
66273 USB 2.0: 480 Mbit/s,
USB 3.1: 10 Gbit/s
66274 USB 3.0: 5 Gbit/s
66262
900 mA
66269
66266
1000 mA
66274
others not meant for charging
supported operating
systems
Dimensions
Tab. 4: Specifications
3

Intended Use

We do not permit using the device in other ways like described in chapter
Description and Function. Use the product only in dry interior rooms. Not
attending to these regulations and safety instructions might cause fatal
accidents, injuries, and damages to persons and property.
4

Preparing

>> Compare the specifications of all used devices to ensure
compatibility.
5

Connecting

1. Connect the USB 3.1 Adapter or Hub via USB-C plug to your USB-C
compatible device.
2. Dependend on your model, connect one or more USB devices via their
specific charging and/or data cable with the USB 3.1 Adapter or Hub.
6

Installing

Before, during or after use, there are no operating elements to operate.
Before or during use, there is no software necessary to install.
Data transmission is possible bidirectional.
Charging of USB devices is only possible at the output side of the products. This
means from USB-C to the adapted interface/s.
7

Maintenance and Cleaning

The products are maintenance-free.
---------------------------------------------------------------------------------------------------
Material damage
• Clean only with a dry, soft cloth.
• Do not use cleaning agents and chemicals.
---------------------------------------------------------------------------------------------------
• Store cool and dry.
• Store the product out the reach of children and in a dry and dust-protec-
ted ambience when not in use.
• Keep and use the original packaging for transport.
8

Disposal Notes

According to the European WEEE directive, electrical and electronic
equipment must not be disposed with consumers waste. Its components
must be recycled or disposed apart from each other. Otherwise contami
native and hazardous substances can pollute our environment.
As a consumer, you are committed by law to dispose electrical and electronic de-
vices to the producer, the dealer, or public collecting points at the end of the devices
lifetime for free. Particulars are regulated in national right. The symbol on the pro-
duct, in the user`s manual, or at the packaging alludes to these terms. With this kind
of waste separation, application, and waste disposal of used devices you achieve an
important share to environmental protection.
WEEE No: 82898622
- 2 -
Apple OS 10, 10.2
66262 43 x 13 x 11 mm
66255 66 x 20 x 19 mm (L=200 mm)
66269 72 x 31 x 16 mm (L=250 mm)
66274 75 x 40 x 12 mm (L=125 mm)
66266 45 x 45 x 15 mm (L=150 mm)
by Wentronic GmbH | Pillmannstraße 12
38112 Braunschweig | Germany
Goobay
®
