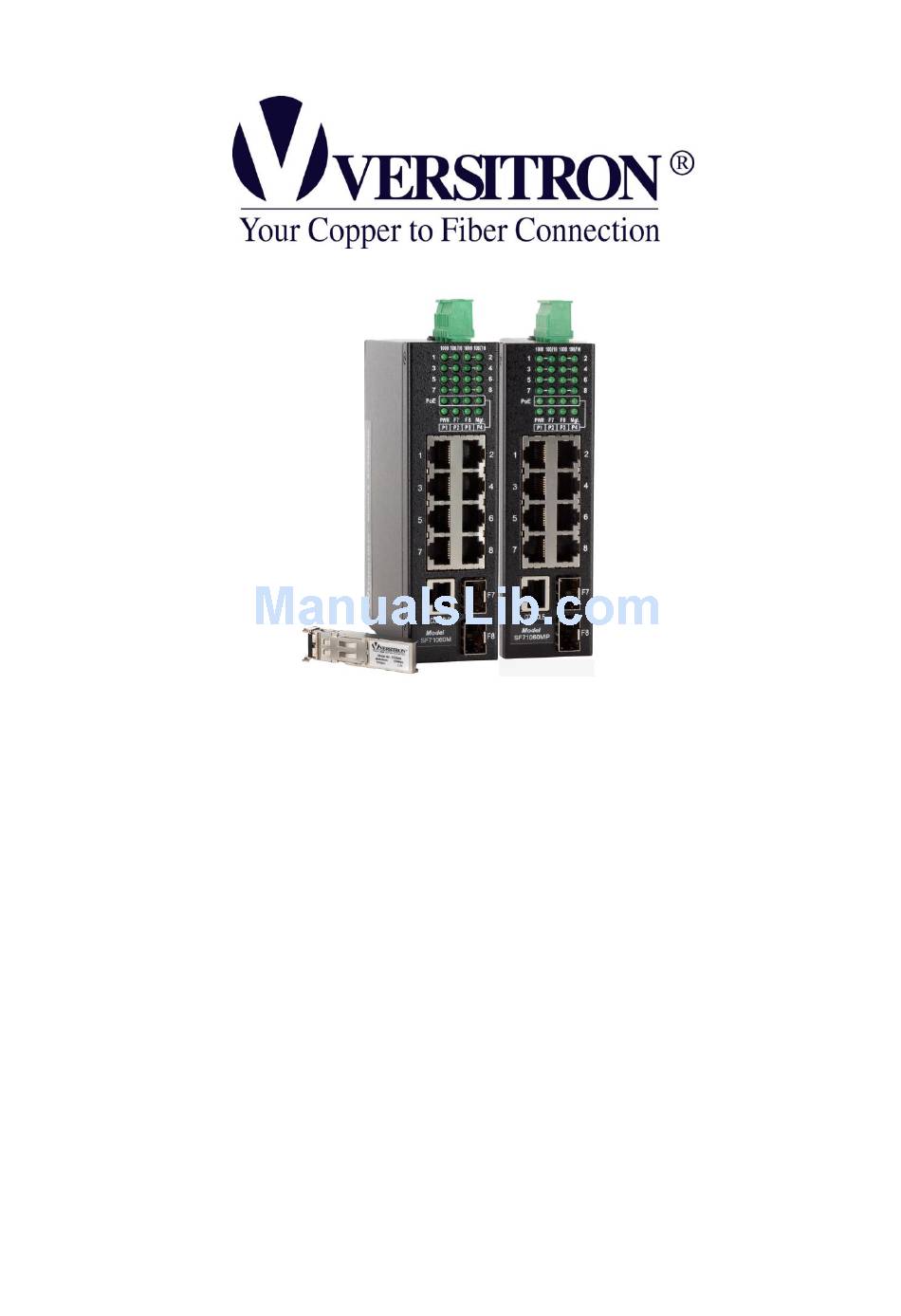

- Page 1 SF71060M & SF71060MP Industrial 10-Port 10/100/1000Base Managed PoE/PoE+ Switch with 100/1000Base SFP Slots © November 2017 VERSITRON, Inc. 83 Albe Drive / Suite C Newark, DE 19702 www.versitron.com VERSITRON SF71060M & SF71060MP Revision A3...
- Page 2 No other warranty is expressed or implied, and VERSITRON is not liable for direct, indirect, incidental or consequential damages or losses.
-
Page 3: About This Manual
See the VERSITRON, Inc. warranty statement. Disclaimer VERSITRON, Inc. does not warrant that the hardware will work properly in all environments and applications, and marks no warranty and representation, either implied or expressed, with respect to the quality, performance, merchantability, or fitness for a particular purpose. - Page 4 EMC Class A EN 61000-6-4:2007/A1:2011 EN 61000-3-2:2006/A1:2009/A2:2009 EN 61000-3-3:2008 EN 61000-6-2:2005 IEC 61000-4-2:2008 IEC 61000-4-3:2010 IEC 61000-4-4:2012 IEC 61000-4-5:2005 IEC 61000-4-6:2008 IEC 61000-4-8:2009 IEC 61000-4-11:2004 VERSITRON SF71060M & SF71060MP Revision A3...
-
Page 5: Table Of Contents
3.2 Configuring IP Address & Password via console and telnet ..........25 3.3 Configuring IP Address via Web Interface ................26 3.4 Reference Manuals for Web, Console, Telnet Management ..........28 3.5 Configuration for SNMP Management ................29 3.6 SNMP MIBs........................30 VERSITRON SF71060M & SF71060MP Revision A3... -
Page 6: Introduction
1 . Introduction The SF71060M & SF71060MP switches are Industrial 10/100/1000Base managed switches featuring: Eight 10/100/1000Mbps copper ports Two dual-speed SFP slots for 100Base-FX or 1000Base-X Model Definitions Model Copper SFP slots PoE PSE Power via Powered via... -
Page 7: Features
- Multiple Spanning Tree - MSTP. RSTP, STP Auto Multi-Ring (KAMR) Technology: - Fast failover response time, Auto recovery when failure is repaired - Supports up to five redundant rings, Works with RSTP network VERSITRON SF71060M & SF71060MP Revision A3... -
Page 8: Product Panels
1.2 Product Panels The following figure illustrates the front panel and rear panel of the switch: SF71060M Front panel SF71060MP Front panel VERSITRON SF71060M & SF71060MP Revision A3... -
Page 9: Led Indicators
10Mbps, 100Mbps, 1000Mbps Duplex support Full/Half duplex Network cable Cat.5 UTP Dual-speed SFP Slots (Port 9, Port 10) Compliance IEEE 802.3u 100Base-FX IEEE 802.3z 1000Base-SX/LX (mini-GBIC) Connectors SFP slots for optional SFP fiber modules VERSITRON SF71060M & SF71060MP Revision A3... - Page 10 (per port) at port output for Cat.5 distance up to 100 meters Protection Under voltage protection Over voltage protection Over current detection Powered via Power over Ethernet (SF71060M) PD Port Port 2 PoE Standard IEEE 802.3af PoE PD (Powered Device) PSE Support IEEE 802.3af &...
- Page 11 5% ~ 90% non-condensing * +60 ℃ ~ +70 ℃ with 1m/s air flow E lectrical Approvals 8 6 4 B U Part 15 rule Class A EMC, CISPR11 Class A Safety / LVD IEC 60950-1 VERSITRON SF71060M & SF71060MP Revision A3...
-
Page 12: Installation
Operate the product only from the type of external power source indicated on the electrical ratings label. If you are not sure of the type of power source required, consult VERSITRON or local power company. -
Page 13: 2 B 2 .3 Din-Rail Mounting
A ttach the bracket to the lower edge of the DIN rail and push the unit upward until the bracket 1 2 8 8 B can clamp on the upper edge of the DIN rail. Clamp the unit to the DIN rail and make sure it is mounted securely. -11- VERSITRON SF71060M & SF71060MP Revision A3... - Page 14 Dimensions (in mm): -12- VERSITRON SF71060M & SF71060MP Revision A3...
-
Page 15: 3 B 2 .4 Panel Mounting
Install the mounting bracket onto the switch as shown below: S crew the bracket onto the switch. 1 2 9 1 B Screw the switch onto a panel. Three screw locations are shown below: -13- VERSITRON SF71060M & SF71060MP Revision A3... - Page 16 Dimensions (in mm): -14- VERSITRON SF71060M & SF71060MP Revision A3...
-
Page 17: 4 B 2 .5 Applying Power
WARNING: The -48VDC power supply is not supported. Caution: Do not apply direct DC IN power and PoE power at the same time. Unplug DC IN when PoE power is connected. Disconnect PoE power when DC IN is used. -15- VERSITRON SF71060M & SF71060MP Revision A3... - Page 18 Then, use the other Vdc contacts. Note: 1. Only up to four device units can be daisy-chained to receive power from one main power input source. 2. The maximal length of the power wire is 1 meter. -16- VERSITRON SF71060M & SF71060MP Revision A3...
- Page 19 OPA alarm if optical power is higher than a upper limit setting or lower than a lower limit setting Relay Logic Normal: AR+ and AR- shorted Alarm: AR+ and AR- open Note: Be sure the voltage applied on AR+/- contacts is within the specification of 30VDC/1A max. or 120VAC/0.5A max. -17- VERSITRON SF71060M & SF71060MP Revision A3...
-
Page 20: Powered Via Poe Over Cat.5 (Standard Model)
2.7 Powered via PoE over Cat.5 (SF71060M) Port 2 is equipped with the function of receiving power from a connected PoE PSE device over Cat.5 cable. The remote PoE PSE devices can be a mid-span PoE injector or end-span PoE switch. -
Page 21: Making Utp Connections
For making proper connection to an auto-negotiation incapable device, it is suggested to use port control function via the software management to set forced mode and specify the speed and duplex mode which match the configuration used by the connected device. -19- VERSITRON SF71060M & SF71060MP Revision A3... -
Page 22: Making Fiber Connection
LC connectors are commonly equipped on most fiber optic SFP modules. Identify TX and RX connector before making cable connection. The following figure illustrates a connection example between two fiber ports: Make sure the Rx-to-Tx connection rule is followed on the both ends of the fiber cable. -20- VERSITRON SF71060M & SF71060MP Revision A3... - Page 23 Auto-detection for the type of the installed SFP transceiver by reading DDM data 100Mbps transceiver: Non-auto-negotiation (forced), 100Mbps, full duplex 1000Mbps transceiver: Auto-negotiation, 1000Mbps, full duplex 100Mbps FDX Non-auto-negotiation (forced), 100Mbps, full duplex 1Gbps FDX Auto-negotiation, 1000Mbps, full duplex -21- VERSITRON SF71060M & SF71060MP Revision A3...
-
Page 24: Making Poe Pse Connections (Poe Model)
6. The power is cut off immediately from powering condition when over-current occurs. 7. The power is cut off immediately from powering condition when short circuit condition occurs. The figure below illustrates a connection example: -22- VERSITRON SF71060M & SF71060MP Revision A3... -
Page 25: 3 0 6 B 2 .12 Led Indication
Port link is down. Port 9 ~ Port 10 Speed _LED Port speed/link status Green A 1000Mbps link is established. Yellow ON A 100Mbps link is established. BLINK Activity status Port link is down. -23- VERSITRON SF71060M & SF71060MP Revision A3... -
Page 26: Making Console Connection
The connector designed for the console port is an RJ-45. Pin Assignments: RS-232 signals IN/OUT 1,2,7,8 Baud Rate information: Baud rate - 115200 Data bits - 8 Parity - None Stop bit - 1 Flow control – None -24- VERSITRON SF71060M & SF71060MP Revision A3... -
Page 27: Manage The Switch
Parameters: <ip_addr> : IP address (a.b.c.d) <ip_mask> : IPv4 subnet mask (a.b.c.d) <ip_router> : IPv4 router (a.b.c.d) <vid> : VLAN ID (1-4095) [IPv6 Address] setting command is also in the IP command group. -25- VERSITRON SF71060M & SF71060MP Revision A3... -
Page 28: Configuring Ip Address Via Web Interface
URL for the browser software to search the device. URL: http:/192.168.0.2/ Login to Switch Unit When the browser software connects to the switch successfully, a Login screen is provided for you to login into the device as shown below: -26- VERSITRON SF71060M & SF71060MP Revision A3... - Page 29 Enter the following default values in the login page: Default username: admin Default password: No password is required. Click to login into the switch. Web Page after a Successful Login: Select [Configuration] -> [System] -> [IP] to configure IP address -27- VERSITRON SF71060M & SF71060MP Revision A3...
-
Page 30: Reference Manuals For Web, Console, Telnet Management
The following manuals are also available separately for Console, Telnet and Web management: Operation manual - telnet & console management xxxxxx.doc Operation manual - web management xxxxx.doc The manuals describe the detailed commands and information. -28- VERSITRON SF71060M & SF71060MP Revision A3... -
Page 31: Configuration For Snmp Management
>SNMP User Add <engineid> <user_name> [MD5|SHA] [<auth_password>] [DES] [<priv_password>] >SNMP User Delete <index> >SNMP User Changekey <engineid> <user_name> <auth_password> [<priv_password>] >SNMP User Lookup [<index>] >SNMP Group Add <security_model> <security_name> <group_name> >SNMP Group Delete <index> >SNMP Group Lookup [<index>] -29- VERSITRON SF71060M & SF71060MP Revision A3... -
Page 32: Snmp Mibs
- RFC 3415 - View Based Access Control Model (VACM) - RFC 3621 - Power Ethernet MIB - RFC 3635 - EtherLike MIB - RFC 3636 - 802.3 Medium Attachment Units (MAUs) MIB - RFC 4133 - Entity MIB -30- VERSITRON SF71060M & SF71060MP Revision A3... - Page 33 - TIA 1057 LLDP Media Endpoint Discovery (MED) MIB - IEEE 802.1-Q-BRIDGE MIB - Private SFPDDM MIB - Private reboot MIB (Remote boot over SNMP) - Private TFTP firmware update MIB (TFTP Firmware update via SNMP) -31- VERSITRON SF71060M & SF71060MP Revision A3...
