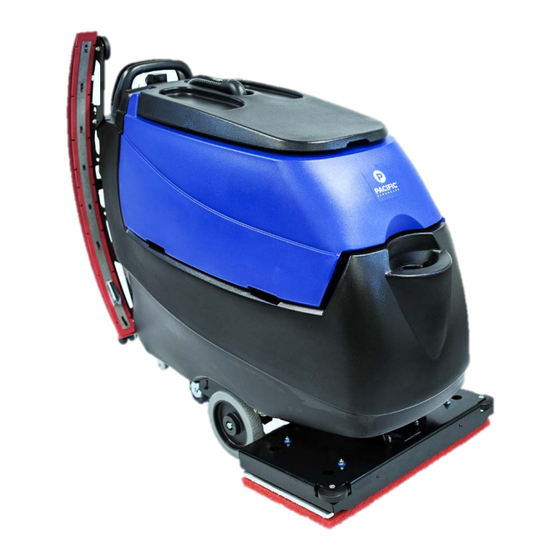

Pacific Floorcare S-28 Operating Manual
22 gallon autoscrubber
Hide thumbs
Also See for S-28:
- Parts & operating manual (80 pages) ,
- Manual (92 pages) ,
- Parts & operating manual (69 pages)
Table of Contents
Advertisement
Quick Links
S-24 / S-28 / S-32
22 GALLON AUTOSCRUBBER
PARTS & OPERATING MANUAL
Thank you for purchasing a Pacific Floorcare product. Carefully inspect all components for freight damage. If freight
damage is discovered, file a "CONCEALED DAMAGE REPORT" immediately with the delivering carrier.
Read this manual carefully and keep it near the machine, protected from liquids and other damaging substances. Failure to
follow the instructions may result in injury or damage to equipment and property.
The contents of this manual are based on the latest product information available at the time of publication. Pacific
Floorcare reserves the right to make changes or improvements without being obliged to apply changes to the machines
previously sold.
New manuals can be downloaded from: www.pacificfloorcare.com/manuals
Advertisement
Table of Contents
Related Manuals for Pacific Floorcare S-28
Summary of Contents for Pacific Floorcare S-28
- Page 1 22 GALLON AUTOSCRUBBER PARTS & OPERATING MANUAL Thank you for purchasing a Pacific Floorcare product. Carefully inspect all components for freight damage. If freight damage is discovered, file a “CONCEALED DAMAGE REPORT” immediately with the delivering carrier. Read this manual carefully and keep it near the machine, protected from liquids and other damaging substances. Failure to follow the instructions may result in injury or damage to equipment and property.
-
Page 2: Batteries
Specifications Specifications Specifications Specifications Mod e l: S-24 ( Disk) S-28 ( Orb ita l) S-28 ( Disk) S-32 ( Disk) Solution De liv e ry Sy ste m Solution capacity: 22 gal / 83 l 22 gal / 83 l... - Page 3 TABLE OF CONTENTS SAFETY INFORMATION UNPACKING THE MACHINE • UNPACKING THE MACHINE TRANSPORTING THE MACHINE • TIE DOWN PROCEDURE BATTERIES • SELECTION AND INSTALLATION • SERVICING LEAD ACID BATTERIES (NON-HYDROLINK® MODELS) • SERVICING LEAD ACID BATTERIES WITH HYDROLINK™ WATERING SYSTEM •...
-
Page 4: Safety Information
SAFETY INFORMATION This machine is intended for commercial use. Only use recommended pads or brushes and commercially approved floor cleaning chemicals intended for machine application. The following categories are used in this manual to identify noteworthy concerns: WARNING: A potentially hazardous situation that, if not avoided, could result in death or serious injury CAUTION: A potentially hazardous situation that, if not avoided, could result in moderate injury or serious property damage... - Page 5 UNPACKING UNPACKING THE MACHINE 1. Remove the outer packaging 2. Remove the four cleats and two tie down brackets holding the machine to the pallet 3. Raise the scrub head into the transport position Use a suitable ramp or platform and carefully pull the machine backwards down from the pallet NOTE: Use a ramp with no more than a 12°...
-
Page 6: Return To
3. TRANSPORTING THE MACHINE CAUTION: Remove the batteries and get assistance before lifting the machine manually NOTE: Use a ramp with no more than a 12° incline when loading or unloading the machine NOTE: Turn power off and put the scrub head in the lowered position during transport NOTE: Do not rest the orbital head on a hard surface without a pad. -
Page 7: Return To
4. BATTERIES WARNING: Batteries emit hydrogen and oxygen gas Keep sparks and open flame away. Do not smoke near the machine Charge batteries in a well-ventilated area with the battery compartment open WARNING: Do not wear jewelry when working near moving or electrical components CAUTION: Remove the batteries and get assistance before lifting the machine manually CAUTION:... -
Page 8: Return To
SERVICING - LEAD ACID BATTERIES (NON-HYDROLINK® MODELS) WARNING: Batteries emit hydrogen and oxygen gas Keep sparks and open flame away. Do not smoke near the machine Charge batteries in a well-ventilated area with the battery compartment open WARNING: Do not wear jewelry when working near moving or electrical components CAUTION: Always wear protective clothing, gloves and goggles when handling and charging batteries REQUIRED EQUIPMENT... -
Page 9: Return To
SERVICING LEAD ACID BATTERIES WITH HYDROLINK™ WATERING SYSTEM Position the water jug at a level below the top of the batteries to prevent siphoning. Insert the open end of the hand pump assembly servicing tube into a jug of distilled water Prime the bulb by squeezing it until it is filled with water Remove the dust cap from the Quick Disconnect on the battery servicing manifold and snap the couplers together... -
Page 10: Return To
BATTERYSHIELD® AUTOMATIC WET BATTERY PROTECTION SYSTEM Scrubbers equipped with BatteryShield® technology have a sensor on the battery pack and a red LED indicator on the control panel which monitor and communicate low water conditions. When batteries are fully charged and the key is turned on, BatteryShield® will check the water level If the LED remains off, there is sufficient water in the batteries A solid red LED means BatteryShield®... -
Page 11: Return To
5. CHARGING WARNING: Do not plug in charger cable if wall cord or battery harness is damaged NOTE: Do not use an extension cord. This will void the warranty on the charger NOTE: Ensure battery charging and storage locations comply with OSHA and any governing agencies’ standards based on your particular location and application ON-BOARD CHARGER The on-board charger has three LEDs to indicate the status of the charging cycle when it is plugged in:... -
Page 12: Return To
OFF-BOARD CHARGER WARNING: Do not plug in charger cable if wall cord or battery harness is damaged NOTE: Ensure battery charging and storage locations comply with OSHA and any governing agencies’ standards based on your particular location and application Set the Battery Type switch to match the battery configuration of the machine •... -
Page 13: Battery Power Level And Fault Indicator
6. PRE-USE SETUP TURNING THE UNIT ON/OFF The key switch is located on the control panel. When the machine is not in use, remove the key and store it in a secure location. CIRCUIT BREAKERS The circuit breakers on the control panel protect the components from high amp-draw. In particular, the scrub head circuit will draw too many amps when overloaded by improper application setup. -
Page 14: Return To
7. DRIVE SYSTEM DRIVING OPERATION Bail: Squeezing the Bail activates solution flow, the brush motor, and traction drive Speed Control: Rotate the Speed Control with either thumb • Clockwise = Faster • Counterclockwise = Slower Reverse Button: Depress Reverse Button and squeeze Bail for reverse operation 8. -
Page 15: Return To
SOLUTION FLOW: NON-CHEMICAL INJECTION MODELS: The Solution Control Knob is located at the lower rear of the machine. The valve electrically turns on and off with the Scrub Head. The Knob controls how much solution passes through the valve when activated. •... -
Page 16: Standard Down Pressure
8. SCRUB DECK SETUP HEAD LIFT • Depress the foot lever (located at the lower right rear corner of the machine) and shift it to the right • Once clear of the notch, allow the lever to rise while the head lowers into the operating position •... -
Page 17: Return To
DISK MACHINE PAD DRIVERS AND BRUSHES PAD AND BRUSH REMOVAL: NOTE: Using a pad driver without a pad will damage the floor surface Toggle the “Brush On/Off” switch to position “A” for 1 second and then immediately to position “B”. The brush will spin in position “A”... -
Page 18: Return To
ORBITAL PADS NOTE: Do not lower the orbital head without a pad. Doing so damages the Mighty-Lok® face STANDARD CLEANING OPERATIONS: Align the corners of the pad to the corners of the aluminum plate and press to attach Lower the scrub deck onto the pad Ensure front/back and left/right alignment CHEMICAL-FREE FINISH REMOVAL: The addition of a specialized surface preparation pad in addition to the traditional cleaning pad is required for chemical-free... -
Page 19: Return To
9. RECOVERY SYSTEM RECOVERY TANK To drain and rinse the recovery tank: Lift the hose off the holder and lower the hose end to the desired drain location Remove the press-fit cap from the drain hose and squeeze the restriction collar to control the flow As the tank drains, lift the recovery tank lid to the fully open position Thoroughly clean and rinse out the sediment from the bottom of the tank with a clean water hose •... -
Page 20: Return To
SQUEEGEE BLADES INSPECTION AND SELECTION SQUEEGEE ASSEMBLY SETUP Inspect and maintain the squeegee system to achieve peak machine performance. REMOVAL AND INSTALLATION: • Install: Align the assembly, attach the vacuum hose, and tighten the easy grip knobs. • Remove: Loosen the easy-grip knobs and detach the recovery hose (reverse of installation). SQUEEGEE USE: Lower: Lift the squeegee lever, shift it left, and lower. -
Page 21: Return To
CLEAN AND INSPECT: Inspect both squeegee blades. If the blade edges are not clearly defined or are worn halfway through the thickness of the blade, flip the blades to another edge or replace as required. Thoroughly clean and rinse the underside of the squeegee frame, blades and neck. -
Page 22: Contents
RECOMMENDED MAINTENANCE REFERENCE SIX SYSTEM DAILY WEEKLY MONTHLY SECTION MONTHS CONTROL PANEL INSPECT ALL CONTROLS AND HARDWARE FOR SECURITY & SERVICEABILITY PARTS DIAGRAMS VERIFY PROPER OPERATION OF ALL CONTROLS SOLUTION DISTRIBUTION VERIFY SOLUTION FLOW & ADJUSTMENT OPERATION SOLUTION DISTRIBUTION CLEAN AND INSPECT INLINE FILTER SOLUTION DISTRIBUTION FLUSH TANK WITH FRESH WATER SOLUTION DISTRIBUTION SCRUB DECK RINSE BRUSHES & PADS SCRUB DECK SETUP RINSE & DRY SCRUB DECK SCRUB DECK SETUP CLEAN MOTOR VENTS PARTS DIAGRAMS INSPECT ISOLATORS *(ORBITAL ONLY) PARTS DIAGRAMS INSPECT LIFT LINKAGE & PIVOT BLOCKS SCRUB DECK SETUP RECOVERY SYSTEM RINSE & AIR DRY RECOVERY TANK RECOVERY SYSTEM CLEAN & INSPECT DEBRIS TRAY RECOVERY SYSTEM VERIFY DRAIN HOSE CAP IS SEALED TIGHT WHEN INSTALLED RECOVERY SYSTEM INSPECT LID SEAL RECOVERY SYSTEM INSPECT / REPLACE BROMINE PUCK *(IF EQUIPPED) RECOVERY SYSTEM... -
Page 23: Contents
RECOMMENDED SERVICE PARTS (PAGE 1 OF 3) PART NUMBER PART NAME DIAGRAM WEAR ITEM S‐24 S‐28 DISK S‐32 S‐28 ORB OPTIONAL 903046 BELT, V‐GROOVE, STRETCH SCRUB HEAD 870702 BLADE, FRONT, 35INCH (LINATEX) SQUEEGEE 870708 BLADE, FRONT, 35INCH (URETHANE) SQUEEGEE 870704 BLADE, FRONT, 40INCH (LINATEX) SQUEEGEE 870710 BLADE, FRONT, 40INCH (URETHANE) SQUEEGEE 870706 BLADE, FRONT, 44.5INCH (LINATEX) SQUEEGEE 870712 BLADE, FRONT, 44.5INCH (URETHANE) SQUEEGEE 870701 BLADE, REAR, 35INCH (LINATEX) SQUEEGEE 870707 BLADE, REAR, 35INCH (URETHANE) SQUEEGEE... -
Page 24: Contents
RECOMMENDED SERVICE PARTS (PAGE 2 OF 3) PART NUMBER PART NAME DIAGRAM WEAR ITEM S‐24 S‐28 DISK S‐32 S‐28 ORB OPTIONAL 852401 CABLE, LIFT, CLEVIS CONTROLS 871501 CAP, 38MM, WITH HOLE CHEMICAL INJECTION 911622 CIRCUIT BREAKER, 30 AMPS CONTROLS 912401 CONTACTOR, 24V, 100A ELECTRONICS 912402 CONTACTOR, 24VDC, 70A ELECTRONICS 875902 DRIVER, PAD, 14 INCH SCRUB HEAD 875910 DRIVER, PAD, 16 INCH SCRUB HEAD 873304 FILTER, HEPA, MID RECOVERY TANK 843319 FILTER, SCREEN, BOWL FRAME ASSEMBLY... -
Page 25: Contents
RECOMMENDED SERVICE PARTS (PAGE 3 OF 3) PART NUMBER PART NAME DIAGRAM WEAR ITEM S‐24 S‐28 DISK S‐32 S‐28 ORB OPTIONAL 875010 KIT, BEARING, REPL, ORBIT SCRUB HEAD 875009 KIT, PLATE, REPL, ORBIT SCRUB HEAD 875202 MOTOR, VACUUM, 24VDC, 3‐STAGE RECOVERY TANK 875923 PAD BLACK 14X28 10/CASE SCRUB HEAD 545909 PAD GREEN TURF 14X28 SCRUB HEAD 875905 PAD RED 14X28INCH 10/CASE SCRUB HEAD 875904 PAD SPP 14X28 10/CASE SCRUB HEAD 875921 PAD WHITE 14X28 10/CASE SCRUB HEAD 875903 PAD, MIGHTYLOK ADH UNIVERSAL SCRUB HEAD... -
Page 26: Contents
TROUBLESHOOTING GUIDE ISSUE POTENTIAL CAUSE PROPOSED SOLUTION MANUAL SECTION SOLUTION SOLUTION FLOW SETTING IS TOO LOW ADJUST SOLUTION CONTROL DISTRIBUTION SOLUTION SOLUTION TANK IS EMPTY ADD WATER/SOLUTION TO THE TANK DISTRIBUTION SOLUTION INLINE SOLUTION FILTER IS CLOGGED REMOVE AND CLEAN THE FILTER DISTRIBUTION SOLUTION TUBE IS CLOGGED, KINKED, OR DAMAGED INSPECT TUBES... -
Page 27: Drive System
STILL IN DELAY MODE ALLOW 10 SECONDS FOR VACCUUM TO SHUT DOWN RECOVERY SYSTEM VACUUM MOTOR WILL NOT TURN OFF CONTACT SERVICE TECHNICIAN TO TROUBLESHOOT AND VACUUM RELAY MAY BE FAULTY WIRING DIAGRAM ISOLATE SCRUB HEAD IS STILL RAISED LOWER SCRUB HEAD SCRUB DECK SETUP BATTERYSHIELD®... -
Page 28: Contents
BATTERIES, BATTERYSHIELD®, AND HYDROLINK® ITEM QTY PART NUMBER DESCRIPTION 4 871301 BATTERY, 6V, 260AH, LA 4 871302 BATTERY, 6V, 250AH, MF (NOT SHOWN, OPTIONAL) 1 858202 FOAM, SPACER, BATTERY 3 911640 HARNESS, CONN, BATTERY 1 911641 HARNESS, CONN, BATTERY 1 878509 SENSOR ASSY, BATTERYSHIELD (OPTIONAL) 1 879002 TUBE & PUMP ASSY (NOT SHOWN, OPTIONAL) 1 857003 PUMP ASSY HAND HYDROLINK (NOT SHOWN, OPTIONAL) RETURN TO TABLE OF CONTENTS... -
Page 29: Contents
OPTIONAL ONBOARD CHARGER ITEM QTY PART NUMBER DESCRIPTION 1 852407 CHARGER, 24V, ONBRD, CULUS 1 850805 BRACKET, MTG, CORD 1 870817 BRACKET, MTG, CHARGER 4 962186 SCREW, PAN, #10‐32 X 1.0, SS 6 W401D WASHER, FLAT, #10 4 920666 NUT, NYLOCK, #10‐32, SS 2 W104D WASHER, FLAT, .25 2 980002 WASHER, LOCK, SPLIT, .25 1 920034 NUT, NYLOCK, #6‐32, SS 2 962263 SCREW, BUTT, SOCK, .25‐20X.62, SS BO 1 911645 HARNESS, CHARGER, POST 1 W323D SCREW, PAN, #6‐32 X 1.0, ZINC 2 W189D... -
Page 30: Contents
S-24 DISK CONTROLS (SEE ADDITIONAL DIAGRAM FOR MODELS EQUIPPED WITH BATTERYSHIELD® OR CHEMICAL INJECTION) ITEM QTY PART NUMBER DESCRIPTION 4 855601 MOUNT, BEARING, PLASTIC 1 877101 PANEL, CONTROLS 3 911646 SWITCH, SNAP, WITH ROLLER 1 911621 METER, BATTERY 1 855106 LEVER, LIFT, SQUEEGEE 1 902050 BEARING, ROD END, .31‐24 1 911622 CIRCUIT BREAKER, 30 AMPS 1 851301 BAIL, MOLDED 1 911647 SWITCH, KEY... -
Page 31: Contents
S-28 & 32 DISK CONTROLS (SEE ADDITIONAL DIAGRAM FOR MODELS EQUIPPED WITH BATTERYSHIELD® OR CHEMICAL INJECTION) ITEM QTY PART NUMBER DESCRIPTION 4 855601 MOUNT, BEARING, PLASTIC 1 877101 PANEL, CONTROLS 3 911646 SWITCH, SNAP, WITH ROLLER 1 911621 METER, BATTERY 1 855106 LEVER, LIFT, SQUEEGEE 1 902050 BEARING, ROD END, .31‐24 1 911622 CIRCUIT BREAKER, 30 AMPS... -
Page 32: Contents
S-28 ORBITAL CONTROLS (SEE ADDITIONAL DIAGRAM FOR MODELS EQUIPPED WITH BATTERYSHIELD® OR CHEMICAL INJECTION) ITEM QTY PART NUMBER DESCRIPTION 4 855601 MOUNT, BEARING, PLASTIC 1 877101 PANEL, CONTROLS 3 911646 SWITCH, SNAP, WITH ROLLER 1 911621 METER, BATTERY 1 855106 LEVER, LIFT, SQUEEGEE 1 902050 BEARING, ROD END, .31‐24 1 911622 CIRCUIT BREAKER, 30 AMPS 1 851301 BAIL, MOLDED... -
Page 33: Contents
OPTIONAL BATTERYSHIELD® AND CHEMICAL INJECTION CONTROLS ITEM QTY PART NUMBER DESCRIPTION 1 872401 CONTROLLER, DISPENSING 2 875001 KNOB, .25 BORE, SMALL 1 875104 LABEL, CONTROL, SOLUTION 1 875107 LED, RED, 24VDC 1 855115 LABEL BATTERYSHIELD WITH QR CODE 1 911684 HARNESS, BATTERYSHIELD 1 911680 HARNESS, SOLUTION CONTROL 1 855012 KEY REPLMNT SCRUB 2‐SET FOR 911647 RETURN TO TABLE OF CONTENTS... -
Page 34: Contents
S-24 ELECTRONICS (SEE ADDITIONAL DIAGRAM FOR MODELS EQUIPPED WITH BATTERYSHIELD® OR CHEMICAL INJECTION) ITEM QTY PART NUMBER DESCRIPTION 1 879101 CONTROLLER, I‐DRIVE, MID 1 879801 PANEL, ELECTRONICS 1 912402 CONTACTOR, 24VDC, 70A 2 912401 CONTACTOR, 24V, 100A 2 858501 STAND‐OFF, INSULATED, .25‐20 6 W104D WASHER, FLAT, .25 6 980002 WASHER, LOCK, SPLIT, .25 4 W169D SCREW, HEX, .25‐20 X .50 2 W323D SCREW, PAN, #6‐32 X 1.0, ZINC... -
Page 35: Contents
S-28 & 32 DISK ELECTRONICS (SEE ADDITIONAL DIAGRAM FOR MODELS EQUIPPED WITH BATTERYSHIELD® OR CHEMICAL INJECTION) ITEM QTY PART NUMBER DESCRIPTION 1 879101 CONTROLLER, I‐DRIVE, MID 1 879801 PANEL, ELECTRONICS 1 912402 CONTACTOR, 24VDC, 70A 2 912401 CONTACTOR, 24V, 100A 2 858501 STAND‐OFF, INSULATED, .25‐20 6 W104D WASHER, FLAT, .25 6 980002 WASHER, LOCK, SPLIT, .25... -
Page 36: Contents
S-28 ORBITAL ELECTRONICS (SEE ADDITIONAL DIAGRAM FOR MODELS EQUIPPED WITH BATTERYSHIELD® OR CHEMICAL INJECTION) ITEM QTY PART NUMBER DESCRIPTION 1 879101 CONTROLLER, I‐DRIVE, MID 1 879801 PANEL, ELECTRONICS 1 912402 CONTACTOR, 24VDC, 70A 2 912401 CONTACTOR, 24V, 100A 2 858501 STAND‐OFF, INSULATED, .25‐20 6 W104D WASHER, FLAT, .25 6 980002 WASHER, LOCK, SPLIT, .25 4 W169D SCREW, HEX, .25‐20 X .50... -
Page 37: Contents
OPTIONAL BATTERYSHIELD® ELECTRONICS ITEM QTY PART NUMBER DESCRIPTION 2 980025 WASHER, SPLIT LOCK, #6, ZINC 1 911685 RELAY, 24VDC, BATTERYSHIELD 2 W315D SCREW, PAN, #6‐32 X .50, BLK 2 980033 WASHER, FLAT, #6, SS RETURN TO TABLE OF CONTENTS... -
Page 38: Contents
FRAME ASSEMBLY ITEM QTY PART NUMBER DESCRIPTION 1 873201 FRAME, SCRUBBER, 20 TRACT 4 W243D WASHER, FLAT, 5/16, SS 8 980094 WASHER, SPLIT LOCK, .31, SS 4 962269 SCREW, HEX, .31‐18 X .75, SS 1 855014 KIT VALVE SCRUBBER REPLMNT 1 859402 VALVE SOLENOID 24V NONADJ 14 W189D SCREW, HEX, 1/4‐20 X .75, SS, PATCH 1 980029 WASHER, LOCK, STAR, EXTERNAL 14 920011 NUT, NYLOCK, 1/4‐20, ZINC 8 W104D WASHER, FLAT, .25 1 852101 CLAMP, WIRE, P‐SHAPED 1 224130 ‐ 20.0" TUBING, 1/2" 4 S453P CLAMP, HOSE, WORM 1 224130 ‐... -
Page 39: Head Lift
HEAD LIFT ASSEMBLY ITEM QTY PART NUMBER DESCRIPTION 1 870801 BRACKET, LIFT, HEAD 6 875601 MOUNT, BEARING, PLASTIC 1 875106 LEVER, DOWNPRESSURE 1 875105 LABEL, FOOT, GRIP, LARGE 1 980108 WASHER, FLAT, .31ID, 1.25OD, .12THK, SS 1 980094 WASHER, SPLIT LOCK, .31, SS 1 962279 SCREW, SOCKET CAP, .31X1.0, SS 4 980612 WASHER, NYL, .50 X 1.25 X .062 3 980093 WASHER, WAVE, .50INCH 1 878301 SPRING, EXTENSION 3 920035 NUT, NYLOCK, .38‐16, SS 2 871101 BUSHING, FLANGE, .50IN 3 962465... -
Page 40: Contents
SOLUTION TANK ITEM QTY PART NUMBER DESCRIPTION 1 878601 TANK, SOLUTION, 22 GAL 1 870805 BRACKET, SUPPORT, LEVER 1 879004 TUBE, SIGHT, REPLACEMENT 2 853303 FITTING, STR, BM12, PM08 1 W189D SCREW, HEX, 1/4‐20 X .75, SS, PATCH 1 920037 NUT, THIN JAM, 1/4‐20, ZINC 1 962455 SCREW, TRUSS, .25‐20 X 1.0 4 225670 PAD, WIRE TIE 1 S453P CLAMP, HOSE, WORM 4 962271 SCREW, PAN, #10 X .38L, ZINC 1 875103 LABEL, INSTRUCTION, BATTERY 1 879401 VALVE, SHUT‐OFF, BALL 1 875011 KIT, STRAINER, PORT, FILL... -
Page 41: Contents
OPTIONAL CHEMICAL INJECTION ITEM QTY PART NUMBER DESCRIPTION 1 877002 PUMP, 24VDC, SOLENOID, EMX08 1 870810 BRACKET, HEAT SINK 1 870811 BRACKET, MTG, HEAT SINK 1 S764P2 FILTER, STRAINER 1 871501 CAP, 38MM, WITH HOLE 1 879402 VALVE, CHECK, .188 X .50 BARB 1 873308 FITTING, TEE, 0.50 INCH 2 853301 FITTING, REDUCER, BM08, BM04 2 980002 WASHER, LOCK, SPLIT, .25 3 W189D SCREW, HEX, 1/4‐20 X .75, SS, PATCH 2 962363 SCREW, PAN, #10‐32 X .50, SS 2 980022 WASHER, LOCK, SPLIT, #10 1 879003 ‐... -
Page 42: Recovery Tank
RECOVERY TANK ITEM QTY PART NUMBER DESCRIPTION 1 223370 FLOAT, SHUTOFF 1 853304 FITTING, STR, BM24, PM20 1 873401 GASKET, COVER, PRESS‐IN 1 854103 HOSE, VACUUM, 1.5INCH 1 874101 HOSE, SQUEEGEE, 90 CUFF 1 874102 HOSE SQUEEGEE MID CHEM RESIST 1 852101 CLAMP, WIRE, P‐SHAPED 4 855603 MOUNT, RUBBER, .25‐20 2 962462 SCREW, SHOULDER, .38 X 1.75, SS 1 878602 TANK, RECOVERY, 22 GAL 3 W104D WASHER, FLAT, .25 12 980002 WASHER, LOCK, SPLIT, .25 9 920037 NUT, THIN JAM, 1/4‐20, ZINC... -
Page 43: Contents
S-24 SQUEEGEE ASSEMBLY 878526 – LINATEX 878511 – URETHANE ITEM QTY PART NUMBER DESCRIPTION 1 873203 FRAME, SQUEEGEE, 35 INCH 1 870701 BLADE, REAR, 35INCH (LINATEX) 1 870707 BLADE, REAR, 35INCH (URETHANE) 1 870702 BLADE, FRONT, 35INCH (LINATEX) 1 870708 BLADE, FRONT, 35INCH (URETHANE) 1 877203 RETAINER, REAR, 35 INCH 1 877204 RETAINER, FRONT, 35 INCH 2 859703 WHEEL, GUIDE 3 962465 SCREW, SHOULDER, .50 X .50 4 920034 NUT, NYLOCK, #6‐32, SS 3 920035... -
Page 44: Contents
S-28 SQUEEGEE ASSEMBLY 878527 – LINATEX 878512 – URETHANE ITEM QTY PART NUMBER DESCRIPTION 1 873204 FRAME, SQUEEGEE, 40 INCH 1 870703 BLADE, REAR, 40INCH (LINATEX) 1 870709 BLADE, REAR, 40INCH (URETHANE) 1 870704 BLADE, FRONT, 40INCH (LINATEX) 1 870710 BLADE, FRONT, 40INCH (URETHANE) 1 877201 RETAINER, REAR, 40 INCH 1 877202 RETAINER, FRONT, 40 INCH 2 859703 WHEEL, GUIDE 3 962465 SCREW, SHOULDER, .50 X .50 4 920034 NUT, NYLOCK, #6‐32, SS... -
Page 45: Contents
S-32 SQUEEGEE ASSEMBLY 878528 – LINATEX 878513 – URETHANE ITEM QTY PART NUMBER DESCRIPTION 873205 FRAME SQUEEGEE 45 INCH 870705 BLADE REAR 45 INCH LINATEX 870711 BLADE REAR 45 INCH URETHANE 870706 BLADE FRONT 45 INCH LINARD 870712 BLADE FRONT 45 INCH URETHANE 877205 RETAINER, REAR, 45 INCH 877206 RETAINER, FRONT, 45 INCH 859703 WHEEL, GUIDE 962465 SCREW, SHOULDER, .50 X .50 920034 NUT, NYLOCK, #6‐32, SS 920035 NUT, NYLOCK, .38‐16, SS 852002 CLAMP, OVER‐CENTER, BAND 980093 WASHER, WAVE, .50INCH RETURN TO TABLE OF ... -
Page 46: Contents
SQUEEGEE LINK ITEM QTY PART NUMBER DESCRIPTION 2 849709 WHEEL, 2 OD, .31 ID 2 962464 SCREW, BUTTON, .31‐18 X 1.25, ZINC 1 850501 AXLE, WHEEL, SQUEEGEE 1 902051 BEARING, ROD END, .38 FEM 1 870802 BRACKET, LINK, SQUEEGEE 8 980105 WASHER, PLASTIC, THRUST 3 920035 NUT, NYLOCK, .38‐16, SS 1 962075 SCREW, HEX, 3/8‐16 X 1.5, SS 1 962028 SCREW, HX, .38‐24X.75,SS,PTCH 1 870803 BRACKET, SWING, SQUEEGEE 1 877501 GUIDE, ROLLER, SQUEEGEE 2 962465 SCREW, SHOULDER, .50 X .50 2 871101 BUSHING, FLANGE, .50IN... -
Page 47: Contents
S-24 SCRUB HEAD PAGE 1 OF 2 ITEM QTY PART NUMBER DESCRIPTION 876602 PLATE, MTG, 24 INCH 858203 SPACER, WHEEL, GUIDE W104D WASHER, FLAT, .25 W243D WASHER, FLAT, 5/16, SS 853803 GUIDE, DRIVER 873801 GUIDE, PAD, PLASTIC 857501 ROLLER, PLASTIC 13 962274 SCREW, FLAT, SOCK, .25‐20X.62, SS, PATCH 962270 SCREW, HEX, 5/16‐18X1.75,SS 920012 NUT, NYLOCK, 5/16‐18, ZINC 855204 MOTOR, 24V, 2200 RPM, .75HP 850906 BRUSH CARBON KIT 4 PC 855204 & 875201 903046 BELT, V‐GROOVE, STRETCH 876606 PLATE, COVER, 24 INCH 877701 SHAFT, PULLEY, HEAD 902035... -
Page 48: Contents
S-24 SCRUB HEAD PAGE 2 OF 2 ITEM QTY PART NUMBER DESCRIPTION 2 870902 BRUSH, POLY, 12 INCH 2 870908 BRUSH, NYLON, 12 INCH 2 870909 BRUSH, GRIT, 12 INCH 1 859703 WHEEL, GUIDE 1 875019 KIT SKIRT REPLACEMENT (ITEMS 6 ‐ 10) 4 962263 SCREW, BUTT, SOCK, .25‐20X.62, SS BO 4 920665 NUT, NYLOCK, 1/4‐20, SS 8 W104D WASHER, FLAT, .25 1 872305 SHROUD, HEAD, 24INCH 1 858503 SKIRT, BRISTLE 13 962274 SCREW, FLAT, SOCK, .25‐20X.62, SS, PATCH... -
Page 49: Contents
S-28 DISK SCRUB HEAD ITEM QTY PART NUMBER DESCRIPTION 2 870901 BRUSH, POLY, 14 INCH 2 870904 BRUSH, NYLON, 14 INCH 2 870906 BRUSH, GRIT, 14 INCH 2 875902 DRIVER, PAD, 14 INCH 1 859703 WHEEL, GUIDE 2 915008 KEY, SQUARE, 5MM X 5 X 40MM 3 858203 SPACER, WHEEL, GUIDE 1 875020 KIT SHROUD S28 REPLACEMENT (ITEMS 9 ‐ 13) 1 872302 SHROUD, HEAD, 28INCH 1 878502 SKIRT, BRISTLE 4 962263 SCREW, BUTT, SOCK, .25‐20X.62, SS BO... -
Page 50: Contents
S-32 SCRUB HEAD ITEM QTY PART NUMBER DESCRIPTION 1 859703 WHEEL, GUIDE 2 915008 KEY, SQUARE, 5MM X 5 X 40MM 3 858203 SPACER, WHEEL, GUIDE 1 875021 KIT SHROUD S32 REPLACEMENT (ITEMS 4 ‐ 8) 1 872306 SHROUD, HEAD, 32INCH 1 878502 SKIRT, BRISTLE 4 962263 SCREW, BUTT, SOCK, .25‐20X.62, SS BO 4 920665 NUT, NYLOCK, 1/4‐20, SS 20 W104D WASHER, FLAT, .25 2 962466 SCREW, HEX, M8‐1.25 X 25, SS, PATCH 7 W243D WASHER, FLAT, 5/16, SS 2 980094 WASHER, SPLIT LOCK, .31, SS... -
Page 51: Contents
S-28 ORBITAL SCRUB HEAD PAGE 1 OF 2 ITEM QTY PART NUMBER DESCRIPTION 1 870812 BRACKET, MTG, HEAD, ORBITAL 2 859703 WHEEL, GUIDE 1 876609 PLATE, MOUNTING, MOTOR 2 962266 SCREW, FLAT, SOCKET, .31‐18 X 1.5, SS 4 858203 SPACER, WHEEL, GUIDE 8 W243D WASHER, FLAT, 5/16, SS 4 964009 SCREW, SCK, FLT, M6‐1 X 20, SS, PATCH 2 852003 CLAMP, P‐SHAPED, .62 DIA 2 962263 SCREW, BUTT, SOCK, .25‐20X.62, SS BO 10 920665 NUT, NYLOCK, 1/4‐20, SS... -
Page 52: Contents
S-28 ORBITAL SCRUB HEAD PAGE 2 OF 2 ITEM QTY PART NUMBER DESCRIPTION 1 875009 KIT, PLATE, REPL, ORBIT 1 876607 PLATE, ORBITAL, 28 INCH 1 875903 PAD, MIGHTYLOK ADH UNIVERSAL 1 875010 KIT, BEARING, REPL, ORBIT 2 962274 SCREW, FLAT, SOCK, .25‐20X.62, SS, PATCH 1 964447 SCREW, FLT, M8 X 16, SS 12 962278 SCREW, SOCKET, FLT, .31‐18X.88, SS, PATCH 1 876608 PLATE, BALANCE, 28 INCH 4 855604 MOUNT, ISOLATOR, .31THD 4 980108 WASHER, FLAT, .31ID, 1.25OD, .12THK, SS... -
Page 53: Contents
S-24 WIRING DIAGRAM TROUBLESHOOTING TIPS • If the scrub head is not working properly when lowered, be aware that BatteryShield® intentionally disables the scrub head when the batteries need water. Refer to the BatteryShield® section of this manual. • For machines equipped with BatteryShield® refer to the BatteryShield® wiring diagram and instructions prior to proceeding. • If a yellow LED is flashing on the battery charger, verify continuity between the charger and the battery pack. • A circuit breaker is designed to prevent overloading a component. If a circuit breaker continues to trip, verify the system is not being overloaded or that a wire is not chaffed creating a short‐circuit. RETURN TO TABLE OF CONTENTS... -
Page 54: Contents
S-28 (DISK) & S- 32 WIRING DIAGRAM TROUBLESHOOTING TIPS • If the scrub head is not working properly when lowered, be aware that BatteryShield® intentionally disables the scrub head when the batteries need water. Refer to the BatteryShield® section of this manual. • For machines equipped with BatteryShield® refer to the BatteryShield® wiring diagram and instructions prior to proceeding. • If a yellow LED is flashing on the battery charger, verify continuity between the charger and the battery pack. • A circuit breaker is designed to prevent overloading a component. If a circuit breaker continues to trip, verify the system is not being overloaded or that a wire is not chaffed creating a short‐circuit. RETURN TO TABLE OF CONTENTS... -
Page 55: Contents
S-28 ORBITAL WIRING DIAGRAM TROUBLESHOOTING TIPS • If the scrub head is not working properly when lowered, be aware that BatteryShield® intentionally disables the scrub head when the batteries need water. Refer to the BatteryShield® section of this manual. • For machines equipped with BatteryShield® refer to the BatteryShield® wiring diagram and instructions prior to proceeding. • If a yellow LED is flashing on the battery charger, verify continuity between the charger and the battery pack. • A circuit breaker is designed to prevent overloading a component. If a circuit breaker continues to trip, verify the system is not being overloaded or that a wire is not chaffed creating a short‐circuit. RETURN TO TABLE OF CONTENTS... -
Page 56: Contents
BATTERYSHIELD® (OPTIONAL) WIRING DIAGRAM RETURN TO TABLE OF CONTENTS... -
Page 57: Contents
CHEMICAL INJECTION (OPTIONAL) WIRING DIAGRAM RETURN TO TABLE OF CONTENTS... -
Page 58: Maintenance Log
MAINTENANCE LOG DATE MAINTENANCE PERFORMED ... -
Page 59: Contents
Labor: Only a Pacific Floorcare Authorized Factory Service Center with a written factory agreement is entitled to make warranty repairs to Pacific Floorcare equipment. Labor for any warranty repair is authorized for a period of one (1) year following the date of sale to the end user. -
Page 60: Contents
http://www.pacificfloorcare.com/ RETURN TO 60 TABLE OF CONTENTS ...
