MSB - 11 ORB OPERATING MANUAL
2024

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MSB-11 ORB and is the answer not in the manual?

Questions and answers

Summary of Contents for Pacific Floorcare MSB-11 ORB

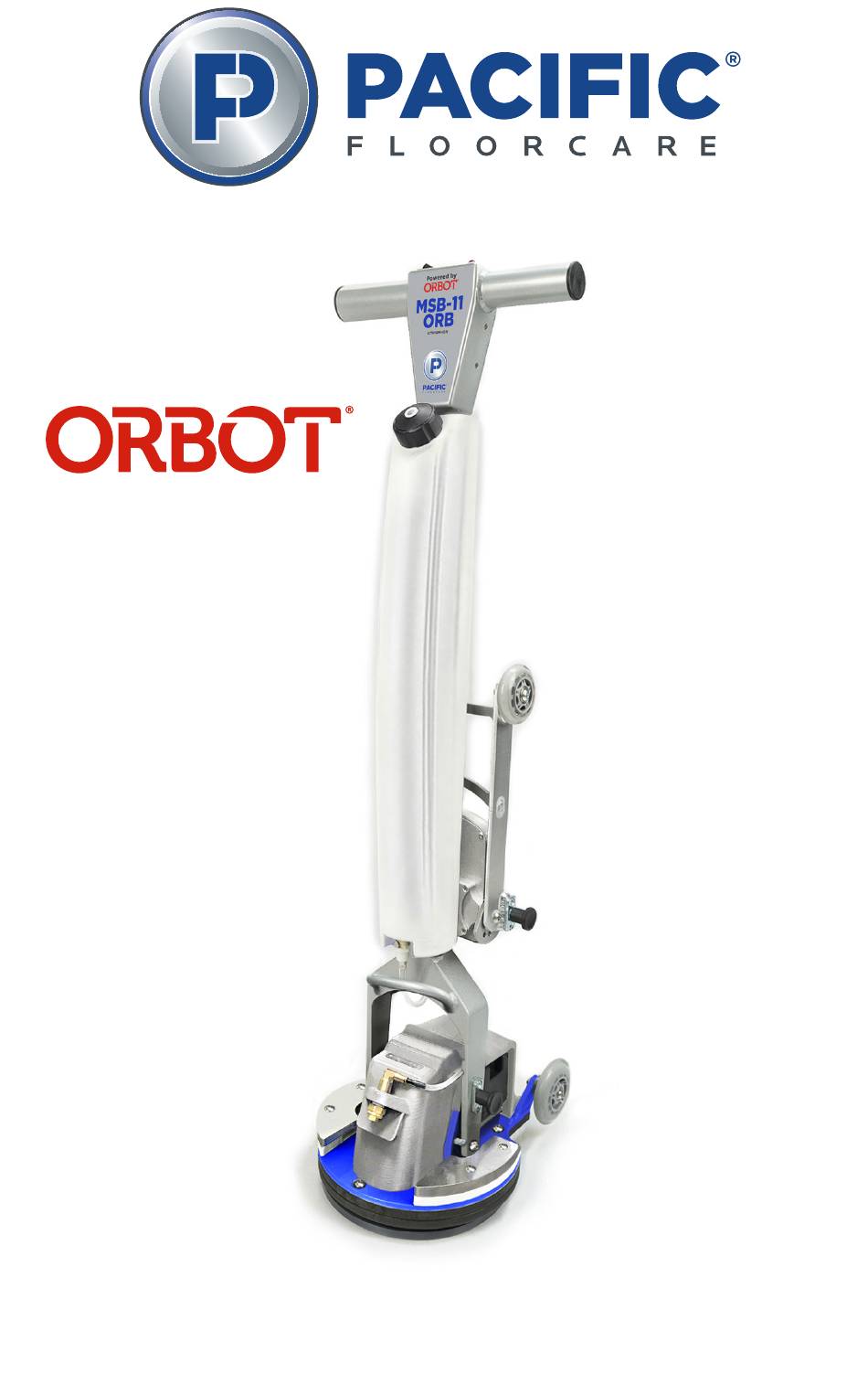

  • Page 1 Powered by MSB - 11 ORB OPERATING MANUAL 2024...
  • Page 2: Machine Data

    MACHINE DATA MSB-11 ORB MACHINE DATA MSB-11 ORB Model: Serial: Date of Purchase: Dealer: Address: Phone Number: Sales Representative:...
  • Page 3: Table Of Contents

    TABLE OF CONTENTS Machine Data How to Use This Manual Safety - Important Instructions 5 - 6 Technical Details 8 - 12 Operation Unpacking Solution Tank Pad/Brushes Power Switch Battery Handle Position Operating Machine / Operating Option Spray System Lifting and Handling Storage Accessories and Applications Pad Driver...
  • Page 4: How To Use This Manual

    HOW TO USE THIS MANUAL This manual contains the following sections: • How to Use This Manual The PARTS LIST section contains assembled parts illustrations and corresponding parts • Safety list. The parts lists include a number of • Operations columns of information: •...
  • Page 5: Safety - Important Instructions

    SAFETY IMPORTANT SAFETY INSTRUCTIONS When using this machine, basic precautions must always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE. WARNING To reduce the risk of fire, electric shock, or injury: • Use only indoors. Do not use outdoors or expose to rain. •...
  • Page 6 SAFETY The following symbols are used throughout this guide as indicated in their descriptions: HAZARD INTENSITY LEVEL There are three levels of hazard intensity identified by signal words -WARNING, CAUTION, and FOR SAFETY. The level of hazard intensity is determined by the following definitions: WARNING WARNING - Hazards or unsafe practices CAN result in severe personal injury or death.
  • Page 7: Technical Details

    TECHNICAL DETAILS ITEM SPECIFICATIONS Motor 36 V/330W - DC, 3000 RPM, 59 dB with protective cover Dual Speed 3000 RPM (Orbital), 120 RPM (Rotational) Base Diameter 11” (27.9 cm) Wheel Diameter 4” (10.16 cm) Solution Tank Capacity 3/4 Gallon (2.84 L) Pump 58 PSI (4 BAR) Noise Level...
  • Page 8: Operation

    OPERATION Unpacking Open shipping box (both sides). Remove packaging material and roll machine out of the box. Solution Tank Disconnect the quick-connect fitting located at the bottom of the solution tank. Remove solution tank by pulling away from the handle frame.
  • Page 9: Handle Position

    OPERATION Handle Position Before powering ON the machine, lower the handle into a comfortable position by pulling out the pull-pin lever located on the lower left side of the handle fork. Operating Machine Turn power switch on, and begin to maneuver the machine over the floor surface.
  • Page 10: Lifting And Handling

    HANDLING & STORAGE/ACCESSORIES & APPLICATIONS Lifting & Handling To lift the machine into a vehicle, use handle located on fork. To lift the machine up stairs, lower the wheel kit to 90 degrees. CAUTION Storage Always keep machine stored in the upright position.
  • Page 11: Superzorb Pad

    OPERATION SuperZorb Pad Our exclusive SuperZorb pad is made of a special cotton and polyester blend. One of the primary components that help to extract an essential amount of soil from the carpet fibers. They also play an important role to achieve fast dry times.
  • Page 12: Carpet Brush

    OPERATION Carpet Brush To lift carpet fiber piles. Use for extra scrubbing power to release stubborn stains. Also use on hard or rubber floors to release dirt from small cracks, crevices, and pores. CAUTION Do not store brushes under the machine. As a result, bristles will become damaged and deformed.
  • Page 13: Maintenance

    MAINTENANCE COMMON MAINTENANCE Cleaning the Machine • Always maintain a clean machine to preserve it’s presence and optimal performance. • Maintain clog free hook pad drivers to maximize cleaning performance and eliminate damage to pads and brushes. Checking the Machine •...
  • Page 14 PARTS...
  • Page 15: Part Diagrams And Part Lists

    PARTS SOLUTION TANK ASSEMBLY ITEM NO PART NUMBER DESCRIPTION QTY. 570237 SOLUTION TANK 570238 TANK CAP ASSEMBLY 570239 TANK FILTER ADAPTER ASSEMBLY 570240 MALE QUICK-CONNECT 570241 TANK HOSE 570242 TANK TAB SCREW, 10-32 X 1/2” 570243 TANK TAB 570244 TANK TAB, FOAM ADHESIVE, 1”...
  • Page 16 PARTS HANDLE / FRAME ASSEMBLY...
  • Page 17 PARTS HANDLE / FRAME ASSEMBLY ITEM NO PART NUMBER DESCRIPTION QTY. 570209 WELDED ALUMINUM HANDLE ASSEMBLY 570210 15 AMP CIRCUIT BREAKER 570211 RUBBER, TANK MOUNT STOP 570212 PUMP MOUNT SCREW 6-32 X 1-1/4” 570213 HANDLE FORK MOUNTING SCREW, 3/8-16 X 1-3/8” 570214 HANDLE FORK MOUNTING WASHER 3/8”...
  • Page 18 PARTS WHEEL KIT / PUMP ASSEMBLY ITEM NO PART NUMBER DESCRIPTION QTY. 570245 WHEEL, 3” 570246 WHEEL KIT FRAME ASSEMBLY 570247 WHEEL KIT WASHER, NYLON, 3/8” ID X 3/4” OD 570248 WHEEL KIT MOUNTING SCREW, 3/8”-16 X 1” 570249 WHEEL KIT MOUNT 570250 WHEEL KIT MOUNT SCREW, 10-24 X 3/4”...
  • Page 19 PARTS SPRAY NOZZLE & MOTOR COVER ASSEMBLY ITEM NO PART NUMBER DESCRIPTION QTY. 570263 MOTOR COVER, SILVER 570264 90° QUICK-CONNECT SPRAY FITTING 3 / 4 570265 / 570266 SPRAY JET BODY / CHECK VALVE STRAINER 1 / 1 5 / 6 570267 / 570268 SPRAY JET TIP / SPRAY JET CAP 1 / 1...
  • Page 20 PARTS BASE & DRIVER PLATE ASSEMBLY...
  • Page 21 PARTS BASE & DRIVER PLATE ASSEMBLY ITEM NO PART NUMBER DESCRIPTION QTY. 570279 WEIGHT KIT MOUNTING SCREW, 1/4-20 X 1-3/4” 570280 WEIGHT PLATE 570138 BUMPER THREADED INSERT 570281 MOTOR, 36V / 330W, 3000 RPM, 59DB 570282 MOTOR MOUNTING SCREW, 10-32 X 3/4” 570283 BASE PLATE 570284...
  • Page 22 PARTS COMPLETE ASSEMBLY...
  • Page 23: Wiring Diagram

    WIRING DIAGRAM ORBOT SLiM...
  • Page 24 Powered by 2259 Sheridan Drive, Muskegon, MI 49442, USA P: 800-968-1332 | orders@PacificFloorcare.com www.PacificFloorcare.com PURPOSE BUILT to CLEAN FLOOR!
