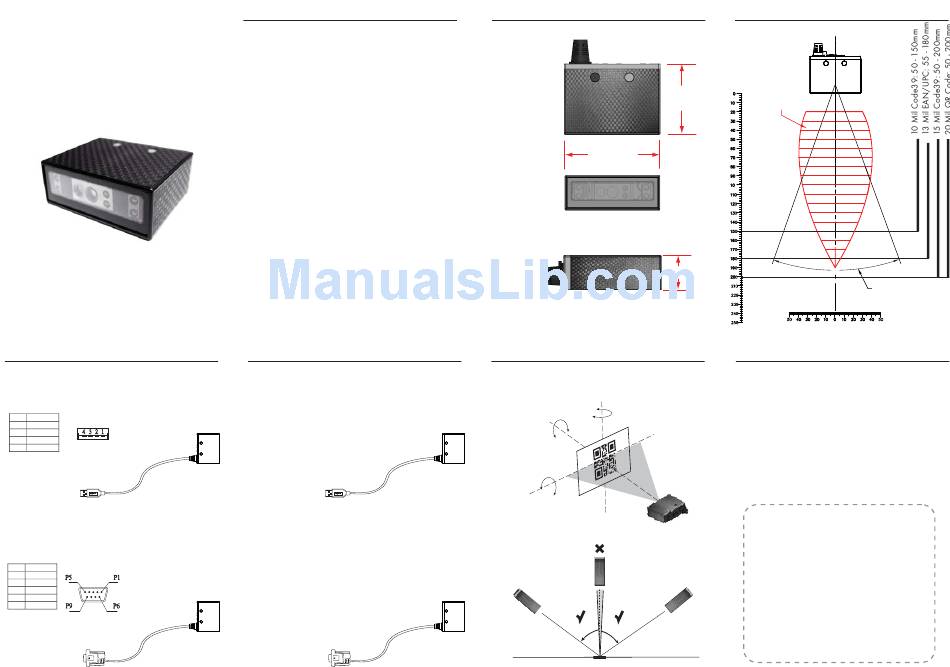

ARKSCAN AS602 Quick Manual

2D Fixed
Barcode Scanner
Quick Guide
2D Fixed Barcode Scanner Quick Guide (Rev1)
P/N: 8013-0055000

STEP1 - CHECK HARDWARE

USB Hardware

USB (Type A Male):
Pin Signal
1 +5VCC
2 Data -
3 Data +
4 GND

RS232 Hardware

RS232 (D-Sub 9 Female):
Pin Signal
2 TXD(Out)
RXD(In)
3
5 GND
7 CTS(In)
8 RTS(Out)

SPECIFICATIONS

Light source 625nm visible red LED
Scan rate 200 scans/sec
Sensor 752×480 CMOS sensor
Resolution 5mil/ 0.127mm
PCS 30%
Width of Field 100mm (13Mil Code39)
Depth of Field 5 Mil Code39: Readable
10 Mil Code39: 50 - 150mm
15 Mil Code39: 50 - 200mm
13 Mil UPC/EAN: 55 - 180mm
20 Mil QR Code: 50 - 200mm
Dimension W56 x L41 x H20 mm
Housing ABS (Housing), PC (Back Cover)
Weight 120g ± 10g
Cable Length 90cm/35.4in (Fixed Cable)
Interface RS232, USB HID
Voltage 5VDC±5%
< 350mA
Working Current
< 50mA
Standby Current
-10 to 55˚C (14˚F to 131˚F)
Operating Temp.
Storage Temp. -20 to 65˚C (-4˚F to 149˚F)
Ambient Light 100,000 lux
Drop Durability 1.5M
Sealing IP55
Symbologies QR Code, DataMatrix, PDF417 and all
major 1D barcodes

STEP2 - CONNECT TO HOST

USB Connection

1. Connect the scanner to the host.
2. The scanner is powered by the USB connection.
3. Data will be sent as HID keyboard input.

RS232 Connection

1. Connect the scanner to the host.
2. Connect a power adapter(sold separately) to the
RS232 connector's DC Jack as external power supply.
3. Data will be sent serially over RS232, with
communication settings of 9600-8-N-1
DIMENSION
Top View
56mm
Front View
Side View

STEP3 - POSITION SCANNER

1. Maximum Scan Angle: Skew ±55˚, Pitch ±55˚, Tilt ±360˚
Skew ±55˚
Tilt ±360˚
Pitch ±50˚
2. Pitch the scanner at a minimum of ±5˚ to avoid specular
reflection.
Scanner
(Side View)
Barcode
SCANNING RANGE
Unit: MM
41mm
Auto-sensing Area
20mm 36˚

STEP4 - INSTALL SOFTWARE UTILITY

Based on different hardware & configuration method,
there are 2 types of software utility:
1. EZU Software - works with USB interface scanner
and supports configuration barcodes
BEO
2. Software - works with RS232 interface scanner
and supports command operation
Both are available for download from below link:
Barcode Scanning
Area
