Summary of Contents for PowerTek PowerBeam ACD039

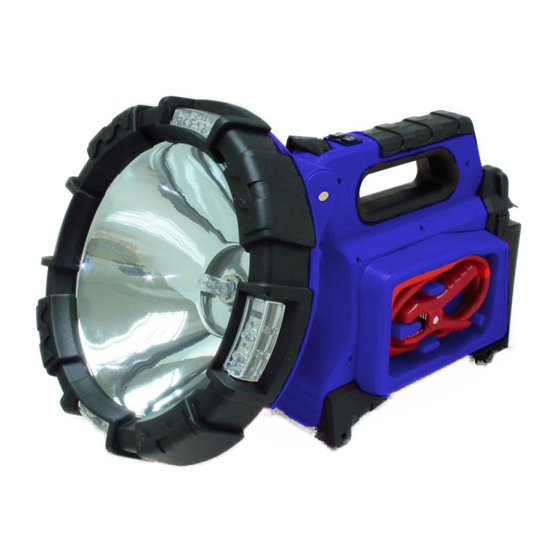

- Page 1 Model No. ACD039 Power Beam 20MCP Searchlight with 12 LED Area Light and Vehicle Jump Starter Instruction Manual MobilePower, LLC. Bluffton, SC 29910 www.mobilepower-us.com Customer Support: (800) 708-8550 customerservice@mobilepower-us.com...
- Page 2 Model No. ACD039...
- Page 3 Model No. ACD039 IMPORTANT ADVISORY NOTES • The spotlight becomes very hot during use. DO NOT touch lens or block lens area during operation. • Light beam is extremely powerful. DO NOT shine directly into eyes. • Unit is not waterproof. DO NOT use Spotlight under water or immerse in water. • Do not use with dry cell batteries. These batteries may burst and cause injury to person or damage personal property. • Do not attempt to face the battery being jumped. Stay away as far as possible from the battery when making the final connection. • DO NOT CONNECT TO or jump start a 6 or 24 Volt battery. If battery acid comes in contact with skin or eyes, rinse immediately with water for 20 minutes. Seek medical attentionif redness, irritation or pain is present. • DO NOT smoke, use matches, lighters or an open flame near batteries. • This product contains chemical substances including lead. Wash hands thoroughly after handling Lead Acid Batteries. • Never allow red (Positive) and black (Negative) clamps to come in contact with each other or contact with metal object at the same time.
- Page 4 Model No. ACD039 • Use of DAMAGED or IMPROPER extension cords to charge this unit could result in risk of fire and/ or electric shock. Make certain that the extension cord is in safe and in good electrical condition. • Prevent water from entering into the unit housing. Water will damage the internal electronics board. • This unit has a built-in lead acid battery. Although this unit arrives partially charged from the factory, it MUST be fully charged before the first use. • Recharge the unit after each use or every 3 months to prevent the battery voltage from depleting. ADJUSTABLE HEAD To adjust head angle, gently pull up on rim at bottom. Angle can be adjusted to 4 different positions indicated by a “click” sound. Do not force head beyond final point. Return head to closed position for storage to prevent damage to mechanism.
- Page 5 Model No. ACD039 VEHICLE JUMP START INSTRUCTIONS: WARNINGS: Review your vehicle owner’s manual instructions before attempting to jumpstart your vehicle. Failure to follow these advisory instructions may result in personal injury and property damage. Use safety glasses to protect your eyes while working near a battery during vehicle jump-starting. Jump start a vehicle in an open area without any type of obstructions. 1. Turn off the vehicle ignition and all accessories (Such as radios, lights, and air conditioners, etc). 2. Apply the emergency brake and put those vehicles with automatic transmission in park position. 3. Determine the polarity of the vehicle battery terminals. The positive (+) battery terminal normally is larger in diameter than the negative (-) terminal. If you are unsure, you must refer to the vehicle owner’s manual. 1. Determine whether your vehicle is equipped with a negative or positive grounded system: Most vehicles use this type of system. Positive Grounded battery terminal is grounded to chassis or any other part of the vehicle. If you are not certain of this important information, YOU SHOULD REFER TO YOUR VEHICLE OWNER’S MANUAL.
- Page 6 Model No. ACD039 Positive Grounded System: Connect the BLACK CLAMP (negative -) to the negative terminal of the vehicle battery. Connect the RED CLAMP (positive +) to the vehicle engine block, or a metal part of the vehicle which is connected to the vehicle ground system. Do not clamp directly to positive battery terminal, main fuel distribution module or sheet metal parts. The Polarity Protection System GREEN LED is illuminated if the proper connections have been made. WARNING: If RED LED is illuminated, STOP and disconnect the booster clamps from battery terminals. Reconnect the booster clamps by reversing the connections to the proper battery polarity. 1. Turn on the Main Power Booster Clamps Switch by rotating the switch to the ON position. 2. Allow 3 to 5 minutes of charge time. It is highly recommended having a second person to assist holding the unit securely in place during the next steps.
-
Page 7: Specifications
Model No. ACD039 A. AC Charging At Home with 110 Volt Charger 1. Keep the Power Switch in middle “O” off position while charging. 2. Insert the AC charger round plug into the Spotlight Charging Port located at the back of the spotlight. 3. Connect the 110 Volt AC Charger into the 110 Volt AC home receptacle. 4. Fully charge the spotlight according to the following charging schedule: First time charge:............. 24 hours Recharge and subsequent charge:....... 18 hours 5. Unplug the AC charger from the 110 Volt receptacle first and then remove theround plug from the Spotlight Charging Port. - Page 8 Model No. ACD039 Model No. ACD039...
