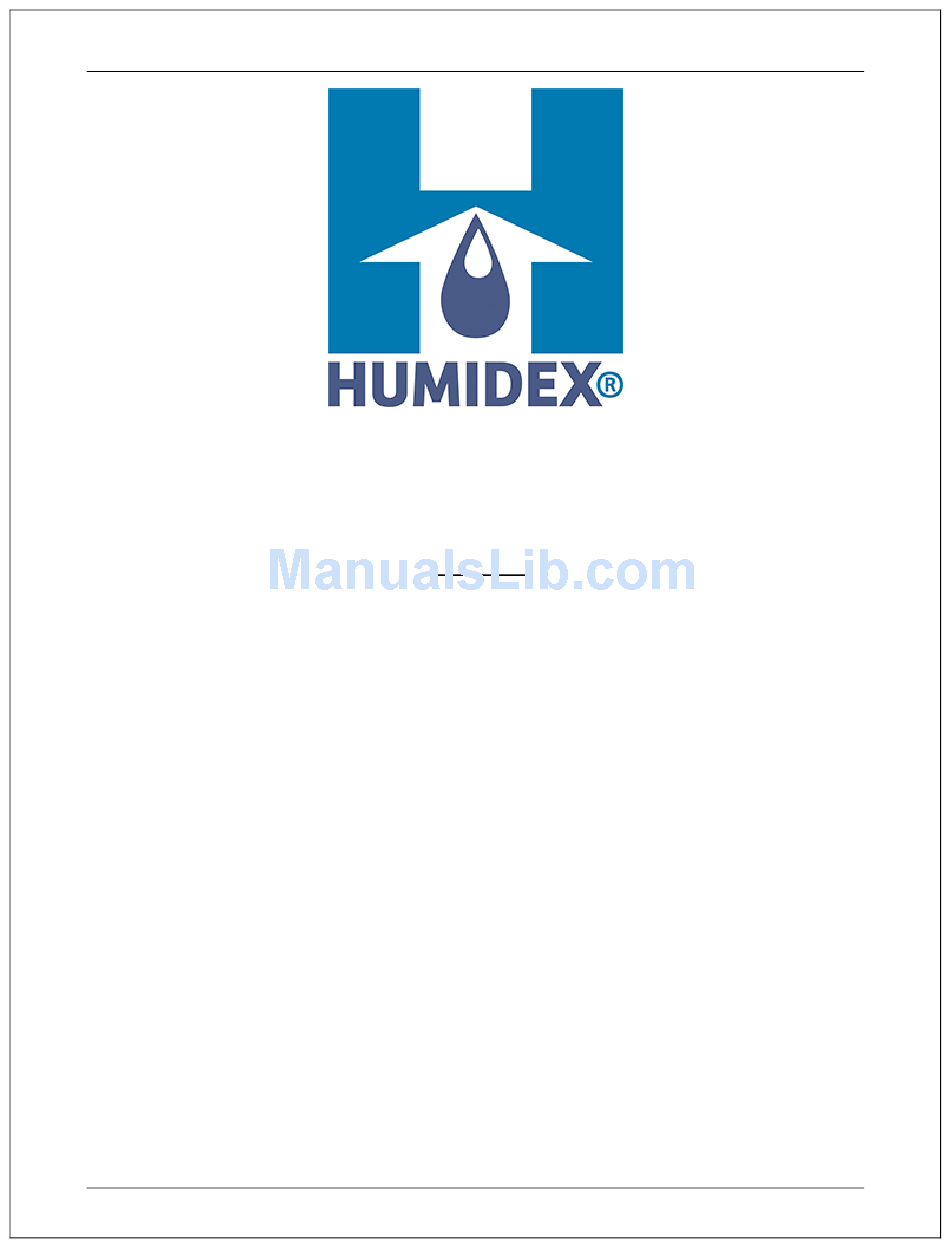

- Page 1 Nov 2015 Humidex BSF Rev. 3.1En Installation & Owner’s Manual English This Manual Covers the Following Models BSF-150 BSF-180 Manufactured by: ClairiTech Innovations Inc. 1095 Ohio Rd. Boudreau-Ouest, NB Canada E4P 6N4...
-
Page 2: Table Of Contents
Humidex BSF Table of Contents Table of Contents ........................1 Service and Warranty ......................... 2 ........................2 USTOMER SSISTANCE ........................ 3 ONSUMER IMITED ARRANTY Pre-Installation .......................... 4 ..........................4 NCLUDED OMPONENTS ....................... 4 OOLS EQUIRED FOR NSTALLATION Installation ..........................5 ........................... -
Page 3: Service And Warranty
Humidex BSF Service and Warranty For Customer Assistance To aid in answering questions if you call for service or warranty purposes, please record below the model and serial number located on the side of the unit. Product Name: Model #:... -
Page 4: Consumer Limited Warranty
Humidex BSF Consumer Limited Warranty ClairiTech Innovations Inc. warrants to the first consumer that this product, when shipped in its original container, will be free from defective workmanship and materials, and agrees that it will, at its option, either repair the defect or replace the defective Product or part thereof with a new or remanufactured equivalent at no charge to the purchaser for the period(s) set forth below. -
Page 5: Pre-Installation
Pre-Installation Included Components Before installing your Humidex, make sure that you have the right model and accessories. The following items should be included in the accessory box. If parts are missing, contact our customer service at US 1-888-533-1348, Can. 1-800-416-9111. -
Page 6: Installation
2) To further decrease noise propagation, 6’ of insulated flex can be used on the exhaust side of the BSF. (Not Included) 3) Install the BSF as far away as possible from the Exhaust system (Wave or Humidex). If this cannot be done, please use 6” Flex to pipe the BSF away from the exhaust system. -
Page 7: Unit Operations
High 150 CFM 180 CFM Ideally, the Booster fan speed should be matched with the speed utilized on your Humidex or Wave Exhaust system. E.g. if your Humidex or Wave Exhaust system is set to Medium, then the BSF system should also be set to medium. -
Page 8: Specifications
Humidex BSF Specifications Technical Data Amps Watts Airflow (CFM) Model High BSF-150 0.26 BSF-180 0.26 All Units require a 115 VAC electrical outlet Dimensions Model Height (In.) Width (In.) Depth (In.) BSF-150 11” 10.25” 7.25” BSF-180 11” 10.25” 7.25”... -
Page 9: Schematic Of Wiring
Humidex BSF Schematic of Wiring Wiring Diagram for Model Numbers: BSF-150 Revision 1.0 Black White Green Yellow MEDIUM 3 Position Switch Black HIGH Green 3.75uF (Ground) 2.7uF Mechatronics #UF15PC12 Black... - Page 10 Humidex BSF Wiring Diagram for Model Numbers: BSF-180 Revision 1.0 Black White Green Yellow MEDIUM 3 Position Switch Black HIGH Green (Ground) Mechatronics #UF15PC12 Black...
