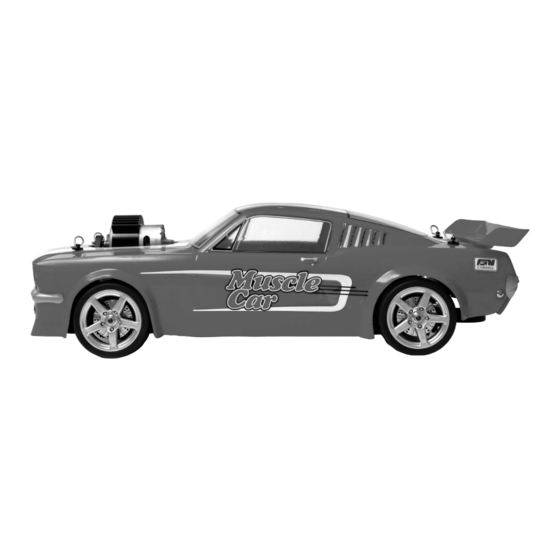

GREAT VIGOR Muscle Car Operating Instructions And Assembly Manual

4 wheel drive, 1/10th scale, ready to run, radio controlled, electric
Hide thumbs

Advertisement

Quick Links

Download this manual
OPERATING INSTRUCTIONS AND ASSEMBLY MANUAL
®
®

Advertisement

loading
Need help?

Need help?

Do you have a question about the Muscle Car and is the answer not in the manual?

Questions and answers

Related Manuals for GREAT VIGOR Muscle Car

Summary of Contents for GREAT VIGOR Muscle Car

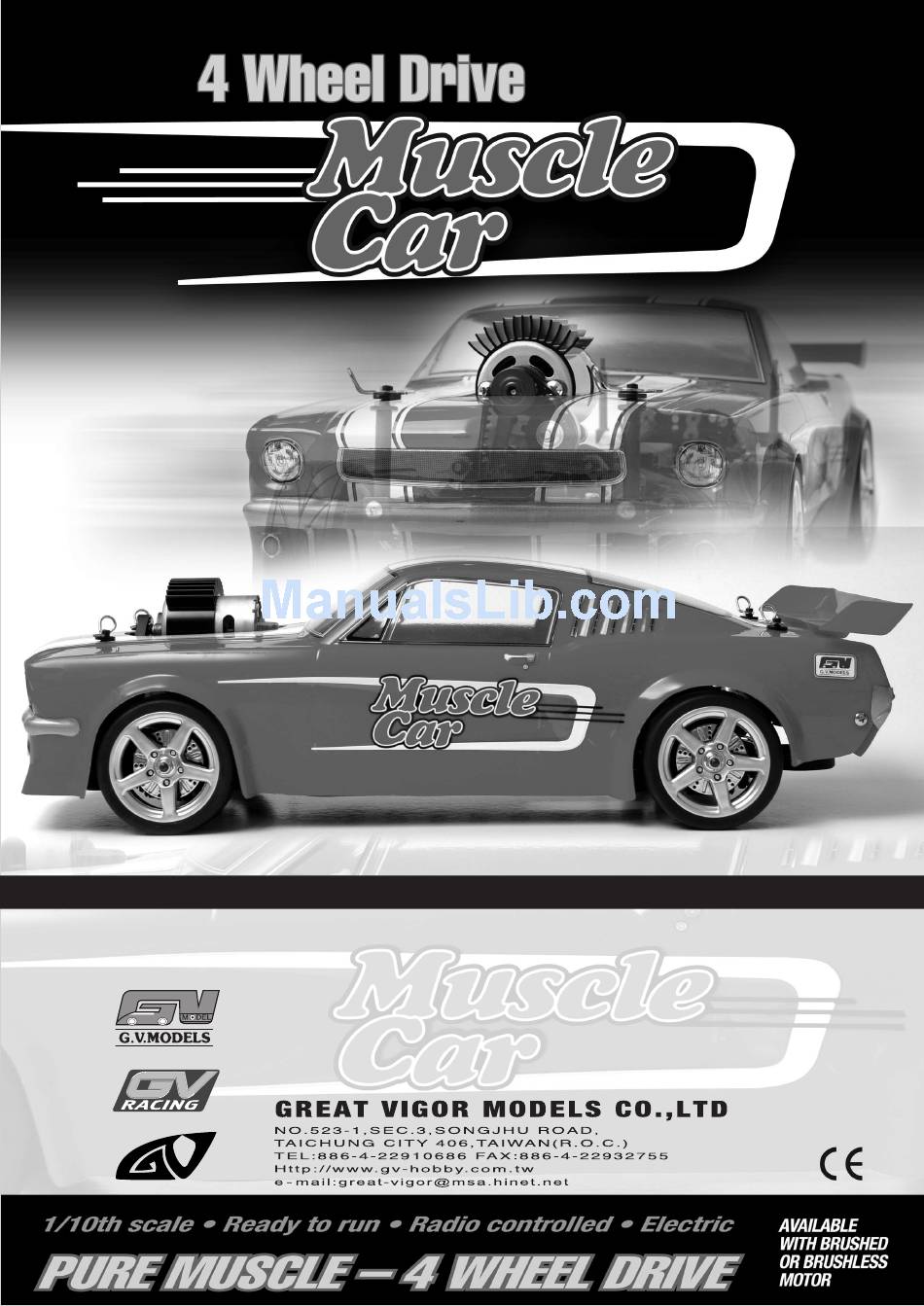

  • Page 1 OPERATING INSTRUCTIONS AND ASSEMBLY MANUAL ® ®...
  • Page 2 INTRODUCTION INTRODUCTION Thank you for selecting this Great Vigor Product. Please read all instructions and familiarize yourself with the products and controls before operation. To prevent serious personal injury and/or property damage, operate all controlled models in a responsible manner as outlined herein. If you come across any problems and need some help, you can contact us on the internet at www.gv-hobby.com.tw.
  • Page 3 ADDITIONAL ITEMS NEEDED FOR OPERATION INTRODUCTION ˙ Receiver ˙ Steering Servo ˙ Battery ˙ 2 Channel Radio Set Electronic Speed Control ˙ ˙ Motor EXTRA STUFF NEEDED CAUTIONS ˙ ˙ ˙ Needlenose Pliers Cutting Pliers Tongue and Groove Pliers ˙ ˙...
  • Page 4 Step 1 Front and Rear Differentials 1A - Washer 2.6x6x1mm -- 4 1C - Ball Bearing 5x8x2.5mm -- 2 1B - Washer 12.1x20.5x1mm -- 4 (EL2292) EL2285 Differential Oil Differential Oil -- 1 Differential Oil EL2287 EL2281 Contain a 2.6mm Lock Nut Inside (44T) EL2285 EL2286...
  • Page 5 Step 3 Rear Differentials Housing Step 3-1 EL2276 EL2282 (16T) EL2289 <3-1> Step 1 3C - F/H Tapping Screw 2x8mm -- 4 EL2276 3D - Ball Bearing 5x10x4mm -- 2 3A - E-Ring 3mm -- 1 3E - Ball Bearing 10x15x4mm -- 2 3B - Pin 1.5x7.8mm -- 1 Step 4 Front Shock Tower and Gearbox...
  • Page 6 Step 5 Front Suspension Plate and Suspension Plate Holder Step 4 EL162D4 EL162D2 5A - F/H Tapping Screw 3x10mm -- 2 5B - Button Head Tapping Screw 3x6mm -- 2 Step 6 Front Wheel Shafts and Steering Knuckles 6A - Pin 2x9.8mm -- 2 6C - Ball Bearing 5x10x4mm -- 4 6B - Rocker Arm Pin 3x10mm -- 4 V210512L...
  • Page 7 Step 7 Front Upper, Lower Suspension Arms and Wheel Shafts 7A - Hub Stud 3x13.5mm -- 2 7B - Hub Stud 3x22.5mm -- 2 V23492 (V22151) 7C - Turnbuckle 5x20mm -- 2 (V23492) CB113 V23492 5.6mm (V22151) V23492 For Right and Left Sides (x2) (CB1591) <7-1>...
  • Page 8 Step 9 Flanged Ball Bearing Mount Step 8 EL3044 EL3044 9A - Flanged Ball Bearing 3x6x2.5mm -- 2 Step 10 Belt Pulley, Belt Pulley Shaft and Motor Pinion Gear Step 9 EL02411HC (24T) (EL228161) EL228162RE (16T) 10A - Grub Screw w/Threadlock 3x3mm -- 2 10B - Shim 3.2x4.8x1mm -- 1 10C - Belt Pulley Shaft 3x67mm -- 1...
  • Page 9 Step 11 Belt Pulley VX22818 Step 10 VX22818 (18T) <11-1> Step 11-1 11B - Shim 3.2x4.8x0.4mm -- 1 11C - Shim 3.2x4.8x1mm -- 1 11D - Shim 6.1x9.8x0.3mm -- 1 11A - Flanged Ball Bearing 3x6x2.5mm -- 2 11E - Lock Nut 3mm -- 1 11F - Flange Lock Nut 3mm -- 1 11G - Button Head Machine Screw 3x25mm -- 1 Step 12...
  • Page 10 Step 13 Belt Mounting This button head machine screw can adjust belt tension. Move the button head machine screw to left side to get tighter belt tension or move the button head machine screw to right side to get looser belt tension. Step 11 VX135UK01 Left...
  • Page 11 Step 15 Rear Shock Tower and Gearbox EL16212 EL16212 Step 3 EL1322 <15-1> Step 15-1 15A - Button Head Tapping Screw 3x12mm -- 4 15B - Button Head Tapping Screw 3x28mm -- 2 Step 16 Rear Suspension Plate and Suspension Plate Holder 16A - O-Ring 3mm -- 1 EL162D4 Step 15...
  • Page 12 Step 17 Rear Hubs 17A - Pin 2x9.8mm -- 2 17B - Ball Bearing 5x10x4mm -- 4 V210512L EL3461 EL3461 For Right Side V21071 For Left Side V210512L V21071 Step 18 Rear Upper, Lower Suspension Arms and Hubs 18A - Hub Stud 3x13.5mm -- 2 18B - Hub Stud 3x22.5mm -- 2 VX159 18C - Turnbuckle 5x40mm -- 2...
  • Page 13 Step 19 Rear Suspension 19A - E-Ring 2.5mm -- 4 19C - Button Head Machine Screw 3x15mm -- 2 19B - Lock Nut 3mm -- 2 19D - Hinge Pin 3x54mm -- 2 Step 16 Step 18 Step 18 V2355 (EL1111) Step 20 Rear Handle and Transmission Mount...
  • Page 14 Step 21 Steering Servo Mounting 21A - Button Head Tapping Screw 3x10mm -- 4 21B - F/H Tapping Screw 3x10mm -- 4 EL111 (Steering) Servo Arm (Included with Servo) Retaining Screw (Included with Servo) <21-1> Step 21-1 Step 20...
  • Page 15 Step 22 Servo Saver Mounting 22A - Grub Screw w/Threadlock 3x3mm -- 5 EL3073 EL3073 22B - Lock Nut 3mm -- 1 22C - F/H Machine Screw w/Threadlock 3x8mm -- 2 EL3073 22D - E-Ring 5mm -- 1 EL3071 22E - Ball Bearing 5x8x2.5mm -- 2 EL3073 EL3073 EL3071...
  • Page 16 Step 23 Pro Electric Transmission and Receiver Mounting Pro Electric Transmission Double Side Tape (Move Out) Double Side Tape (Move Out) Receiver Step 22 Step 24 Front Bumper and Sponge Bumper (EL3452BA) EL3452BA (EL3452BA) 24A - F/H Machine Screw w/Threadlock 3x8mm -- 2 24B - Button Head Machine Screw 3x8mm -- 2 EL1401 24C - Washer 3.5x10x1mm -- 2...
  • Page 17 Step 25 Front Suspension, Bumper and Steering Linkages Mounting Step 14 Step 25-2 Step 25-2 VX1651 Step 25-1 <25-1> CB113 V22151 CB113 Step 24 V22151 For Right and Left Sides (x2) <25-2> Step 23 25A - Grub Screw 3x12mm -- 2 25B - F/H Tapping Screw 3x10mm -- 8 25C - Button Head Tapping Screw 3x10mm -- 2 25D - Button Head Tapping Screw 3x15mm -- 4...
  • Page 18 Step 26 Rear Suspension and Centre Swing Shaft Mounting 26A - F/H Tapping Screw 3x10mm -- 4 Step 19 EL3551 Step 25...
  • Page 19 Step 27 Radio Plate and Antenna Mounting 27A - Flange Lock Nut 4mm -- 1 27B - Button Head Tapping Screw 3x12mm -- 4 MV3746 EL3022 (MV3746) Step 26...
  • Page 20 Step 28 Front Motor Steering Radio Mounting 28A - Button Head Machine Screw 3x15mm -- 2 SEL3071 Step 27 Step 29 Front Motor Steering Radio Mounting 29A - Cap Screw 3x6mm -- 4 Step 28...
  • Page 21 Step 30 Battery and Battery Plate Mounting EL120 EL120 EL3741 Battery Single Side Tape (Move Out) Single Side Tape (Move Out) We use the single side tape to mount the battery. One side is on the chassis, and the other side just contact with the battery.
  • Page 22 Step 31 Shock Bodies and Shock Shafts 31A - O-Ring 2.5x1mm -- 4 31C - Lock Nut 2.6mm -- 4 31B - O-Ring 3mm -- 8 31D - Shock Shaft 3x30.5mm -- 4 31E - Shock Body 12x22.6mm -- 4 V213801 V213801 Step 31-1...
  • Page 23 Step 33 Step 33 Front and Rear Shock Mounting 33A - Lock Nut 3mm -- 4 33B - Button Head Tapping Screw 3x12mm -- 4 33C - Button Head Machine Screw 3x20mm -- 4 Step 32 Step 30 VX0241 Step 32 For Front Step 32 Step 30...
  • Page 24 Step 34 Step 34 Front Body Support and Alu Motor Heat Sink Mounting CB165 CB165 CB165 According to the height which we apply the body to the car, then use wire cutters to cut the body support to appropriate lengths. <34-1>...
  • Page 25 Step 35 Rear Body Support Mounting CB165 CB165 CB165 CB165 According to the height which we apply the body to the car, then use CB165 wire cutters to cut the body support to appropriate lengths. <35-1> Step 35-1 Step 34 35A - Button Head Tapping Screw 3x6mm -- 2 35B - Button Head Tapping Screw 3x12mm -- 2 35C - Button Head Tapping Screw 3x15mm -- 2...
  • Page 26 Step 36 Pro Electric Transmission Install Diagram Battery Black (Negative) Pro Electric Transmission (Anode) Motor Receiver Steering Speed Switch Servo CH. 1 CH. 2 CH. 3 BATT Receiver...
  • Page 27 Step 37 Antenna Support Tube Mounting Antenna Support Tube Slide the antenna through the antenna support tube, then push the antenna support tube into the antenna mount. ! Important DO NOT cut the excess antenna shorter. Allow the excess antenna wire to hang out beyond the end of antenna support tube.
  • Page 28 Step 39 Wheels and Body Mounting MV120 39A - Flange Lock Nut 4mm -- 4 MV120 CB165 CB165 Body MV120 CB165 MV120 CB165 C1001GA Step 38 Step 38 Step 38 Step 38 C1001GA Step 37...
  • Page 29 MUSCLE CAR REPLACEMENT PARTS LIST BB0306025T BB051004 BB101504 BU0508025 Flanged Ball Bearings 3x6x2.5mm Ball Bearings 5x10x4mm Ball Bearing 10x15x4mm Bushings 5x8x2.5mm CB150A CB113 L=22.5mm CB150S L=13.5mm CB1591 Balls - Copper 7x3mm Hub Studs - Down Hub Studs - Up Balls - Alu 6x4.9mm...
  • Page 30 EL1401 EL16212 EL162D2 EL162D3 Gearbox Halves - Front or Rear Bumper Front Suspension Plate - Front Suspension Plate - Rear EL2292 EL162D4 EL2276 EL2281 Suspension Plate Holders Differential Screw & Tool Differential Housing - Front or Rear Bevel Gear 44T EL22816 EL228161 EL228162...
  • Page 31 EL3073 EL3044 EL3402 EL3071 Servo Saver Metal Set Flanged Ball Bearing Mount Set-22T/24T Handle Kone Rear Servo Saver - Plastic EL3461 EL347F1 EL3452BA EL347R1 Rear Hubs - Left & Right Suspension Arm Lower - Front Sponge Bumper Black Suspension Arm Lower - Rear EL3551 EL3741 L=27mm...
  • Page 32 V213802BL Front & Rear Shock Body Set 3mm - Black V213802P Front & Rear Shock Body Set 3mm - Purple V213802R Front & Rear Shock Body Set 3mm - Red V22151 V2348 V2355 L=45mm V213802TA Ball Ends Front Hub Carriers - Left & Right Swing Shaft Front &...
  • Page 33 MUSCLE CAR OPTION PARTS LIST EL00701B EL00701R Aluminum Motor Heat Sink - Red Aluminum Motor Heat Sink - Blue EL00701BA Aluminum Motor Heat Sink - Black EL00701G Aluminum Motor Heat Sink - Gold EL00701 L=25mm EL00704B L=47mm EL00701P Aluminum Motor Heat Sink - Purple...
  • Page 34 L=73.5mm SEG200 SEL3741 L=38mm VX35701 SEL3461BL Silicone Differential Oil - 200k Wt Li-Po Battery Alu Post Set - 6mm CVD Universal Joint - 5mm Alu Rear Hubs - Left & Right / Blue...
