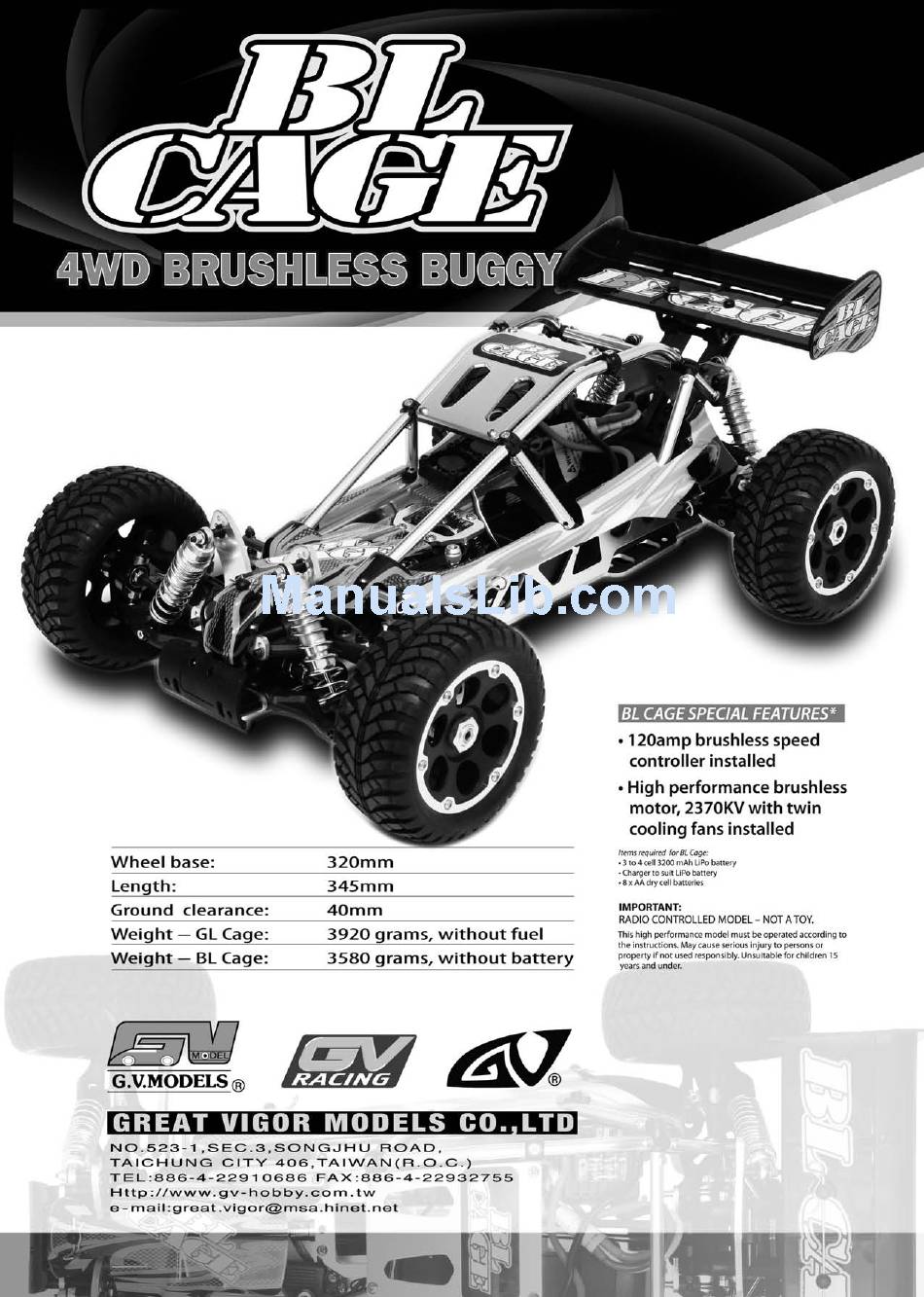

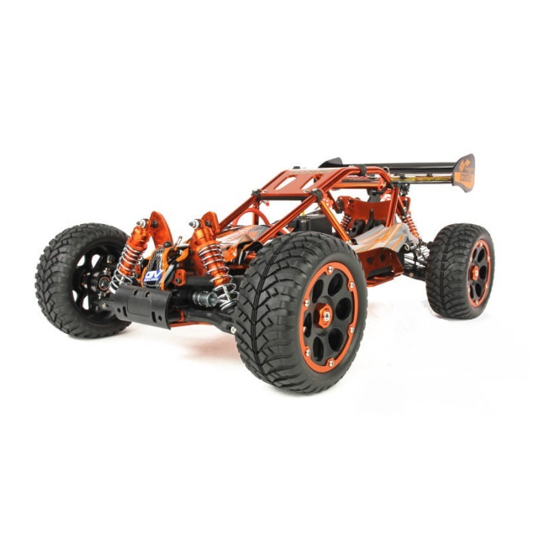

  • Page 2 INTRODUCTION INTRODUCTION Thank you for selecting this Great Vigor Product. Please read all instructions and familiarize yourself with the products and controls before operation. To prevent serious personal injury and/or property damage, operate all controlled models in a responsible manner as outlined herein. If you come across any problems and need some help, you can contact us on the internet at www.gv-hobby.com.tw.
  • Page 3 ADDITIONAL ITEMS NEEDED FOR OPERATION INTRODUCTION ˙ ˙ AC/DC Charger & Discharger Steering Servo ˙ Receiver (Purchase separately) (Included with RTR version) (Included with RTR version) ˙ 2 Channel Radio Set (Included with RTR version) ˙ ˙ Brushless Motor Brushless Speed Control ˙...
  • Page 4 Step 1 Front, Rear and Center Differentials 1A - O-Ring 3x1mm -- 12 1B - Pin 2.5x12.8mm -- 6 MV11721 MV11721 1C - Pin 4x26.6mm -- 6 MV22873 MV22873 MV22873 <1-1> MV22811 MV22833 (43T) (53T) MV22873 MV22873 MV22873 Silicone Differential Step 1-1 MV22873 MV22873...

  • Page 5: Table Of Contents

    Step 2 Front Gear box 2A - Button Head Tapping Screw 3x38mm -- 2 2B - Button Head Tapping Screw 4x12mm -- 2 2C - Button Head Tapping Screw 3x8mm -- 1 2D - Grub Screw w/Threadlock 5x4mm -- 1 MV1173 2E - Grub Screw 4x4mm -- 1 2F - Shim 8x12x0.4mm -- 1...

  • Page 6: Step

    Step 4 Front Axles and Steering Knuckles 4A - Grub Screw w/Threadlock 4x3mm -- 4 4C - Pin 2.5x13.8mm -- 2 4D - Pin 2.5x16.8mm -- 2 4B - Grub Screw w/Threadlock 5x5mm -- 2 4E - Shim 8x12x0.2mm -- 2 MV107 4F - Ball Bearing 8x16x5mm -- 4 MV134...

  • Page 7: Table Of Contents

    Step 6 Front Lower Suspension Arms and Axles Step 5 For Left Side Step 5 Step 4 XV13401 XV13401 Step 4 Step 5 Step 5 For Right Side 6A - Button Head Machine Screw w/Threadlock 4x20 mm -- 4 Step 7 Front Suspension Step 3 Step 6...
  • Page 8 Step 8 Rear Gear box 8A - Button Head Tapping Screw 3x38mm -- 2 XV162U2AL 8B - Button Head Tapping Screw 4x8mm -- 2 8C - Grub Screw w/Threadlock 5x4mm -- 1 8D - Grub Screw 4x4mm -- 2 XV3613 XV3613 XV1631 MV22821...
  • Page 9 Step 10 Rear Shock Tower 10E - Cap Screw 4x45mm -- 1 10A - Lock Nut 3mm -- 4 10B - Lock Nut 4mm -- 2 10F - Cap Screw 4x50mm -- 1 10C - Button Head Tapping Screw 3x10mm -- 2 10D - Cap Screw 3x25mm -- 6 MV110 XV1333AL...
  • Page 10 Step 11 Rear Hubs 11A - Grub Screw w/Threadlock 5x5mm -- 2 11B - Pin 2.5x16.8mm -- 2 MV107 11C - Shim 8x12x0.2mm -- 2 MV3462 11D - Ball Bearing 8x16x5mm -- 4 MV105 Finished For Right and Left Sides (X2) Step 12 Rear Lower Suspension Arms and Hubs 12B - Grub Screw 4x10mm -- 2...
  • Page 11 Step 13 Rear Suspension 13A - Flanged Lock Nut 3mm -- 2 Right Side 13B - Button Head Tapping Screw 4x12mm -- 2 MV162D4 Step 12 (MV11101) Step 10 Step 12 MV3562 13C - Cap Screw 3x20mm -- 2 Left Side 13D - Hinge Pin 4x67.5mm -- 2 Step 14 Rear Sway Bar...
  • Page 12 Step 15 Chassis Side Guards 15A - F/H Tapping Screw 3x12mm -- 8 For Right Side MV1674 XV1657 MV1674 MV3002RAL XV1657 MV3002LAL MV1674 MV1674 XV1657 XV1657 For Left Side...
  • Page 13 Step 16 Chassis Right Side Step 15 MV30731 MV30731 MV30101AL Step 15 Left Side 16A - F/H Machine Screw 3x10mm -- 8 16B - F/H Machine Screw w/Threadlock 4x10mm -- 2 16C - Lock Nut 3mm -- 8...
  • Page 14 Step 17 Steering Tie-Rods MV11303 17A - Turnbuckle 4x48mm -- 2 V221524 (MV1301) MV11303 V221524 30.5mm For Right and Left Sides (x2) Step 18 Servo Saver and Steering Linkages 18A - Lock Nut 3mm -- 4 MV30731 18B - Servo Saver Screw 3x19.7mm -- 2 18C - Cap Screw 3x20mm -- 2 MV3071 MV3071...
  • Page 15 Step 19 Motor Mounting and Center Differential 19A - Button Head Tapping Screw 3x10mm -- 2 19D - Grub Screw w/Threadlock 4x4mm -- 1 19E - Cap Screw 3x20mm -- 8 19B - Button Head Machine w/Threadlock Screw 3x8mm -- 2 19C - Button Head Machine w/Threadlock Screw 3x12mm -- 4 Step 19-1 EL36741...
  • Page 16 Step 20 Front and Rear Shocks 20A - Lock Nut 2.6mm -- 4 20F - Shock Shaft 3.5x56.2mm -- 2 20G - Shock Shaft 3.5x65.7mm -- 2 20B - Washer 2.5x5.9x0.5mm -- 4 20H - Shock Body 14x45mm -- 2 20C - O-Ring 2.5x1mm -- 4 20D - O-Ring 3mm -- 4 20i - Shock Body 14x53mm -- 2...

  • Page 17: Shock Oil

    Step 21 Shock Oil MV138016 Silicone Shock Oil (Not Included) 33B450AL 33B530AL After filling with shock oil, GENTLY pump shock shaft up and down several times to eliminate air bubbles. Step 20 For Front and Rear (x4) Step 22 Shock Springs Step 21 For Front (x2) Step 21...
  • Page 18 Step 23 Front and Rear Shock Mounting MV1382 Step 22 Step 22 For Front Step 7 Step 14 Step 22 MV1382 Step 22 For Rear 23B - Flanged Lock Nut 3mm -- 4 23A - F/H Machine Screw 3x20mm -- 4...
  • Page 19 Step 24 Steering Servo and Motor/Center Differential Mounting XV30221AL MV3103 Step 19 MV3103 CH-1 Steering <24-1> Step 24-1 Step 16 24A - F/H Tapping Screw 4x12mm -- 2 24C - F/H Machine Screw w/Threadlock 4x10mm -- 2 24B - Button Head Tapping Screw 3x10mm -- 6 24D - F/H Tapping Screw 3x10mm -- 4...
  • Page 20 Step 25 Front Suspension Mounting MV3563 Step 25-1 Step 24 Step 23 XV1401 <25-1> 25A - F/H Tapping Screw 4x16mm -- 4 25B - F/H Tapping Screw 4x12mm -- 2...
  • Page 21 Step 26 Steering Linkage Mounting XV30762AL Step 18 Step 25 26A - Button Head Machine Screw 3x22mm -- 2 26B - Button Head Machine Screw w/Threadlock 3x20mm -- 2 26E - Shim 6.1x9.8x0.2mm -- 2 26C - Washer Head Machine Screw w/Threadlock 4x10mm -- 2 26D - Button Head Tapping Screw 3x15mm -- 1 26F - Lock Nut 3mm -- 2...
  • Page 22 Step 27 Rear Suspension Mounting Step 23 MV3554 Step 26 27A - F/H Tapping Screw 4x16mm -- 4 27C - Lock Nut 3mm -- 1 27B - F/H Machine Screw 3x20mm -- 1...
  • Page 23 Step 28 Battery Holder Installation EV3023 EV3023 <28-1> Step 28-1 Step 27 28A - F/H Tapping Screw 3x10mm -- 4...
  • Page 24 Step 29 Electronic Speed Control Mounting ! ESC and Motor Install Diagram Black Yellow Brushless Motor Brushless Speed Control <29-1> EL66704T1 Step 28 Double Sided Tape (20mmX50mm) 29A - Button Head Machine Screw 3x6mm -- 2...
  • Page 25 Step 30 Battery And Receiver Connections NEG- Li-Po Battery 2-cells(7.4V) POS+ Brushless Motor ELS13 NEG- NEG- POS+ NEG- Li-Po Battery POS+ 2-cells(7.4V) POS+ Red (Positive) Battery 14.8V White (Neutral) Black (Negative) Li-Po Battery 4-cells(14.8V) Brushless ESC CH. 1 CH. 2 CH.

  • Page 26: Steering Linkage

    Step 31 Steering Linkage 31A - Lock Nut 3mm -- 1 31C - Button Head Machine Screw 3x12mm -- 1 31B - Flanged Lock Nut 3mm -- 1 31D - Cap Screw 3x18mm -- 1 31E - Grub Screw 3x16mm -- 1 MV1302 MV1302 MV1302...
  • Page 27 Step 32 Receiver Case MV3746 MV3746 XV3742 Step 32-1 Receiver <32-1> Step 32-2 XV3742 <32-2> (XV3743) Step 31 32A - Post 6x19mm -- 2 32D - Flanged Lock Nut 4mm -- 1 32B - Button Head Tapping Screw 3x10mm -- 4 32E - Button Head Machine Screw 3x15mm -- 2 32C - F/H Machine Screw w/Threadlock 3x8mm -- 2...
  • Page 28 Step 33 Antenna Support Tube Antenna Support Tube Slide the antenna through the antenna support tube, then push the antenna support tube into the antenna mount. DO NOT cut the excess antenna shorter. Allow the excess antenna wire to hang out beyond the end of antenna support tube.
  • Page 29 Step 34 Roof Plate Mounts 34A - F/H Machine Screw w/Threadlock 3x8mm -- 4 MV1683AL MV1683AL MV1672 MV1672 Step 35 Rear Center Roll Bar MV1673 Step 35-1 MV1685AL MV1673 <35-1> Step 34 35A - Button Head Tapping Screw 3x8mm -- 4...
  • Page 30 Step 36 Front Center Roll Bar MV1671 MV1671 MV1671 MV1681AL Step 35 MV1671 <36-1> Step 36-1 36A - Cap Screw w/Threadlock 3x10mm -- 2 36B - Button Head Tapping Screw 3x8mm -- 2 Step 37 Roof Plate MV1675AL Step 36 37A - Button Head Tapping Screw 3x10mm -- 4...
  • Page 31 Step 38 Roll Bar Posts Step 37 MV1684AL MV1686AL MV1682AL 38A - Button Head Tapping Screw 3x8mm -- 6...
  • Page 32 Step 39 Roll Bar Mounting Step 38 Step 32 39A - Button Head Tapping Screw 3x8mm -- 6 39B - Lock Nut 3mm -- 2...
  • Page 33 Step 40 Tires and Wheels Inside Outside Instant Cement D08B04S (Not Included) Apply instant cement into the groove of the wheel. C08B02BA D08B04S Use small amount instant cement into the groove of the wheel. Make sure the tire is secure on the wheel. Step 41 Wheel Rings C08A02AL...
  • Page 34 Step 42 Wheels, Body and Wing Mounting MV120 MV120 BODY MV120 MV120 MV120 MV1201 MV375BA Step 41 Right Side Left Side Step 39 Step 41 42A - Wheel Nut 17mm -- 4...
  • Page 35 Quck Break Down Guide,Opening the Roll Cage Push back on the wing,then firmly pull the back of the roll cage up and pivot it forward. Remove the three self-tapping screws from each side of the roll cage. When you reinstall the roll cage,push the two vertical centre posts partially over the mounts, then gently flex and push the two vertical rear posts over their mounts.Next, firmly but...
  • Page 36 Quck Break Down Guide,Removing the Motor and centre Differential Assembly Unpiug the motors wires from the ESC, then unplug the two motor heat-sink fans from the Y-Harness adapter. Unplug the throttle channel lead from the receiver, then pull it out from below the motor heat-sink fans.
  • Page 37 Quck Break Down Guide,Removing the Electronic Speed Control Unplug the motor wires from the ESC, then unplug the Y-Harness from the motor heat-sink fans. Next, unplug the throttle channel lead from the receiver. Pull the ESC up and out of the chassis Remove the two screws that hold the ESC to the side frame...
  • Page 38 Quck Break Down Guide,Removing the Battery Holder Pull the battery holder up and out of the chassis. Remove the four self-tapping screws from the bottom of the chassis that hold the battery holder in place.
  • Page 39 Quck Break Down Guide,Removing the Receiver Mounting Box Remove the receiver box lid, then unplug the steering servo and throttle channel leads from the receiver. pull the receiver mounting box up and out of the chassis. Remove the two machine screws from the bottom of the chassis that hold the battery holder in place.
  • Page 40 Quck Break Down Guide,Removing the Rear Suspension Assembly Remove the machine screw and the lock nut that hold the front of the rear suspension mounting brace in place. Rear Centre Dog Bone ( MV3554) Pull the rear suspension assembly, along with the rear centre dog bone up and off the chassis.
  • Page 41 Quck Break Down Guide,Removing the Front Suspension Assembly Remove the self-tapping screw that holds front chassis brace to the front chassis cross-brace. Remove the machine screws that secure the steering tie-rods to the steering knuckles. Pull the front suspension assembly, along with the front center dog bone out and off the chassis.
  • Page 42 1/8 BL CAGE CAR REPLACEMENT PARTS LIST MV30731 BU061003 MV3071 BB081605 Ball Bearing 8x16x5mm Bushings 6x10x3mm Servo Saver Plastic Parts Servo Saver Metal Parts L=12.5mm L=48mm MV3074 MV11303 MV1301 MV1302 Servo Saver Screw Set 7x3mm Balls with Flange Steering Rod Set 4mm (Tie-Rods)
  • Page 43 XV349F1 MV3491 L=25mm XV13401 MV134 Front Turnbuckles 5mm - Upper Suspension Holder Supports Front Suspension Arms - Upper Wheel Hubs - Front MV3575 L=124mm MV3574 MV107 XV1401 Front Bumper CVD Universals CVD Universals Joint Rebuild Kit Hex Hubs 17mm XV347R1 L=36mm XV349R1 MV3492...
  • Page 44 MV138016 MV1382 L=112.5mm 34B102A01 34B120A01 L=130mm Shock Rebuild Kit Shock Spring Spacer & Bushing Set Front Shock Set w/Silver Springs Rear Shock Set w/Silver Springs MV1592 L=22.5mm MV112 MV110 L=14.2mm MV113 Ball Ends - 3.5mm for 7mm Ball Balls - Steel 6.9x4.9mm Shock Mounting Studs Balls - Steel 7x3mm V221524...
  • Page 45 XV30421AL XV30221AL MV3103 XV30762AL Servo Sarer Support Plate 3mm - Alu Main Gear Plate 3mm - Alu Radio Plate 2mm - Alu Servo Mount Set - Steering EV30413Ti EL66704 EL36741 EV0141 540/3674 2370KV Brushless ESC - 120A 2-4S/6-12C Brushless Motor Motor Pinion Gear 14T - Steel Motor Mount - Dark Titanium w/ T Type Connector...
  • Page 46 Body - Carbon/Green Body - Clear Body Clips Type "R" Body Clips Type "R" Sorry,No Drawing Available Sorry,No Drawing Available DEL200825BL XV3743 6X19mm EL00745 DEL200825GV Decal Set for BL CAGE Decal Set for GV CAGE Receiver Mounting Box Posts Cooling Fan Posts...
  • Page 47 1/8 BL CAGE CAR OPTION PARTS LIST L=48mm MV22822 MV22812 MV1624R42 SEM130 Pinion Gear - 13T Steel Titanium Turnbuckles (Tie-Rods) 4mm Ring Gear - 43T Steel Aluminiun Chassis Brace - Rear L=25mm SEM3492 SEM3491 L=36mm SE110 SE111 Silicone Shock Oil - 40Wt.
  • Page 48 34C450HA06315WH Shock Set - C Type (Hard Anodize) 34C530HA08315WH Shock Set - C Type (Hard Anodize) SEM1341BA Front Steering Hubs - Black SEM1341H Front Steering Hubs - Hard Anodize SEM1341Ti Front Steering Hubs - Dark Titanium SEM1341B XV3612 SE285 Front Steering Hubs - Blue Front Sway Bar Set 2.5mm Tool Set SEM162D5H...
  • Page 49 SEM15911 SEM1591 SEM15914L SEM15914R Foam Dust Pads Alu Ball End Left - M4x0.7mm Alu Ball End Right - M4x0.7mm Ball End Mount SEM106BA Wheel Nuts w/Nylon Lock - Black SEM106TA Wheel Nuts w/Nylon Lock - Titanium SEM106S Wheel Nuts w/Nylon Lock - Silver SEM106WA SEM106B MV107...
  • Page 50 C08A02RE C08B02GA2 Wheel Plate Red Circle Wheel Smoke Silver C08A02GR Wheel Plate Green C08A02GO Wheel Plate Gold C08B02GA C08A02BL C08A02Ti Wheel Plate Dark Titanium Circle Wheel Light Silver Wheel Plate Blue MV3693S D08B02S DO8B01S1 D08B03S Buggy Tires with Foam Rally Tyres w/Inserts Tyres - Digger with Foam Sand Tyre with Foam MV093S...
  • Page 51 XV3753GR Bi-Level Wing - Green Type "X" XV3753BA SEM1412T SEM375T Bi-Level Wing - Black Type "X" Alu Wing Mount Alu Super Wing MV3002RRE MV3002LRE Side Guard Right - Red Side Guard Left - Red MV3002RGR MV3002LGR Side Guard Right - Green Side Guard Left - Green MV3002RGO MV3002LGO...
  • Page 52 SEM1672BL SEM1673BL Roof Plate Mounts - Blue Roll Bar Connectors - Blue SEM1672RE SEM1673RE Roof Plate Mounts - Red Roll Bar Connectors - Red SEM1672GR SEM1673GR Roof Plate Mounts - Green Roll Bar Connectors - Green SEM1672GO SEM1673GO Roof Plate Mounts - Gold Roll Bar Connectors - Gold SEM1672AL SEM1673AL...
