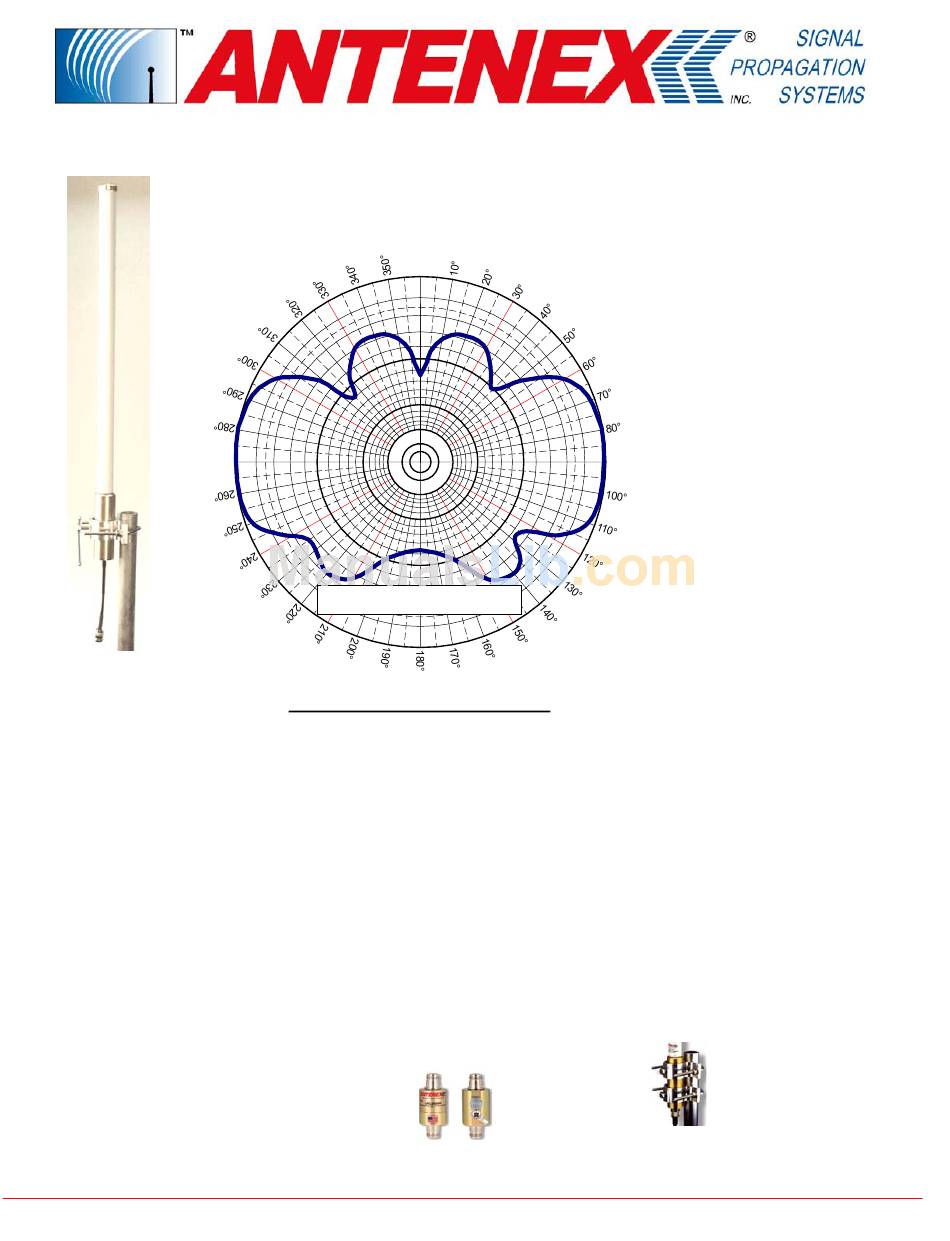

Antenex FG9023 Specification Sheet

OMNI-DIRECTIONAL ANTENNAS
270°

ELECTRICAL SPECIFICATIONS

Frequency Range:
VSWR:
Nominal Gain:
Maximum Power:
Nominal Impedance:
Polarization:
Pattern:
Half-Power Beamwidth:
(Elevation° x Azimuth°)
Coaxial Cable Length & Type:
Termination:

Lightning Protection:

2000-205 Bloomingdale Road
N:\Antenex\Engineering Dept\Web Data\Product Information by Family\Fiberglass Omnidirectional\Spec\FG9023_Spec\FG9023_Spec.doc
FG9023 (902 – 928 MHz)
0
-2
-4
-6
-8
-10
-20
-30
-40
-50
Normalized to 3dBd
Elevation Pattern (Y, Z or H-plane)
902 – 928 MHz
< 2.0:1
3dBd
100 W
50Ω
Vertical
Omni-Directional
70° x 360°
None
N-Female connector
Lightning Arrestor
LABH350NN
(Sold Separately)
•
Glendale Heights, Illinois 60139 U.S.A.
•
630-351-9007 Fax: 630-351-9009
Page 1 of 1 Confidential Information

FEATURES

● Highly Stable PC Board
Matching Section
● Superior quality design
Highest gain and best matching
efficiency in the industry.
90°
● Special UV treated radome
Resists sun damage
● N Female industry standard
connector
● 100% tested on a Network
Analyzer

MECHANICAL SPECIFICATIONS

Height:
Diameter:
Weight:
Rated Wind Velocity:
Rated Wind Velocity (with 0.5" radial ice)
Lateral Thrust @ 125mph WIND VELOCITY
Wind Resistance:

Mounting Information:

•
Web Site: Http://www.antenex.com
•
Order line: 800-323-3757
23 – 1/8"
1.310"
< 1lbs
125mph (210kph)
85mph (137kph)
57 lbs. (26kg)
0.2104 sq. ft.
FM2 Mounting Kit
(Sold separately)
