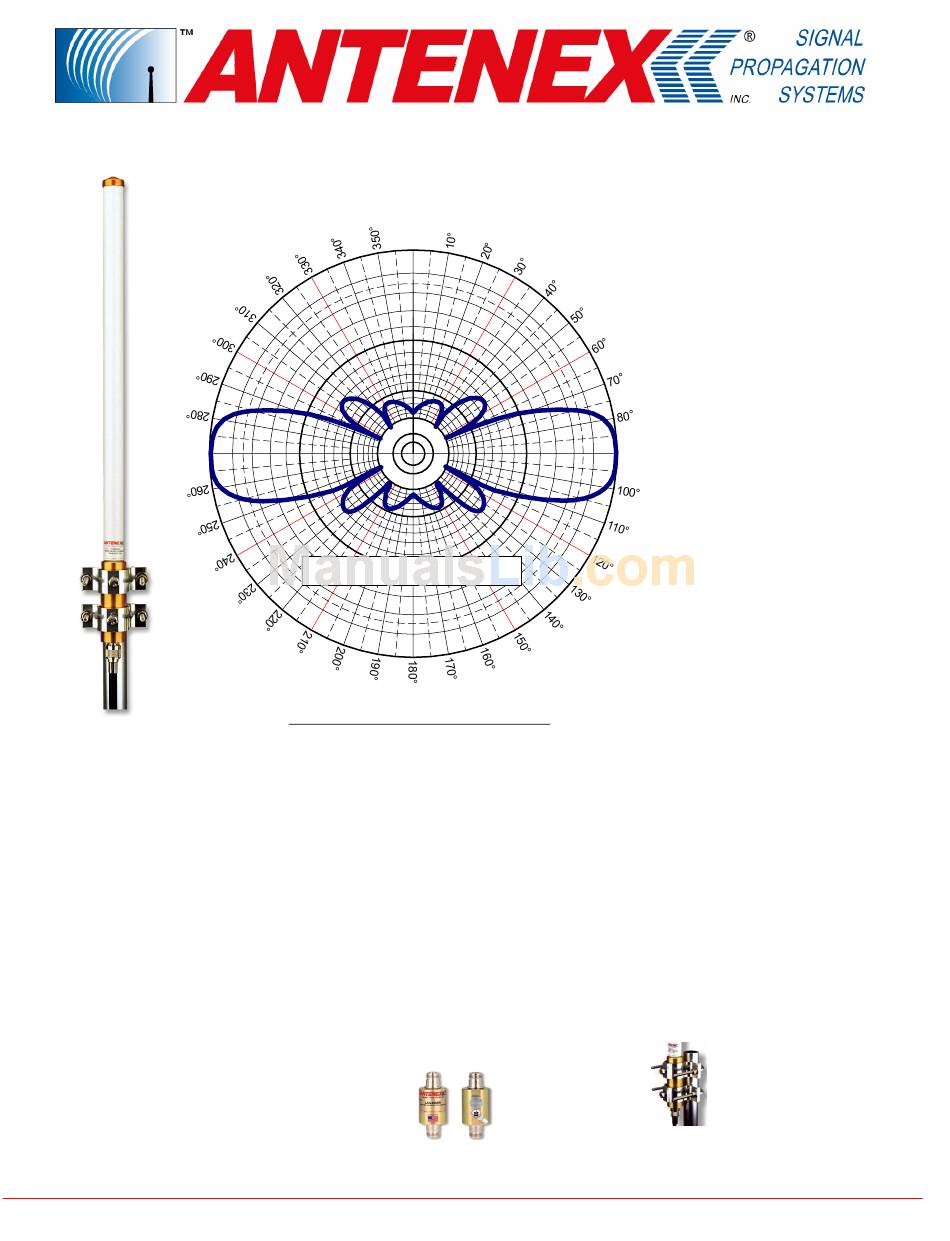

Antenex FG24008 Specification Sheet

OMNI-DIRECTIONAL ANTENNAS

270°

ELECTRICAL SPECIFICATIONS

Frequency Range:
VSWR:
Nominal Gain:
Maximum Power:
Nominal Impedance:
Polarization:
Pattern:
Half-Power Beamwidth:
(Elevation° x Azimuth°)
Coaxial Cable Length & Type:
Termination:
Lightning Protection:
2000-205 Bloomingdale Road
N:\Antenex\Engineering Dept\Web Data\Product Information by Family\Fiberglass Omnidirectional\Spec\FG24008_Spec\FG24008_Spec.doc
FG24008 (2400 – 2500 MHz)
0
-2
-4
-6
-8
-10
-20
-30
-40
-50
Normalized to 8dBi
Elevation Pattern (Y, Z or H-plane)
2400 - 2500 MHz
< 1.5:1 Max
8dBi
100 W
50Ω
Vertical
Omni-Directional
30° x 360°
None
N-Female connector
Lightning Arrestor
LABH350NN
(Sold Separately)
•
Glendale Heights, Illinois 60139 U.S.A.
630-351-9007
Page 1 of 3 Confidential Information

MECHANICAL SPECIFICATIONS

Height:
Diameter:
Weight:
Rated Wind Velocity:
Rated Wind Velocity (with 0.5" radial ice)
Lateral Thrust @ 125mph WIND VELOCITY
Wind Resistance in Sq. Feet:
Mounting Information:
•
Web Site: Http://www.antenex.com
• •
Fax: 630-351-9009 Order line: 800-323-3757

FEATURES

● Highly Stable PC Board
Matching Section
● High Performance
● Easy installation /w
optional FM2
● Special UV treated radome,
90°
resists sun damage
● N Female industry standard
connector
● 100% tested on a network
analyzer
24-1/2"
1.310"
0.5 lb
125mph (210kph)
85mph (137kph)
57 lbs. (26kg)
0.2229 Sq. Ft
FM2 Mounting Kit
(Sold separately)
