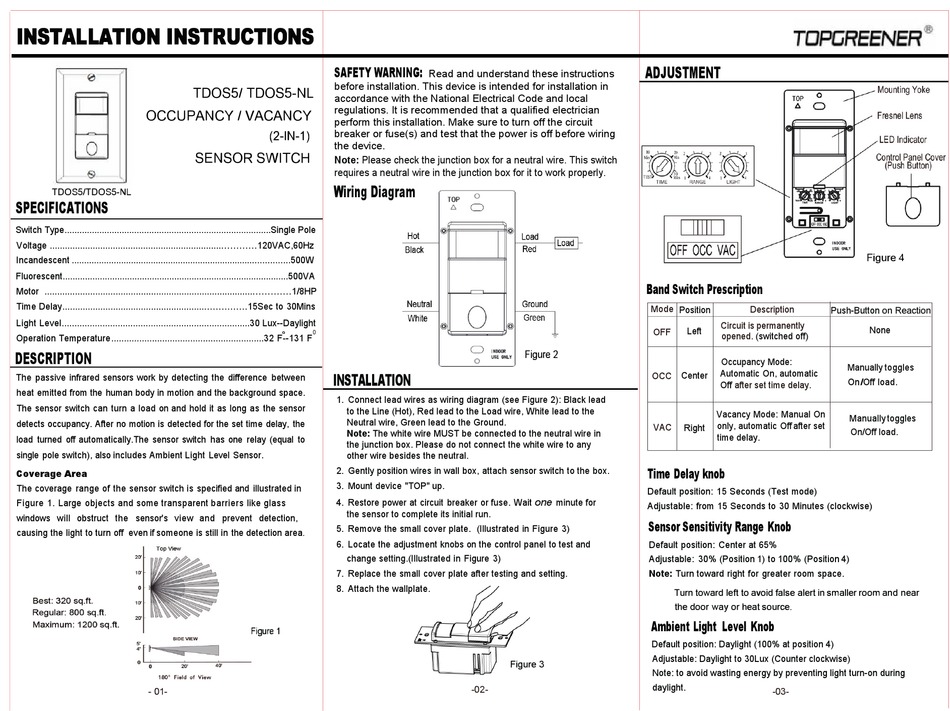

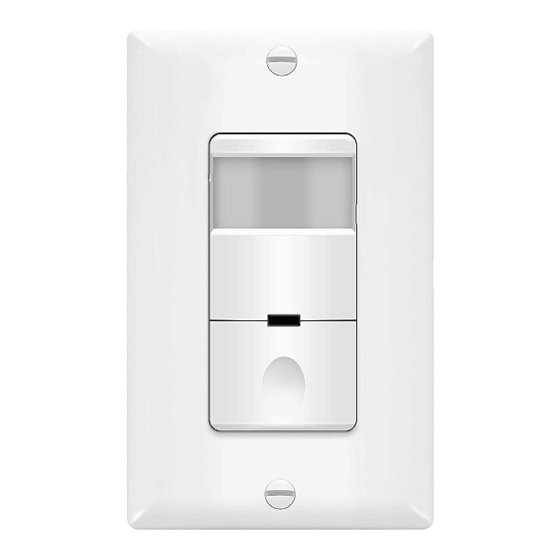

Topgreener TDOS5 Installation Instructions

INSTALLATION INSTRUCTIONS

TD0S5/ TD0S5-NL
OCCUPANCY/VACANCY
SENSOR SWITCH
TDOS5/TDOS5-NL
SPECIFICATIONS
Switch Type...................................................................................Single Pole
Voltage .............................................................................. ..120VAC,60Hz
Incandescent ........................................................................................500W
Fluorescent...........................................................................................500VA
Motor ...............................................................................................1/8HP
Time Delay .......................................................................15Sec to 30Mins
Light Level. .........................................................................30 Lux--Daylight
Operation Temperature ............................................................32 F�-131 F
DESCRIPTIONION
The passive infrared sensors work by detecting the difference between
heat emitted from the human body in motion and the background space.
The sensor switch can turn a load on and hold it as long as the sensor
detects occupancy. After no motion is detected for the set time delay, the
load turned off automatically.The sensor switch has one relay (equal to
single pole switch), also includes Ambient Light Level Sensor.
Coverage Area
The coverage range o f the sensor switch is specified and illustrated in
Figure 1. Large objects and some transparent barriers like glass
windows will obstruct the sensor's view and prevent detection,
causing the light to turn off even if someone is still in the detection area.
- 01-
SAFETY WARNING::
Read and understand these instructions
before installation. This device is intended for installation in
accordance with the National Electrical Code and local
regulations. It is recommended that a qualified electrician
perform this installation. Make sure to turn off the circuit
breaker or fuse(s) and test that the power is off before wiring
(2-IN-1)
the device.
Note: Please check the junction box for a neutral wire. This switch
requires a neutral wire in the junction box for it to work properly.
Wiring Diagram:
0
IINSTALLATIONION
1. Connect lead wires as wiring diagram (see Figure 2): Black lead
to the Line (Hot), Red lead to the Load wire, White lead to the
Neutral wire, Green lead to the Ground.
Note: The white wire MUST be connected to the neutral wire in
the junction box. Please do not connect the white wire to any
other wire besides the neutral.
2. Gently position wires in wall box, attach sensor switch to the box.
3. Mount device "TOP" up.
4. Restore power at circuit breaker or fuse. Wait
the sensor to complete its initial run.
5. Remove the small cover plate. (Illustrated in Figure 3)
6. Locate the adjustment knobs on the control panel to test and
change setting.(Illustrated in Figure 3)
7. Replace the small cover plate after testing and setting.
8. Attach the wallplate.
Figure 1
ADJUSTMENT
BBand Switch Prescription
Mode
Figure 2
OCC
Time Delay knob
Default position: 15 Seconds (Test mode)
one
minute for
Adjustable: from 15 Seconds to 30 Minutes (clockwise)
Sensor Sensitivity Range Knob
Default position: Center at 65%
Adjustable: 30% (Position 1) to 100% (Position 4)
Note: Turn toward right for greater room space.
Ambient LightLLevel Knob
Default position: Daylight (100% at position 4)
Adjustable: Daylight to 30Lux (Counter clockwise)
Figure 3
Note: to avoid wasting energy by preventing light turn-on during
daylight.
-02-
Position Description
Push-Button on Reaction
Circuit is permanently
Left
OFF
opened. ( switched off)
Occupancy Mode:
Automatic On, automatic
Center
Off after set time delay.
Vacancy Mode: Manual On
only, automatic Off after set
VAC Right
time delay.
Turn toward left to avoid false alert in smaller room and near
the door way or heat source.
-03-
Figure 4
None
Manually toggles
OnIOff load.
Manually toggles
On/Off load.
