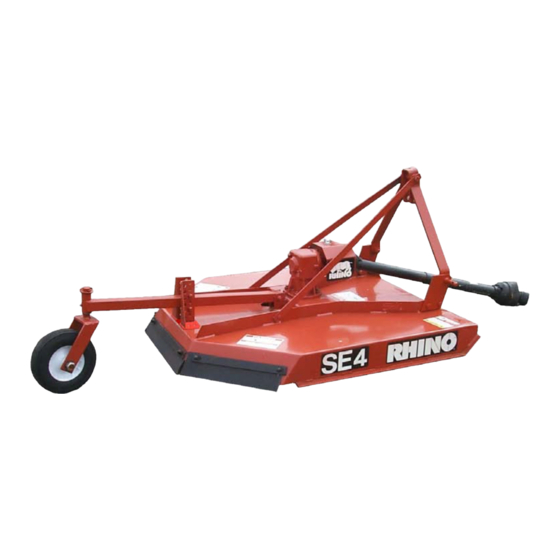

ROTARY MOWER

Part NO. 00760866C
$0.00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SE4 and is the answer not in the manual?

Questions and answers

Summary of Contents for RHINO SE4

  • Page 1: Rotary Mower

    Published 01/05 OPERATOR’S MANUAL This Operator's Manual is an integral part of the safe operation of this machine and must be maintained with the unit at all times. READ, UNDERSTAND, and FOLLOW the Safety and Operation Instructions contained in this manual before operating the equipment. C01- Cover ®...
  • Page 2 To the Owner/Operator/Dealer All implements with moving parts are potentially hazardous. There is no substitute for a cautious, safe-minded operator who recognizes the potential hazards and follows reasonable safety practices. The manufacturer has designed this implement to be used with all its safety equipment properly attached to minimize the chance of acci- dents.
  • Page 3 In order to reduce accidents and enhance the safe operation of mowers, Alamo Group Ag Division, in cooperation with other industry manufacturers has developed the AEM/FEMA Industrial and Agricul- tural Mower Safety Practices video and guide book. The video will familiarize and instruct mower-tractor operators in safe practices when using industrial and agricultural mowing equipment.
  • Page 4 Alamo Group Ag. Division is willing to provide one (1) AEM Mower Safety Practices Video Please Send Me: VHS Format – AEM/FEMA Mower Operator Safety Video DVD Format – AEM/FEMA Mower Operator Safety Video Mower Operator’s Manual AEM Mower Operator’s Safety Manual Requester Name Requester Address: City...
  • Page 5: Table Of Contents

    Table of Contents SAFETY SECTION ...1-1 General Safety Instructions and Practices ... 1-2 Operator Safety Instuctions and Practices ... 1-3 Equipment Operation Safety Instructions and Practices ... 1-5 Connecting or Disconnecting Implement Safety Instructions and Practices ... 1-11 Transporting Safety Instructions and Practices ... 1-12 Maintenance and Service Safety Instructions and Practices ...
  • Page 6 Cutting Component Inspection ...4-18 DRIVING THE TRACTOR AND IMPLEMENT ... 4-19 Starting the Tractor ...4-20 Brake and Differential Lock Setting ...4-21 Raising the Mower ...4-21 Driving the Tractor and Mower ...4-22 Crossing Ditches and Steep Inclines ...4-23 OPERATING THE TRACTOR AND IMPLEMENT ... 4-24 Foreign Debris Hazards ...4-25 Bystanders/Passersby Precautions ...4-25 Engaging the Power Take Off (PTO) ...4-26...
  • Page 7: Safety Section

    SAFETY SECTION Safety Section 1-1 © 2005 Alamo Group Inc.
  • Page 8: General Safety Instructions And Practices

    Safety Messages. Always use good common sense to avoid hazards. Si no lee ingles, pida ayuda a alguien que si lo lea para que le traduzca las medidas de seguridad. SE4 05/05 © 2005 Alamo Group Inc. SAFETY Safety is of primary importance to the manufacturer and...
  • Page 9: Operator Safety Instuctions And Practices

    The operator and all support personnel should wear hard hats, safety shoes, safety glasses, and proper hearing protection at all times for protection from injury including injury from items thrown by the equipment. SE4 05/05 © 2005 Alamo Group Inc. SAFETY “Wait a minute...Save a life!”...
  • Page 10 Never operate the Implement and Tractor in a fatigued or bored mental state which impairs proper and safe operation. (SG-32) SE4 05/05 © 2005 Alamo Group Inc. SAFETY We recommend that you...
  • Page 11: Equipment Operation Safety Instructions And Practices

    A- Frame. Lower the implement carefully to the ground. Do not put hands or feet under lifted components. (S3PT-1) SE4 05/05 © 2005 Alamo Group Inc. SAFETY (SG-33)
  • Page 12 Tractor controls from the tractor seat only. Never allow children or other persons to ride on the Tractor or Implement. Falling off can result in serious injury or death. SE4 05/05 © 2005 Alamo Group Inc. SAFETY Be careful when operating or transporting this...
  • Page 13 Operate the Tractor and/or Implement controls only while properly seated in the Tractor seat with the seat belt securely fastened around you. Inadvertent movement of the Tractor or Implement may cause serious injury or death. SE4 05/05 © 2005 Alamo Group Inc. SAFETY...
  • Page 14 Repair all damage and make certain rotor or blade carrier is balanced before resuming mowing. SE4 05/05 © 2005 Alamo Group Inc. SAFETY (SGM-2) (SGM-4) Inspect the area before mowing.
  • Page 15 Mower with the wrong size Tractor can cause Mower component damage and equipment failure resulting in possible serious injury or death. (SGM-14) SE4 05/05 © 2005 Alamo Group Inc. SAFETY Use slow mowing speeds when operating on or near steep...
  • Page 16 Tractor drawbar. The Implement could tip over and cause equipment damage and possible serious injury or death. Raise or Lower the mower wing only while seated in the Tractor operator’s seat with the seat belt securely fastened. SE4 05/05 © 2005 Alamo Group Inc. SAFETY...
  • Page 17: Connecting Or Disconnecting Implement Safety Instructions And Practices

    Tractor PTO by pushing the PTO into the Tractor and through the support bearings or downward onto the PTO shaft, breaking it off. A broken drive line can cause personal injury. (S3PT-18) SE4 05/05 © 2005 Alamo Group Inc. SAFETY (SRM-4)
  • Page 18: Transporting Safety Instructions And Practices

    Make certain that the “Slow Moving Vehicle” (SMV) sign is installed in such a way as to be clearly visible and legible. When transporting the Equipment use the Tractor flashing warning lights and follow all local traffic regulations. SE4 05/05 © 2005 Alamo Group Inc. SAFETY...
  • Page 19 Implement by at least 20%. Implement behind a truck or other type of vehicle. Never tow the Implement and another Implement connected in tandem. speeds over 20 MPH. SE4 05/05 © 2005 Alamo Group Inc. SAFETY Understand the Tractor and...
  • Page 20: Maintenance And Service Safety Instructions And Practices

    Never work under the Implement, the framework, or any lifted component unless the Implement is securely supported or blocked up to prevent sudden or inadvertent falling which could cause serious injury or even death. SE4 05/05 © 2005 Alamo Group Inc. SAFETY...
  • Page 21 ON BLADES SINCE THIS WILL LIKELY CRACK OR OTHERWISE DAMAGE THE BLADE WITH SUBSEQUENT FAILURE AND POSSIBLE SERIOUS INJURY FROM THROWN BLADES. (SGM-10) SE4 05/05 © 2005 Alamo Group Inc. SAFETY Make sure all pins have cotter pins and washers.
  • Page 22: Storage And Parking Safety Instructions And Practices

    Safety Messages and operation instruction in each of the appropriate sections of the Tractor and Equipment Manuals. Pay close attention to the Safety Signs affixed to the Tractor and Equipment. SE4 05/05 © 2005 Alamo Group Inc. SAFETY...
  • Page 23: Decal Location

    00760866C 10058000 00017000 00024100 02959924 * Furnished by Tractor Manufacturer SE4 05/05 © 2005 Alamo Group Inc. SAFETY NOTE: Rhino supplies safety decals on this product to promote safe operation. Damage to the decals may occur while in shipping, use, or reconditioning. Rhino...
  • Page 24: Decal Description

    English. P/N 00725746 PELIGRO! Spanish Translation for Driveline Safety P/N 00773723 DANGER! Multi-Hazard Decal (Refer To Front Cover) P/N 00749117 DANGER! Guard Missing Do Not Operate. P/N 00756004 SE4 05/05 © 2005 Alamo Group Inc. SAFETY Safety Section 1-18...
  • Page 25 P/N 00756494 DANGER! Keep Away Thrown Objects. P/N 00769737 DANGER! Maintain shields and deflectors in good condition. Failure to do so may lead to injury or even death. P/N 00769736 SE4 05/05 © 2005 Alamo Group Inc. SAFETY Safety Section 1-19...
  • Page 26 P/N 03200347 Operator's Manual (with repair parts) and warranty was attached to this implement during final inspection. P/N 00763977 WARNING! Avoid Bodily Injury, Use 540RPM PTO Speed Only. P/N D103 SE4 05/05 Safety Section 1-20 © 2005 Alamo Group Inc.
  • Page 27 SE4 Logo P/N 0911000010 Logo Product Name: Rhino P/N D302 Logo Product Name: Rhino P/N D303 Red Reflectors P/N 2738332 SE4 05/05 © 2005 Alamo Group Inc. SAFETY Safety Section 1-21...
  • Page 28: Federal Laws And Regulations

    Some regulations specify that no one under the age of 16 may operate power machinery. It is your responsibility to know what these regulations are in your own area or situation. (Refer to U.S. Dept. of Labor, Employment Standard Administration, Wage & Home Division, Child Labor Bulletin #102.) SE4 05/05 © 2005 Alamo Group Inc. SAFETY...
  • Page 73: Introduction Section

    INTRODUCTION SECTION Introduction Section 2-1 © 2005 Alamo Group Inc.
  • Page 74 The lowest level of Safety Message; warns of possible minor injury. Decals located on the Cutter with this Signal Word are Black and Yellow. Serious injury or possible death! Decals are Black and Orange. Imminent death/critical injury. Decals are Red and White. SE4 05/05 © 2005 Alamo Group Inc. INTRODUCTION Introduction Section 2-2...
  • Page 75 Your RHINO SE4 & 42 mower is designed for light-duty cutting such as pasture mowing, weed, and grass control. With a reasonable amount of preventive maintenance, your Mower will provide years of dependable service. For Non-Agricultural use, OSHA, ASAE, SAE, and ANSI standards require the use of Chain Guards or Solid Skirts at all times.
  • Page 76: Attention Owner/Operator

    3. Record the Blade Model and Serial Numbers on the Warranty page at the front of the Operator’s Manual. Keep this as part of the permanent maintenance file for the implement.. SE4 05/05 Introduction Section 2-4 © 2005 Alamo Group Inc.
  • Page 77: Assembly Section

    ASSEMBLY SECTION Assembly Section 3-1 © 2005 Alamo Group Inc.
  • Page 78: Dealer Setup Instructions

    Figure 2. Attach slip clutch driveline to input shaft on gearbox with Grade 8 Bolt Figure 3. Refer to proper Torque Chart in Maintenance Section of this manual.. SE4 05/05 © 2005 Alamo Group Inc. ASSEMBLY...
  • Page 79: A-Frame Installation (Figure Asmp-R-0017)

    Position tailwheel beam weldment between tailwheel adjusting brackets on mainshield weldment and secure with two 1/2" x 3" bolts (8) and locknut (9). Tighten all bolts to the proper torque. SE4 05/05 © 2005 Alamo Group Inc. ASSEMBLY Assembly Section 3-3...
  • Page 80: Hydraulic Relief Assembly (P/N 3570) Figure 6

    (2). For additional safety in transport, raise mower as high as possible without having driveline hit decks and shorten check chains all possible to prevent inadvertent falling in transport. SE4 05/05 Assembly Section 3-4 © 2005 Alamo Group Inc.
  • Page 81: Operation Section

    OPERATION SECTION Operation Section 4-1 © 2005 Alamo Group Inc.
  • Page 82: Operation Instructions

    Pictures contained in this section are intended to be used as a visual aid to assist in explaining the operation of a rotary mower and are not of a SE4 cutter. Some pictures may show shields removed for purposes of clarity.
  • Page 83: Standard Equipment And Specifications

    Mower with the wrong size Tractor can cause Mower component damage and equipment failure resulting in possible serious injury or death. (SGM-14) SE4 05/05 © 2005 Alamo Group Inc. OPERATION 15 HP 1”...
  • Page 84: Operator Requirements

    Serious injury or death to the operator or others could result if the operator is under the influence of drugs or alcohol. (SG-27) SE4 05/05 © 2005 Alamo Group Inc. OPERATION Operation Section 4-4...
  • Page 85: Tractor Requirements

    Maintain all manufacturer equipped safety shields and guards. Always replace shields and guards that were removed for access to connect, service, or repair the tractor or mower. Never operate the tractor PTO with the PTO master shield missing or in the raised position. OPS-U- 0004 SE4 05/05 © 2005 Alamo Group Inc. OPERATION...
  • Page 86: Tractor Horsepower

    2.4 3-Point Hitch The tractor 3-point hitch must be rated to lift at least 435 lbs. The SE4 mower is designed to be mounted on a tractor with a CAT I 3-point hitch. tractor operator’s manual for the category of the tractor being used.
  • Page 87: Power Take Off (Pto)

    OPS-U- 0007 Do not mount the Tractor while the tractor is moving. Mount the Tractor only when the Tractor and all moving parts are completely stopped. SE4 05/05 © 2005 Alamo Group Inc. OPERATION Consult an authorized dealer for assistance if the...
  • Page 88: Boarding The Tractor

    Never dismount a Tractor that is moving or while the engine is running. Operate the Tractor controls from the tractor seat only. SE4 05/05 © 2005 Alamo Group Inc. OPERATION...
  • Page 89: Starting The Tractor

    Use extreme caution when connecting the mower to the tractor. The mower should be securely resting at ground level or setting on blocks. Keep hands and feet from under the mower deck and clear of pinch points between the tractor hitch arms and mower pins. OPS-R-0001 SE4 05/05 © 2005 Alamo Group Inc. OPERATION...
  • Page 90: Setting The Mower

    Blades contacting the ground may cause objects to be thrown out from under the mower deck. Always avoid operating the mower at a height which causes the blades to contact the ground. OPS-U- 0010 SE4 05/05 © 2005 Alamo Group Inc. OPERATION...
  • Page 91: Setting Mower Height

    3-Point lift maintaining a set height or when a constant pre-adjusted cut height is required. See Check Chains in the Assembly Section for this accessory. SE4 05/05 © 2005 Alamo Group Inc. OPERATION Operation Section 4-11 (SG-14)
  • Page 92: Setting Deck Pitch

    Tractor PTO shaft. A driveline not attached correctly to the Tractor PTO shaft could come loose and result in personal injury and damage to the Implement. SE4 05/05 © 2005 Alamo Group Inc. OPERATION...
  • Page 93: Driveline Length Check

    If the distance between the mark and the end of the outer shield tube becomes less than 2” at any point, the driveline must be shortened. OPS-R-0004_A SE4 05/05 © 2005 Alamo Group Inc. OPERATION Operation Section 4-13...
  • Page 94: Pre-Operation Inspection And Service

    Always disconnect the main PTO Driveline from the Tractor before performing service on the Implement. Never work on the Implement with the tractor PTO driveline connected and running. Rotating Parts, Blades or Drivelines could turn without warning and cause immediate entanglement, injury or death. SE4 05/05 © 2005 Alamo Group Inc. OPERATION (S3PT-11)
  • Page 95: Tractor Pre-Operation Inspection/Service

    • Fuel condition and level • Sufficient lubrication at all lube points • Air filter condition OPS-U-0030 SE4 05/05 © 2005 Alamo Group Inc. OPERATION Make sure all pins have cotter pins and washers. The following Operation Section 4-15 (SG-14)
  • Page 96: Mower Pre-Operation Inspection/Service

    PTO shaft. OPS-R-0008_C • Ensure deflectors and/or chainguards are in position and not damaged. Replace worn, broken, and missing pieces. OPS-R-0038 SE4 05/05 © 2005 Alamo Group Inc. OPERATION Maintain these Operation Section 4-16...
  • Page 97 • Ensure the gearbox vent is in place and free from clogs. OPS-R-0040 SE4 05/05 © 2005 Alamo Group Inc. OPERATION All safety devices should be Operation Section 4-17...
  • Page 98: Cutting Component Inspection

    • Ensure carrier hub nut is tightened with the cotter pin inserted and spread. OPS-R-0041 8.3 Cutting Component Inspection Inspect blade pan and blade assembly for the following: OPS-U-0031 SE4 05/05 © 2005 Alamo Group Inc. OPERATION Operation Section 4-18...
  • Page 99: Driving The Tractor And Implement

    OPS-U- 0012 Never run the Tractor engine in a closed building or without adequate ventilation. The exhaust fumes can be hazardous to your health. SE4 05/05 © 2005 Alamo Group Inc. OPERATION...
  • Page 100: Starting The Tractor

    Ensure the 3-point control lever is in the lowered position and the PTO is disengaged before starting the tractor. OPS-U-0033 SE4 05/05 © 2005 Alamo Group Inc. OPERATION Understand the Tractor and...
  • Page 101: Brake And Differential Lock Setting

    If necessary, place an upper lift stop on the 3-point hitch control lever to limit the height the mower can be raised to avoid driveline damage SE4 05/05 © 2005 Alamo Group Inc. OPERATION When...
  • Page 102: Driving The Tractor And Mower

    3-Point lift lever is fully raised and in the latched transport position. Dropping implement in transport can cause serious damage to the tractor and/or Implement and possibly cause the operator or others to be injured or killed. SE4 05/05 © 2005 Alamo Group Inc. OPERATION...
  • Page 103: Crossing Ditches And Steep Inclines

    When crossing such terrain, the wings should be fully lowered for a lower center of gravity and added stability. OPS-R-0021 SE4 05/05 © 2005 Alamo Group Inc. OPERATION Operation Section 4-23...
  • Page 104: Operating The Tractor And Implement

    Repair all damage and make certain rotor or blade carrier is balanced before resuming mowing. SE4 05/05 © 2005 Alamo Group Inc. OPERATION Inspect the area before mowing.
  • Page 105: Foreign Debris Hazards

    If a bystander comes within 100 yards of the tractor while the mower is being operated, stop the tractor at once, idle the engine and disengage the PTO. Do not engage the PTO again until all bystanders are well past the 100 yard distance. OPS-R-0024 SE4 05/05 © 2005 Alamo Group Inc. OPERATION...
  • Page 106: Engaging The Power Take Off (Pto)

    Do not put hands or feet under mower decks. Blade Contact can result serious injury or even death. Stay away until all motion has stopped and the decks are securely blocked up. SE4 05/05 © 2005 Alamo Group Inc. OPERATION...
  • Page 107: Pto Rpm And Ground Speed

    When mowing in reverse, operate the tractor and mower at a reduced ground speed to ensure tractor and mower control is maintained. OPS-R-0026 SE4 05/05 © 2005 Alamo Group Inc. OPERATION...
  • Page 108 PTO shaft and could cause extensive mechanical damage to the mower and tractor. OPS-R-0027_A SE4 05/05 © 2005 Alamo Group Inc. OPERATION Check to make sure there are no persons...
  • Page 109 Stay alert and watch for trees, low hanging limbs, power lines, and other overhead obstacles and solid ground objects while you are operating. to avoid hitting these items OPS-R-0028_A SE4 05/05 © 2005 Alamo Group Inc. OPERATION (SRM-7) If possible,...
  • Page 110: Shutting Down The Implement

    Use extreme care to keep feet and hands from under the mower and clear of any pinch points caused by the tractor hitch arms and mower pins. OPS-R-0030_A SE4 05/05 Operation Section 4-30 © 2005 Alamo Group Inc.
  • Page 111 Use the Tongue Jack for lifting the Implement only. Overloading the Tongue Jack can cause failure with possible serious bodily injury or even death. SE4 05/05 © 2005 Alamo Group Inc. OPERATION...
  • Page 112: Mower Storage

    By using good judgement and following safe transport procedures, the possibility of accidents while moving between locations can be substantially minimized. OPS-U- 0017 SE4 05/05 © 2005 Alamo Group Inc. OPERATION...
  • Page 113: Tire And Wheels

    Make sure that a proper size safety tow chain is secured between the tractor and implement before entering a public road. OPS-U- 0019 SE4 05/05 © 2005 Alamo Group Inc. OPERATION...
  • Page 114 Always stay alert when transporting the tractor and implement on public roads. Use caution and reduce speed if other vehicles or pedestrians are in the area. OPS-U- 0022 SE4 05/05 © 2005 Alamo Group Inc. OPERATION roads, have...
  • Page 115: Hauling The Tractor And Implement

    OPS-U- 0025 SE4 05/05 © 2005 Alamo Group Inc. OPERATION public roads. manufacturer.
  • Page 116 If during transport a hard braking, sharp turning, or swerving action was performed, stop at the next safe location to inspect the security of the load. OPS-U- 0026 SE4 05/05 Operation Section 4-36 © 2005 Alamo Group Inc.
  • Page 117: Troubleshooting Guide

    Blade Bolts Bolts not tightened. Bolt hole elongated or oversized. Locknut worn out. Gearbox Noisy Rough gears. SE4 05/05 © 2005 Alamo Group Inc. OPERATION Remedy Sharpen or replace Blades. Use correct PTO speed and check for correct gearbox ratio. See specifica- tions.
  • Page 118 Bolts loose. Shear Pin Shears Tractor PTO not being run at Excessively 540 RPM Heavy Material. Not using proper pin. SE4 05/05 © 2005 Alamo Group Inc. OPERATION Fill to level plug Replace with proper lubricant. Remove trash. Consult your dealer.
  • Page 119: Maintenance Section

    MAINTENANCE SECTION Maintenance Section 5-1 © 2005 Alamo Group Inc.
  • Page 120: Lubrication

    Lubrication Fitting Location ITEM DESCRIPTION FREQUENCY Driveline U-Joints 8 hours Driveline Telescoping8 hours Gearbox Check Daily Wheel Hubs Weekly Shield Bearings 16 hours Tailwheel Beam 8 hours SE4 05/05 © 2005 Alamo Group Inc. MAINTENANCE The chart Maintenance Section 5-2...
  • Page 121: Gearbox Lubrication

    NOTE: Overfilling of Gearbox will cause pressure to build up and cause Grease Seals to leak.ATTENTION: If the Gearbox suddenly starts making an unusual noise, stop at once, check for leaks, and refill Gearbox as required. SE4 05/05 Maintenance Section 5-3 © 2005 Alamo Group Inc.
  • Page 122: Driveline Lubrication

    Wheel Bearings are packed at the factory with heavy-duty bearing grease. Grease Fittings are provided in the Wheel Hub and Tail Wheel Beam. Grease after 8 hours of use. SE4 05/05 © 2005 Alamo Group Inc. MAINTENANCE...
  • Page 123: Shear Pin Yoke Lubrication

    1/16" blunt edge. Do not sharpen back side of blade. Avoid personal injury. Always block the cutter up to prevent if from falling when the blades and/ or carrier are being serviced. SE4 05/05 © 2005 Alamo Group Inc. MAINTENANCE...
  • Page 124: Blade Removal

    IMPORTANT: Always recheck gearbox output shaft slotted blade carrier retaining nut torque after a few hours operation. Avoid personal injury. Do not work under cutter without support blocks to keep frame from falling. SE4 05/05 © 2005 Alamo Group Inc. MAINTENANCE...
  • Page 125: Storage

    NOTE: These values apply to fasteners as received from supplier, dry or when lubricated with normal engine oil. They do not apply if special graphited or molydisulphide greases or other extreme pressure lubricants are used. This applies to both UNF fine and UNC coarse threads. SE4 05/05 © 2005 Alamo Group Inc. MAINTENANCE...
  • Page 126: Gearbox Service Instructions

    The gearbox is now disassembled into four (4) sub-assemblies: 1.Input Shaft 2.Output shaft assembly 3.Lower bearing retainer assembly 4.Main housing assembly SE4 05/05 © 2005 Alamo Group Inc. MAINTENANCE 1.Seal Output Shaft 2.Cap, Bearing Retainer, (Output) 3.Gasket, Output, Cap 4.Bearing, Ball...
  • Page 127: Input Shaft

    4.Use Correct Installation Tool - Always use pipe or tube with approximate same OD as seal and press seal by striking tube. NEVER HAMMER DIRECTLY ON THE SURFACE OF THE SEAL. SE4 05/05 © 2005 Alamo Group Inc. MAINTENANCE Maintenance Section 5-9...
  • Page 128 LOWER BEARING RETAINER CAP (Figure Mnt-R-0043) 1.Remove old seal from cap and press in new seal. (See SEAL INSTALLATION RECOMMENDATIONS). Note difference between bearing caps shown to make sure proper part is being used.\ SE4 05/05 © 2005 Alamo Group Inc. MAINTENANCE Maintenance Section 5-10...
  • Page 129: Main Gearbox

    If total indicator deflection reading does not fall between .006 to .018, then shims (Ref. #12 Figure Mnt-R-0040) will have to be added to increase backlash or deleted to decrease backlash. SE4 05/05 © 2005 Alamo Group Inc. MAINTENANCE...
  • Page 130: Limited Warranty

    LIMITED WARRANTIES 1.01. Servis-Rhino warrants for one year from the purchase date to the original non-commercial, governmental, or municipal purchaser (“Purchaser”) and warrants for six months to the original commercial or industrial purchaser (“Purchaser”) that the goods purchased are free from defects in material or workmanship. 1.02.
  • Page 131 TO THE OWNER/OPERATOR/DEALER In addition to the standard Limited Warranty shown on the facing page, Servis-Rhino also provides: 1.) ONE-YEAR (12 months) {or 6 month for Commercial/Industrial Users} LIMITED WARRANTY on the DRIVELINE components provided they have been properly maintained† and have not been subjected to abuse or mis-use.
  • Page 132 ROTARY MOWER 00760866C SE4-OSM-05/05 Printed U.S.A...
  • Page 133 00763505 FILE. SIGNED COMPLETED, SERVIS-RHINO ® SIGN. MUST MACHINE. THIS WITHIN MAILED MUST REGISTRATION EFFECT, MAILBOX. INFORMATION REGISTRATION mailbox. CARD REGISTRATION UNTIL REFUSED SUBMITTED CLAIM PURCHASER DATE DELIVERY SIGNED, WARRANTY WARRANTY THIS IMPORTANT! COPY LAST DROP WARRANTY drop tape, tear), 60936-9907 City, Gibson...
  • Page 134 BEFORE MAILING WARRANTY CARD, MAKE SURE ALL INFORMATION IS LEGIBLE SERVIS-RHINO Servis-Rhino Model Purchaser Last Name Street & No., RFD, Box, &/or Apt. No. City Dealer City • I have informed the Purchaser of this product of Warranty terms, provisions, and procedures that are applicable, reviewed the contents of the Operator’s Manual including safety equipment, safe operation, and maintenance, reviewed the Safety Signs on implement (and tractor if possible), shown the AEM Mower Safety Practices Video, and reviewed Purchaser’s responsibility to train his operators in safe operation.
  • Page 136 1. PRINT FIRMLY. 2. REMOVE WHITE COPY FOR CUSTOMER RECORDS. SERVIS-RHINO Servis-Rhino Model Purchaser Last Name Street & No., RFD, Box, &/or Apt. No. City Dealer City • I have informed the Purchaser of this product of Warranty terms, provisions, and procedures that are applicable, reviewed the contents of the Operator’s Manual including safety equipment, safe operation, and maintenance, reviewed the Safety Signs on implement (and tractor if possible), shown the AEM Mower Safety Practices Video, and reviewed Purchaser’s responsibility to train his operators in safe operation.
  • Page 138 1. PRINT FIRMLY. 2. REMOVE WHITE COPY FOR CUSTOMER RECORDS. SERVIS-RHINO Servis-Rhino Model Purchaser Last Name Street & No., RFD, Box, &/or Apt. No. City Dealer City • I have informed the Purchaser of this product of Warranty terms, provisions, and procedures that are applicable, reviewed the contents of the Operator’s Manual including safety equipment, safe operation, and maintenance, reviewed the Safety Signs on implement (and tractor if possible), shown the AEM Mower Safety Practices Video, and reviewed Purchaser’s responsibility to train his operators in safe operation.
