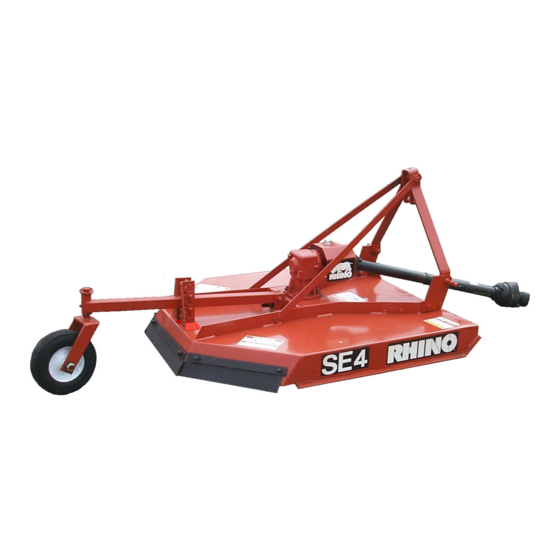

RHINO ROTARY MOWER SE4 Parts Manual

Rotary mower
Hide thumbs Also See for ROTARY MOWER SE4:

Advertisement

Table of Contents

See also: Operator's Manual
Rev 09-05
An Operator's Manual was shipped with the equipment in the
Manual Canister. This Operator's Manual is an integral part of
the safe operation of this machine and must be maintained
with the unit at all times. READ, UNDERSTAND, and FOLLOW
the Safety and Operation Instructions contained in this manual
before operating the equipment. If the Operator's Manual is
not with the equipment, contact your dealer or Servis-Rhino
(800-446-5158) to obtain a Free copy before operating the
equipment.
®
1020 S. Sangamon Ave.
Gibson City, IL 60936
800-446-5158
Email: parts@servis-rhino.com
S/N 16874 -Current
PART'S MANUAL
© 2005 Alamo Group Inc.
SE4

ROTARY MOWER

Part No.00760866P

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ROTARY MOWER SE4 and is the answer not in the manual?

Questions and answers

Related Manuals for RHINO ROTARY MOWER SE4

Summary of Contents for RHINO ROTARY MOWER SE4

  • Page 1: Rotary Mower

    READ, UNDERSTAND, and FOLLOW the Safety and Operation Instructions contained in this manual before operating the equipment. If the Operator's Manual is not with the equipment, contact your dealer or Servis-Rhino (800-446-5158) to obtain a Free copy before operating the equipment.
  • Page 2 TO THE OWNER/OPERATOR/DEALER All implements with moving parts are potentially hazardous. There is no substitute for a cautious, safe-minded operator who recognizes the potential hazards and follows reasonable safety practices. The manufacturer has designed this implement to be used with all its safety equipment properly attached to minimize the chance of accidents. BEFORE YOU START!! Read the safety messages on the implement and shown in your manual.
  • Page 3 PARTS SECTION Parts Section – 1...

  • Page 4: Parts Ordering Guide

    Part Number when ordering Replacement Safety Decals. For maximum safety and to guarantee optimum product reliability, always use genuine Servis-Rhino Parts. The use of inferior replacement parts may cause premature or catastrophic failure which could result in serious injury or death.

  • Page 5: Table Of Contents

    PART NAME INDEX DRIVELINE ASSEMBLY S/N 16873 -BELOW Rev 10-04 ... 8 DRIVELINE ASSEMBLY S/N 16874 -CURRENT Rev 09-05 ... 10 FRONT DEFLECTORS ASSEMBLY... 11 GEARBOX ASSEMBLY... 6 HYDRAULIC RELIEF ASSEMBLY (OPTION)... 13 MAIN ASSEMBLY... 4 OFFSET ADAPTER (OPTION) ... 14 REAR DEFLECTORS ASSEMBLY ...

  • Page 6: Main Assembly

    MAIN ASSEMBLY SE4 (Oct-04) S/N 16874 -Current Rev 09-05 ©2007 Alamo Group Inc. Parts Section – 4...
  • Page 7 ITEM PART NO. QTY. DESCRIPTION 00773753 MAIN ASSEMBLY 00770773 LOCKNUT 00770772 BOLT 00757949R BAR TOP LINK 00770781 BOLT 00766542 BUSHING 00603500 HITCH PIN (CAT 1) 00770777 LOCKNUT 00766505 A-FRAME BAR 00773564 REAR BRACE 00755881 LOCKNUT 00766610 MOUNTING FLAT 00761655P GEARBOX 00762365 BOLT 02957510...

  • Page 8: Gearbox Assembly

    GEARBOX ASSEMBLY SE4 (Oct-04) S/N 16874 -Current Rev 09-05 ©2007 Alamo Group Inc. Parts Section – 6...
  • Page 9 ITEM PART NO. QTY. DESCRIPTION 00761655 GEARBOX ASSY 00564700 INPUT SHAFT 00564200 SEAL 00563700 BALL BEARING 00564300 INPUT CAP 00564400 GASKET 00752481 INPUT GEAR 00564100 RETAINING RING 00563900 HOUSING 00564800 BEARING 00752480 OUTPUT PINION & SHAFT 00757682 BEARING SPACER 00760928 GASKET .25 00760929 GASKET .10...

  • Page 10: Driveline Assembly S/N 16873 -Below Rev 10-04

    DRIVELINE ASSEMBLY S/N 16873 -BELOW Rev 10-04 SE4 (Oct-04) S/N 16874 -Current Rev 09-05 ©2007 Alamo Group Inc. Parts Section – 8...
  • Page 11 DRIVELINE ASSEMBLY S/N 16873 -BELOW Rev 10-04 ITEM PART NO. QTY. DESCRIPTION 00759161B DRIVELINE ASSEMBLY 00768296 INNER SHAFT & SHIELD ASSY 001465 GREASE FITTING 00768257 SHEAR BOTL YOKE 00756231 CROSS & BEARING KIT 00768295 INNER TUBE ASSEMBLY 00768294 OUTER SHAFT & SHIELD ASSY 00768293 OUTER TUBE ASSEMBLY 00770391...

  • Page 12: Driveline Assembly S/N 16874 -Current Rev 09-05

    DRIVELINE ASSEMBLY S/N 16874 -CURRENT Rev 09-05 ITEM PART NO. QTY. DESCRIPTION 00759161C DRIVELINE 00764500A ASY,YOKE COLLAR - COMPLETE 00756231 CROSS & BEARING KIT SERIES 40 ---------------- OUTER YOKE 00759169 PIN ROLL 8mm X 60mm ---------------- OUTER TUBE WITH LABEL ---------------- INNER TUBE 00759165...

  • Page 13: Front Deflectors Assembly

    FRONT DEFLECTORS ASSEMBLY ITEM PART NO. QTY. DESCRIPTION 00773940 FRONT DEFLECTOR ASSY 00001800 LOCKNUT 00748823 BOLT 00773944 DEFLECTOR STRAP 00773943 DEFLECTOR SE4 (Oct-04) S/N 16874 -Current Rev 09-05 ©2007 Alamo Group Inc. Parts Section – 11...

  • Page 14: Rear Deflectors Assembly

    REAR DEFLECTORS ASSEMBLY ITEM PART NO. QTY. DESCRIPTION 00761603 REAR DEFLECTOR ASSY 00761597 SIDE STRAP 00761596 SIDE DEFLECTOR 00761598 CENTER DEFLECTOR 00761599 CENTER STRAP 7A181310 BOLT 00001800 LOCKNUT SE4 (Oct-04) S/N 16874 -Current Rev 09-05 ©2007 Alamo Group Inc. Parts Section – 12...

  • Page 15: Hydraulic Relief Assembly (Option)

    HYDRAULIC RELIEF ASSEMBLY (OPTION) ITEM PART NO. QTY. DESCRIPTION 8709 CHAIN ASSEMBLY 8708 BRACKET 02845500 BOLT 00695100 SE4 (Oct-04) S/N 16874 -Current Rev 09-05 ©2007 Alamo Group Inc. Parts Section – 13...

  • Page 16: Offset Adapter (Option)

    OFFSET ADAPTER (OPTION) ITEM PART NO. QTY. DESCRIPTION 0702310000 OFFSET ADAPTER 0702310100 ADAPTER MAINFRAME 0702310001 BRACE BAR 0702310300 BRACE LUG AND CHAIN 0702310200 ADJUSTABLE LIFT LUG 511027 WRIST PIN 7A14924 BOLT 15B1400 WASHER 423013 BUSHING 5JRC1490 LOCKNUT RETAING PIN 02030400 BOLT 00001300 LOCKWASHER...

  • Page 17: Safety Decal Sheets

    SAFETY DECAL SHEETS ITEM PART NO. QTY. DESCRIPTION 00776481 SHEET,MANUALCANISTER DECAL 00773310 KIT, DECAL SHEET SE-4 2738332 DECAL, RED OBLONG REFLECTOR (NOT SHOWN) SE4 (Oct-04) S/N 16874 -Current Rev 09-05 ©2007 Alamo Group Inc. Parts Section – 15...
  • Page 19 1. LIMITED WARRANTIES 1.01.Servis-Rhino warrants for one year from the purchase date to the original non-commercial, governmental, or municipal purchaser (“Purchaser”) and warrants for six months to the original commercial or industrial purchaser (“Purchaser”) that the goods purchased are free from defects in material or workmanship.
  • Page 20 TO THE OWNER/OPERATOR/DEALER To keep your implement running efficiently and safely, read your manual thoroughly and follow these directions and the Safety Messages in this Manual. The Table of Contents clearly identifies each section where you can easily find the information you need. The OCCUPATIONAL SAFETY AND HEALTH ACT (1928.51 Subpart C) makes these minimum safety requirements of tractor operators: REQUIRED OF THE OWNER:...
  • Page 21 SE4 PL 10/04 P/N 00760866P Printed U.S.A.
