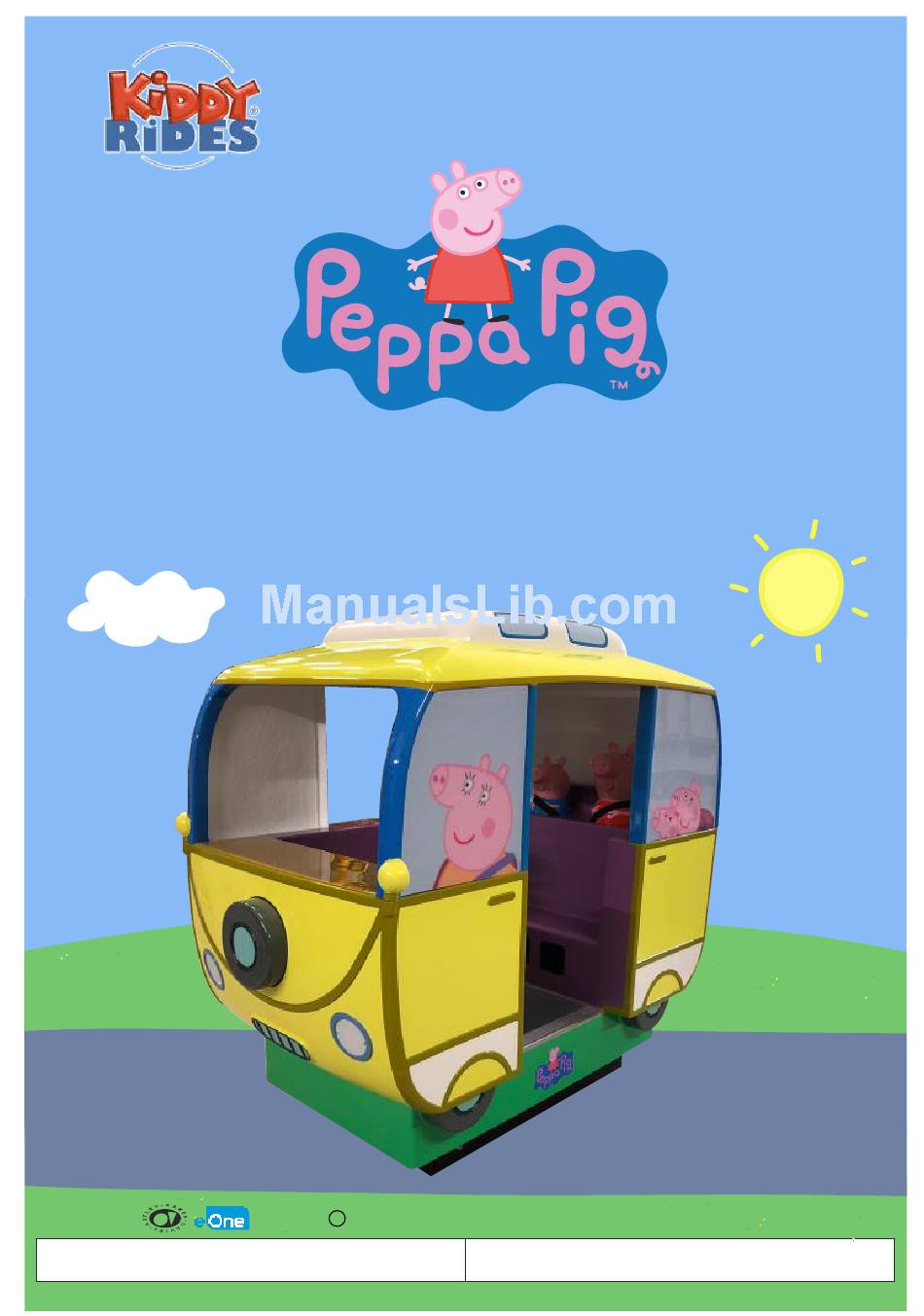

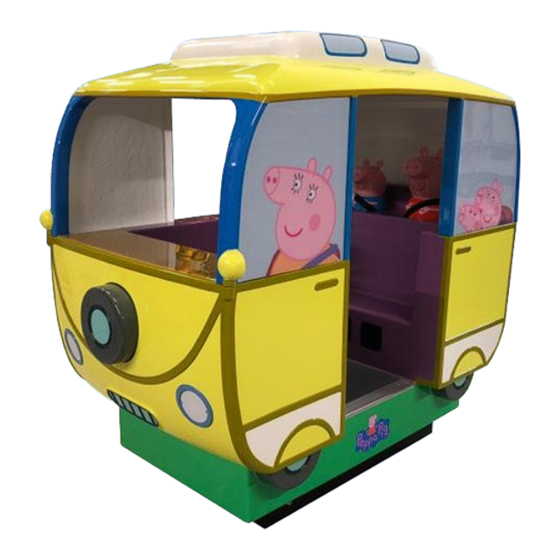

- Page 1 Camper Van Operators Handbook Peppa Pig Astley Baker Davies Ltd/Entertainment One UK Ltd 2003 Serial No. Born On: Manufactured in the U.K. by Northern Leisure Group Ltd. T/A Kiddy Rides. 4 Kingsmark Court, Intercity Way, Leeds LS13 4PN, United Kingdom...
-
Page 2: Table Of Contents
CONTENTS Introduction Fault Finding Contact Procedures Safety Matters Orders Spares Initial Inspection Repairs Hours of Business Initial Operation Ride History / Log 23,24 Siting Your Ride Your Notes 25,26 Daily Checks 27,28 Declaration Of Conformity Taking Care Of Your Ride 29,30 Composite Data Sheet Standard Operation &... -
Page 3: Introduction
Kiddy Rides supplies a wide range of children’s rides for sale, income share, or on a fixed rental basis. As well as supplying the rides, it is responsible for unbeatable after-sales support and service for all Kiddy Rides customers as well as other operators. -
Page 4: Safety Matters
Safety Matters Northern Leisure/Kiddy Rides is a registered Inspection Body of ADIPS (the Amusement Device Inspection Procedure Scheme), conducting independent examinations and certification of children’s coin operated rides in accordance with guidance published by the Health and Safety Executive (HSE). By independent, we mean we are not linked to any particular manufacturer and will apply the guidance with equal diligence, regardless of the type of ride, or it’s manufacturer. -
Page 5: Initial Inspection
INITIAL INSPECTION Upon arrival of the machine, it is important to check the following items: a. Damage to external pack ing. b. Physical damage to the ride. c. Correct documentation is present. d. Ride Serial Number. e. Correct main’s voltage rating Coin mechanism currency and credits Any damage or dis crepancies should be reported to your supplier immediately. -
Page 6: Siting Your Ride
SITING THE RIDE The following conditions must be observed when siting the machine: a. The machine must be placed on level ground which is firm and free from any holes etc. Where possible, a non-slip surface would be recommended. b. The ride is designed for protected locations. The ride should not be sited in any area where it would be subjected to water splash. -
Page 7: Daily Checks
DAILY CHECKS A check of each coin-operated Kiddy Ride should, whenever reasonably practical, be carried out each day before it is made available for public use. The following checks are recommended: a. Check that the mains plug is undamaged and securely attached to the mains cable, with no visible wires. -
Page 8: Taking Care Of Your Ride
Alternatively, a household furniture polish can also be used, or in cases of an extremely dirty ride, Kiddy Rides recommend using a good automotive cleaning compound. This material is available through Northern Leisure / Kiddy Rides. Do not use any solvent based materials when cleaning your ride. -
Page 9: Standard Operation & Adjustments
Standard Operation And Adjustments Control Box / Timer - The control system in this ride is a ‘Kermit Navigator’ box. This is located behind the rear door on the ride, in this case the door is themed as the Campers Boot/Trunk. -
Page 10: Switch Settings
Standard Operation And Adjustments PRICE OF PLAY - The price of play is the cost of each turn on the ride, e.g. 1 ride for 50p. The cost per ride and currency is set at manufacture, and the operator’s preference must be stated at the time of purchase. -
Page 11: Inspection Hatches
Inspection of Features & Components Rear Hatch - Remove to gain access. Front Headlamps - Rear Lamps - Continuously flash when Continuously lash when power is on. Remove 2 power is on. screws (+) to change LED bulbs. FRONT WINDSCREEN E N T Video Screen Pushbuttons... - Page 12 THE COIN MECH In order to ensure maximum efficiency from your coin mech it is essential to pay regular attention to the cleaning of the coin pathway. Before attempting to clean or remove the mech, the machine should be switched off. Any cleaning should be carried out by using a soft damp cloth. The surface should always be left clean and dry after such cleaning.
-
Page 13: Video Feature
VIDEO FEATURE The dashboard features an incorporated 3.5 inch TFT-LED video display. The screen displays a clip of the ‘Camper Van’ episode from the Peppa Pig TV show throughout the duration of the ride cycle. When the ride is not in motion, the screen plays footage themed around the Camper Van and its Sat-Nav system as also featured in the show. -
Page 14: Wiring Schematics
WIRING SCHEMATICS Filter Mains Supply 240VAC Motor IEC CE22 Mains Inlet Lamps/Flasher (All buttons, headlamps & tail lights) Kermit Navigator With Video Speaker 1 Pushbutton 2 +12V Pushbutton 1 Start Button Start Lamp Meter Audio Out Video Out 0 0 0 0 1 5 10 9 . -
Page 15: Wiring Loom Reference
Top Loom Reference - refer to diagram. Colour Ref.: Function / Destination: Plug / Pin No: White / Red Pushbuttons 3, 4 & 5 P6 / 2 (common) Purple Pushbuttons 4 & 6 P6 / 5 (common for 6) Orange P6 / 6 Pushbutton 3 Green / Blue... -
Page 16: Plugs & Connections
CAMPER - PLUGS & WIRING REFERENCE 25-WAY CONNECTOR - P4 PIN No WIRE COLOURS PIN No WIRE COLOURS Red & Green Screen Power (+12V) Grey & Black Screen Power (-12V) ... . . Blue Meter Red &... -
Page 17: Base Loom
Base Loom Reference - refer to diagram. MAINS SUPPLY Colour Ref.: Use / Destination: Plug / Pin No: +240V Mains In, Mains Filter Inlet, IEC(Female) Brown -240V Mains In, Mains Filter Blue Inlet, IEC(Female) Yellow / Green Inlet, Ground Earth MOTOR SUPPLY IEC(Male) Brown... -
Page 18: Base Mechanism Components
Base Components Description Ref. Motor Gearbox Crank Bearing Alloy Crank Block Crank Spacer Earth Points Mains Inlet Clamp Mains Lead Protector Gearbox Pulley Motor Pulley Drive Belt Motor Cable Mains Filter Mains Lead Kermit / Control Box Kermit / Control Box Mounting Bolts Kermit / Control Box Mains In (Male IEC) Motor Supply Inlet Base Castors... -
Page 19: Parts List
Parts List - Upper Body DESCRIPTION OF PARTS QUANTITY ITEM REF. Coin Mech RM5-V00 Coin Mech Mini Face Plate RM5 Mini Face Plate Coin Mech Metal Surround Security Mech Surround Coin Chute Camper Coin Chute Lock Sale Lock Meter / Counter Base Meter Speaker Speaker... - Page 20 Parts List - Upper Body Continued DESCRIPTION OF PARTS QUANTITY ITEM REF. Monitor Screen 3.5" Screen Screen Housing 3.5" Screen Housing Dashboard Panel Camper Dash Panel Mummy Pig Window Graphic Mummy Pig Camper Panel Daddy Pig Window Graphic Daddy Pig Camper Panel Peppa &...
- Page 21 Parts List - Base Components DESCRIPTION OF PARTS QUANTITY ITEM REF. Motor Single Phase Motor Motor Pulley Single Phase Motor Pulley Gearbox RV40 Gearbox Gearbox Pully Paw Patrol Gearbox Pulley Drive Belt Paw Patrol Drive Belt Base Wheels / Towing Wheels MK2 Base Castor Mains Lead Inlet Clamp Mains Conn Clamp...
-
Page 22: Removal Of Bodyshell
Ensure the power is turned off before carrying out any of the following procedures! Removal Of Body Shell (2 persons required) To remove the Body Shell from its base you must gain access to the four Body Mounting Bolts. The first is located just inside of the entrance floor, infront of the metal inspection door. -
Page 23: Fault Finding
FAULT FINDING To be carried out by a competent person. CHECK SYMPTOM Mains voltage supply. Mains supply to control box. Green 4-way plug on control box. No lights / self test message 2x yellow wires into 4-way plug. Break in connection to yellow wires to lamps. Check mains power is on. -
Page 24: Contact Procedures
NO MINIMUM ORDER VALUE We want you to order what you want, when you want it. So you can order whatever quantities you like from Kiddy Rides, and you won’t be penalized with a minimum order value. ON-SITE REPAIRS If you are unable to return parts for repair, or fit spares yourself, we can arrange for one of our regional engineers to make a site visit. -
Page 25: Ride History / Log
REPAIR, SERVICE, AND HEALTH & SAFETY RECORD To be filled in by Engineer at time of work being carried out DATE PROCEDURE ENGINEER COMPANY COMMENTS Service / H&S / Repair... - Page 26 REPAIR, SERVICE, AND HEALTH & SAFETY RECORD To be filled in by Engineer at time of work being carried out DATE PROCEDURE ENGINEER COMPANY COMMENTS Service / H&S / Repair...
-
Page 27: Your Notes
YOUR NOTES... - Page 28 YOUR NOTES...
-
Page 29: Declaration Of Conformity
CE DECLARATION OF CONFORMITY Manufacturer: Northern Leisure Group Ltd., Unit 4 Kingsmark Court, Intercity Way, Leeds, LS13 4PN, U.K. Details Of Electrical Equipment Type No: Coin Operated Childrens Ride Description: Directives This Equipment Electrical Equipment (Safety) Regulations 1994, SI Complies With: No3260 (Regulation 5. - Page 30 Test Certificate Eurofins York Unit 5, Speedwell Road Castleford, West Yorkshire WF10 5PY Tel: 01977 731173 Northern Leisure Group Ltd Issued to: - 4 Kingsmark Court, Intercity Way, Leeds, LS13 4PN, United Kingdom Safety Tests were performed on the apparatus as detailed: - Description Kiddie Ride –...
-
Page 31: Composite Data Sheet
® NORESTER NORD Fire retardant resin COMPOSITES TECHNICAL DATA SHEET NTR 252 A - 12/11/12 Page : 1/2 1 CHARACTERISTICS ® The resin Norester is a fire retardant resin fomulated from polyester orthophtalic resin. It is thixotropic, filled, halogen free and antimony oxide free. Application hand lay-up and spray-up Polymerise at room temperature with addtion of MEKP. - Page 32 ® NORESTER NORD Fire retardant resin TECHNICAL DATA SHEET COMPOSITES NTR 252 A - 12/11/12 Page : 2/2 Tensile strength * 27.06 MPa (ISO 527) Tensile Modulus * 3.024 GPa (ISO 527) Elongation at break * 1.50% (ISO 527) Temperature of deflection under load * (HDT) 57.4°C (ISO 75-3) Barcol hardness *...
