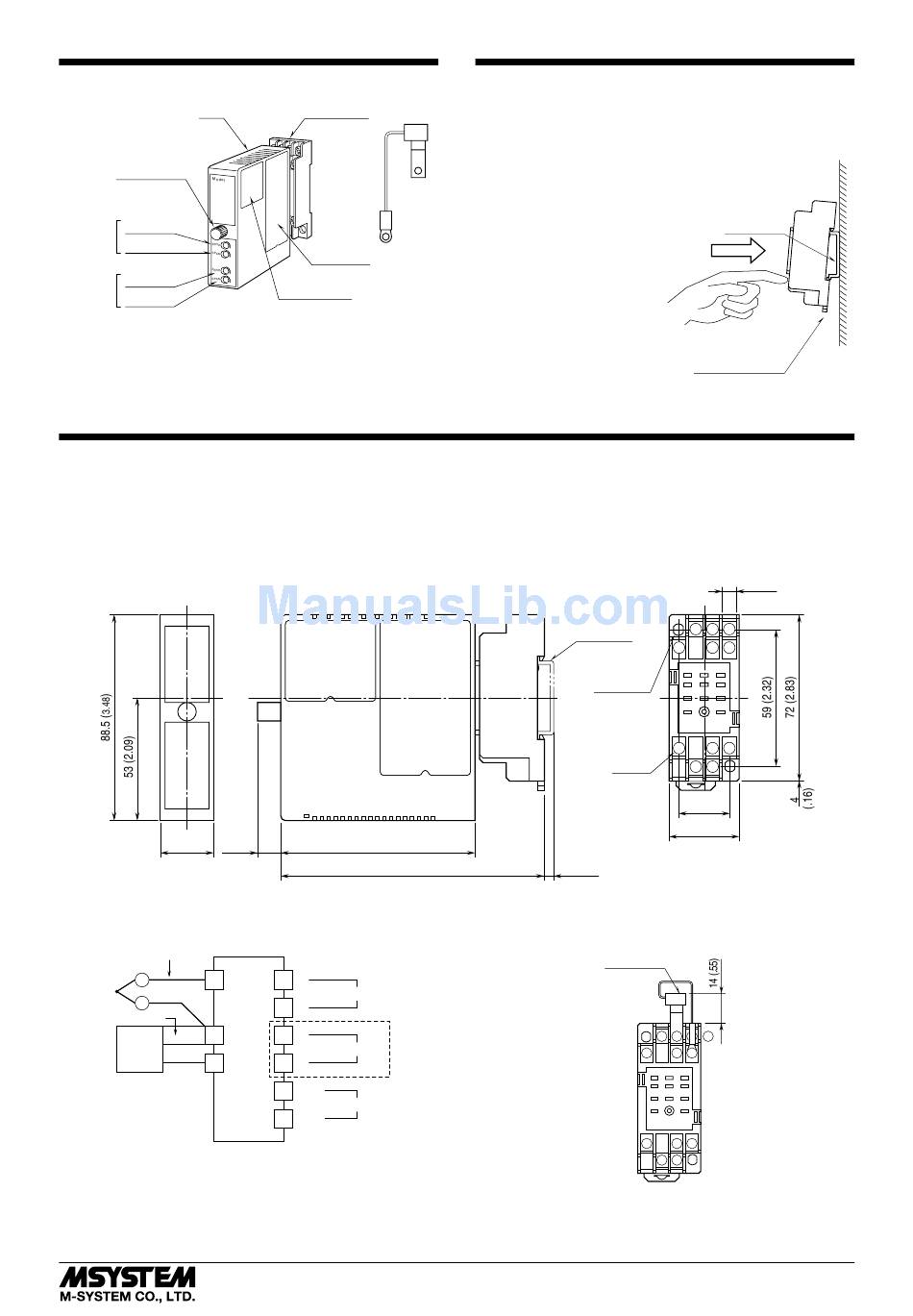

M-system W2TS Instruction Manual page 2

COMPONENT IDENTIFICATION
Body
Fixing Screw
Zero Adj.
Output 1
Span Adj.
Zero Adj.
Output 2*
Span Adj.
*Provided only for dual output.
TERMINAL CONNECTIONS
Connect the unit as in the diagram below or refer to the connection diagram on the side of the unit.
Attach the CJC sensor together with input wiring to the input terminals. The CJC sensor is not interchangeable. Check that
its serial number is identical to that of the unit.
■ EXTERNAL DIMENSIONS unit: mm (inch)
21.5 (.87) 10 (.39)
■ CONNECTION DIAGRAM
comp. leadwire
T / C
+
+ 1
–
–
metal leg
2
CJC
SENSOR
4
model: CJM
The section enclosed by broken line is only with 2nd output option.
Base Socket
CJC
Sensor
Connection
Diagram
Specifications
84 (3.31)
114 (4.49)
7 +
OUTPUT 1
8 –
+
3
OUTPUT 2
6 –
10
U(+)
POWER
11
V(–)
5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp
INSTALLATION
Loosen the fixing screw at the front of the unit in order to
separate the body from the base socket.
■ DIN RAIL MOUNTING
Set the base socket so that
its DIN rail adaptor is at
the bottom. Position the
upper hook at the rear side
of base socket on the DIN
rail and push in the lower.
When removing the socket,
push down the DIN rail
adaptor utilizing a minus
screwdriver and pull.
■ WALL MOUNTING
Refer to "EXTERNAL DIMENSIONS."
DIN RAIL
35mm wide
2 4.2x5
–
(.17x.20)
MTG HOLE
6 (.24) deep
11 M3
–
SCREW
[4 (.16)]
• When mounting, no extra space is needed between units.
■ TERMINAL ASSIGNMENTS unit: mm (inch)
CJC SENSOR
(model: CJM)
W2TS
DIN Rail
35mm wide
Spring Loaded
DIN Rail Adaptor
6 (.23)
3 2 1
6 5 4
9 8 7
11 10
22 (.87)
29.5 (1.16)
3 2 1 1
6 5 4
9 8 7
11 10
EM-5512 Rev.8 P. 2 / 3
