RCA RP5120 User Manual

v4.0 (EN/E)
user manual
manual de usuario
RP5120
EN/E
It is important to read this instruction prior to using your new product for the fi rst time.
Es importante leer este manual antes de usar por vez primera su equipo.

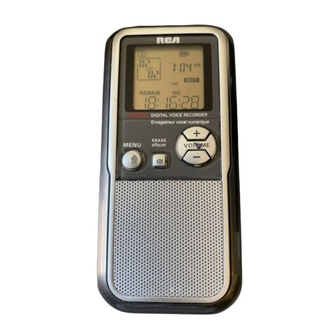

General controls

1
2
6 11
12
7
8
5
13
3
9
4
10
1. Built-in microphone 7. OFF – stops playback or
2. Recording indicator recording, turns off player
3. MENU – press once to access 8. ON – turns on player, starts
folders, press and hold to or pauses playback
access the player menu for 9. FWD/ REW – skips /
various settings searches backward or forward,
4. ERASE – erases fi les selects / browses in the player
5. VOLUME – adjusts volume, menu
selects / browses in the player 10. Key lock selector
menu 11. MIC – External microphone
6. REC – starts and pauses jack
recording 12. EAR – External earphones jack
13. USB jack
Using MENU key
The MENU key has two functions: Speed (FAST/SLOW)
Accessing folders
Playback mode (one/all)
Press MENU repeatedly to select
folders (A/B/C/D).
Tone (on/off)
Year
Day (month/day)
Press MENU repeatedly
Accessing player menu
12/24 hour time
1. Press and hold MENU for
about 2 seconds and then
Time (hour/minute)
release the button. The fi rst
menu item, DICT or CONF
Exit player menu
fl ashes on display.
3. Press / or VOL +/– to
make selections or adjust
values.
DICT
4. Press to confi rm your
selection and exit setting.
Press and hold MENU for about 2
seconds to access the player menu
2. Then press MENU again
repeatedly to select the
following menu items:
Record conditions (DICT/CONF)
Record quality (HQ/SP)
AVR (on/off)
Erasing fi les
Erasing selected fi le Erasing all fi les in a folder
To delete a fi le: To delete all fi les in a specifi c
1. Press MENU repeatedly to folder:
1. Press MENU repeatedly to
select a folder (A/B/C/D).
select a folder (A/B/C/D).
2. Press or to select a fi le.
2. While playback is stopped,
3. Press ERASE once and DEL XX
press repeatedly until ALL
(XX is the fi le number) will
appears on the display.
fl ash on the display.
4. Press and hold ERASE for 3. Press ERASE and DEL AL will
three seconds to confi rm fl ash on the display.
deleting. 4. Press and hold ERASE for
about three seconds, all fi les
in the selected folder will be
To avoid accidental
erased completely.
deletion of all fi les, make
• Press to cancel erasing all
sure you press ERASE
fi les.
only when you are reading the
time duration of the undesired
fi le instead of the remaining
recordable time of the player.
File numbers that come
after erased one will be
moved forward by one
automatically.
Connecting to computer
Computer system Installing Digital Voice
requirements Manager
• PC with Windows Vista TM or 1. Connect the player with the
Windows® XP (Service Pack 1 computer as instructed in the
previous section.
or higher) or Windows® 2000
2. Double click or open the
(Service Pack 3 or higher)
"MyComputer" desktop icon,
• 20MB free hard disk space for
then double click the player
software
• USB port 1.1 or 2.0 drive icon.
• Installed sound card 3. Double click "SETUP" folder,
then double click "Setup" or
Setup.exe to run the installer.
Connecting to computer
4. Follow the on-screen
Connect the player before launch-
instructions to install the
ing the Digital Voice Manager.
software.
1. Connect the USB cable
5. After installation is
provided to the player's USB
completed, reboot your
jack and connect the other
computer.
end to your computer's USB
• The Digital Voice Manager
port.
software can also be
2. "PCLINK" shows on the
downloaded from
player's display. The player
www.rcaaudiovideo.com
appears as a removable drive
in your computer.
Disconnecting from computer
After you have copied fi les to 3. Now you can disconnect the
or from the player, you can
player from the computer.
disconnect the player from the
If you want to go back to
computer.
USB mode for fi le transfer
1. Click the icon from the
at this stage, you need to
System Tray and select
unplug and connect the
"Unplug or Eject hardware". player to the PC again.
Select the drive corresponding
to your player.
Thomson RP5022A / RP5120-A USB Device
2. The "Stop a Hardware player"
screen will appear. Select the
player to be stopped again
for confi rmation and click OK.
Thomson RP5022A / RP5120-A USB Device
For your records
This Class B digital apparatus com-
In the event that service should be
plies with Canadian ICES-003.
required, you may need the model Cet appareil numérique de la class B
est conforme à la norme du NMB-003
number and the serial number. In
du Canada.
the space below, record the date
and place of purchase and the
serial number:
Power Supply
Model No.:
• (battery power) 2 x "AAA"
Date of Purchase:
Place of Purchase:
ESD Remark: In case of
Serial No.:
misfunction due to electrostatic
discharge just reset the product
(disconnect and reconnect of the
RCA
RCA
power source may be required) to
DTA800A RP5120
resume normal operation.
Equipment tested for
compliance as a
complete unit
WARNING:
TO PREVENT FIRE OR ELECTRICAL
SHOCK HAZARD, DO NOT EXPOSE THIS PRODUCT TO
RAIN OR MOISTURE.
Display
8
1
9
2
10
3
11
4
12
5
6
13
7
14
15 16
1. Folder (A/B/C/D) 10. Time, date, record time
2. File selected 11. Bookmark
3. Total number of fi les in a 12. Recording conditions
folder 13. Automatic voice recording
4. Playback in progress activated
5. Recording in progress 14. Area for display messages
6. Playback speed (refer to the next section)
7. Total remain time for 15. Recording qualities
recording 16. Playback mode: play one or
8. Battery level indicator play all
9. Key lock function activated
Bookmark
Creating a bookmark Deleting bookmarks
This feature allows you to cre-
1. Press MENU repeatedly to
ate an interception point in
select a folder (A/B/C/D).
the recorded message for quick
2. Press or to select a fi le.
reference.
3. Press ERASE once and DEL XX
1. During playback, press REC (XX is the fi le number) will
once to set a bookmark, the fl ash on the screen.
bookmark icon fl ashes on the 4. Press and hold for 3
display. seconds to confi rm deleting
• The month and date ALL bookmarks in the fi le.
information is displayed,
followed immediately by the
counters for the bookmarks. You can create up to
29 bookmarks in a fi le.
current total
When the maximum
bookmark number of
limit is reached, "FULL" will be
bookmarks
shown.
2. You can create multiple
bookmarks until "FULL" is
displayed.
Skipping to a bookmark
You can skip to a bookmark any-
time during playback.
1. During playback, press
to go to the bookmark (if
available).
2. Press again to go to the
next bookmark.

Advanced operations

IntroScan Play one/all
You can choose to play a specifi c
This feature allows playback of
fi le or all fi les in a folder.
the fi rst three seconds of each fi le
in a folder. 1. Press and hold MENU for
1. Press MENU about 2 seconds and then
A
repeatedly to release the button. The fi rst
MM DD
AM
select a folder menu item, DICT or CONF
DICT
ONE
(A/B/C/D). fl ashes on display.
SP
2. Press or 2. Then press MENU again
until ALL shows repeatedly until ONE or ALL
on display A fl ashes on display.
MM DD
3. Press to start 3. Press / or VOL +/– to
introductory select between ONE and ALL.
ONE
playback, INTRO SP 4. Press to confi rm your
selection and exit setting.
shows on display.
• If ONE is selected, the player
4. Press to exit IntroScan
will stop after the selected fi le
sooner.
is played. If ALL is selected,
the player will stop after all
fi les in a folder are played.
Tones
You can activate this feature so
that beep sound can be heard
whenever you press on any key
except during playback and
recording.
1. Press and hold MENU for
about 2 seconds and then
release the button. The fi rst
menu item, DICT or CONF
fl ashes on display.
Using Digital Voice Manager
The RCA Digital Voice Manager
• When the player
can perform playback, organize
is in Menu mode,
your bookmarks of the recorded
during playback or
fi les and create self-executable
recording, a connection
voice fi le from the recorded fi les.
between the player and
the computer will not be
Launching the software
established. Quit the above
1. To launch the software,
modes before connecting to
click "Start", select "All
the computer.
Programs", select "Digital
• Data transfer is possible
Voice Recorder", then select
even if no batteries are
"RP5120" and then select
installed in the player.
"Digital Voice Manager".
• Do not disconnect the USB
2. All the drives in the computer
connection during fi les
except the removable Digital
transfer.
Voice Recorder are shown in
the top while the removable
Digital Voice Recorder is
shown in the bottom.
All drives in
the computer
Removable
Digital Voice
Recorder
Troubleshooting tips
• You may have not set
Player doesn't turn on
• Check that batteries are the date and time before
properly inserted and not recording. Refer to section
exhausted. 'Time Setting'.
• Make sure battery
compartment door is properly No sound from speaker during
closed. playback
• Make sure LOCK function is • Make sure volume is not set
not activated. to 0.
• Headphones should not be
Display keeps fl ashing when connected.
player is off
Cannot edit
• You may not have set the
• Make sure LOCK function is
time. Refer to section "Time
not activated.
Setting".
Cannot activate the player
Cannot record
after pressing on keys
• Make sure LOCK function is
• Remove the batteries to reset
not activated.
• Make sure memory is not full. the player.
• You have recorded 99 fi les
in one folder. Try record in a Recordable time becomes
new folder. shorter
• You may have formatted • You may have set the
the player with incorrect fi le recording quality to 'High
system (e.g. FAT32). Refer to Quality', refer to section
section "Format" and format 'Setting Recording Quality'.
the player again. • Delete the Digital Voice
Manager setup software from
Incorrect recording date and the player to free up more
memory space.
time during playback
FCC information • Reorient or relocate the
receiving antenna.
This device complies with Part
• Increase the separation
15 of the FCC Rules. Operation
between the equipment and
is subject to the following two
receiver.
conditions: (1) This device may not
• Connect the equipment into
cause harmful interference, and
an outlet on a circuit different
(2) this device must accept any
from that to which the
interference received, including
receiver is connected.
interference that may cause unde-
• Consult the dealer or
sired operation.
an experienced radio/TV
This equipment has been tested
technician for help.
and found to comply with the
limits for a Class B digital device,
Changes or modifi cations not
pursuant to Part 15 of FCC Rules.
expressly approved by the party
These limits are designed to
responsible for compliance could
provide reasonable protection
void the user's authority to oper-
against harmful interference in a
ate the equipment.
residential installation. This equip-
ment generates, uses, and can
radiate radio frequency energy Service information
and, if not installed and used in This product should be serviced
accordance with the instructions, only by those specially trained in
may cause harmful interference to appropriate servicing techniques.
radio communications. For instructions on how to obtain
However, there is no guarantee service, refer to the warranty
that interference will not occur included in this user manual.
in a particular installation. If this
equipment does cause harmful
interference to radio or television
reception, which can be deter-
mined by turning the equipment
off and on, the user is encouraged
to try to correct the interference
by one or more of the following
measures:
Display messages
The messages show at the bottom of the display during operation. Refer
to the below for their meanings:
ALL Select all (Introductory Play back & Erasing All Files)
Append Appendix (Adding Appendix)
CUT-E Cut End (Cutting)
CUT-S Cut Start (Cutting)
FULL Memory full
MM/DD Month / day entry mode.
12 HOUR 12 hour time display mode.
TIME Time entry mode
Insert Insertion (Inserting New Segments)
INTRO Introduction (Introductory Playback)
OFF Off (Automatic Voice Recording)
ON On (Automatic Voice Recording)
SEN MI Sensitivity Level (AVR)
TONE Beeping sound on (Setting Beep Sound)
NO TONE No beeping sound (Setting Beep Sound)
VOL 15 Volume (Setting Volume)
YEAR Year (Setting Year)
LOCKED Key locked
FORMAT Format the memory
SPEED Speed of playback
WAIT... Memory rearrangement/System is busy
PCLINK Player is connected to the computer
LOBATT Battery level is low
DEL 01 Delete the selected fi le (e.g. fi le 01)
DEL AL Delete all fi les in a folder
Recording
Setting recording mode
2. Press and hold MENU for
You can select between two
about 2 seconds and then
recording modes – manual record- release the button. The fi rst
ing and AVR (automatic voice menu item, DICT or CONF
recording). fl ashes on display.
3. Then press MENU again
Manual Recording repeatedly until AVR fl ashes
1. While playback is stopped, on display.
select a destination folder 4. Press / or
(A/B/C/D) by pressing MENU VOL +/– to select
repeatedly. between AVR on
2. Press REC to start recording. and AVR off.
AVR
(recording time will be 5. Press to confi rm
displayed once you press REC) your selection and
3. To pause recording, press REC exit setting.
once, press again to resume
6. Press REC to enter AVR mode.
recording.
7. During AVR
A
4. To stop recording, press .
recording, adjust
AM
the sensitivity of
DICT
AVR (Automatic Voice
the microphone
SP AVR
Recording) by pressing
This feature allows the player to VOLUME,
sense sound and to record only SEN with sensitivity level
when you are speaking into the will show on display (e.g.
microphone. When dictation stops increase sensitivity level when
for about three seconds, recording recording source is far from
will stop and then start again the player or the recording
automatically when you resume environment is quiet).
dictation. 8. Start dictation. Recording
starts automatically.
1. Press MENU repeatedly to 9. Press to end AVR recording.
select a destination folder • Repeat step 2-3 and select
(A/B/C/D). AVR OFF for de-selection.
2. Then press MENU again The procedures are as follow:
repeatedly until TONE or 1. Turn on the player.
NOTONE shows on display. 2. Press ERASE,
A
MM DD
3. Press / or VOL +/– to set DEL XX (XX is the
beep sound ON/OFF. fi le number) or
DICT
ONE
4. Press to confi rm your DEL AL will fl ash
SP
selection and exit setting. on the display.
3. Press and hold
A
REC for three MM DD
Speed
seconds, FORMAT
You can adjust the playback DICT
ONE
will fl ash on the
speed. SP
display.
1. Press to start playback of a
4. Press and hold
selected fi le.
ERASE, WAIT will show on
2. During playback,
the display, formatting is in
press MENU
process.
once, SPEED
FAST • After the formatting is
shows on display.
completed, the remain time
3. Press / or
of the selected memory will
VOL +/– to select
show on the display.
between FAST, SLOW and
no speed indication (normal
You may also format the player
speed).
when connected to a PC (by right-
4. Press to confi rm and start
clicking on the player's drive name
playback at the selected
or letter and select "Format" from
speed.
the menu). Make sure you select
FAT or FAT16 as the fi le system.
Format
(Caution! All data inside the
memory will be erased)
You can format the internal
memory when needed. (e.g. com-
patability problem, etc.)
Playback and editing
stop playback of a recorded
operations fi le.
• To adjust the playback speed,
1. To organize your fi les, click
click "Normal Speed" and
the corresponding buttons to
select desired speed from the
cut, delete, copy and paste a
pull down menu.
fi le (or by drag and drop).
4. To skip to a bookmark, select
cut paste
"Play" from the menu at
the top, then select "Goto
Bookmark" and select your
copy delete
desired bookmark.
• To edit bookmarks, click the
2. To play the recorded fi les,
corresponding buttons to add
highlight the fi le and click the
or clear the bookmarks.
PLAY/PAUSE button on the
left of the toolbar.
play/pause skip forward stop clear bookmark
skip to a
skip backward add bookmark
specifi c time
3. Adjust the volume on the
right of the toolbar.
adjust volume
• Click the corresponding
buttons in the toolbar to fast
backward/forward, skip to a
specifi c time in the fi le and

Warranty information

12 Month Limited Warranty

Applies to RCA Audio/Video Products
• AUDIOVOX ELECTRONICS CORP. (the
Cannot perform playback
Company) warrants to the original
• Make sure you have selected
retail purchaser of this product
folder with recorded that should this product or any
part thereof, under normal use and
messages.
conditions, be proven defective in
• Make sure LOCK function is
material or workmanship within
not activated.
12 months from the date of
original purchase, such defect(s)
Cannot erase recorded fi le(s)
will be repaired or replaced with
• Make sure you follow each reconditioned product (at the
step under section "Erasing Company's option) without charge
for parts and repair labor.
Selected File" carefully.
• To obtain repair or replacement
within the terms of this Warranty,
Cannot stop recording when
the product is to be delivered with
AVR ON
proof of warranty coverage (e.g.
• If AVR ON sensitivity is set to
dated bill of sale), specifi cation of
HIGH, recording may not be defect(s), transportation prepaid, to
the Company at the address shown
stopped in noisy environment.
below.
Try setting the sensitivity to
• This Warranty does not extend
LOW.
to the elimination of externally
generated static or noise, to
Cannot keep the saved setting correction of antenna problems,
loss/interruptions of broadcast or
• If the batteries are removed,
internet service, to costs incurred for
saved settings may be
installation, removal or reinstallation
removed.
of product, to corruptions caused
by computer viruses, spyware or
Cannot open recorded fi les in
other malware, to loss of media,
the computer. fi les, data or content, or to
• You must use the provided damage to tapes, discs, removable
memory devices or cards, speakers,
DVM software to open the
accessories, computers, computer
fi les.
peripherals, other media players,
• To download the software, go
home networks or vehicle electrical
to www.rcaaudiovideo.com
systems.
Maintenance Important battery
Clean the unit with a soft cloth, or
precautions
a damp chamois leather. Never use
• Any battery may present
solvents.
a risk of fi re, explosion, or
chemical burn if abused. Do
Precautions for the unit
not try to charge a battery
• Do not use the unit
that is not intended to be
immediately after
recharged, do not incinerate,
transportation from a cold
and do not puncture.
place to a warm place;
• Non-rechargeable batteries,
condensation problem may be
such as alkaline batteries, may
resulted.
leak if left in your product
• Avoid shock to the unit
for a long period of time.
especially during recording.
Remove the batteries from
Recorded data can be
the product if you are not
damaged. going to use it for a month or
• Do not store the unit more.
near fi re, places with high
• If your product uses more
temperature or places with
than one battery, do not mix
direct sunlight.
types and make sure they
• Do not operate or store unit
are inserted correctly. Mixing
in places with frequent static
types or inserting incorrectly
electricity or electrical noise
may cause them to leak.
(e.g. speaker, TV set).
• Discard any leaky or deformed
• Clean the unit with a soft
battery immediately. They
cloth or a damp chamois
may cause skin burns or other
leather. Never use solvents.
personal injury.
• The unit must only be opened
• Please help to protect the
by qualifi ed personnel.
environment by recycling
• Do not expose this appliance
or disposing of batteries
to rain or moisture.
according to federal, state,
and local regulations.
Setting day and time
With day and time set, you can minute. Follow the operations
always read on the display the in step 4 for settings.
recording date and time of your
recorded messages. Normal
recording is still possible without
/ or VOL +/–
setting. However, no correct
recording date and time can
be referred to your recorded
Press MENU
messages.
MM DD
Follow the steps below for setting
/ or VOL +/–
day and time:
1. Press to turn on the player.
2. Press and hold
Press MENU
MENU for about
2 seconds and
AM
DICT
then release the
/ or VOL +/–
button. The fi rst
menu item, DICT
or CONF fl ashes on display.
Press MENU
3. Press MENU again repeatedly
until YEAR shows.
AM
/ or VOL +/–
• If day and time have not been
set previously, the player goes
to step 3 automatically after
Press MENU
turn on.
4. When YEAR shows, press
Exit time setting mode
/ or VOL +/– to adjust the
value (default year: 2008) and
then press MENU to confi rm.
5. After year is set, you will then
be guided to set month, day,
12/24 hour display, hour and
Setting recording quality
• During recording, the
You can select between two re-
recording indicator
cording qualities. Default is HQ.
lights. When in AVR
standby mode or when
Defi nition
recording is paused, the
• SP (Standard Play) – allows
recording indicator fl ashes.
about 104 hours recording.
• You can record up to 99
• HQ (High Quality) – allows
fi les in one folder, not
about 18 hours recording.
exceeding 396 fi les in total.
When the maximum limit
1. Press and hold MENU for
is reached, "FULL" will be
about 2 seconds and then
shown.
release the button. The fi rst
• The fi rst syllable or two
menu item, DICT or CONF
may be lost when you
fl ashes on display.
start recording because
2. Then press
this 'sound' is used to turn
MENU again
on the AVR feature. It is
repeatedly until
a good practice to make
SP or HQ fl ashes
some 'sounds' or say a short SP
on display.
word to activate the AVR
3. Select between
before you begin actual
SP and HQ by pressing /
dictation.
or VOL +/–.
• To view the remaining
4. Press to confi rm your
time and other recording
selection and exit setting.
information, you may
press and hold during
recording.
Editing
CAUTION
within three seconds to start
• The edit function does not
recording new segment.
operate when battery power
4. Press to stop recording.
is too low.
• Make sure play all fi les is
Append
not selected. Inserting new
You can add appendix (e.g.
segments, adding appendix
reminder, supplementary informa-
and cutting cannot be
tion) to the end of the fi le.
performed when play all fi les
1. Press to start playback of a
is selected.
selected fi le.
• After editing a message,
2. Press MENU
WAIT will be displayed. Do A
three times,
AM
not power off the player until
APPEND shows
WAIT disappears. Otherwise,
ONE
on display. Press
SP
the memory which is
REC within three
rearranging could not be read
seconds to start
or released until the player is
recording appendix.
formatted.
3. Press to stop recording.
• After the memory
Insert
rearrangement completed,
You can insert new segments into
the player will go to playback
a fi le without erasing previously
stop mode.
recorded content.
1. Press to start playback of a
selected fi le.
2. Press or to scan to the
point that you want to insert
new segment.
A
3. Press MENU
AM
twice, INSERT
will be shown on
ONE
SP
display. Press REC
Creating and playing self- Creating wave fi le
executable fi le
Self-executable fi le may be
blocked by some e-mail fi lters.
You can play the created fi le
You may select to create wave fi le
independently without the Digital
if you want to send your recorded
Voice Management software.
message by e-mail.
1. Highlight a recorded fi le, click
1. Highlight a recorded fi le, click
.
.
2. Select the destination folder
2. Select the destination folder
from the pop up window and
from the pop up window and
click "Save".
click "Save".
3. The created fi le could be
found in the destination
folder.
3. Go to the destination folder
and double-click the created
fi le.
4. Click "Play" to start playback.
Adjust the volume on the
right.
• This Warranty does not apply to • Some states do not allow
any product or part thereof which, limitations on how long an implied
in the opinion of the Company, warranty lasts or the exclusion
has suffered or been damaged or limitation of incidental or
through alteration, improper consequential damage so the
installation, mishandling, misuse, above limitations or exclusions may
neglect, accident, or by removal not apply to you. This Warranty
or defacement of the factory gives you specifi c legal rights and
serial number/bar code label(s). you may also have other rights
THE EXTENT OF THE COMPANY'S which vary from state to state.
LIABILITY UNDER THIS WARRANTY
IS LIMITED TO THE REPAIR OR

How to make a warranty claim:

REPLACEMENT PROVIDED ABOVE
• If your product is capable of
AND, IN NO EVENT, SHALL THE
storing content (such as an mp3
COMPANY'S LIABILITY EXCEED
player, digital voice recorder, etc), it
THE PURCHASE PRICE PAID BY
is recommended to make periodic
PURCHASER FOR THE PRODUCT.
backup copies of content stored
• This Warranty is in lieu of all other
on the product. If applicable,
express warranties or liabilities. ANY
before shipping a product, make
IMPLIED WARRANTIES, INCLUDING
a back up copy of content or data
ANY IMPLIED WARRANTY OF
stored on the device. Also, it is
MERCHANTABILITY, SHALL BE
advisable to remove any personal
LIMITED TO THE DURATION OF
content which you would not want
THIS WRITTEN WARRANTY. ANY
exposed to others. IT IS LIKELY
ACTION FOR BREACH OF ANY THAT CONTENTS AND DATA ON
WARRANTY HEREUNDER INCLUDING
THE DEVICE WILL BE LOST DURING
ANY IMPLIED WARRANTY OF
SERVICE AND REFORMATTING.
MERCHANTABILITY MUST BE
AUDIOVOX ACCEPTS NO LIABILITY
BROUGHT WITHIN A PERIOD OF 24
FOR LOST CONTENT OR DATA,
MONTHS FROM DATE OF ORIGINAL OR FOR THE SECURITY OF ANY
PURCHASE. IN NO CASE SHALL THE
PERSONAL CONTENT OR DATA ON
COMPANY BE LIABLE FOR ANY
THE RETURNED DEVICE. Product
CONSEQUENTIAL OR INCIDENTAL
will be returned with factory
DAMAGES FOR BREACH OF THIS OR
default settings, and without
ANY OTHER WARRANTY. No person any pre-loaded content which
or representative is authorized
may have been installed in the
to assume for the Company any
originally purchased products.
liability other than expressed herein
Consumer will be responsible
in connection with the sale of this
for reloading data and content.
product.
Consumer will be responsible to

Before you begin

Unpacking your player Auto power shut down
You should have the following: The player will be automatically
• one voice recorder turned off if left idle for three
• one USB cable
minutes.
• one user manual
• one quick start guide
Using earphones and
external microphone

Installing batteries

• When earphones are
This player can be operated by 2
connected, sound output from
"AAA" batteries (not included).
speaker will be muted.
1. Slide the battery compartment
• When external microphone
door to open.
is connected, no record
2. Insert the two supplied
can be made from built-in
"AAA" batteries with
microphone.
polarities matching
indications.
Player on/off
3. Replace the battery
Press to turn on the player. Press
compartment door.
to turn off the player.
Refer to the battery level indicator
Keys lock
on display for batteries level.
Replace with new batteries when
To avoid accidental key activation,
the indicator is empty.
slide the key lock selector toward
the lock icon ( ) to lock the keys.
Reverse the step to unlock them.
Turn off the player fi rst
before replacing batteries.
If power interruption
exceeds 20 seconds, date and
time have to be set again.
Basic operations
Select folders
search skips by minute. To
A resume searching by second,
Press MENU
AM
release the button once and
repeatedly to select
DICT
a specifi c folder (A/B/ then press and hold or
REMAIN SP
C/D) for browsing. again.
Default is folder A. 6. Press or once to skip
one fi le forward or backward.
7. Press to stop playback.
Select fi les
To select a specifi c fi le for play-
back:
"ALL" is displayed if you
1. Select the folder you need.
are at the fi rst fi le and
2. Press or to select the fi le
press or at the last fi le
you want. If the fi le you want
and press . See IntroScan for
is in the current folder, you
more detail.
can press or to select it
directly in both stop and play
modes.
Normal playback
1. Select a folder and a fi le.
2. Press to start playback.
3. Press to pause playback,
press again to resume.
4. You can press VOLUME +/– to
adjust listening volume.
5. Press and hold or to
make quick search within a
fi le.
• Quick search skips by second
within the fi rst minute of
a recording. After that, the
Setting recording
• For conferences, to
condition
obtain optimum
You can select between two
recording quality,
recording conditions. Default is
place the recorder with the
DICT.
microphone freely exposed
to the sound source as
Defi nition
close as convenient. A
• CONF (Conference) – in a
built-in automatic recording
more open area and recording
level control will set the
source is far from the player.
optimum record level during
• DICT (Dictation) – in a more
manual recording. Avoid
enclosed area and recording
recording near unwanted
source is close to the player.
noise sources, such as air
conditioners or fans.
1. Press and hold
• If power supplied from
MENU for about
the battery fails suddenly
2 seconds and
(e.g. batteries are removed
DICT
then release the
accidentally) during
button. The fi rst
recording, the recoding in
menu item, DICT
progress will be interrupted.
or CONF fl ashes on display.
The recorded fi le may also
2. Select recording condition by
be corrupted and cannot be
pressing / or VOL +/–.
played back.
3. Press to confi rm your
selection and exit setting.
Cut
• Inserting new
You can erase unwanted parts
segments, adding
from your recording.
appendix and
1. Press to start playback of
cutting will only update
the fi le with the unwanted
the recorded time length,
part.
without changing recording
2. Press ERASE to
A time and date.
mark the start
AM
• All bookmarks will be
of the unwanted
deleted after inserting new
part, CUT-S shows
SP
segments, adding appendix
on display.
or cutting is performed.
3. Press ERASE to
A
mark the end of
AM
the unwanted
part, CUT-E shows
SP
on display.
4. Press ERASE
again to confi rm cutting (or
press to cancel)
• WAIT will show on display.
• When the memory
rearrangement is completed,
the player will continue the
playback.
Transfer fi les with Digital
Using your player as a fi le
Voice Manager
(Voice fi les storage device
only)
The player can function as a
Your player is associated with detachable data storage device.
a drive letter. You can drag the You can take along your favorite
voice fi les you want to transfer pictures and documents wherever
to your player to the A/B/C/D you go. Simply cut-and-paste or
folder in the drive. drag-and-drop fi les to or from it
via USB connection, the player will
Your fi les can be found in these
appear as a removable drive in
folders in the player once it is dis-
Windows
connected from the computer.
You can also drag the voice fi les
Do not rename, delete
you want to transfer from the
and transfer (drag-and-
A/B/C/D folder in the drive to your
drop) voice fi les to your
computer.
player directly in Windows
Explorer. Use the Digital Voice
Manager to rename, delete
and transfer voice fi les.
All drives in
the computer
Removable
Digital Voice
Recorder
restore any personal preference For Canada Customers, please ship
settings.
to:
• Properly pack your unit. Include
Audiovox Return Centre
any remotes, memory cards, cables, c/o Genco
etc. which were originally provided
6685 Kennedy Road,
with the product. However
Unit#3, Door 16,
DO NOT return any removable
Mississuaga, Ontario
batteries, even if batteries
L5T 3A5
were included with the original
purchase. We recommend using
the original carton and packing
materials.
• Include evidence of purchase date
such as the bill of sale. Also print
your name and address and a The descriptions and characteristics
description of the defect. Send via given in this document are given as a
standard UPS or its equivalent to: general indication and not as a guar-
Audiovox Electronics Corp. antee. In order to provide the highest
Attn: Service Department. quality product possible, we reserve
the right to make any improvement or
150 Marcus Blvd.
Hauppauge N.Y. 11788 modifi cation without prior notice. The
1-800-645-4994 English version serves as the fi nal refer-
• Insure your shipment for loss or ence on all products and operational
damage. Audiovox accepts no details should any discrepancies arise in
other languages.
liability in case of damage or loss
en route to Audiovox.
• Pay any charges billed to you by
the Exchange Center for service
not covered by the warranty.
• A new or refurbished unit will be
shipped to you freight prepaid.
Audiovox Electronics Corp.,

What we will do:

150 Marcus Blvd, Hauppauge,
Provide you with a new, or at our op- NY 11788
tion, a refurbished unit. The exchange 1-800-283-6503
unit is under warranty for the remain- ©2008 Audiovox Electronics Corp.
der of the original product's warranty Trademark(s) © Registered
period. Marca(s) © Registrada(s)
Marque(s) © Deposée(s)
www.rcaaudiovideo.com
Printed in China/Impreso en China
