Summary of Contents for Tektronix 1910

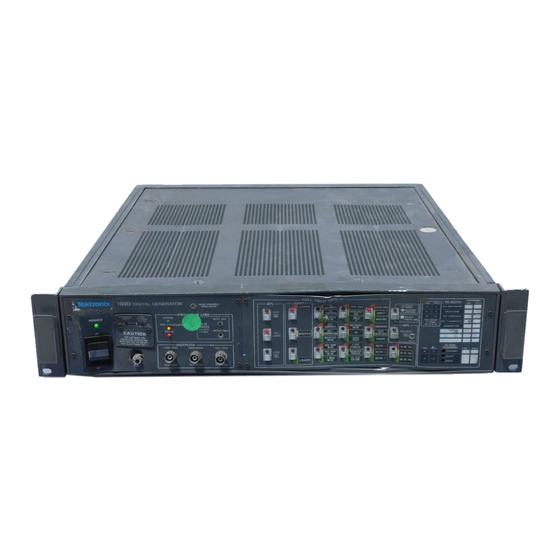

- Page 1 Tektronix 1910 Manual Get Pricing & Availability at ApexWaves.com Call Today: 1-800-915-6216 Email: sales@apexwaves.com https://www.apexwaves.com/signal-generators/tektronix-inc/ntsc-digital-test-signal-generators/Tektronix%201910...
- Page 2 1910 Digital Generator Operator Manual 070-4466-01 Please check for change information at the rear of this manual.
- Page 30 GCR (Ghost Cancellation See individual Appendix sections. Reference) for Options...
-
Page 164: Hardware Changes
1910 Option 1K Description Option 1K adds Korean ghost cancellation reference (GCR) signals to the 1910 NTSC Digital Test Signal Generator and Inserter. The new GCR signals replace the VICR and 25 IRE Pedestal signals in the base 1910 instrument. - Page 165 Appendix E – 1910 Option 1K –10 –40 4.7 s 8.75 s 11.5 s 1.5 s 61.9 s Figure E–1: GCR positive test signal with amplitude and timing details –10 –40 4.7 s 8.75 s 11.5 s 1.5 s 61.9 s Figure E–2: GCR negative test signal with amplitude and timing details...
- Page 166 Option 1K uses standard 1910 mnemonics. Front Panel and VITS Assignment Changes Option 1K uses the standard 1910 front panel assignments. Table E-2 shows the factory VITS sequence programming for line 20. Table E–2: Ghost Cancellation Reference VITS sequence programming (...
- Page 167 Appendix E – 1910 Option 1K E–4...
