Cochran EMC-16 Manual page 2

Touch Programming
-
To activate touch programming, the unit
needs to be in a Normal Surface Interval.
CONTACT #3
-
Shorting contacts 1 & 2 with a coin
changes the top level menu selection.
CONTACT #2
-
Shorting contacts 1 & 2 with wet finger
takes you into that menu selection.
CONTACT #1
-
The digit that is flashing is the one that
is going to be incremented.
-
Shorting contacts 2 & 3 with a wet finger
or coin increments the digit that is flashing.
-
Shorting contacts 1 & 2 with a wet finger makes the next digit flash.
-
Touch Programming is automatically terminated after 5 minutes of no activity.
-
Touch Programming is automatically terminated if a dive is started.
-
Always scroll back through data to ensure it was entered and stored as desired.
-
CLOCK comes from the factory disabled. If enabled, "CLC" will be the first
screen seen in Touch Programming. See back page for details.

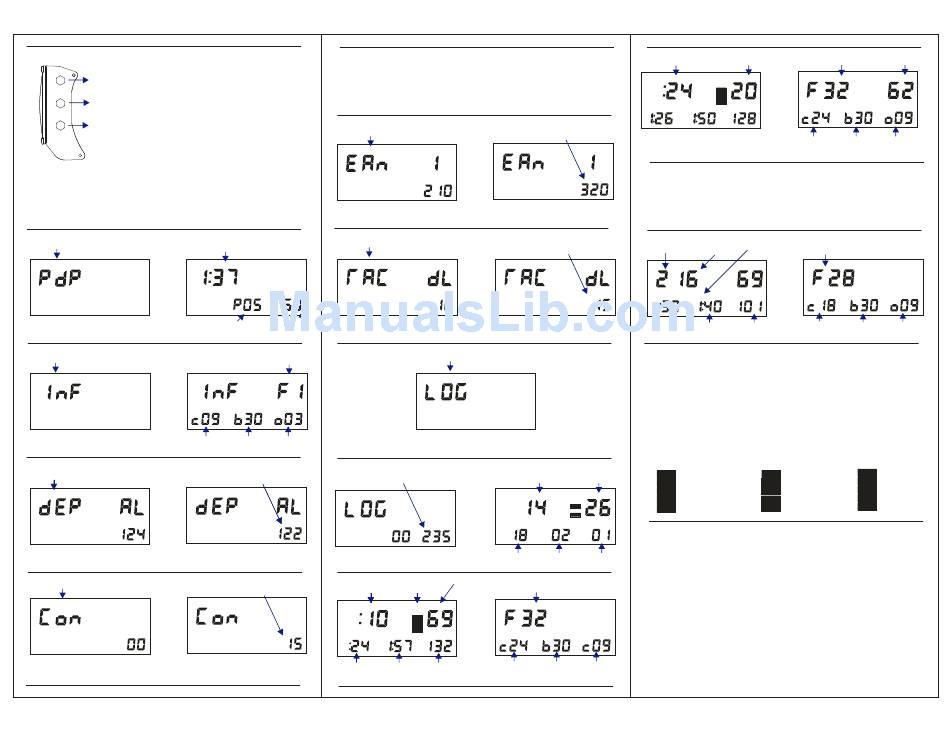

PreDive Prediction
Bridge Contacts 1 & 2
Main Menu Selection
with wetted fingers to
access PreDive Prediction.
REMAIN TIME
Predict
Screen
Calculated PO2
Short Contacts 1 & 2 with a Coin
(Computed from FO2
selects the next programming option.
Blend #1 Set Point
for predict depth.)
Information Screen
Bridge Contacts 1 & 2
Main Menu Selection
with wetted fingers to
access Information.
Information
Screen
Short Contacts 1 & 2 with a Coin CNS Oxygen
selects the next programming option. Toxicity in %
Depth Alarm
Bridge Contacts 1 & 2
Short Contacts 2 & 3 with Coin
Main Menu Selection
with wetted fingers to
to increment digit value.
access Depth Alarm.
(Digit being programmed flashes)
Setting
Depth
Bridge Contacts 1 & 2 with wetted
Short Contacts 1 & 2 with a Coin
fingers to select next digit.
selects the next programming option.
Depth Alarm can be set from 0 to 320 Feet
Bridge Contacts 1 & 2
Conservatism
with wetted fingers to
Main Menu Selection
access Conservatism.
Setting
Conservatism
Short Contacts 1 & 2 with a Coin Bridge Contacts 1 & 2 with wetted
fingers to select next digit.
selects the next programming option.
Conservatism can be set from 0 (no conservatism) to 50 (Maximum conservatism)
2
Use only fresh 3.0 volt Lithium batteries (CR12600SE).
Rinse the unit with clean fresh water after each dive.
Do not put the Commander away while wet.
Do not subject unit to compressed air.
Do not remove the lens from the unit.
Do not use a screwdriver to remove the battery cap.
Set Blend #1
Main Menu Selection
Short Contacts 1 & 2 with a Coin
selects the next programming option.
Taclite Dwell Time
Predict Time (h:mm)
Main Menu Selection
(Programmed FO2 or PO2
value influences time).
NDC
DEPTH
. .
Predict Depth
Short Contacts 1 & 2 with a Coin
(Bridge Contact 1 & 2
selects the next programming option.
with wetted finger to
increment depth).
Taclite delay time can be set from 1 to 98.
Mode/Blend Identifiers
(F0=Air only, F1=1 FO2
F2=2 FO2, P1=1 PO2,
P2=2PO2 ).
. .
OTU Oxygen
Battery
Voltage Toxicity in %
Menu Dive Number.
Screen (Most recent displayed first,
W/Dive # then next previous)
Bridge Contacts 1 & 2 with
wetted finger to select next dive.
Short Contacts 2 & 3 with Coin NDC Time Remain
(Amount of NDC time)
to increment digit value.
(Digit being programmed flashes)
REMAIN TIME
BOTTOM SURF
Surface Interval
Bottom Time
(Amount of time
(Of the dive)
prior to the dive)
Short Contacts 2 & 3 with Coin
Bridge Contacts 1 & 2
to increment digit value.
with wetted fingers to
(Digit being programmed flashes)
access Blend #1 O2%..
Setting
Blend #1
O2%
Bridge Contacts 1 & 2 with wetted
fingers to select next digit.
Blend #1 O2 percentage can be set from 21.0 to 50.0%
Bridge Contacts 1 & 2 Short Contacts 2 & 3 with Coin
to increment digit value.
with wetted fingers to
(Digit being programmed flashes)
access Taclite on Time.
Setting
Taclite
Bridge Contacts 1 & 2 with wetted
fingers to select next digit.
0 = Taclite always off. 99 = Taclite always on.
Dive Logbook Bridge Contacts 1 & 2
Main Menu Selection with wetted fingers to
access Logbook.
Short Contacts 1 & 2 with a Coin
selects the next programming option.
Hour
00 to 24
Primary
Screen
Alternate
Screen
Date Month
(Of the dive) (O f the dive)
Ascent Rate Water Temperature Nitrox O2%
(Of current Blend
(Maximum Ascent
set point).
Rate during dive)
Main
TEMP
Screen
A
S
NDC
C
E
N
T
MAX DEPTH
Alternate
. .
Screen
CNS Oxygen Battery
Max Depth
Toxicity in % Voltage
(Of the dive)
Normal Dive
3
Max Deco
DEC Time Remain
Ceiling
(Max amount of Deco time)
REMAIN TIME CEIL
A
S
C
DEC
E
N
T
BOTTOM SURF MAX DEPTH
Short Contacts 1 & 2 with
a Coin exits programming.
POST DIVE INTERVAL
The first ten minutes after a dive the Commander will be
in the Post Dive Interval Mode.
This is indicated by the 'SURF' legend flashing once per second.
If a dive is initiated while the Commander is in this mode it will
be considered a continuation of the previous dive.
Dive of "Day" Time To Fly
SURF legend
(Repetitive Dive (Hours before (Flashing.)
Number) safely flying.)
FLY TEMP
D
I
V
E
BOTTOM SURF MAX DEPTH
. .
Max Depth
Bottom Time Surface Interval
(Of the last dive) (Of the last dive)
(Amount of time
since the last dive)
Ascent Rate Bar Graph in Feet Per Minute (fpm)
Via the Analyst, the Ascent Bar Graph can be set to:
- Variable-by-depth where Bar value determined by
depth: 60 feet and deeper - 60 fpm
59 to 30 feet - fpm equal to depth
Less than 30 feet - 30 fpm
- Proportional Each Bar is 20% of selected rate
- Fixed (Speed) Each bar is 10 fpm
- Sensitivity from 0 to 7 (See Manual)
Fixed at 60 fpm
Depth less than 30 ft
Minutes
A
A
50 fpm or more
00 to 59
S S
40 To 49 fpm
C
C
30 To 39 fpm
E
E
20 To 29 fpm
N N
10 To 19 fpm
T T
Year
(Of the dive)
OTU Oxygen
Toxicity in %
Nitrox O2%
Deco Dive
(Of current Blend
(Water Temperature)
set point).
Main
TEMP
Screen
Alternate
.
Screen
CNS Oxygen Battery OTU Oxygen
Toxicity in % Toxicity in %
Voltage
Deco Dive
Nitrox O2%
(Blend #1 Set Point)
Main
Screen
BATT
Alternate
. .
Screen
OTU Oxygen
CNS Oxygen Battery
Toxicity in % Voltage Toxicity in %
Greater than 60 Feet Per Minute,
WARNING and top bar of graph will flash.
