Assembly Instructions for Accurate Furniture AFDVglass
Thank you for choosing Sanus Systems Accurate Furniture. Every effort has been made to ensure that your Sanus fur-
niture is perfect. If you have questions or feel that there is a problem of any kind, please contact us at 800.359.5520 or
www.sanus.com. We can quickly help with any issues regarding assembly or missing parts. Replacement parts for Sanus
products purchased through authorized dealers will be shipped directly to you.
Supplied Parts and Hardware:
rim
rib
AFDVglass
AFAglass
(4) Foot - a
(8) Shelf Connector - b
(20) Glass Protector - c
(8) 9" Pillar - d
(4) Top Bolt Washer - e
(4) Top Bolt - f

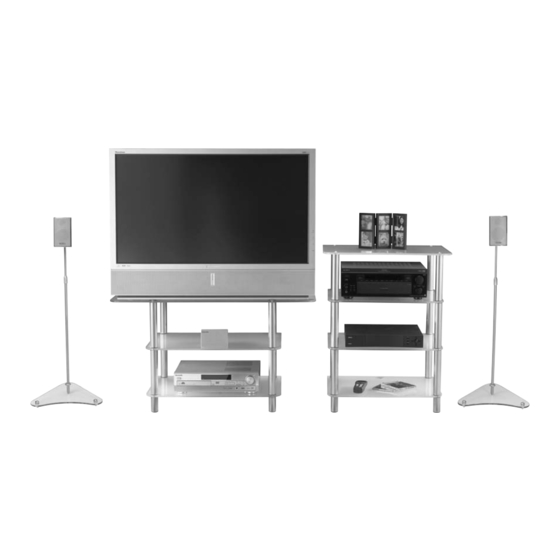

AFDVglass shown with matching AFAglass audio stand and HTB4 speaker stands.
(3) Lower Shelf - g
(1) Top Shelf - h
4
1
Sanus Systems 3785 Lexington Avenue North Saint Paul, MN 55126
Sanus Systems 3785 Lexington Avenue North Saint Paul, MN 55126
800.359.5520 www.sanus.com
071003
800.359.5520 www.sanus.com
Advertisement
Related Manuals for Sanus AFDVglass
Summary of Contents for Sanus AFDVglass
- Page 1 Assembly Instructions for Accurate Furniture AFDVglass Thank you for choosing Sanus Systems Accurate Furniture. Every effort has been made to ensure that your Sanus fur- niture is perfect. If you have questions or feel that there is a problem of any kind, please contact us at 800.359.5520 or www.sanus.com.
- Page 2 Figure 1 Figure 2 Figure 7 Figure 8 Assembly from Step 1 1] Thread a Shelf Connector (b) into each Foot (a). Next slide a Glass Protector (c) over each Shelf Connector as shown 7] Repeat Step 3 as shown in Figure 7. in Figure 1.
