ICM Controls SC710 Installation, Operation & Application Manual

SC710
Non-Programmable Fan Coil Thermostat
Installation, Operation & Application Guide
For more information on our complete range of
American-made products – plus wiring diagrams,
troubleshooting tips and more, visit us at
www.icmcontrols.com

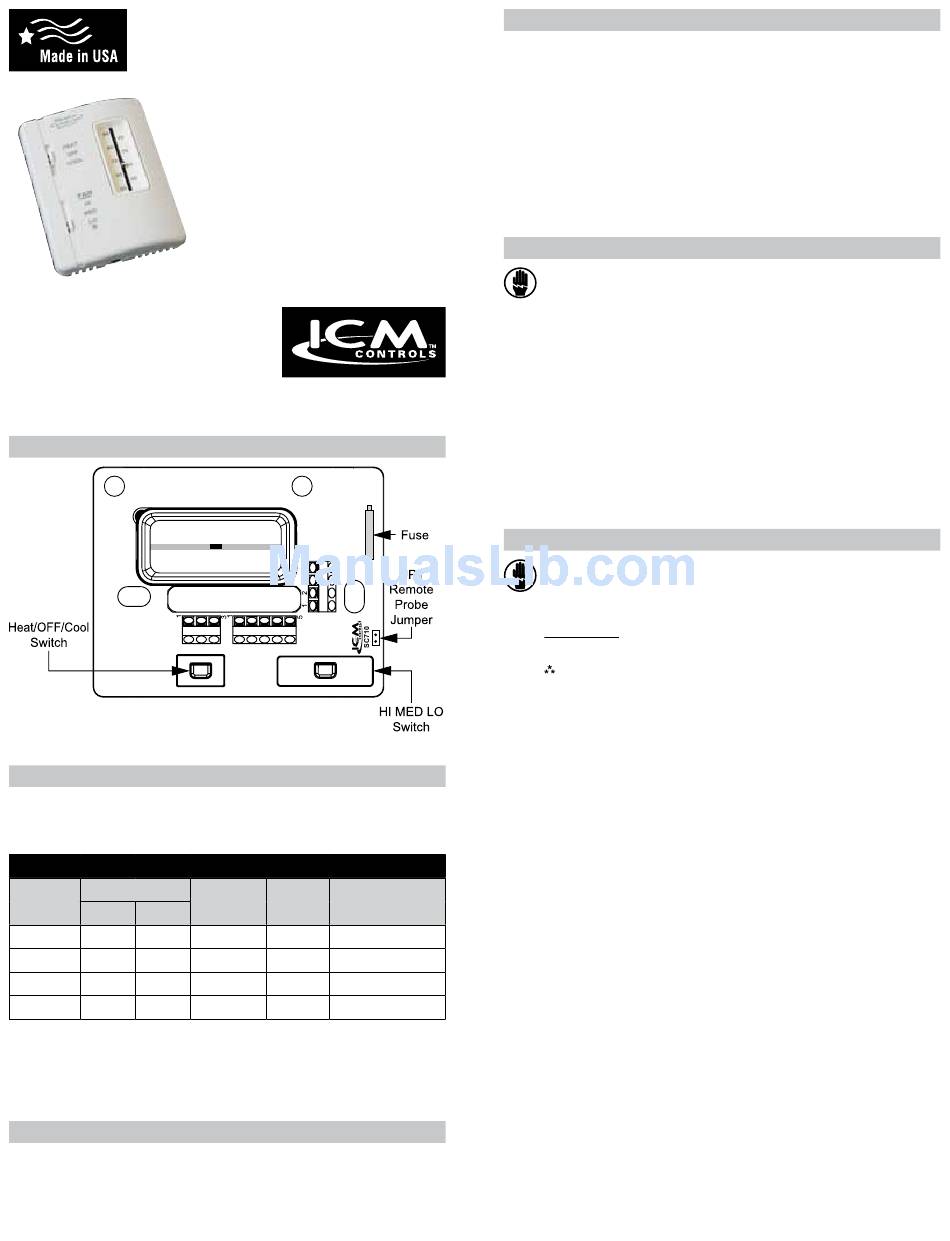

Parts Diagrams (SC710)
Specifications
Input:
• Voltage: 24-277 VAC
Output:
Fan and System Switches
Inductive
Voltage
Rating
FLA LRA
24 VAC N/A N/A
120 VAC 5.8 34.8
240 VAC 2.9 17.4
277 VAC 2.4 14.4
• Temperature control ranges: 50°F to 90°F Accuracy: ± 1°F
• Differential range: Fixed 1°F
• System configurations: Single-stage heat, single-stage cool
Specifications
Package includes: SC710 non-programmable thermostat on base,
thermostat cover, wiring labels, screws and wall
anchors, Installation, Operation and Application Guide.
Tools required for installation: Drill with 3/16" bit, hammer, screwdriver.
• Line Voltage
• Manual Changeover
• Controls Single Stage Heating/
Cooling Systems
• 3-speed fan control
• Easy slide bar temperature
adjustment
• Mercury-Free, Environmentally
Safe
Resistive Pilot Thermostatic
Amps Duty Switching
N/A 24 VA 10 VA
6.0 125 VA 20 VA
5.0 125 VA 20 VA
4.2 125 VA 20 VA
Important Safety Information
• Always turn off the thermostat before installing, removing, cleaning, or
servicing; turn off the power at the main power source by unscrewing fuse
or switching off circuit breaker
• Do not install on voltages higher that 277 VAC
• All wiring must conform to local and national building and electrical codes
and ordinances
• While cleaning, do not get soap directly on thermostat switches or slide
bar area; only use a damp cloth with a mild soap to wipe outside of
thermostat cover
To Remove Existing Thermostat
ELECTRICAL SHOCK HAZARD – Turn off power at the main
service panel by removing the fuse or switching the appropriate
circuit breaker to the OFF position before removing the existing
thermostat.
1. Turn off power to the heating system by removing the fuse or switching
the appropriate circuit breaker off.
2. Remove cover of old thermostat. This should expose the wires.
3. Label the existing wires with the enclosed wire labels before removing
wires.
4. After labeling wires, remove wires from wire terminals.
5. Remove existing thermostat base from wall.
6. Refer to the following section for instructions on how to install this
thermostat.

To Install Thermostat

ELECTRICAL SHOCK HAZARD – Turn off power at the main
service panel by removing the fuse or switching the appropriate
circuit breaker to the OFF position before removing the existing
thermostat.
IMPORTANT: Thermostat installation must conform to local and
national building and electrical codes and ordinances.
Note: Mount the thermostat about five feet above the floor. Do not
mount the thermostat on an outside wall, in direct sunlight,
behind a door, or in an area affected by a vent or duct.
1. Turn off power to the heating and cooling system by removing the fuse
or switching off the appropriate circuit breaker. Move the Fan switch to
OFF .
2. Move the Heat/OFF/Cool switch to OFF.
3. Move Fan switch to either HI/MED/LO.
4. To remove cover, remove screw from side of thermostat.
5. Put thermostat base against the wall where you plan to mount it
(Be sure wires will feed through the wire opening in the base of the
thermostat).
6. Mark the placement of the mounting holes.
7. Set thermostat base and cover away from working area.
8. Using a 3/16" drill bit, drill holes in the places you have marked for
mounting.
9. Use a hammer to tap supplied anchors into mounting holes.
10. Align thermostat base with mounting holes and feed the control wires
through wire opening.
11. Use supplied screws to mount thermostat base to wall.
CAUTION!: Be sure exposed portion of wires does not touch
other wires.
12. Tighten screws on terminal block. Gently tug wire to be sure of proper
connection. Double check that each wire is connected to the proper
terminal.
13. Replace cover on thermostat by snapping it in place.
14. Reinstall screw to secure cover to base.
15. Turn on power to the system at the main service panel.
