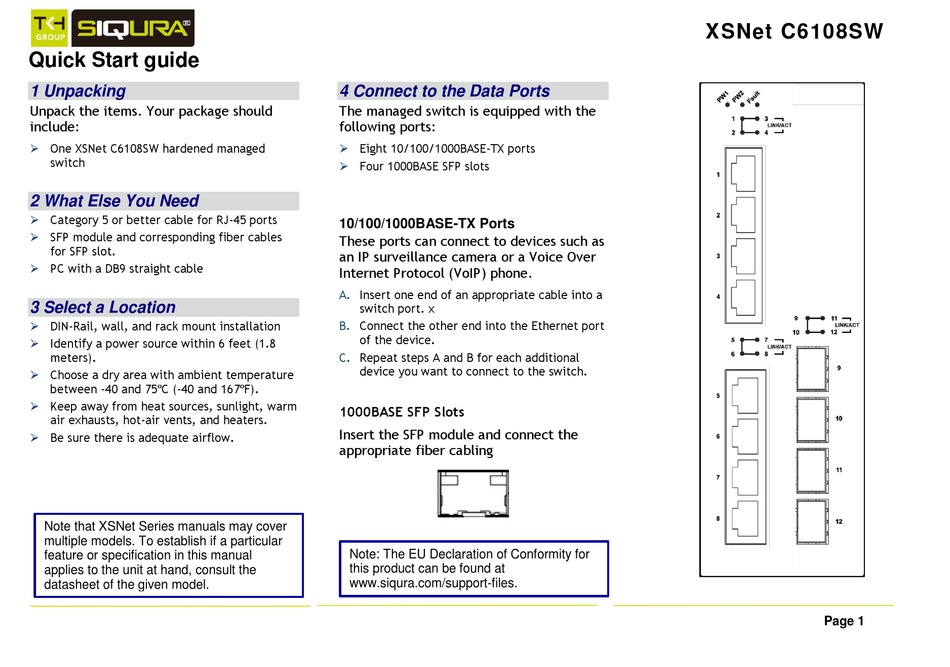

Siqura XSNet C6108SW Quick Start Manual

Quick Start guide

1 Unpacking
Unpack the items. Your package should
include:
 One XSNet C6108SW hardened managed
switch
2 What Else You Need
 Category 5 or better cable for RJ-45 ports
SFP module and corresponding fiber cables

for SFP slot.
 PC with a DB9 straight cable
3 Select a Location
DIN-Rail, wall, and rack mount installation

 Identify a power source within 6 feet (1.8
meters).
Choose a dry area with ambient temperature

between -40 and 75ºC (-40 and 167ºF).
 Keep away from heat sources, sunlight, warm
air exhausts, hot-air vents, and heaters.
Be sure there is adequate airflow.

Note that XSNet Series manuals may cover
multiple models. To establish if a particular
feature or specification in this manual
applies to the unit at hand, consult the
datasheet of the given model.
4 Connect to the Data Ports
The managed switch is equipped with the
following ports:
 Eight 10/100/1000BASE-TX ports
Four 1000BASE SFP slots

10/100/1000BASE-TX Ports
These ports can connect to devices such as
an IP surveillance camera or a Voice Over
Internet Protocol (VoIP) phone.
A. Insert one end of an appropriate cable into a
switch port. x
B. Connect the other end into the Ethernet port
of the device.
C. Repeat steps A and B for each additional
device you want to connect to the switch.
1000BASE SFP Slots
Insert the SFP module and connect the
appropriate fiber cabling
Note: The EU Declaration of Conformity for
this product can be found at
www.siqura.com/support-files.
XSNet C6108SW
Page 1
