Centralite 3157100 Installation Manual

Programming Mode Options
08
Menu ID Description
(defaults listed in bold)
09
01 Temperature Display
10
00: Celsius
01: Fahrenheit
02 Heat System Type
00: Non-Heat Pump
01: Heat Pump
03 Heat Source
11
00: Electric
01: Gas / Oil / Fuel
12
04 Temperature Calibration
13
± 2.5 Celsius | ± 4.5 Fahrenheit
14
05 Set Minimum Heat Point | Default: 44°F, 7°C
15
06 Set Maximum Heat Point | Default: 86°F, 30°C
16
07 Set Minimum Cool Point Default: 44°F, 7°C
Set Maximum Cool Point Default: 86°F, 30°C 17 Factory Reset | 11: Yes
Set Minimum Deadband 18 Display Configuration and Network Settings
Default: 1.8°F, 1.0°C
Sequence of Operation 19 Reset Counter
00: Cool Only
20 Standby Display Brightness | 0-99
01: Cool w/ Reheat
02: Heat Only
Joining the Thermostat to Your ZigBee Network
03: Heat w/ Reheat
Note: The thermostat is configured to automatically search for open
04: Full Auto
ZigBee networks upon power-up for 90 seconds.
05: Full Auto w/ Reheat
Complete the following steps to join the thermostat to your
Easy Mode | 11: Yes ZigBee network:
1. Open your ZigBee touchscreen, router, or gateway for joining.
Join Network | 01: Yes
2. On the thermostat, enter programming mode and navigate to
Leave Network | 11: Yes
menu option 12, press HOLD to enter the "Join Network" menu,
Rejoin Network | 01: Yes
press (+) to display "01", then press HOLD again to begin
searching for an open network.
Detect System Type | 01: Yes
3. The thermostat should now pair with your ZigBee network.
Reset | 01: Yes
Follow any on-screen prompts from your ZigBee touchscreen,
router, or gateway to complete setup.

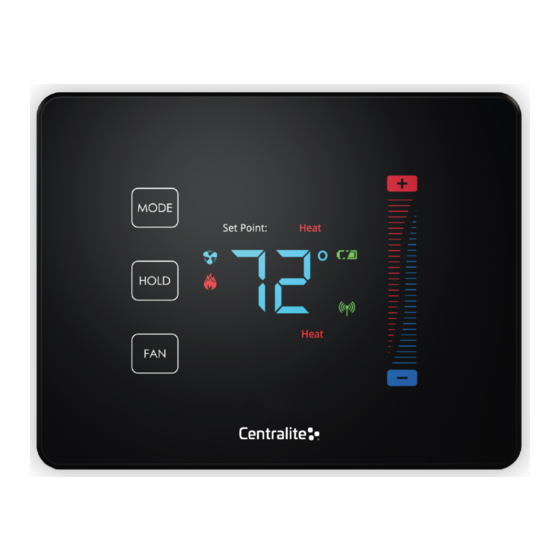

Thermostat Overview
Fan Indicator Set Point Indicator
Hidden Menu Button
Current Mode
Heat Indicator
ZigBee Status
TOUCH THERMOSTAT
Set Point Up
Slider
3157100
Set Point Down
INSTALLATION GUIDE
